- Code Machine
- FL831
- Fabricant
- UTECO
- Modello
- ONYX 810
- Année
- 2011
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1650
- Print width (mm)
- 1600
- Min print repeat (mm)
- 450
- Max print repeat (mm)
- 1100
- Unwinder type
- Turret automatic
- Rewinder type
- Turret automatic
- Drying
- 2 zones - 4 fans - 5 mt tunnel - 2 gas burners - automatic recirculation system with LEL control
- Videocamera
- Yes
- Corona treatment
- yes
- Web guides
- Yes in and out
- Vyscosity control
- Yes
- Washing system
- Yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- 12 ceramic anilox sleeves
- Print Sleeves
- 80
Code Machine | FL831 |
Fabricant | UTECO |
Modello | ONYX 810 |
Année | 2011 |
Number of colors | 8 |
Print possibilityes | 8+0 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1650 |
Print width (mm) | 1600 |
Min print repeat (mm) | 450 |
Max print repeat (mm) | 1100 |
Unwinder type | Turret automatic |
Rewinder type | Turret automatic |
Drying | 2 zones - 4 fans - 5 mt tunnel - 2 gas burners - automatic recirculation system with LEL control |
Videocamera | Yes |
Corona treatment | yes |
Web guides | Yes in and out |
Vyscosity control | Yes |
Washing system | Yes automatic |
Inking system | Closed chamber doctor blades |
Anilox | 12 ceramic anilox sleeves |
Print Sleeves | 80 |
FLEXOTECNICA TACHYS
-
Code Machine: FL0995
-
Année: 2000
-
Web width (mm): 950

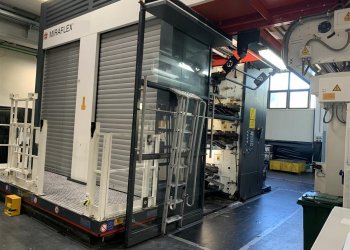

WINDMÖLLER & HÖLSCHER ASTRAFLEX
-
Code Machine: FL1002
-
Année: 2001
-
Web width (mm): 1420
WINDMÖLLER & HÖLSCHER PRIMAFLEX CM8
-
Code Machine: FL1079
-
Année: 2007
-
Web width (mm): 1320
COMEXI FB2108
-
Code Machine: FL0867
-
Année: 2006
-
Web width (mm): 1270
SOMA MINI FLEX
-
Code Machine: FL1051
-
Année: 2005
-
Web width (mm): 850
FISCHER & KRECKE 34DF/8 CNC
-
Code Machine: FL0695
-
Année: 1995
-
Web width (mm): 1250
