- Code Machine
- FL735
- Fabricant
- COMEXI
- Modello
- FP GL 1808
- Année
- 2002
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

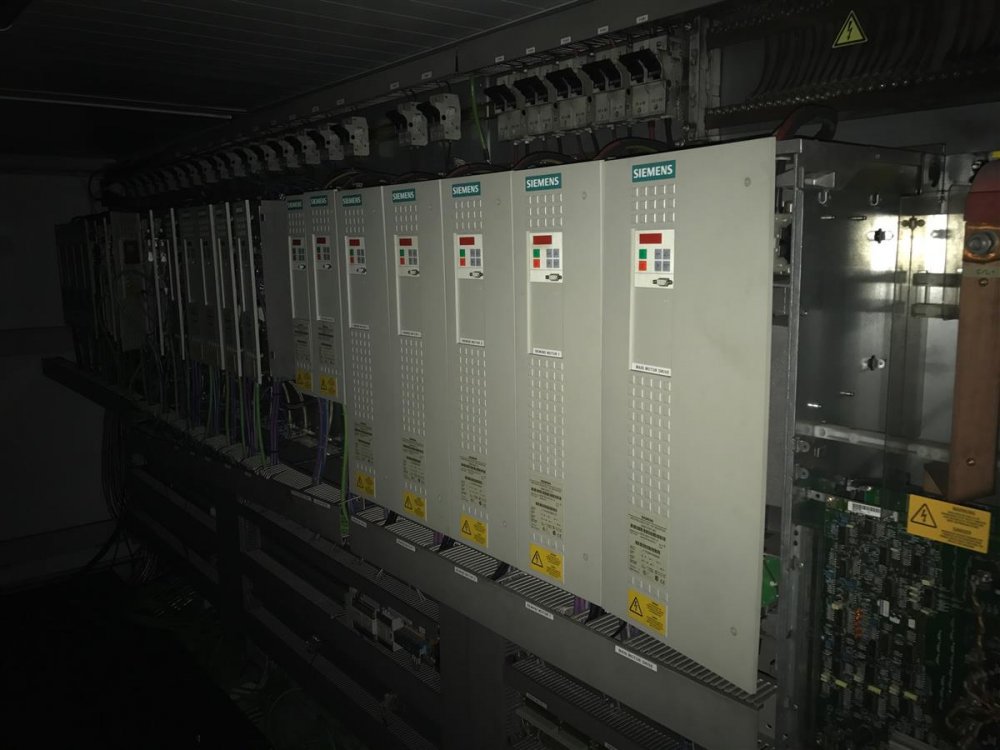

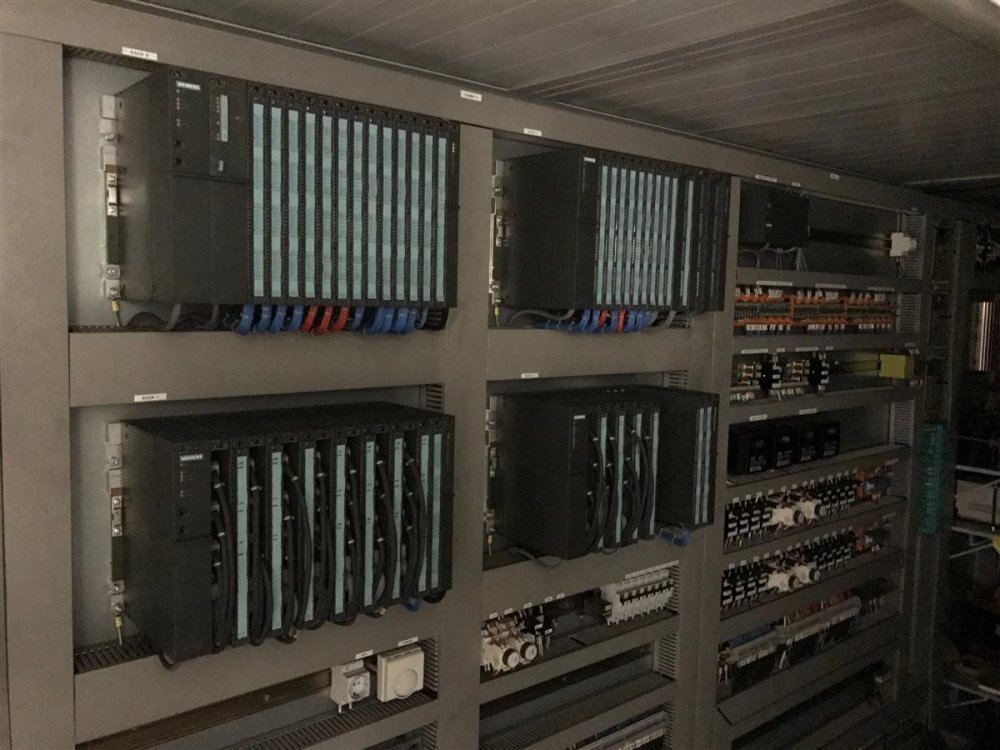

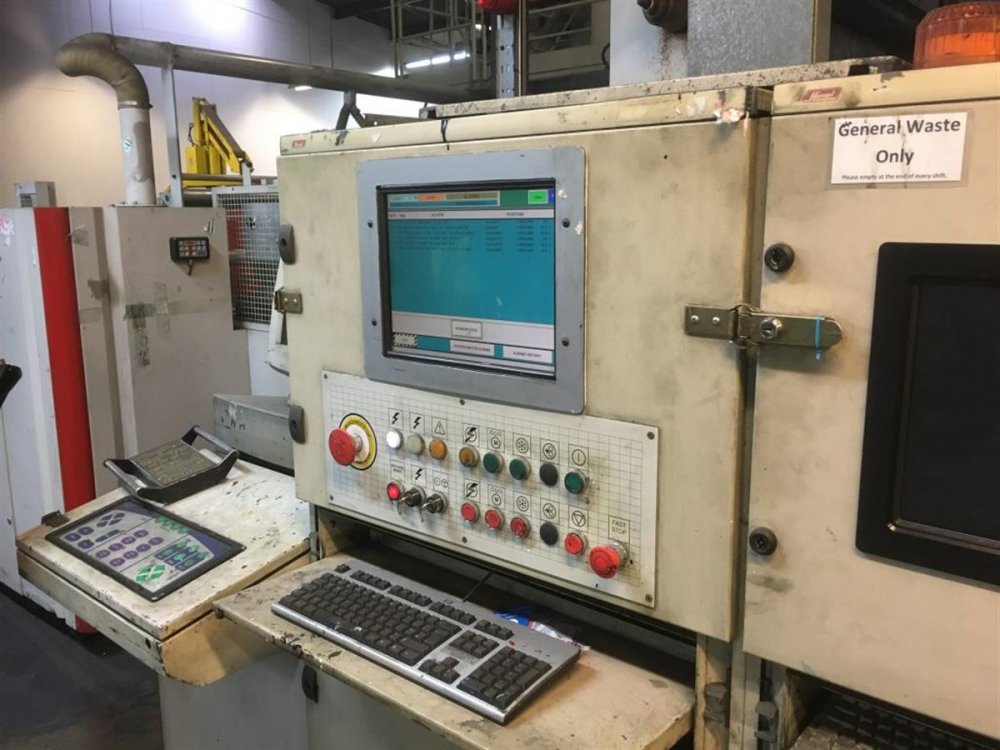

- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 350
- Max print repeat (mm)
- 680

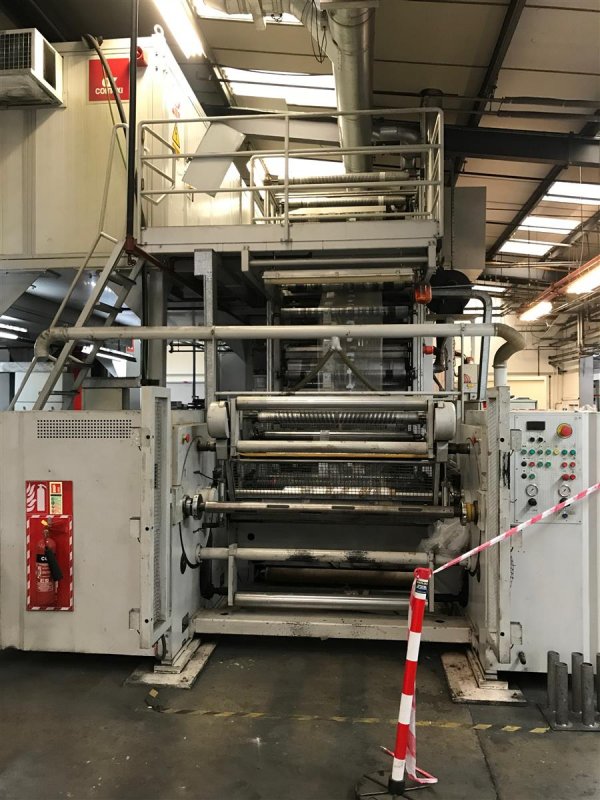

- Unwinder type
- TURRET WITH SPLICE
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET WITH SPLICE
- Max reel diameter rewinder (mm)
- 800

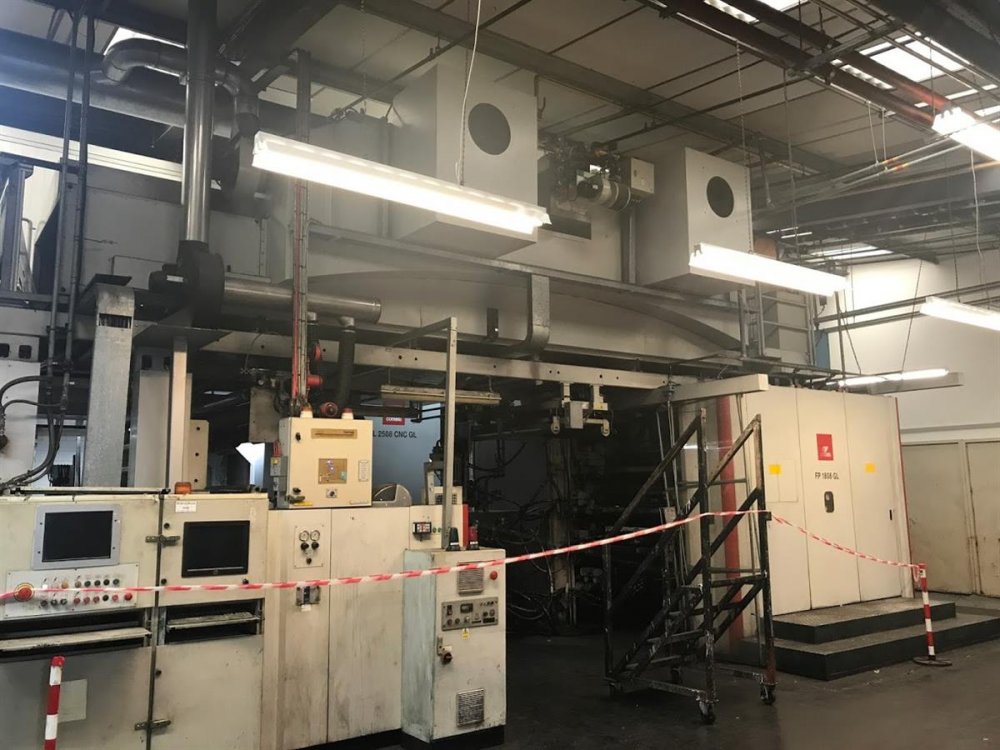

- Drying
- 2 zone drying 4 fans 2 gas burners drying lenght 7.2 mtrs

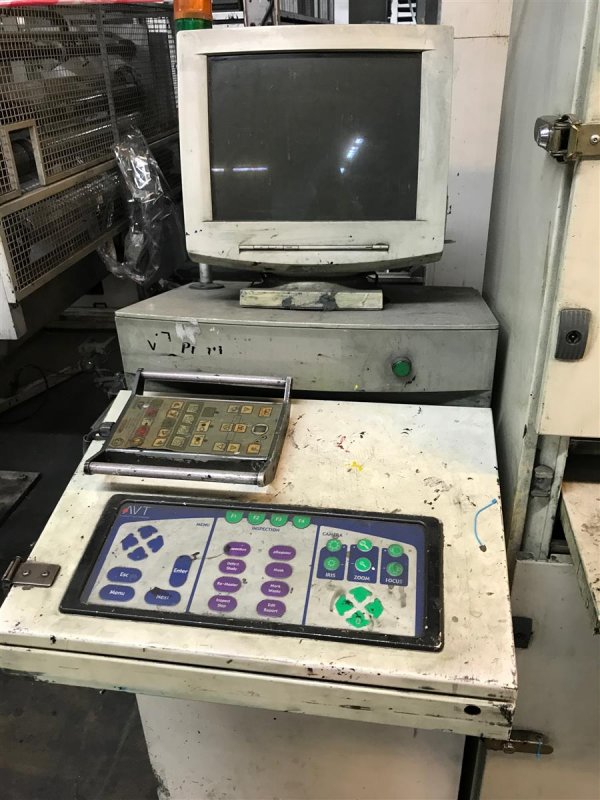

- Videocamera
- AVT Genius
- Corona treatment
- Albrandt
- Web guides
- BST
- Vyscosity control
- Inelme automatic
- Washing system
- Semi automatic
- Inking system
- Closed chabers doctor blades
- Anilox
- 14 as follows: 2x10.8V;1x10V;1x14V;1x11V;1x6.5V;1x6V;2x9V;1x4.2V;4x3.4V
- Print Sleeves
- 218 as follows: 16x375,380, 480,500; 8x385,455,470,520,530,535,560,570,580,590,610,630mm; 10x460,510mm; 14x540mm
- Note
- mechanical speed 350 m/min Inline slitting, blades and roller , no extract fan Materials LDPE, OPP, CPP
| Code Machine | FL735 |
| Fabricant | COMEXI |
| Modello | FP GL 1808 |
| Année | 2002 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 350 |
| Max print repeat (mm) | 680 |
| Unwinder type | TURRET WITH SPLICE |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | TURRET WITH SPLICE |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 zone drying 4 fans 2 gas burners drying lenght 7.2 mtrs |
| Videocamera | AVT Genius |
| Corona treatment | Albrandt |
| Web guides | BST |
| Vyscosity control | Inelme automatic |
| Washing system | Semi automatic |
| Inking system | Closed chabers doctor blades |
| Anilox | 14 as follows: 2x10.8V;1x10V;1x14V;1x11V;1x6.5V;1x6V;2x9V;1x4.2V;4x3.4V |
| Print Sleeves | 218 as follows: 16x375,380, 480,500; 8x385,455,470,520,530,535,560,570,580,590,610,630mm; 10x460,510mm; 14x540mm |
| Note | mechanical speed 350 m/min Inline slitting, blades and roller , no extract fan Materials LDPE, OPP, CPP |
