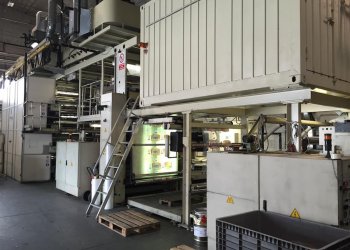

- Code Machine
- FL667
- Fabricant
- FLEXOTECNICA
- Modello
- POLICROM
- Année
- 2007
- Number of colors
- 10
- Gearless
- No
- Fast sleeve change
- No
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1630
- Print width (mm)
- 1500
- Min print repeat (mm)
- 330
- Max print repeat (mm)
- 1100
- Unwinder type
- Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Battery at diathermic oil
- Videocamera
- AVT
- Web guides
- Yes in and out
- Vyscosity control
- Gama
- Inking system
- Solvent based
- Anilox
- 34
- Print cylinders
- 282 as follows: 8x330,340,350,360,380,410,420,440,480,510,540,550,570,600,610,620,630,650,680,710,840; 16x370,400; 10x390,580,670,830,850; 20x500; 12x660 mm
- Note
- Motorized registers Thickness cliche 1,14 to 2,84 Cores diam 76-152mm Speed 300mt/min Materials PE, PP, ETC
| Code Machine | FL667 |
| Fabricant | FLEXOTECNICA |
| Modello | POLICROM |
| Année | 2007 |
| Number of colors | 10 |
| Gearless | No |
| Fast sleeve change | No |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1630 |
| Print width (mm) | 1500 |
| Min print repeat (mm) | 330 |
| Max print repeat (mm) | 1100 |
| Unwinder type | Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Battery at diathermic oil |
| Videocamera | AVT |
| Web guides | Yes in and out |
| Vyscosity control | Gama |
| Inking system | Solvent based |
| Anilox | 34 |
| Print cylinders | 282 as follows: 8x330,340,350,360,380,410,420,440,480,510,540,550,570,600,610,620,630,650,680,710,840; 16x370,400; 10x390,580,670,830,850; 20x500; 12x660 mm |
| Note | Motorized registers Thickness cliche 1,14 to 2,84 Cores diam 76-152mm Speed 300mt/min Materials PE, PP, ETC |
