- Código Máquina
- PO23
- Constructor
- ELBA
- Modello
- SAV 30-08
- Año
- 2013
- Type of sealing/bags
- Multiple type
- Bag width
- max 800
- Unwinder
- DOUBLE
- Cycle / min
- 200 cycle/min
- Additional information type of bags
- 3 side sealed, pouches, doypack with zipper, central sealing side gusseted pouch
- Note

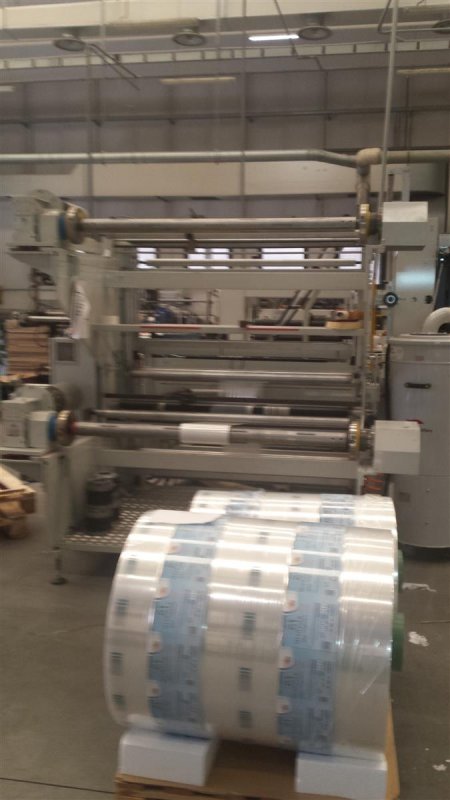

- Material speed 50m/min 1 lane for doypack and central sealing coffe standing pouch 6 lanes for 3 side sealed Doypack: 100 to 400mm width 120 to 520mm lenght With zip min 150 width max 520 lenght Side gusseted pouch - with central ceiling 150 to 800mm width 80 to 400mm lenght with side ceiling 160 to 380mm width (90 cucle/min) UNWINDER: 1400mm max material 1000mm diameter Air shafts 76mm Monofolding triangle Side gusseter Edge trim cutter Photocell for printed film Automatic collecting table Chiller
| Código Máquina | PO23 |
| Constructor | ELBA |
| Modello | SAV 30-08 |
| Año | 2013 |
| Type of sealing/bags | Multiple type |
| Bag width | max 800 |
| Unwinder | DOUBLE |
| Cycle / min | 200 cycle/min |
| Additional information type of bags | 3 side sealed, pouches, doypack with zipper, central sealing side gusseted pouch |
| Note | Material speed 50m/min 1 lane for doypack and central sealing coffe standing pouch 6 lanes for 3 side sealed Doypack: 100 to 400mm width 120 to 520mm lenght With zip min 150 width max 520 lenght Side gusseted pouch - with central ceiling 150 to 800mm width 80 to 400mm lenght with side ceiling 160 to 380mm width (90 cucle/min) UNWINDER: 1400mm max material 1000mm diameter Air shafts 76mm Monofolding triangle Side gusseter Edge trim cutter Photocell for printed film Automatic collecting table Chiller |
