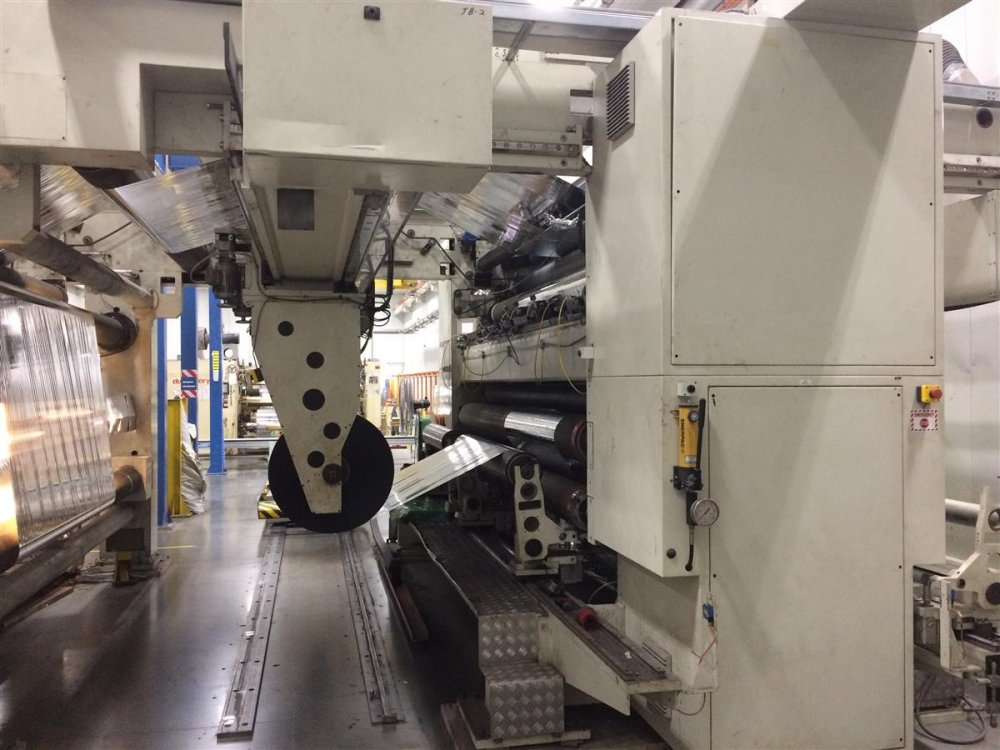

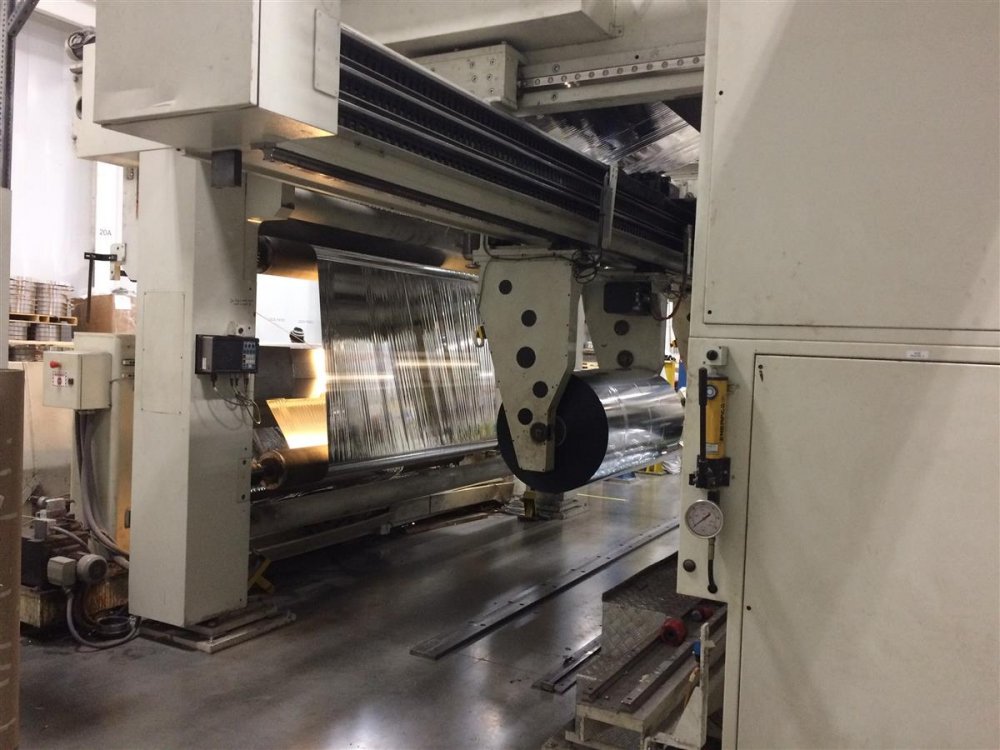

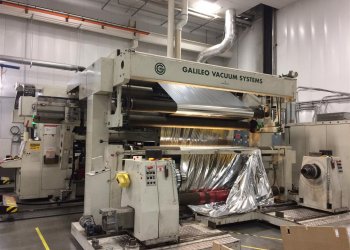

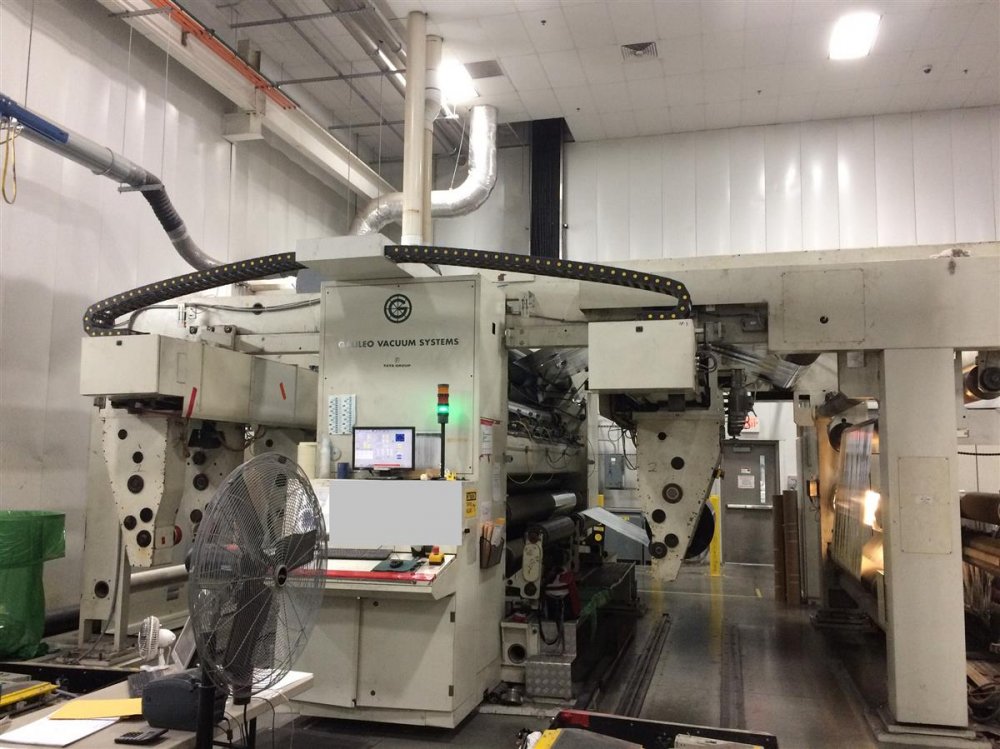

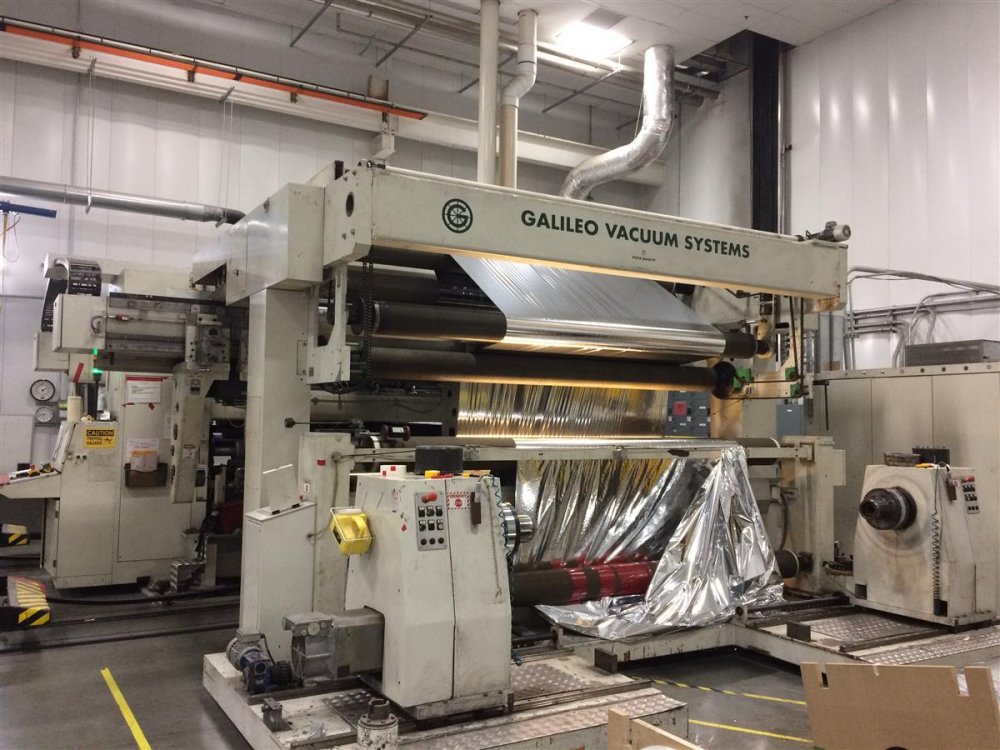

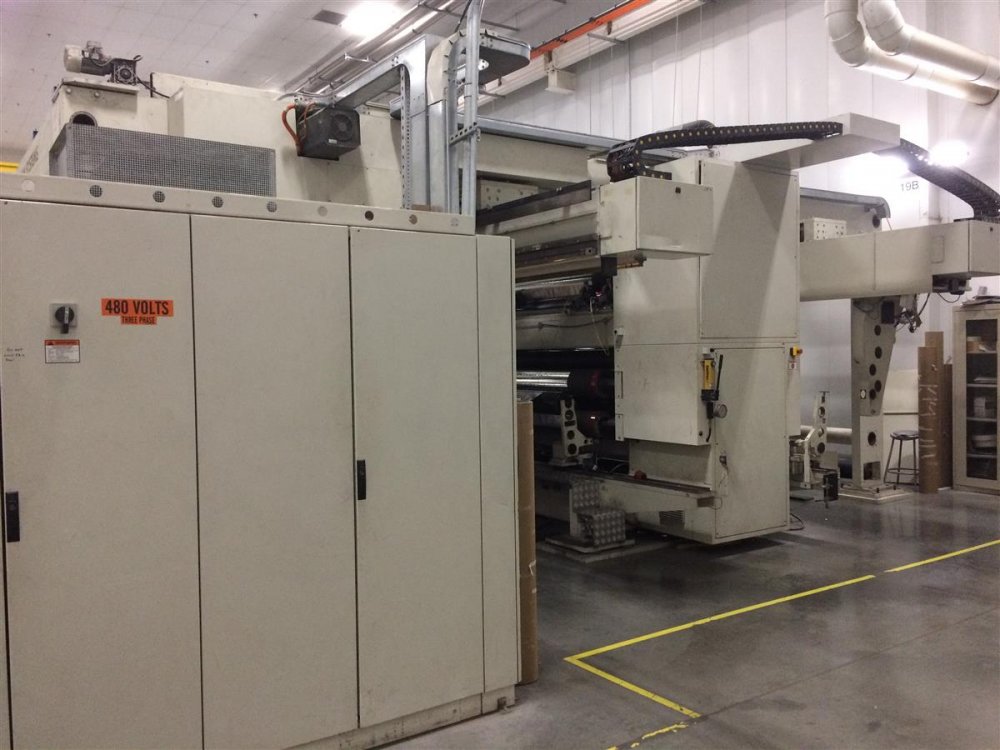

- Código Máquina
- SR389
- Constructor
- GALILEO
- Modello
- MRS 3312
- Año
- 2002
- Working width (mm)
- 3350
- Materials
- PET: 8 -35 MY;BOPP: 11-60MY;LDPE: 20-100MY;CPP: 20-60 ;PVC: 20-80 MY
- Speed
- 1000M/MIN mechanical speed
- Max diameter reel unwinder
- 1270
- Rewinder type
- Center and surface driven with independent arms
- Max diameter reel rewinder
- 1000
- Rewinder description
- Center wind, with pressure adjustable peripheral contact rollers. Trolley for reel unload.
- Knives
- razor blades slit system
- Note
- Unwinder: Chucks: Mechanical / Pneumatical 76 + 152 + 254 [mm] ;Sidelay register excursion ± 76 [mm] ;Sidelay register operation - Electro-hydraulic FIFE;Sensor - ultrasonic edge Rewinder: max reels width from 330 [mm] -to 3350 [mm];Chucks Mechanical expansion ;Reels unloading on trolleys;
| Código Máquina | SR389 |
| Constructor | GALILEO |
| Modello | MRS 3312 |
| Año | 2002 |
| Working width (mm) | 3350 |
| Materials | PET: 8 -35 MY;BOPP: 11-60MY;LDPE: 20-100MY;CPP: 20-60 ;PVC: 20-80 MY |
| Speed | 1000M/MIN mechanical speed |
| Max diameter reel unwinder | 1270 |
| Rewinder type | Center and surface driven with independent arms |
| Max diameter reel rewinder | 1000 |
| Rewinder description | Center wind, with pressure adjustable peripheral contact rollers. Trolley for reel unload. |
| Knives | razor blades slit system |
| Note | Unwinder: Chucks: Mechanical / Pneumatical 76 + 152 + 254 [mm] ;Sidelay register excursion ± 76 [mm] ;Sidelay register operation - Electro-hydraulic FIFE;Sensor - ultrasonic edge Rewinder: max reels width from 330 [mm] -to 3350 [mm];Chucks Mechanical expansion ;Reels unloading on trolleys; |
