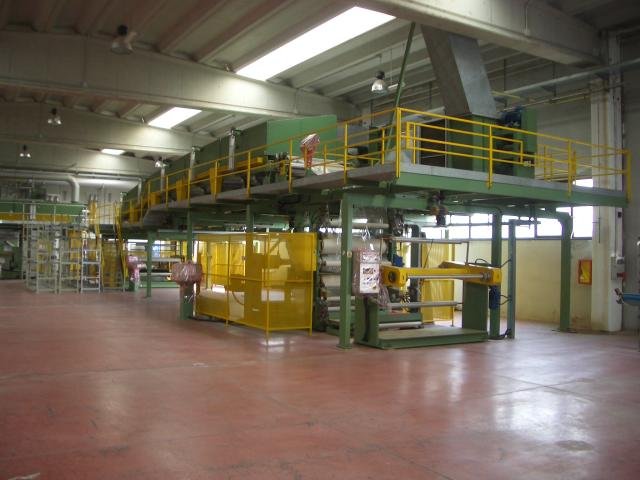

- Código Máquina
- LA159
- Constructor
- SIDECO
- Año
- 1999
- Application
- Coating
- Type of lamination/coating
- WATER BASED
- Working width (mm)
- 1650
- Speed
- 150mt/min

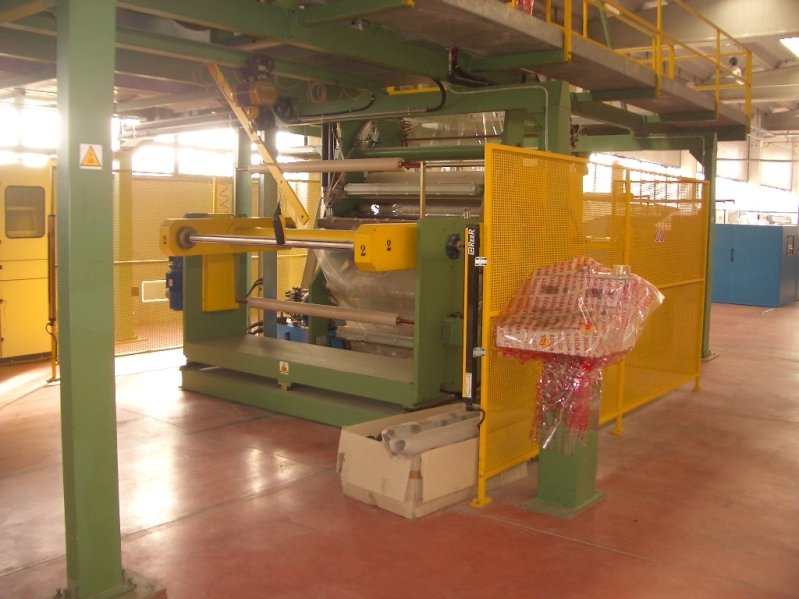

- First unwinder type
- TURRET AUTOMATIC
- Max diameter reel unwinder
- 800

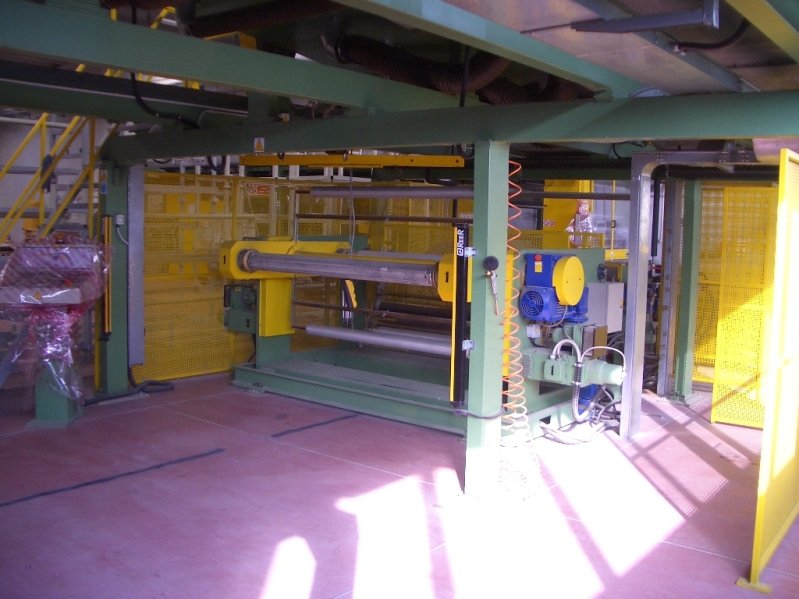

- Rewinder type
- TURRET AUTOMATIC
- Max diameter reel rewinder
- 800

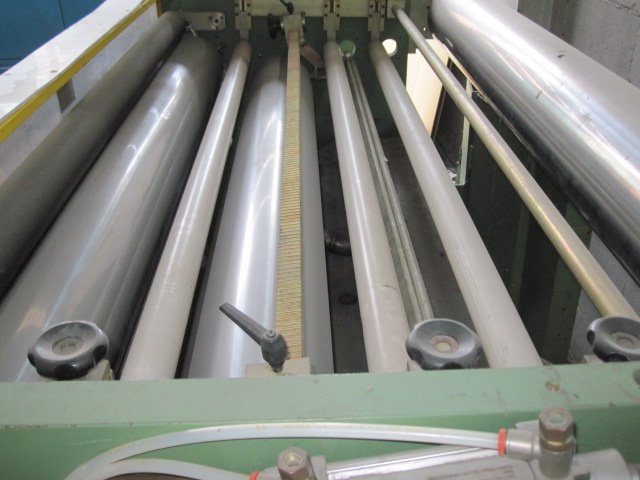

- Coating unit
- Mayer bar

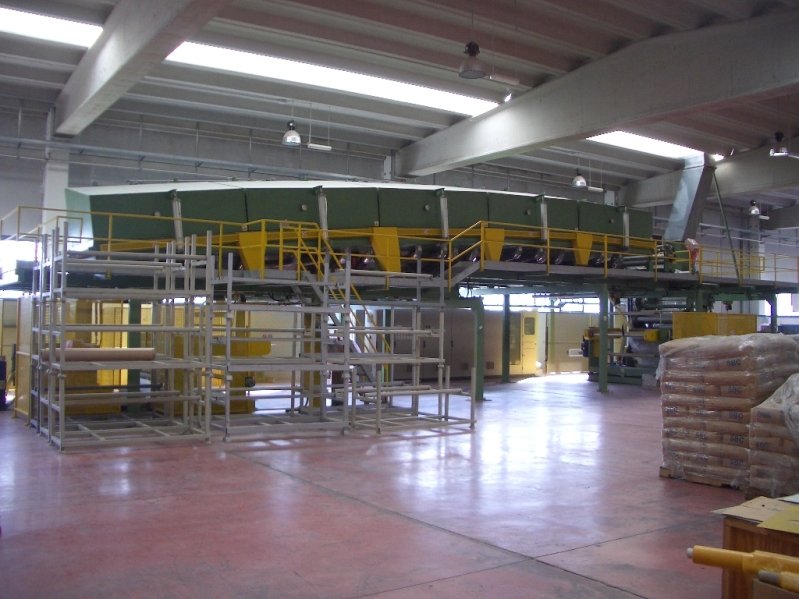

- Drying
- Gas unit 600.000 Kcal/hr (included) ; 5 dryer section of 3m;
- pumping mixing unit
- No
- Corona treatment
- No
- Note

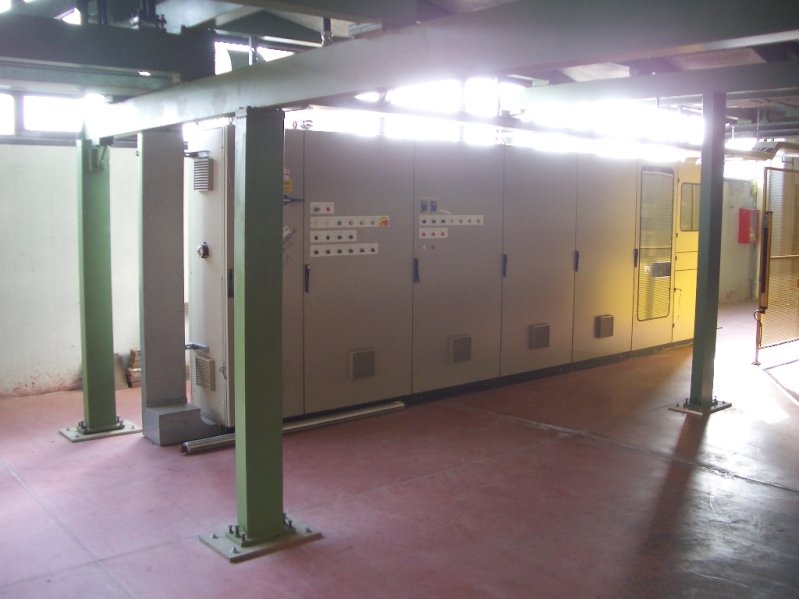

- Acrylic coating line for paper adhesive tapes, labels. Electrical power service 120 Kw (90 Kw) ; Core size at unwinder/rewinder : 152mm; Coating head mayer bar; Web guiding system; Cooling roll; Possibility to add as Option Secondary Unwinder for lamination and modification of chill roller nip
| Código Máquina | LA159 |
| Constructor | SIDECO |
| Año | 1999 |
| Application | Coating |
| Type of lamination/coating | WATER BASED |
| Working width (mm) | 1650 |
| Speed | 150mt/min |
| First unwinder type | TURRET AUTOMATIC |
| Max diameter reel unwinder | 800 |
| Rewinder type | TURRET AUTOMATIC |
| Max diameter reel rewinder | 800 |
| Coating unit | Mayer bar |
| Drying | Gas unit 600.000 Kcal/hr (included) ; 5 dryer section of 3m; |
| pumping mixing unit | No |
| Corona treatment | No |
| Note | Acrylic coating line for paper adhesive tapes, labels. Electrical power service 120 Kw (90 Kw) ; Core size at unwinder/rewinder : 152mm; Coating head mayer bar; Web guiding system; Cooling roll; Possibility to add as Option Secondary Unwinder for lamination and modification of chill roller nip |
