- Código Máquina
- EC43
- Constructor
- ROTOMEC
- Año
- 1980
- Overhaul/renovation

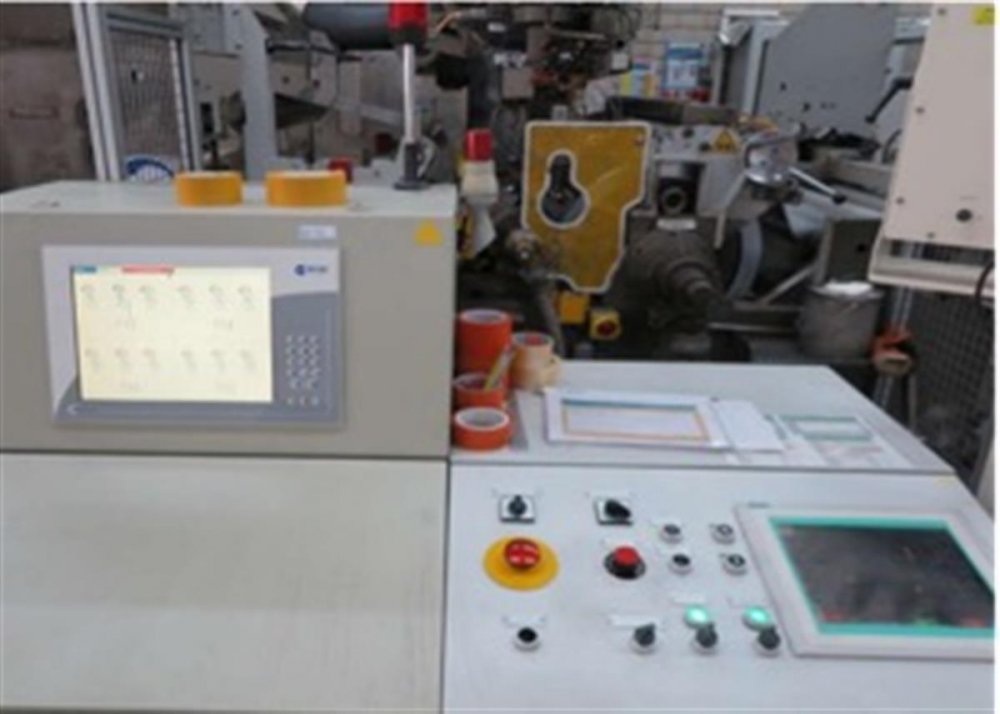

- Renovation of machine's supervision and controls in 2007 with upgrade to SSIEMENS S7 PLC and Siemens HMI with touch panles, NDC thickness gauge in 2014, Colortronic dosing system in 2010,
- Width (mm)
- 1100
- Coating/lamination units
- 2
- Coating/lamination unit 1 description
- Roto coating unit with horizontal dryier Thermal tunnel : 2 hoods (temp 70-150) 2 x hoods (140-240 C), 4 independent heaters 85.000 Kcal/h " x cooling calanders after drying diam 500mm Drying up to 250 deg NOTE: ROTOGRAVURE COATING UNIT PART IS MISSING PARTS. Drying is still in use
- Coating/lamination unit 2 description

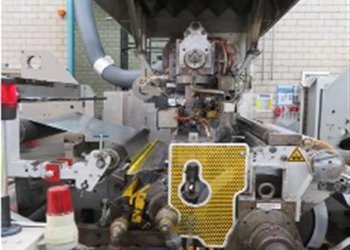

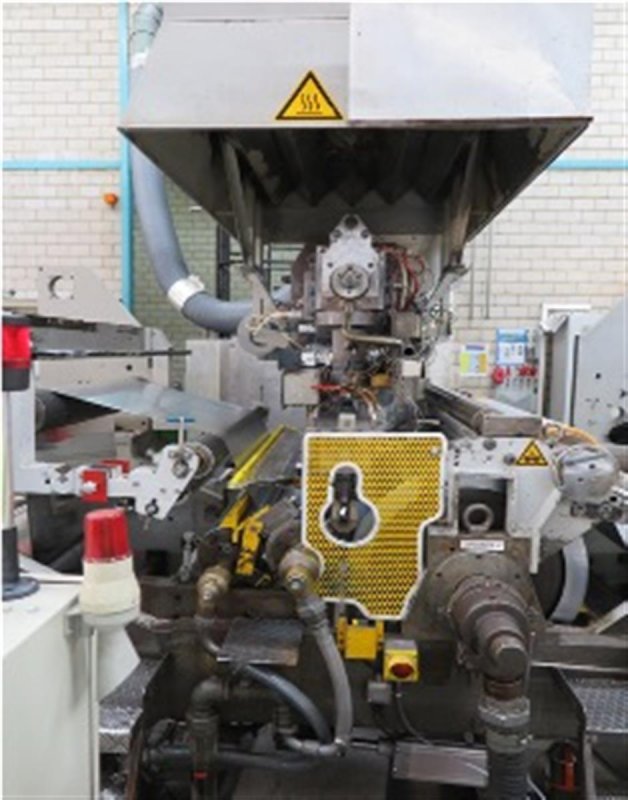

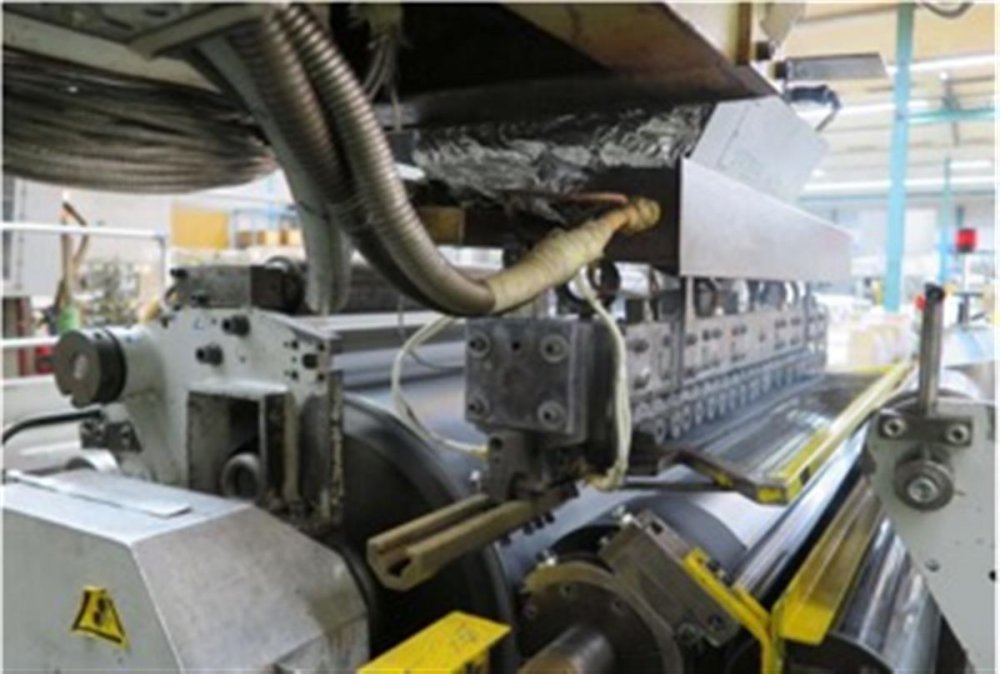

- Extrusion coating unit Extruder Dolci, single layer screw diam 120mm, max 450 Kg/h, Dosing system Colordtonic 4 components year 2010 Chill roll unit, chill roll diam 800mm, laminaion nip, In line edge slitting with circular knives Thickness gauge NDC IR type 1 x spare screw available, 3 x chill rollers spare available Secondary unwinder for lamination was removed, currently machine is used for extrusion coating
- Primary unwinder description

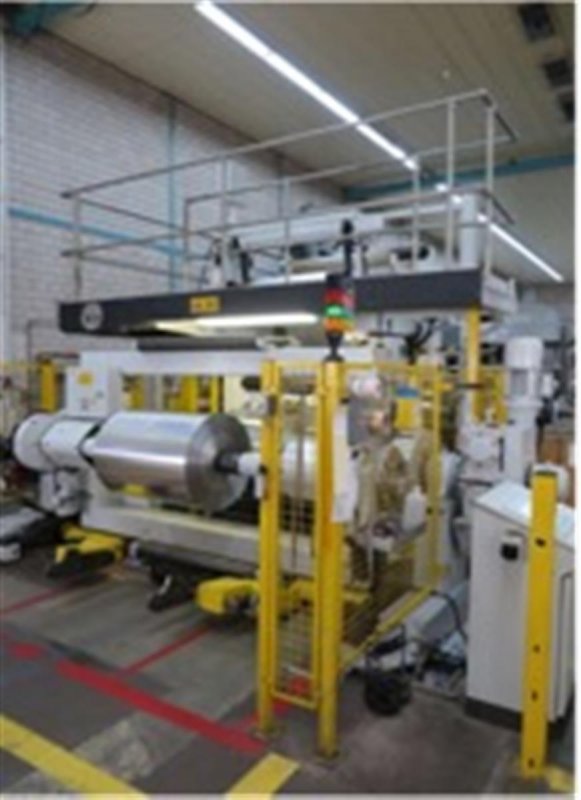

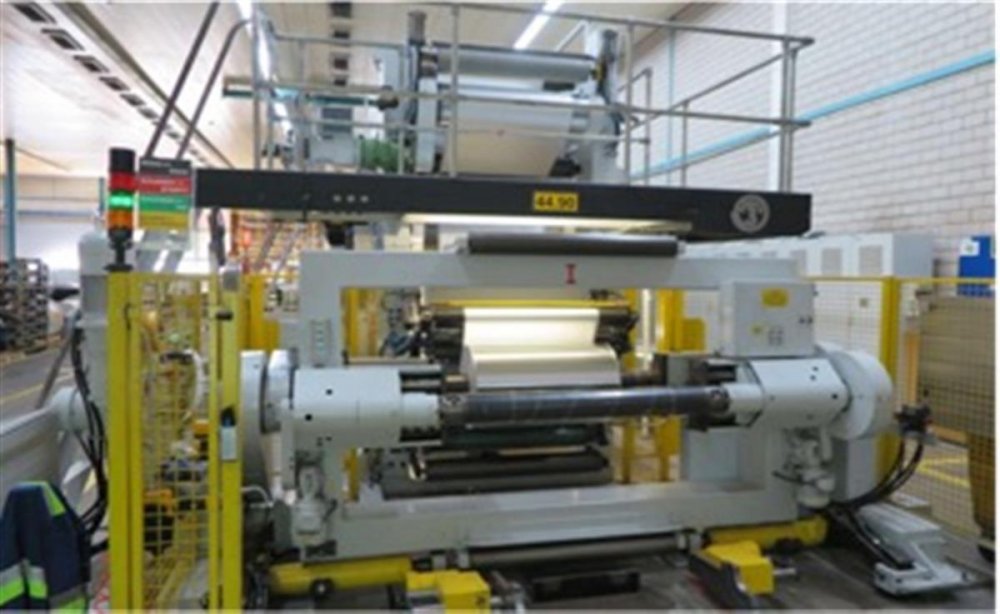

- Turret max diam 1000mm . Width up to 1200mm Make Polytype
- Rewinder description
- Turret max diam 1000mm . Width up to 1200mm Make Polytype
- Speed
- 250m/min
- Note
- Primary Substrate material: up to 500 GSM paper, 20-200my alufoil Lamination material Alu foil from 8 my up, Paper, Film
| Código Máquina | EC43 |
| Constructor | ROTOMEC |
| Año | 1980 |
| Overhaul/renovation | Renovation of machine's supervision and controls in 2007 with upgrade to SSIEMENS S7 PLC and Siemens HMI with touch panles, NDC thickness gauge in 2014, Colortronic dosing system in 2010, |
| Width (mm) | 1100 |
| Coating/lamination units | 2 |
| Coating/lamination unit 1 description | Roto coating unit with horizontal dryier Thermal tunnel : 2 hoods (temp 70-150) 2 x hoods (140-240 C), 4 independent heaters 85.000 Kcal/h " x cooling calanders after drying diam 500mm Drying up to 250 deg NOTE: ROTOGRAVURE COATING UNIT PART IS MISSING PARTS. Drying is still in use |
| Coating/lamination unit 2 description | Extrusion coating unit Extruder Dolci, single layer screw diam 120mm, max 450 Kg/h, Dosing system Colordtonic 4 components year 2010 Chill roll unit, chill roll diam 800mm, laminaion nip, In line edge slitting with circular knives Thickness gauge NDC IR type 1 x spare screw available, 3 x chill rollers spare available Secondary unwinder for lamination was removed, currently machine is used for extrusion coating |
| Primary unwinder description | Turret max diam 1000mm . Width up to 1200mm Make Polytype |
| Rewinder description | Turret max diam 1000mm . Width up to 1200mm Make Polytype |
| Speed | 250m/min |
| Note | Primary Substrate material: up to 500 GSM paper, 20-200my alufoil Lamination material Alu foil from 8 my up, Paper, Film |
