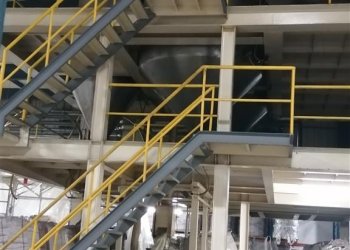

3 capas BRUCKNER Linea de extrusion para bi-orientado ** VENDIDA ** Informaciones adicionales sobre una similar
Código Máquina | BO39 |
Constructor | BRUCKNER |
Año | 2003 |
Numero de capas | 3 |
Estructura film | ABC |
Material | BOPP |
Producción | 3600KG/H , MECHANICAL SPEED 400M/MIN |
Ancho (mm) | 8200 |
Extruder 1 Description | Cascade type extruder: Melting extruder 250mm, Metering extruder 300mm. Candle type screen ,31 candels 3,4 sqm |
Extruder 2 Description | screw diam 105mm , dosing system gravimetric 4 component |
Extruder 3 Description | screw diam 105mm , dosing system gravimetric 4 components |
Descripción cabezal | Make EMO (Austria), width 1140mm, Gap: 1,7-3,5mm, air blade e vacuum box |
Ancho hilera | 1140mm |
Sistema control de espesor | Automatic Scantech |
Calandra de enfriamiento | Chill roll unit: Diam 2800mm, in water immersion, |
Descripción MDO | Preheating section: 16 rollers 614mm, Stretching section rollers diam 150, anelling section 4 rollers 614mm |
Descripción TDO | 5 preheating section (21m); 5 stretching section(15m); 5 annealing section (16,5m). Clips type FOK4.4.4, sliding. Clip's width 115mm. 1110 clips each chain. |
Corona treatment | Yes 2 side 50Kw |
Unidad de arrastre | Rollers diam 450-475mm |
Ancho del Enrollador | 8200mm net |
Descripción enrollador | Turret type. Automatic reel change |
Cortadora | Kampf moodel U680A speed 1200m/min, 14 pairs of arms. Max width of finisched reels |
Informaciones adicionales | edge trim and re-feeding system. |
** VENDIDA **
