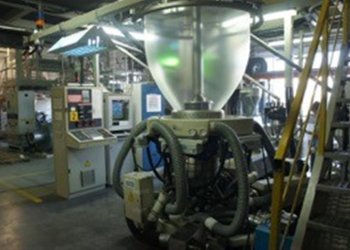

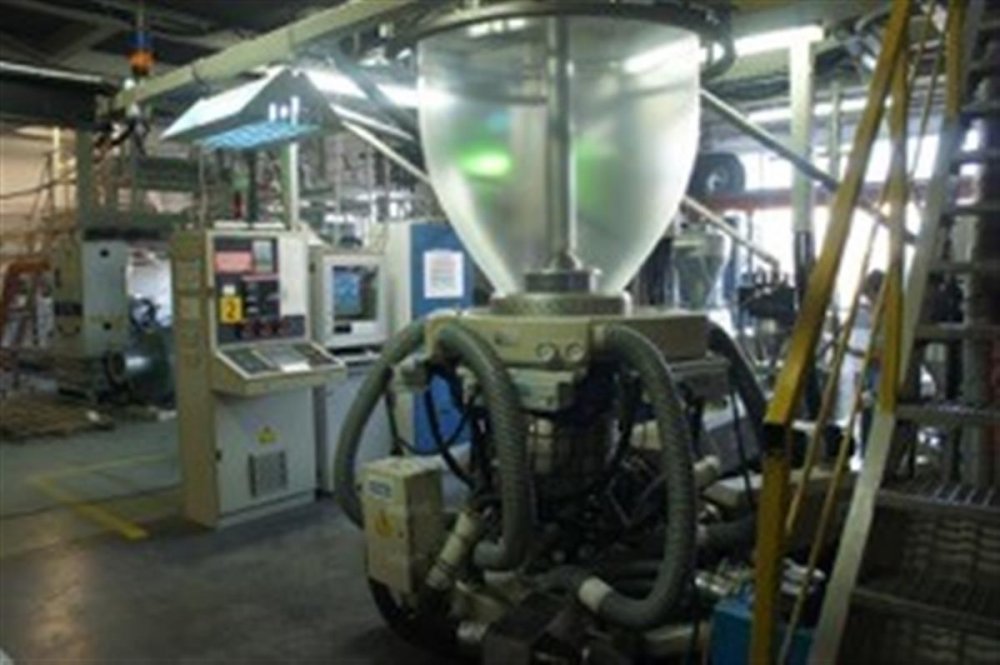

- Código Máquina
- EX553
- Constructor
- CMG
- Año
- 2006
- Number of layers
- 3
- Film structure
- ABC
- Material
- LDPE, LLDPE, MDPE, HDPE, PP, Metallocene, EVA, Plastomers, Ionomers, PA, PS
- Film Width
- 1800
- Output (Kg/h)
- 300
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 55
- Description 1
- 30LD, new screw installed in 2012
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 75
- Description 2
- 30LD, new screw installed in 2012
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 55
- Description 3
- 30LD, new screw installed in 2012

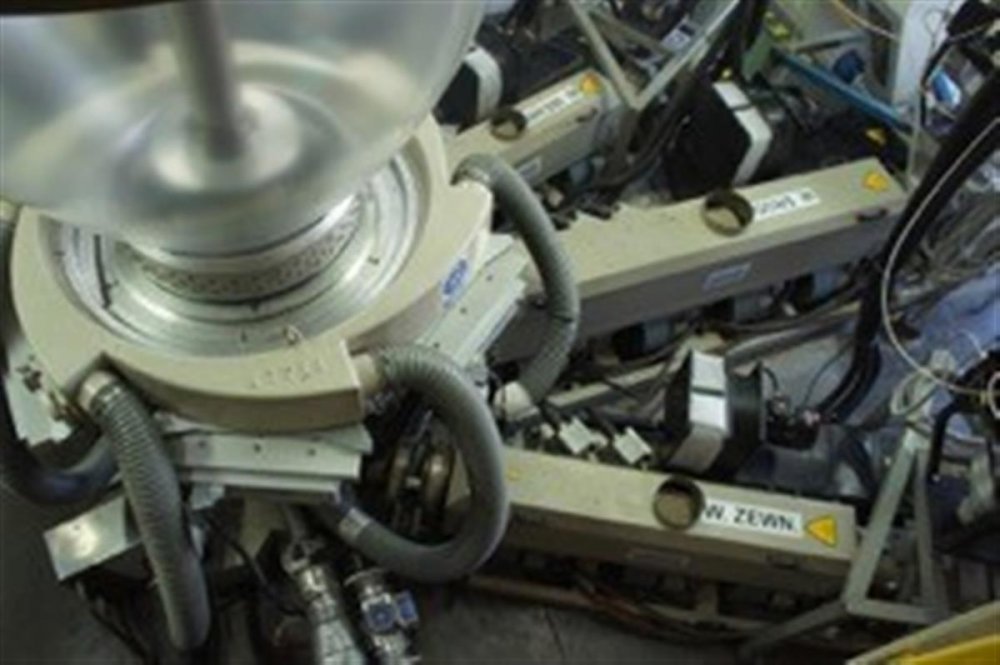

- Head description
- Fixed die-head
- Die diam (mm)
- 350 mm and 275 mm
- Thickness controll system

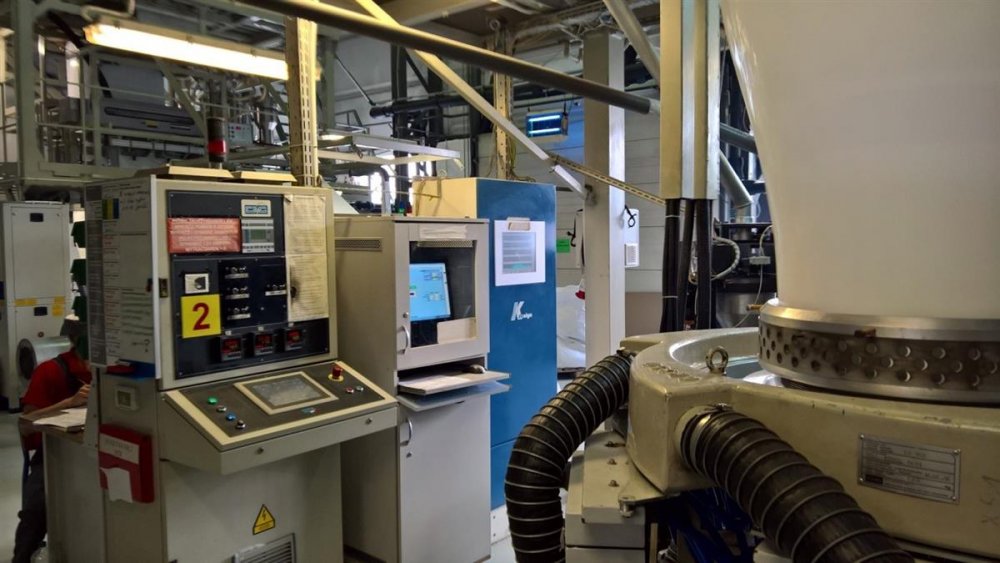

- K-DESIGN profile measurement and control system with contact KUNDIG sensor
- Bubble cage
- Calibration cage with ultrasonic bubble control
- Panel for gussets
- Rotating take-off with collapsing frame with gusseting system (driven, controlled from main panel on ground level)
- Corona treatment
- VETAPHONE automatic corona treater (W/m2/min working system)
- Web guide
- E+L web guide

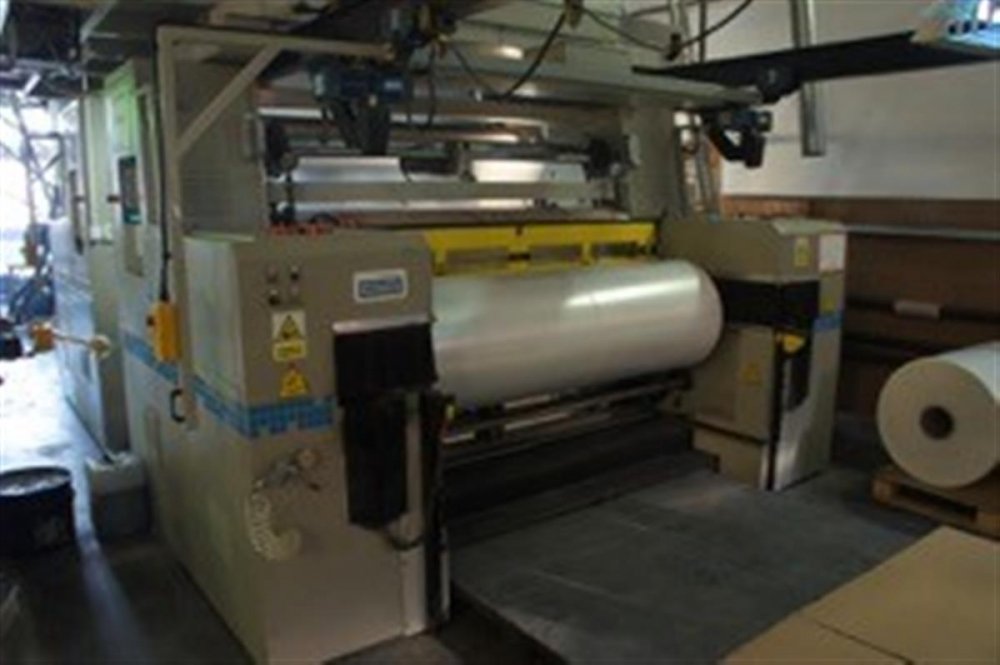

- Rewinder max reel diameter
- 1200
- Note
- -Film thickness: 17 – 250 um -4-component per extruder gravimetric system -Manual screen changers -IBC system with automatic layflat width control -Chill rolls for film cooling -Set of idle rollers -SIMCO ION antistatic system on both winders -Trim removal system -Set of 3” (76mm) and 6” (152mm) self – centering expandable air shafts -Tower included OPTIONS: -Inline trim recycling system – EXACT -Air and water chiller (Euro chiller – OFC / GCW / ABF)
| Código Máquina | EX553 |
| Constructor | CMG |
| Año | 2006 |
| Number of layers | 3 |
| Film structure | ABC |
| Material | LDPE, LLDPE, MDPE, HDPE, PP, Metallocene, EVA, Plastomers, Ionomers, PA, PS |
| Film Width | 1800 |
| Output (Kg/h) | 300 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 55 |
| Description 1 | 30LD, new screw installed in 2012 |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 75 |
| Description 2 | 30LD, new screw installed in 2012 |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 55 |
| Description 3 | 30LD, new screw installed in 2012 |
| Head description | Fixed die-head |
| Die diam (mm) | 350 mm and 275 mm |
| Thickness controll system | K-DESIGN profile measurement and control system with contact KUNDIG sensor |
| Bubble cage | Calibration cage with ultrasonic bubble control |
| Panel for gussets | Rotating take-off with collapsing frame with gusseting system (driven, controlled from main panel on ground level) |
| Corona treatment | VETAPHONE automatic corona treater (W/m2/min working system) |
| Web guide | E+L web guide |
| Rewinder max reel diameter | 1200 |
| Note | -Film thickness: 17 – 250 um -4-component per extruder gravimetric system -Manual screen changers -IBC system with automatic layflat width control -Chill rolls for film cooling -Set of idle rollers -SIMCO ION antistatic system on both winders -Trim removal system -Set of 3” (76mm) and 6” (152mm) self – centering expandable air shafts -Tower included OPTIONS: -Inline trim recycling system – EXACT -Air and water chiller (Euro chiller – OFC / GCW / ABF) |
