- Código Máquina
- CA275
- Constructor
- REIFENHAUSER
- Año
- 2008
- Number of layers
- 5
- Film structure
- ABBBC
- Material
- CPP
- Film width (mm)
- 2200
- Speed (m/min)
- 200m/min

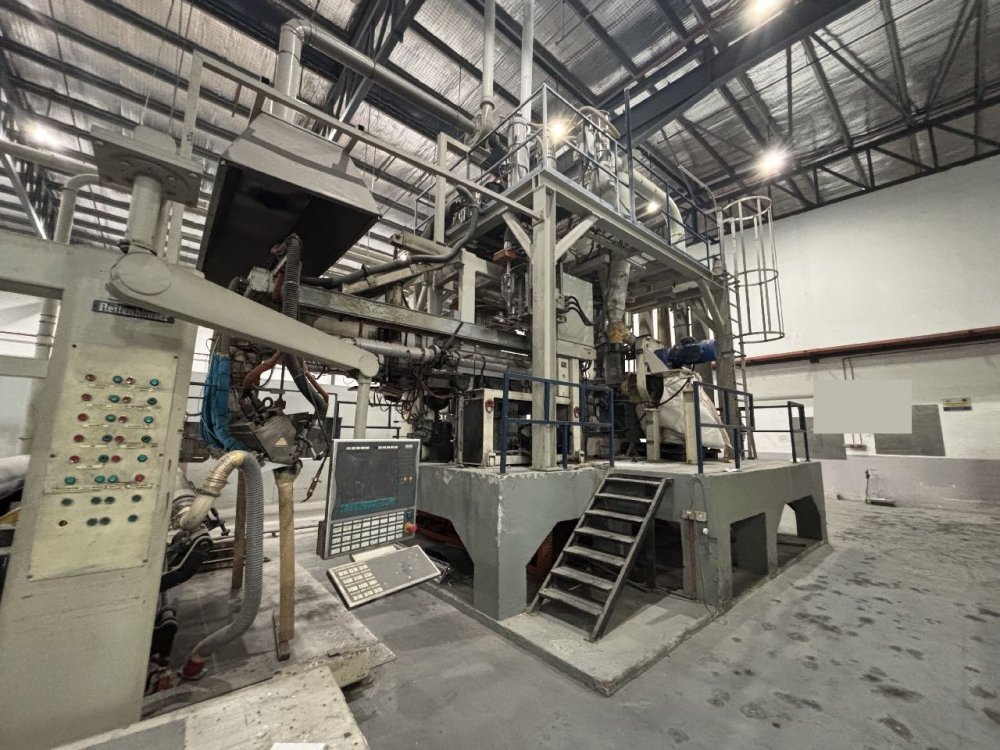

- Extruder 1 Layer ref:
- A
- Screw diam 1
- 70mm L/D 25
- Description 1
- DC Motor 65kW, Barrel Reiloy 121, manual screen changers, gravimetric dosing unit
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 120 mm L/D 30
- Description 2
- DC Motor 157kW, Barrel Reiloy 121, manual screen changers, gravimetric dosing unit
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 50mm L/D25
- Description 3
- DC Motor 30kW, Barrel Reiloy 121, manual screen changers, gravimetric dosing unit

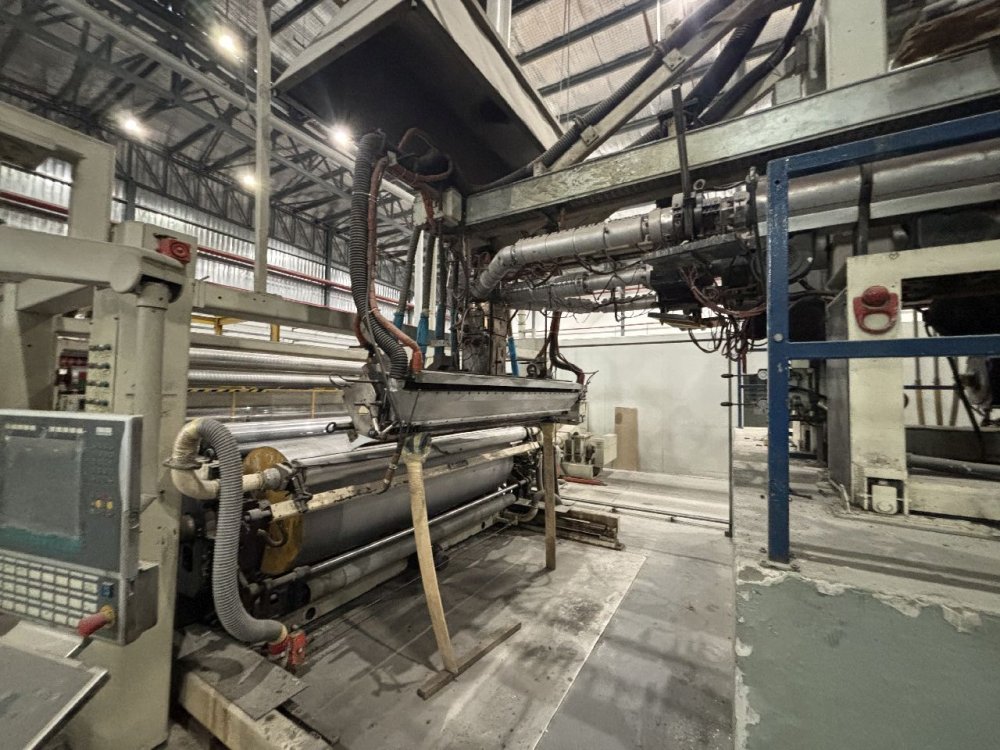

- Head description
- REIcofeed 5 layer ABBBC, Automaric thickness profile control, flexlip and thermal bolts, air knife
- Die width (mm)
- 2500mm

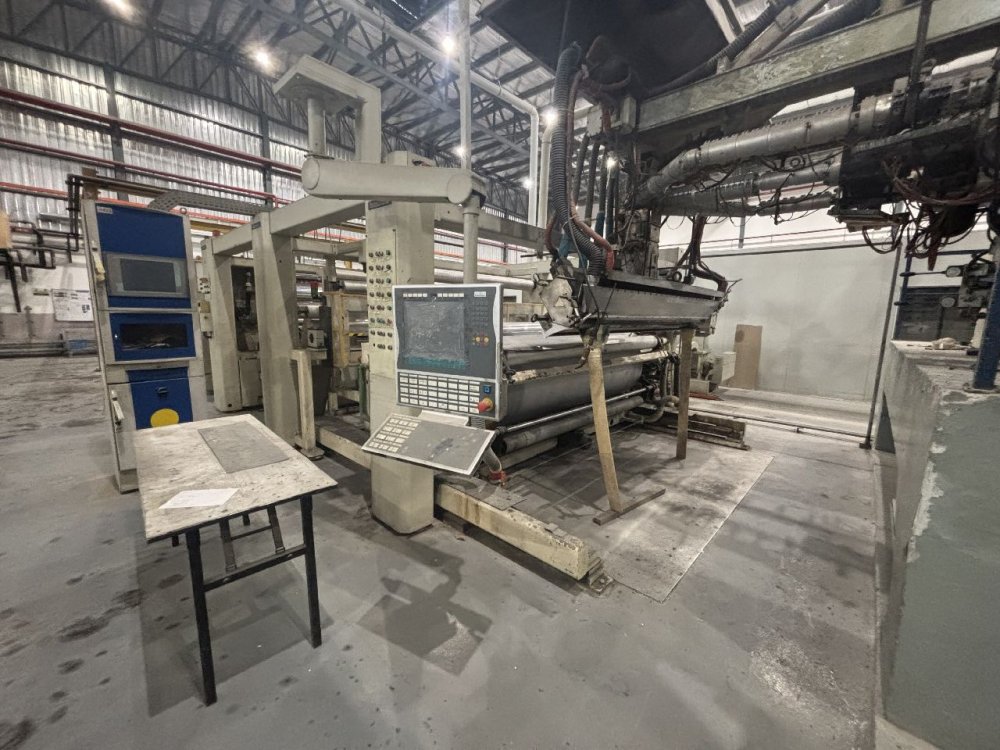

- Chill roll unit
- diameter 800mm, edge pinning, vacuum box
- Thickness controll system
- Automatic thickness profile control, thickness gauge beta rays, (KR 85), regulation via thermal expansion bolts
- Rewinder max reel diameter (mm)
- 1000
- Rewinder description
- MFA -D 1000, automatic change and inline slitting
- Note
- Extruders are of 2003, remaining parts are from 2008 Edge trim recycling
| Código Máquina | CA275 |
| Constructor | REIFENHAUSER |
| Año | 2008 |
| Number of layers | 5 |
| Film structure | ABBBC |
| Material | CPP |
| Film width (mm) | 2200 |
| Speed (m/min) | 200m/min |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 70mm L/D 25 |
| Description 1 | DC Motor 65kW, Barrel Reiloy 121, manual screen changers, gravimetric dosing unit |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 120 mm L/D 30 |
| Description 2 | DC Motor 157kW, Barrel Reiloy 121, manual screen changers, gravimetric dosing unit |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 50mm L/D25 |
| Description 3 | DC Motor 30kW, Barrel Reiloy 121, manual screen changers, gravimetric dosing unit |
| Head description | REIcofeed 5 layer ABBBC, Automaric thickness profile control, flexlip and thermal bolts, air knife |
| Die width (mm) | 2500mm |
| Chill roll unit | diameter 800mm, edge pinning, vacuum box |
| Thickness controll system | Automatic thickness profile control, thickness gauge beta rays, (KR 85), regulation via thermal expansion bolts |
| Rewinder max reel diameter (mm) | 1000 |
| Rewinder description | MFA -D 1000, automatic change and inline slitting |
| Note | Extruders are of 2003, remaining parts are from 2008 Edge trim recycling |
