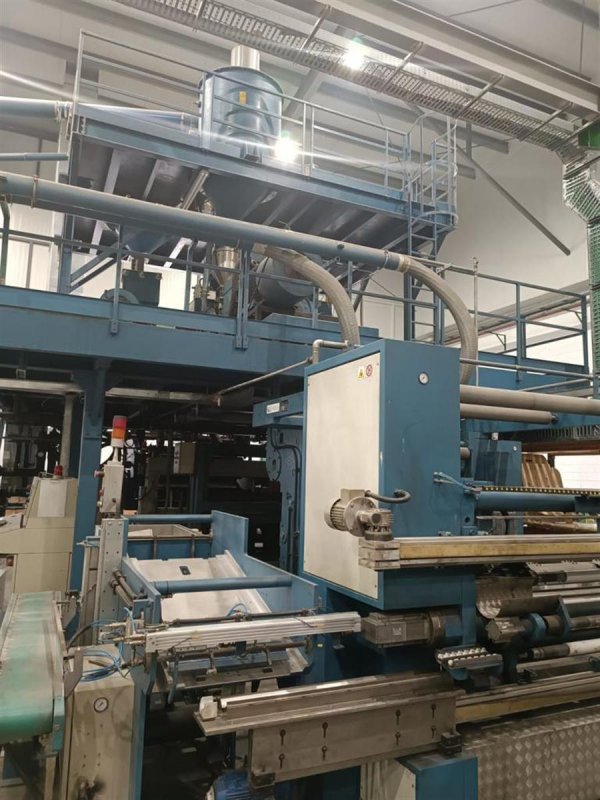

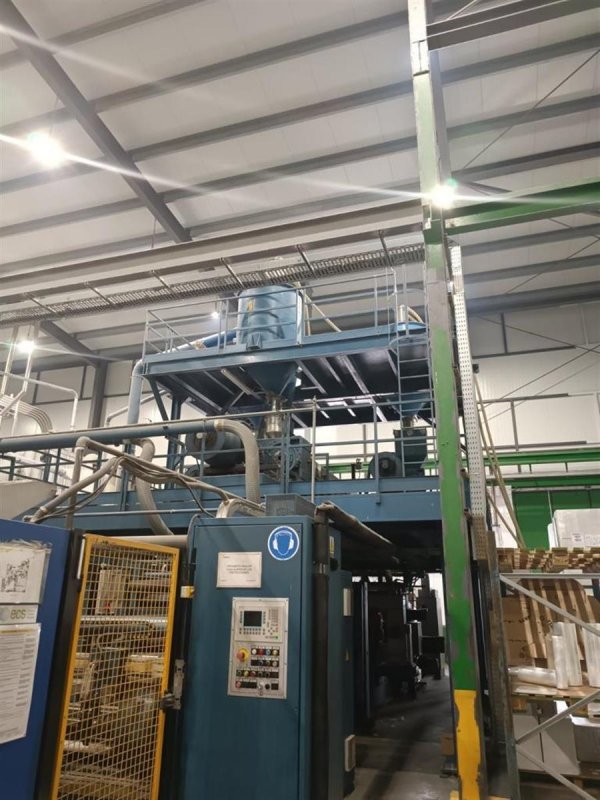

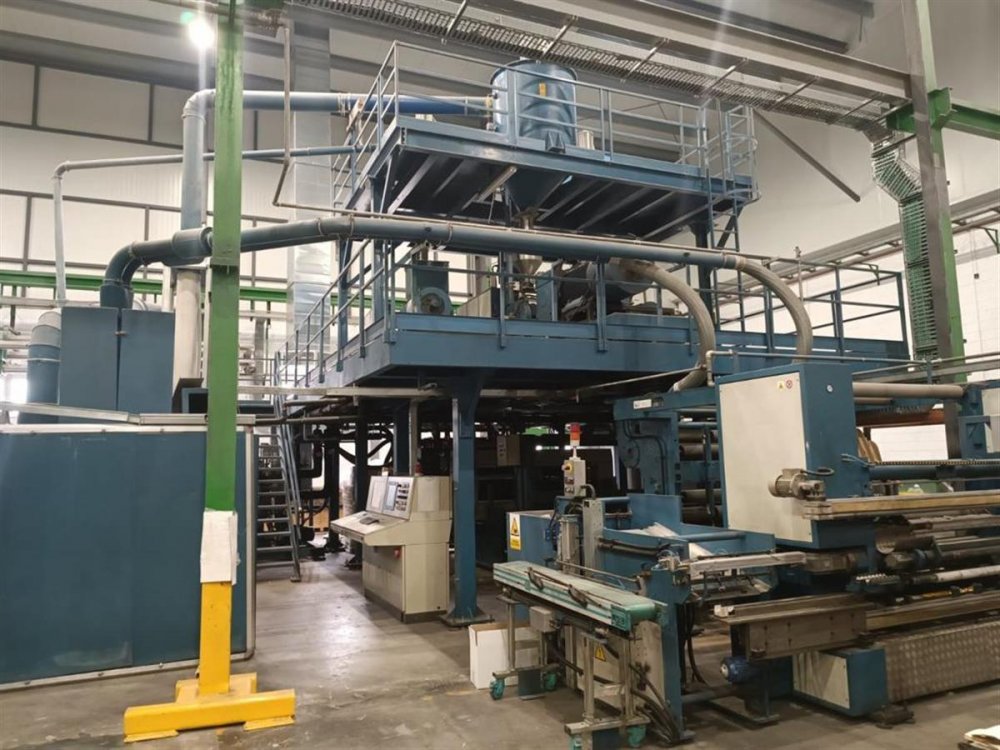

3 capas ADTECH PROVERA HR 1000/3 Linea de extrusion

Código Máquina
CA206
Constructor
ADTECH PROVERA
Modello
HR 1000/3
Año
2005
Number of layers
3
Film structure
ABC
Material
STRETCH FILM LLDPE
Film width (mm)
1000
Speed (m/min)
600
Output (Kg/h)
550
Extruder 1 Layer ref:
A
Screw diam 1
80mm
Description 1
L/D 30 AC motor
Extruder 2 Layer ref:
B
Screw diam 2
120mm
Description 2
L/D 30 AC motor
Extruder 3 Layer ref:
C
Screw diam 3
80mm
Description 3
L/D 30 AC motor
Head description
Make Carraro, Dual chamber vacuum box
Chill roll unit
First chill roller 1000mm diam
Thickness controll system
Thickness gauge X rays
Web guide
Oscillating device
Rewinder max reel diameter (mm)
150
Rewinder description
For machine reels. 4 shafts fast change
Note
in line edge reclaim system
Código Máquina CA206
Constructor ADTECH PROVERA
Modello HR 1000/3
Año 2005
Number of layers 3
Film structure ABC
Material STRETCH FILM LLDPE
Film width (mm) 1000
Speed (m/min) 600
Output (Kg/h) 550
Extruder 1 Layer ref: A
Screw diam 1 80mm
Description 1 L/D 30 AC motor
Extruder 2 Layer ref: B
Screw diam 2 120mm
Description 2 L/D 30 AC motor
Extruder 3 Layer ref: C
Screw diam 3 80mm
Description 3 L/D 30 AC motor
Head description Make Carraro, Dual chamber vacuum box
Chill roll unit First chill roller 1000mm diam
Thickness controll system Thickness gauge X rays
Web guide Oscillating device
Rewinder max reel diameter (mm) 150
Rewinder description For machine reels. 4 shafts fast change
Note in line edge reclaim system
