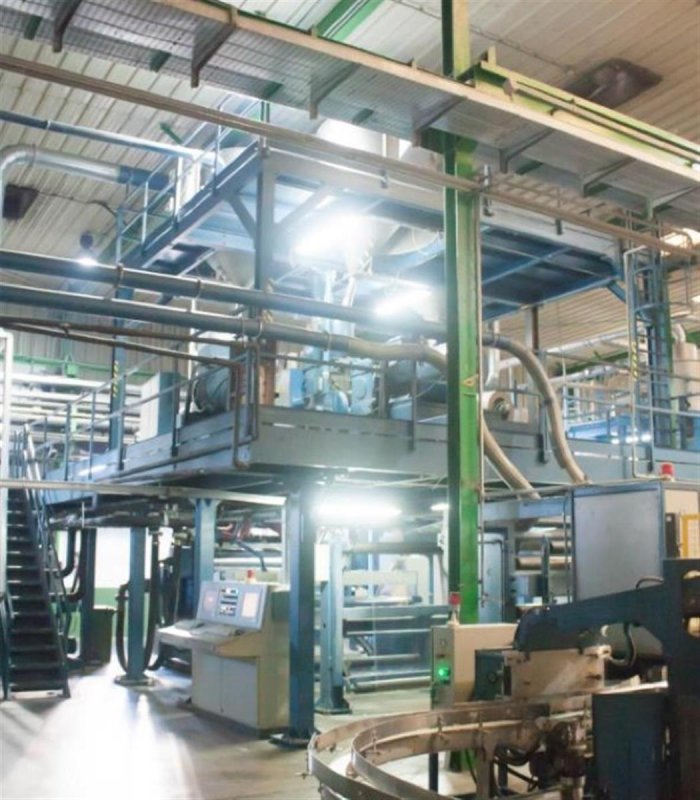

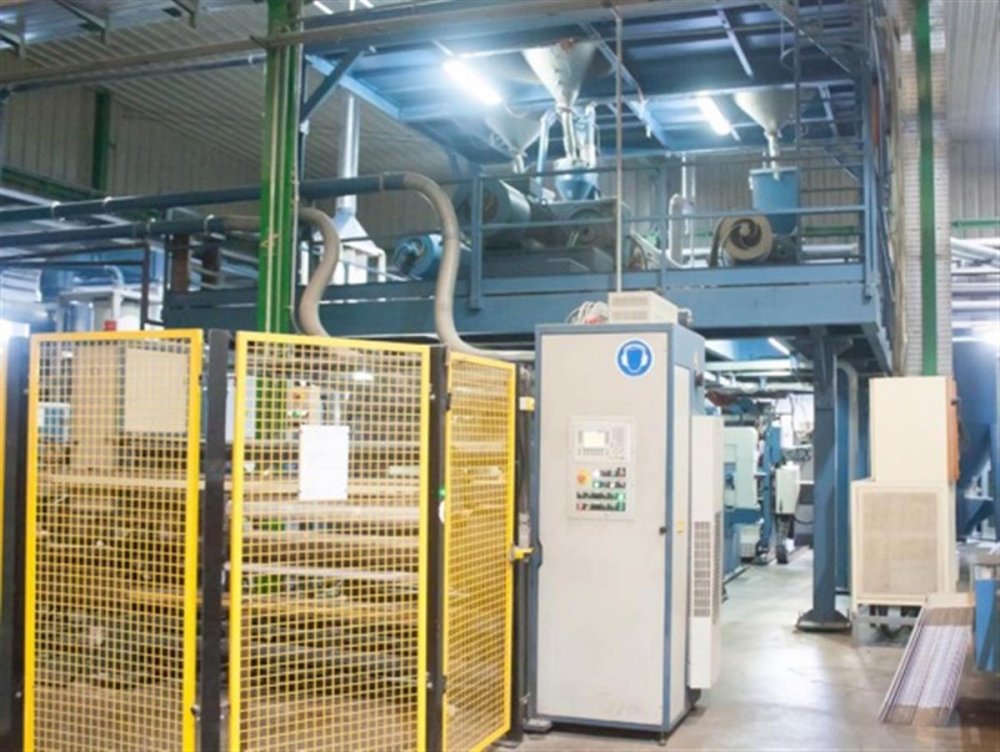

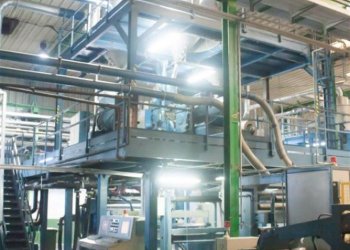

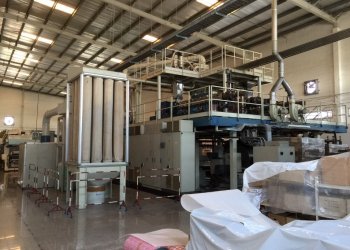

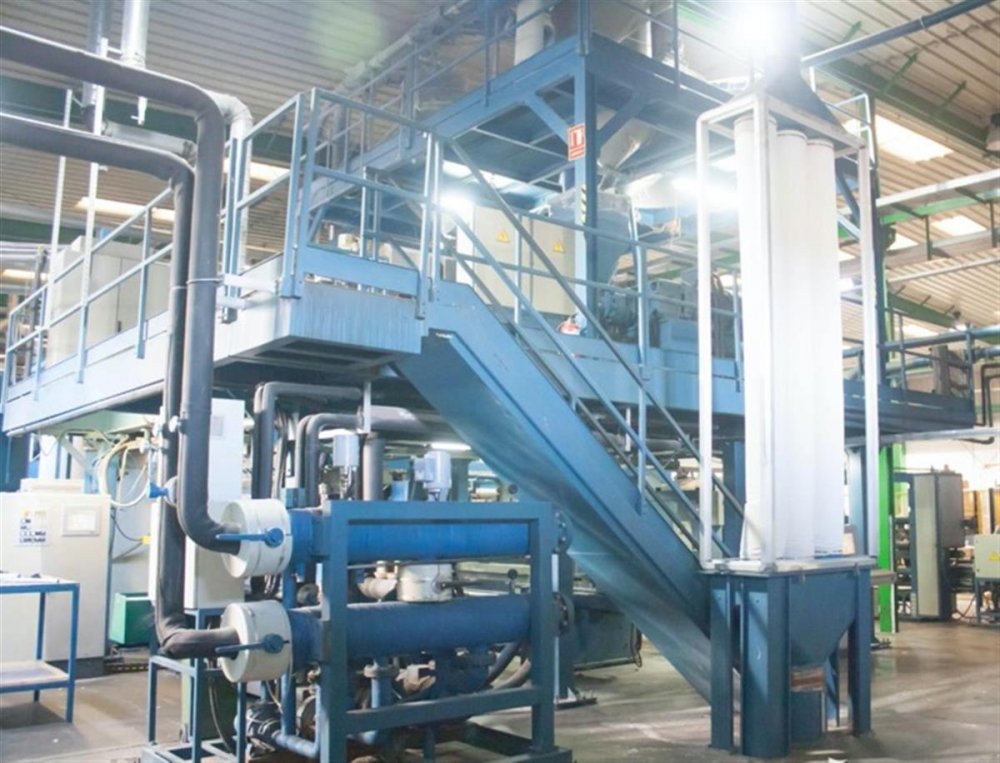

3 capas ADTECH PROVERA Linea de extrusion

Código Máquina
CA205
Constructor
ADTECH PROVERA
Año
2003
Number of layers
3
Film structure
ABC
Material
Stretch film LLDPE
Film width (mm)
1500
Speed (m/min)
600
Output (Kg/h)
750
Extruder 1 Layer ref:
A
Screw diam 1
80mm
Description 1
L/D30, AC Motor
Extruder 2 Layer ref:
B
Screw diam 2
120mm
Description 2
L/D30, AC Motor
Extruder 3 Layer ref:
C
Screw diam 3
80mm
Description 3
L/D30, AC Motor
Head description
Make Carraro, double chamber air knife

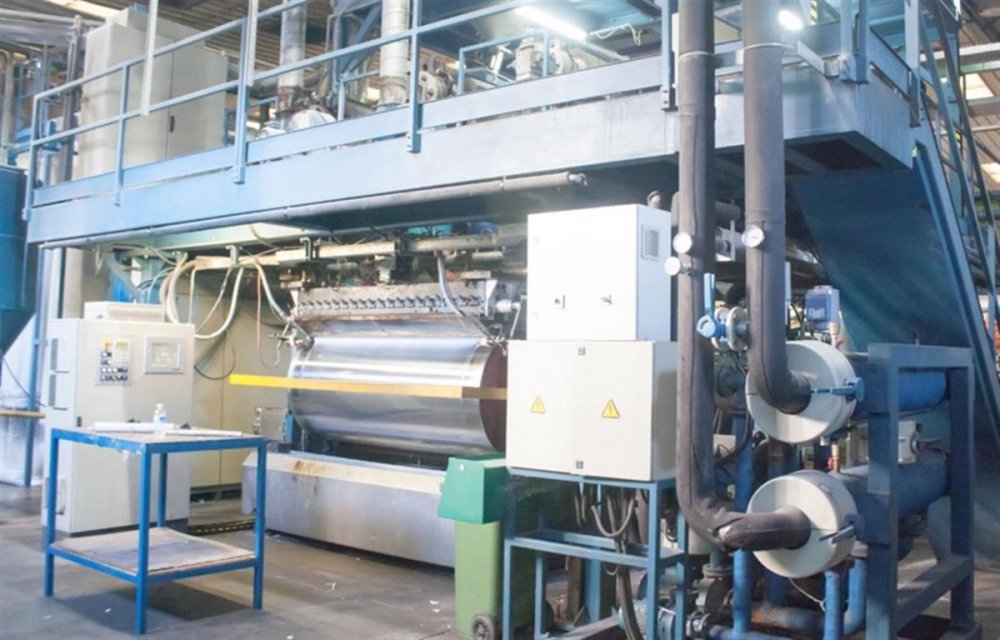

Chill roll unit
First chill roller 1 m diam.
Thickness controll system
Thickness gauge ADTECH
Web guide
Oscillating device
Rewinder description
For hand reels
Note
in line edge reclaim system
Código Máquina CA205
Constructor ADTECH PROVERA
Año 2003
Number of layers 3
Film structure ABC
Material Stretch film LLDPE
Film width (mm) 1500
Speed (m/min) 600
Output (Kg/h) 750
Extruder 1 Layer ref: A
Screw diam 1 80mm
Description 1 L/D30, AC Motor
Extruder 2 Layer ref: B
Screw diam 2 120mm
Description 2 L/D30, AC Motor
Extruder 3 Layer ref: C
Screw diam 3 80mm
Description 3 L/D30, AC Motor
Head description Make Carraro, double chamber air knife
Chill roll unit First chill roller 1 m diam.
Thickness controll system Thickness gauge ADTECH
Web guide Oscillating device
Rewinder description For hand reels
Note in line edge reclaim system
