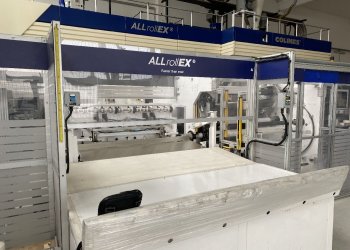

- Código Máquina
- CA202
- Constructor
- COLINES
- Modello
- AllRollEx
- Año
- 2016
- Number of layers
- 5
- Film structure
- ACBCD
- Material
- Stretch film LLDPE
- Film width (mm)
- 1500
- Speed (m/min)
- 800
- Output (Kg/h)
- 1000
- Extruder 1 Layer ref:
- A
- Screw diam 1
- 55mm
- Description 1
- L/D 34 2 components gravimetric, AC motors SIEMENS
- Extruder 2 Layer ref:
- B
- Screw diam 2
- 120
- Description 2
- L/D 30, 4 components gravimetric, AC motors SIEMENS
- Extruder 3 Layer ref:
- C
- Screw diam 3
- 55mm
- Description 3
- L/D 34 2 components gravimetric, AC motors SIEMENS
- Extruder 4 Layer ref:
- D
- Screw diam 4
- 55mm
- Description 4
- L/D 34 2 components gravimetric, AC motors SIEMENS
- Head description
- MAke : Cloren, vacuum box, edge pinning
- Die width (mm)
- 2050
- Chill roll unit
- Main chill roler diam 1400mm
- Thickness controll system
- Electronic System type X-rays
- Web guide
- Oschilating device
- Rewinder max reel diameter (mm)
- 400
- Rewinder description
- Turret with 3 shafts, 25 sec cycle time. Available with 2 inch shafts for hand reels and 3 inch for machine and jumbo reels
| Código Máquina | CA202 |
| Constructor | COLINES |
| Modello | AllRollEx |
| Año | 2016 |
| Number of layers | 5 |
| Film structure | ACBCD |
| Material | Stretch film LLDPE |
| Film width (mm) | 1500 |
| Speed (m/min) | 800 |
| Output (Kg/h) | 1000 |
| Extruder 1 Layer ref: | A |
| Screw diam 1 | 55mm |
| Description 1 | L/D 34 2 components gravimetric, AC motors SIEMENS |
| Extruder 2 Layer ref: | B |
| Screw diam 2 | 120 |
| Description 2 | L/D 30, 4 components gravimetric, AC motors SIEMENS |
| Extruder 3 Layer ref: | C |
| Screw diam 3 | 55mm |
| Description 3 | L/D 34 2 components gravimetric, AC motors SIEMENS |
| Extruder 4 Layer ref: | D |
| Screw diam 4 | 55mm |
| Description 4 | L/D 34 2 components gravimetric, AC motors SIEMENS |
| Head description | MAke : Cloren, vacuum box, edge pinning |
| Die width (mm) | 2050 |
| Chill roll unit | Main chill roler diam 1400mm |
| Thickness controll system | Electronic System type X-rays |
| Web guide | Oschilating device |
| Rewinder max reel diameter (mm) | 400 |
| Rewinder description | Turret with 3 shafts, 25 sec cycle time. Available with 2 inch shafts for hand reels and 3 inch for machine and jumbo reels |
TECHNO COATING ENGINEERING 2000/5 PLUS 4E
-
Código Máquina: CA125
-
Año: 2004
-
Film width (mm): 2000
TECHNO COATING ENGINEERING
-
Código Máquina: CA168
-
Año: 1999
-
Film width (mm): 3000
ALTEK PROVERA ADT-EX
-
Código Máquina: CA224
-
Año: 2002
-
Film width (mm): 2500

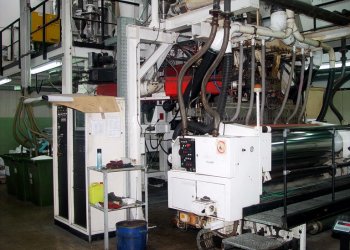

WINDMÖLLER & HÖLSCHER FILMEX
-
