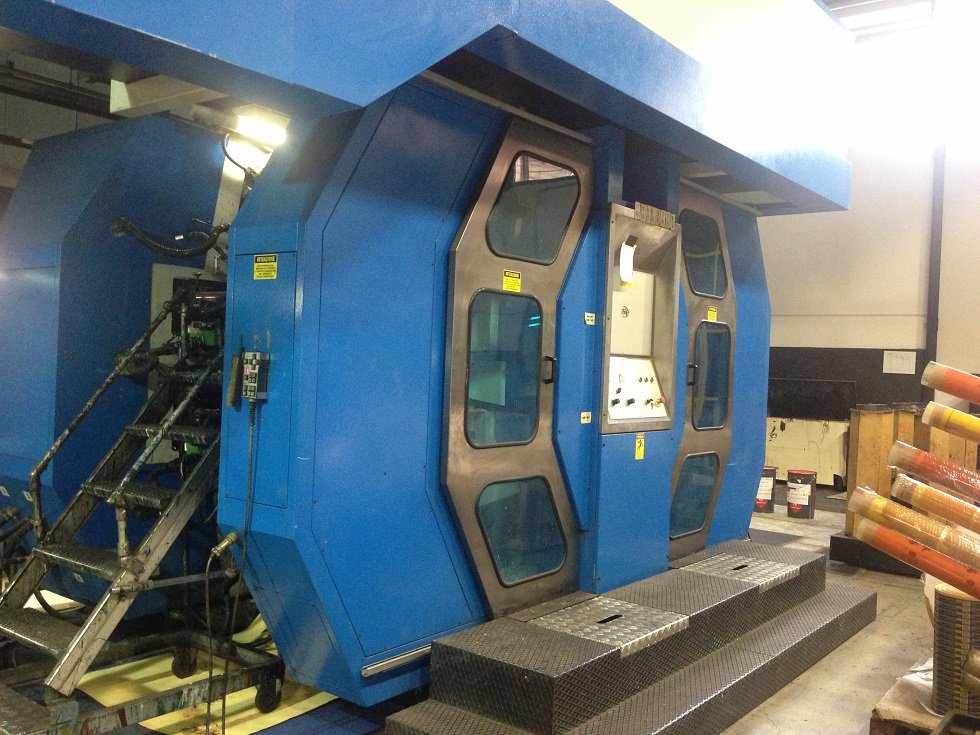

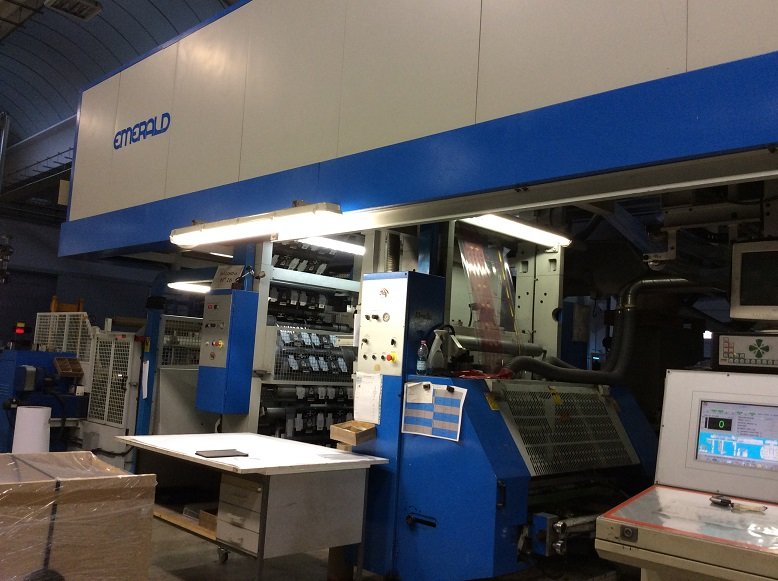

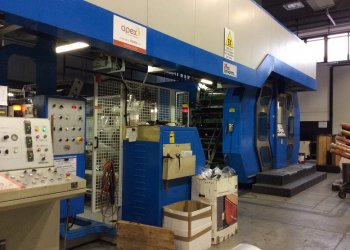

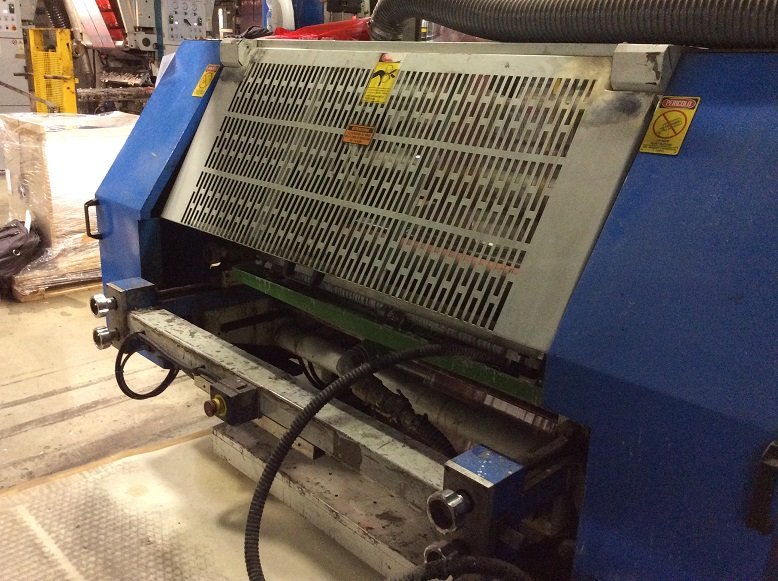

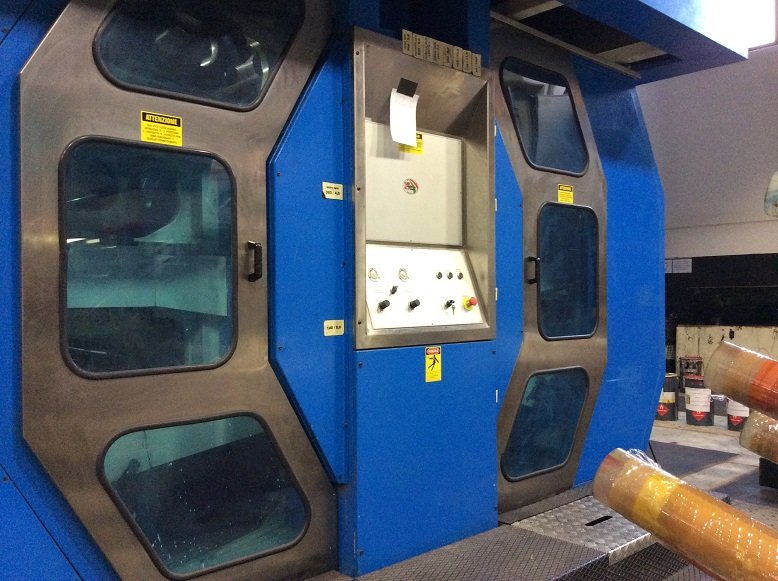

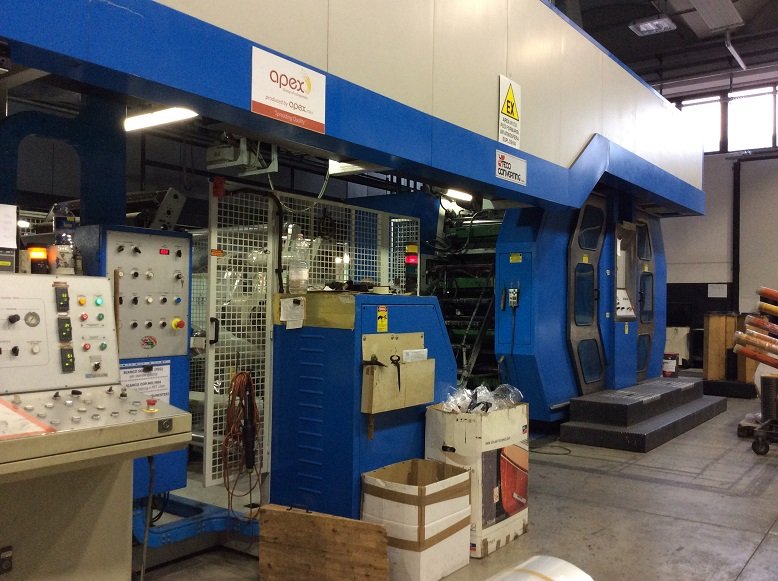

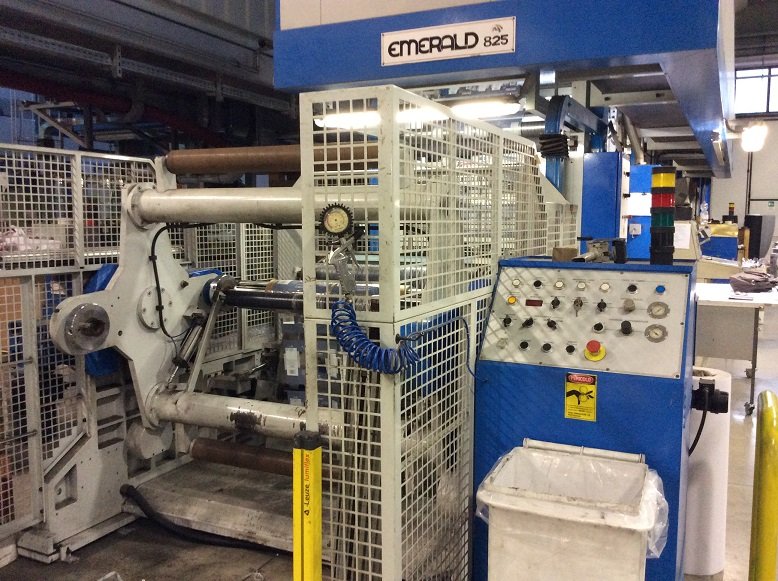

UTECO EMERALD 825 -- 8+1 Maquina flexografica 9 colores

Código Máquina
FL570
Constructor
UTECO
Modelo
EMERALD 825 -- 8+1
Año
2001
Número de colores
9
Posibilidades de impresión
8+0, 8+1 front, 8+1 back
Gearless
No
Cambio rápido mangas impresión
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Ancho del material (mm)
1050
Print width (mm)
1000
Min print repeat (mm)
280
Max print repeat (mm)
780
Unwinder type
Turret Automatic
Diámetro máximo bobinas Desenrollador (mm)
1000
Rewinder type
Turret Automatic
Max reel diameter rewinder (mm)
1000
Sistema de secado
2 zone,4 fans, tunnel 4mt , thermo oil heaters
Videocámera
BST Pro Scan
Alineadores
yes, in and out
Washing system
no
Sistema de tinta
closed chamber doctor blades
Anilox
15 ceramic anilox sleeves
Mangas de impresión
15 sets repeats 29, 30,31, 32,34,37,40,43,46,48,50,52,54, 56, 57,5 cm. Double set of gears for each set of sleeve in order to use 1.14 or 2.54 mm plate thickeness, pitch 5 mm
Informaciones adicionales
Complete Computer supervision. Automatic pre register Motorized remote controlled longitudinal and side register Print / Coating stack unit in line, front or back side with register control Zelo
Código Máquina FL570
Constructor UTECO
Modelo EMERALD 825 -- 8+1
Año 2001
Número de colores 9
Posibilidades de impresión 8+0, 8+1 front, 8+1 back
Gearless No
Cambio rápido mangas impresión Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Ancho del material (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 280
Max print repeat (mm) 780
Unwinder type Turret Automatic
Diámetro máximo bobinas Desenrollador (mm) 1000
Rewinder type Turret Automatic
Max reel diameter rewinder (mm) 1000
Sistema de secado 2 zone,4 fans, tunnel 4mt , thermo oil heaters
Videocámera BST Pro Scan
Alineadores yes, in and out
Washing system no
Sistema de tinta closed chamber doctor blades
Anilox 15 ceramic anilox sleeves
Mangas de impresión 15 sets repeats 29, 30,31, 32,34,37,40,43,46,48,50,52,54, 56, 57,5 cm. Double set of gears for each set of sleeve in order to use 1.14 or 2.54 mm plate thickeness, pitch 5 mm
Informaciones adicionales Complete Computer supervision. Automatic pre register Motorized remote controlled longitudinal and side register Print / Coating stack unit in line, front or back side with register control Zelo
