- Código Máquina
- FL1021

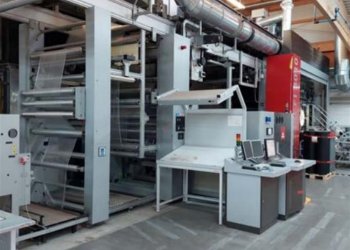

- Constructor
- COMEXI
- Modello
- FI 3010
- Año
- 2008
- Number of colors
- 10
- Print possibilityes
- 10+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes

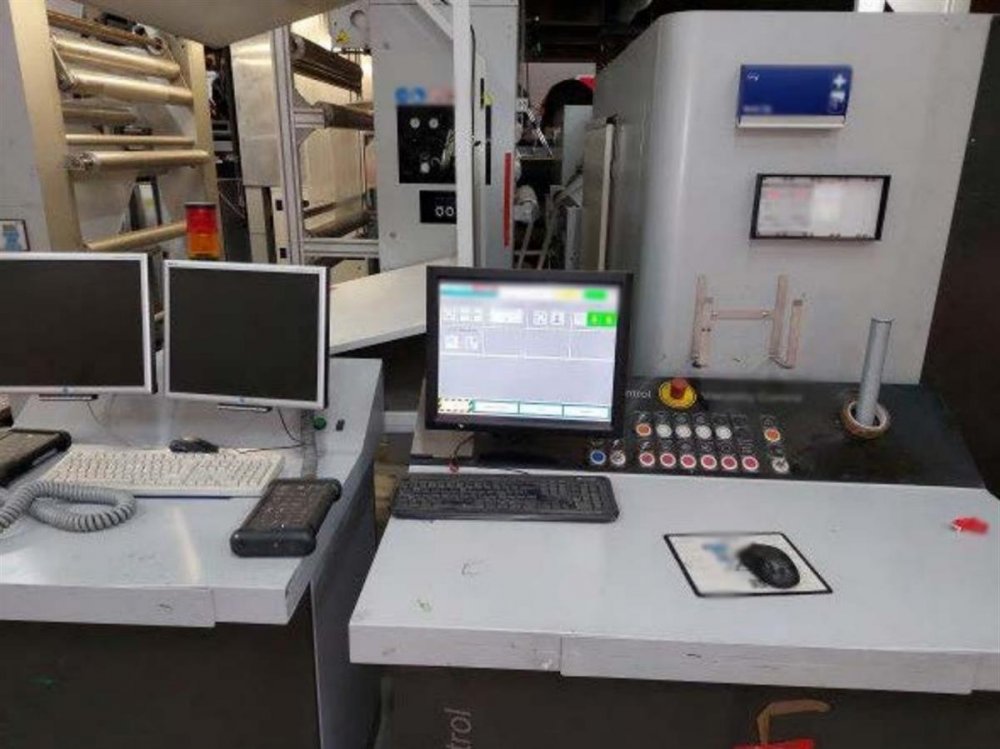

- Computer supervision
- Yes
- Web width (mm)
- 1320
- Print width (mm)
- 1270
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1250
- Unwinder type
- Turret shaftless automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret shaftless automatic
- Max reel diameter rewinder (mm)
- 1000

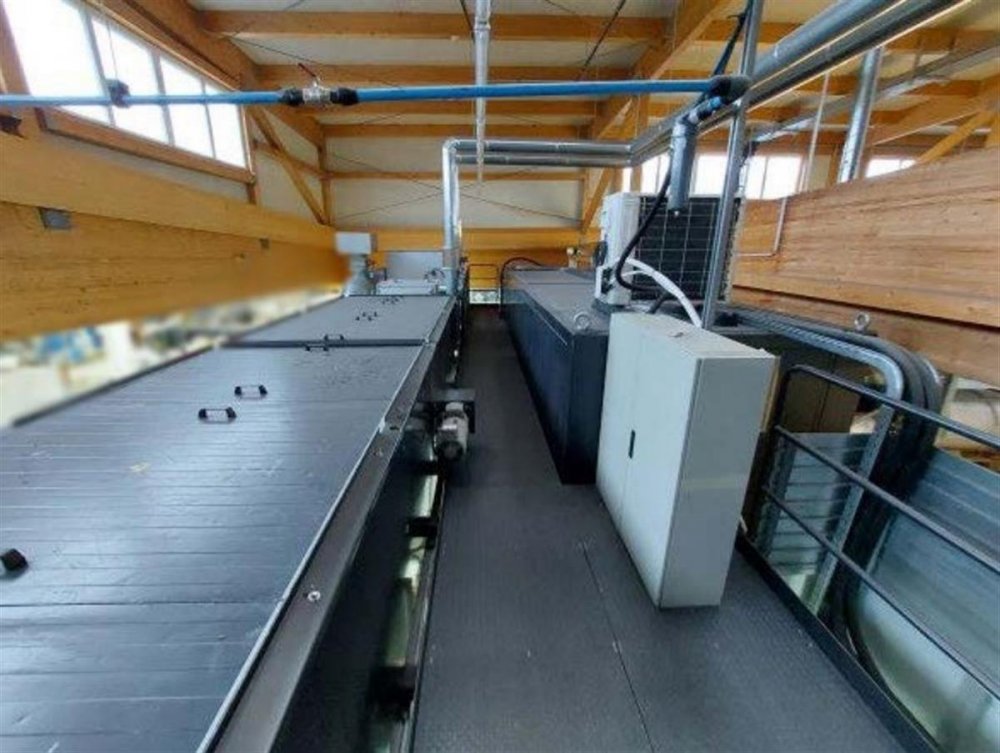

- Drying
- 2 zones , four fans , final overhead tunnel , Steam heat exchangers , Boiler excluded
- Videocamera
- AVT Print Vision Jupiter
- Corona treatment
- Softal
- Web guides
- BST in and out

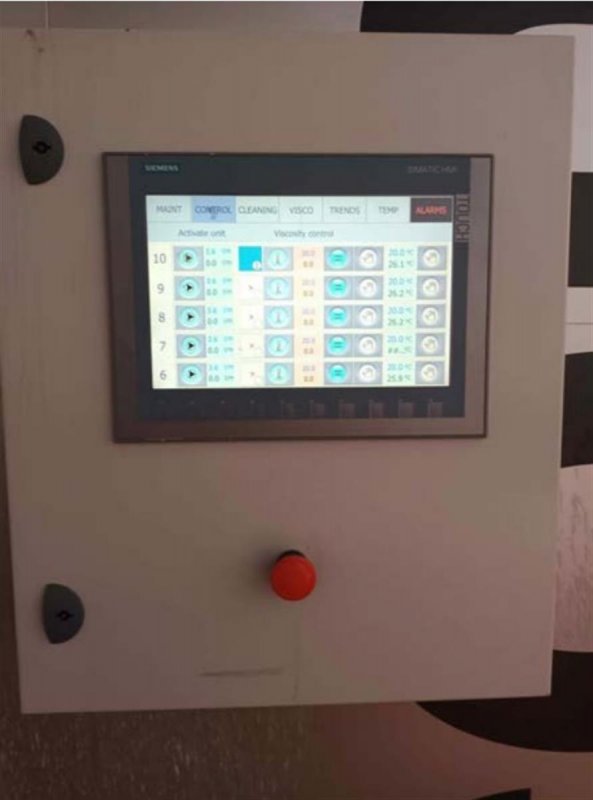

- Vyscosity control
- Yes automatic
- Washing system
- Yes Synchroclean
- Inking system
- Ceramic anilox + Chambered doctor blade
- Anilox
- 23 pieces from 80 to 420 lines/cm : 80 23,3 cm3/m2-120 14,0 cm3/m2-120 14,0 cm3/m2-140 17,0 cm3/m2-140 17,0 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-200 10,0 cm3/m2-200 10,1 cm3/m2-200 10,1 cm3/m2-285 7,5 cm3/m2-285 7,3 cm3/m2-340 5,4 cm3/m2-340 5,5 cm3/m2-340 5,7 cm3/m2-340 5,5 cm3/m2-340 5,5 cm3/m2-420 4,01cm3/m2-420 4,02cm3/m2-420 3,95cm3/m2-420 4,00cm3/m2-420 4,00cm3/m2
- Print Sleeves
- 400x24, 410x10, 420x9, 430x10, 440x10, 450x9, 460x10, 470x10, 480x10, 490x10, 500x10, 510x10, 820x10, 830x10, 840x10, 850x10, 860x10, 870x9, 880x9, 890x24, 900x10
- Note
- Lifting platforms for easy sleeve chanhge Mechanical printing speed: 400 m/min Installed power 425 Kw Machine after cleaning and drum polishing with certification.
| Código Máquina | FL1021 |
| Constructor | COMEXI |
| Modello | FI 3010 |
| Año | 2008 |
| Number of colors | 10 |
| Print possibilityes | 10+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1320 |
| Print width (mm) | 1270 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1250 |
| Unwinder type | Turret shaftless automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret shaftless automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , four fans , final overhead tunnel , Steam heat exchangers , Boiler excluded |
| Videocamera | AVT Print Vision Jupiter |
| Corona treatment | Softal |
| Web guides | BST in and out |
| Vyscosity control | Yes automatic |
| Washing system | Yes Synchroclean |
| Inking system | Ceramic anilox + Chambered doctor blade |
| Anilox | 23 pieces from 80 to 420 lines/cm : 80 23,3 cm3/m2-120 14,0 cm3/m2-120 14,0 cm3/m2-140 17,0 cm3/m2-140 17,0 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-160 13,2 cm3/m2-200 10,0 cm3/m2-200 10,1 cm3/m2-200 10,1 cm3/m2-285 7,5 cm3/m2-285 7,3 cm3/m2-340 5,4 cm3/m2-340 5,5 cm3/m2-340 5,7 cm3/m2-340 5,5 cm3/m2-340 5,5 cm3/m2-420 4,01cm3/m2-420 4,02cm3/m2-420 3,95cm3/m2-420 4,00cm3/m2-420 4,00cm3/m2 |
| Print Sleeves | 400x24, 410x10, 420x9, 430x10, 440x10, 450x9, 460x10, 470x10, 480x10, 490x10, 500x10, 510x10, 820x10, 830x10, 840x10, 850x10, 860x10, 870x9, 880x9, 890x24, 900x10 |
| Note | Lifting platforms for easy sleeve chanhge Mechanical printing speed: 400 m/min Installed power 425 Kw Machine after cleaning and drum polishing with certification. |
