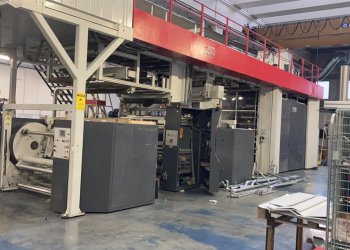

UTECO ONYX 108 Impresora Flexo 10 colores

Código Máquina
FL926
Constructor
UTECO
Modelo
ONYX 108
Año
2013
Número de colores
10
Posibilidades de impresión
10 +0
Gearless
Yes
Cambio rápido mangas impresión
No
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Ancho del material (mm)
1450
Print width (mm)
1400
Min print repeat (mm)
380
Max print repeat (mm)
800
Unwinder type
Turret , non stop automatic with programmable reel change , 4 expaning air shafts diam 76mm and 152 mm
Diámetro máximo bobinas Desenrollador (mm)
1000
Rewinder type
Turret , non stop automatic with programmable reel change 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter rewinder (mm)
1000
Sistema de secado
2 ZONES - 4 fans, Extended final drying tunnel 6 mt long , 2 thermo oil heat exchangers automatic air recirculation with LEL control "NIRA SAGITTARIUS Mod. 5012" -
Videocámera
yes BST
Corona treatment
Option Ferrarini Benelli
Alineadores
yes in and out
Vyscosity control
Yes included GAMA tipo G26-RIV-VIB c
Washing system
Yes included
Sistema de tinta
Closed chamber doctor blades
Anilox
11 as follows 1x 180 l/cm, 1x 200 l/cm, 1x 220 l/cm, 1x 280 l/cm, 1x 300 l/cm, 2x 380 l/cm , 4x 530 l/cm
Mangas de impresión
total 100 sleeves as follows :10x 390 ; 10x 420 , 10x 440 , 11x 460 , 10x 500 ,10x 530 ,10x 540 , 9x 580 , 10x 600 , 10x 620
Código Máquina FL926
Constructor UTECO
Modelo ONYX 108
Año 2013
Número de colores 10
Posibilidades de impresión 10 +0
Gearless Yes
Cambio rápido mangas impresión No
4 motor per deck CNC position system Yes
Computer supervision Yes
Ancho del material (mm) 1450
Print width (mm) 1400
Min print repeat (mm) 380
Max print repeat (mm) 800
Unwinder type Turret , non stop automatic with programmable reel change , 4 expaning air shafts diam 76mm and 152 mm
Diámetro máximo bobinas Desenrollador (mm) 1000
Rewinder type Turret , non stop automatic with programmable reel change 4 expaning air shafts diam 76mm and 152 mm
Max reel diameter rewinder (mm) 1000
Sistema de secado 2 ZONES - 4 fans, Extended final drying tunnel 6 mt long , 2 thermo oil heat exchangers automatic air recirculation with LEL control "NIRA SAGITTARIUS Mod. 5012" -
Videocámera yes BST
Corona treatment Option Ferrarini Benelli
Alineadores yes in and out
Vyscosity control Yes included GAMA tipo G26-RIV-VIB c
Washing system Yes included
Sistema de tinta Closed chamber doctor blades
Anilox 11 as follows 1x 180 l/cm, 1x 200 l/cm, 1x 220 l/cm, 1x 280 l/cm, 1x 300 l/cm, 2x 380 l/cm , 4x 530 l/cm
Mangas de impresión total 100 sleeves as follows :10x 390 ; 10x 420 , 10x 440 , 11x 460 , 10x 500 ,10x 530 ,10x 540 , 9x 580 , 10x 600 , 10x 620
** SOLD **
