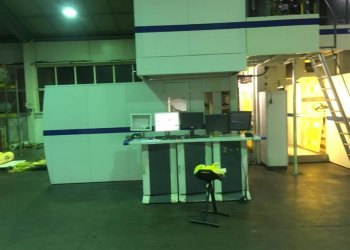

- Código Máquina
- FL917
- Constructor
- FISCHER & KRECKE
- Modello
- 6S/8
- Año
- 2007
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1300
- Print width (mm)
- 1250
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 800
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 5 mt, 2 gas burners
- Corona treatment
- Yes AFS
- Web guides
- yes in and out
- Vyscosity control
- yes automatic
- Washing system
- yes automatic
- Inking system
- Closed chamber doctor blades
- Anilox
- nr. 12 ceramic anilox sleeve s (1x100; 1x80 ; 2x160; 2x225; 4x320)
- Print Sleeves
- nr. 136 (8x320,340,360,380,400,420,450,480,500,520,550,600, ....)
- Print cylinders
- 2 sets of carriers
- Note
- antistatic bar
| Código Máquina | FL917 |
| Constructor | FISCHER & KRECKE |
| Modello | 6S/8 |
| Año | 2007 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1300 |
| Print width (mm) | 1250 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 800 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones , 4 fans , final tunnel 5 mt, 2 gas burners |
| Corona treatment | Yes AFS |
| Web guides | yes in and out |
| Vyscosity control | yes automatic |
| Washing system | yes automatic |
| Inking system | Closed chamber doctor blades |
| Anilox | nr. 12 ceramic anilox sleeve s (1x100; 1x80 ; 2x160; 2x225; 4x320) |
| Print Sleeves | nr. 136 (8x320,340,360,380,400,420,450,480,500,520,550,600, ....) |
| Print cylinders | 2 sets of carriers |
| Note | antistatic bar |
