- Código Máquina
- FL902
- Constructor
- SCHIAVI BOBST
- Modello
- ALPHA
- Año
- 2000
- Number of colors
- 8
- Print possibilityes
- 8+0
- Overhaul/renovation
- updated main computer by bobst in 2022
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1120
- Print width (mm)
- 1050
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 650
- Unwinder type
- Turret
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Gas
- Videocamera
- BST
- Corona treatment
- Mero
- Web guides
- 2 BST

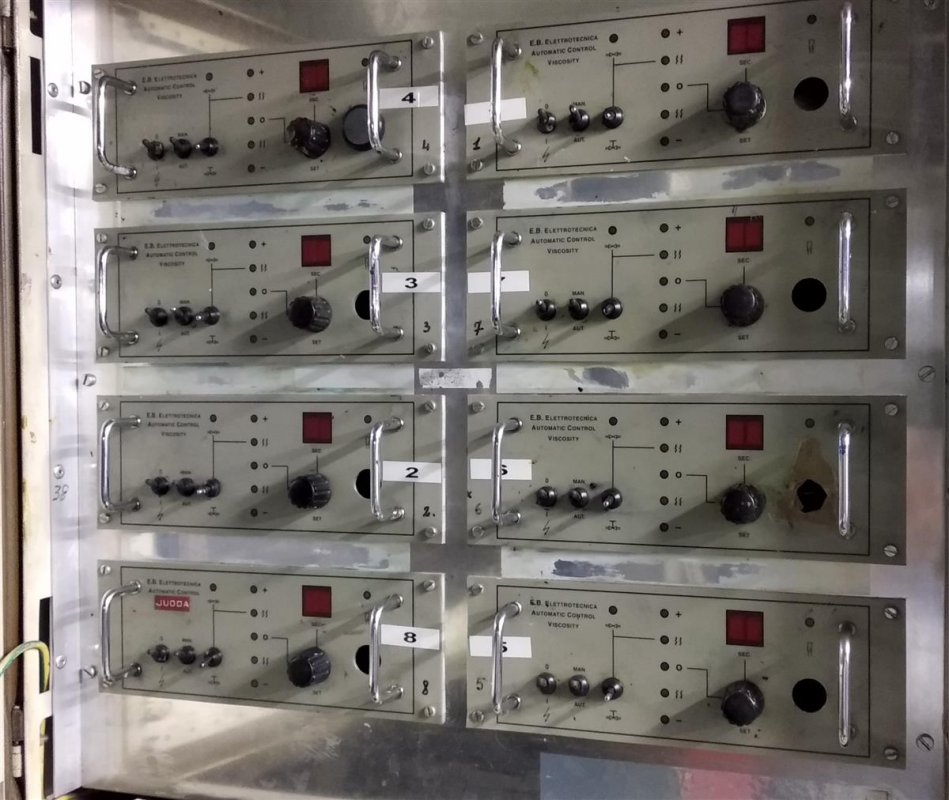

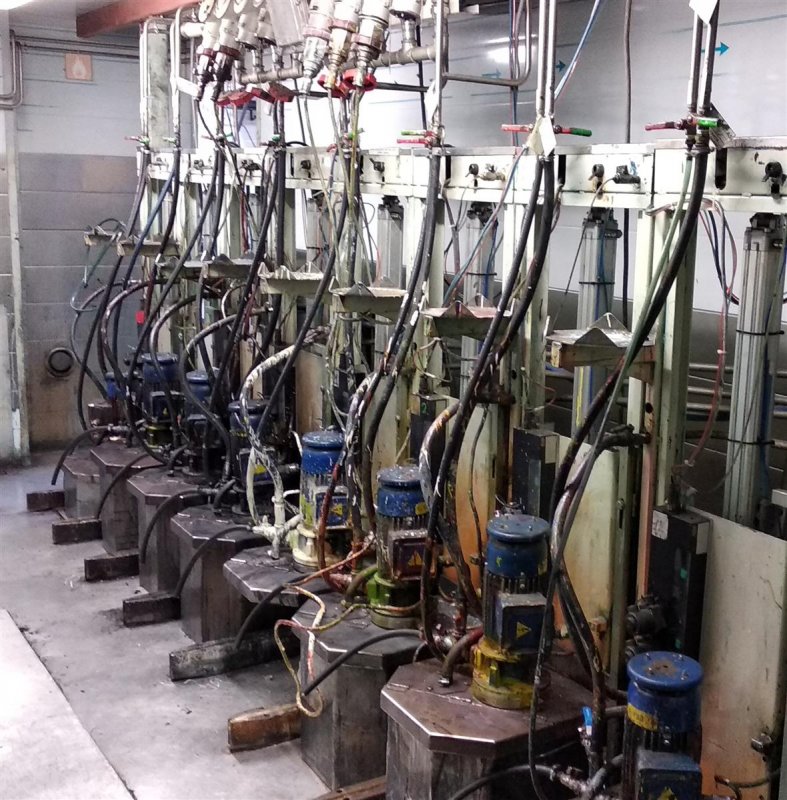

- Vyscosity control
- Yes
- Washing system
- No
- Inking system
- Closed chamber doctor blades + ceramic anilox
- Anilox
- 8

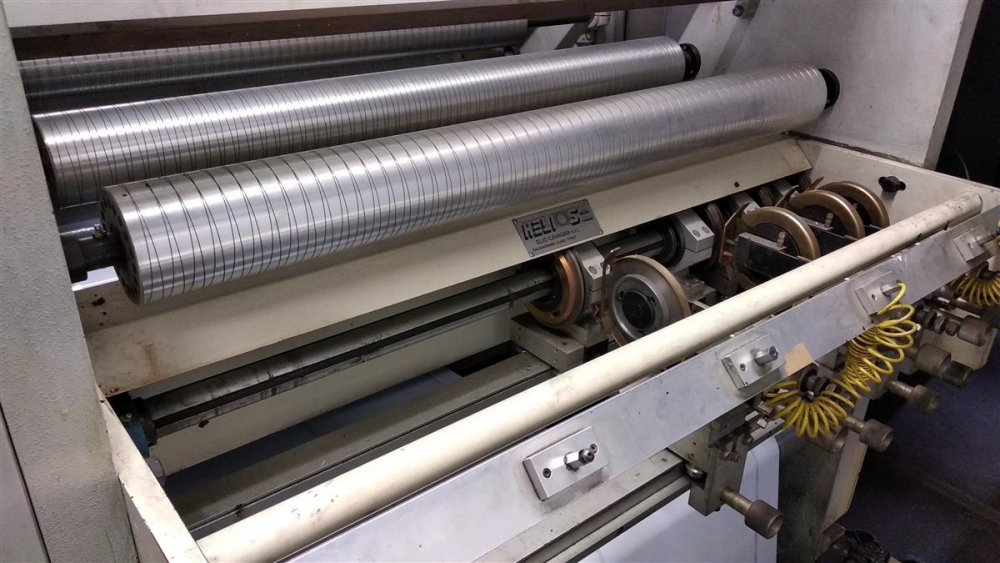

- Print Sleeves
- 150
- Note
- Number of carrier sleeves 114,708-8pcs & 140,173-8pcs Max. mechanical speed: Max 350 Thickness: Min 12 my
| Código Máquina | FL902 |
| Constructor | SCHIAVI BOBST |
| Modello | ALPHA |
| Año | 2000 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Overhaul/renovation | updated main computer by bobst in 2022 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1120 |
| Print width (mm) | 1050 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 650 |
| Unwinder type | Turret |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Gas |
| Videocamera | BST |
| Corona treatment | Mero |
| Web guides | 2 BST |
| Vyscosity control | Yes |
| Washing system | No |
| Inking system | Closed chamber doctor blades + ceramic anilox |
| Anilox | 8 |
| Print Sleeves | 150 |
| Note | Number of carrier sleeves 114,708-8pcs & 140,173-8pcs Max. mechanical speed: Max 350 Thickness: Min 12 my |
