- Código Máquina
- FL805
- Constructor
- SCHIAVI
- Modello
- ALPHA
- Año
- 2002
- Number of colors
- 8
- Print possibilityes
- 8 col plus varnish
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1270
- Print width (mm)
- 1220
- Min print repeat (mm)
- 320
- Max print repeat (mm)
- 650

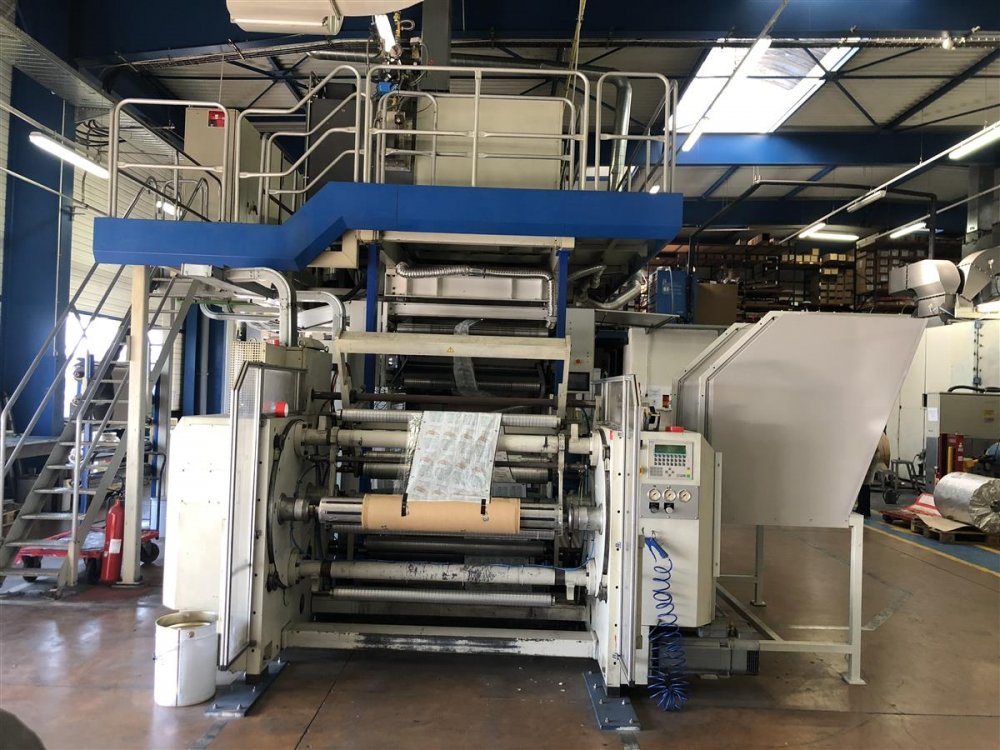

- Unwinder type
- TURRET
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- TURRET
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 Zone drying: drying tunnel and inte-rcolour, intependent ventilation and temperature setting. 4 fans, 2 gas burners
- Videocamera
- ELTROMAT video camera for printed side. second inspection system for varnish
- Corona treatment
- Sherman. Not complete and need repair
- Web guides
- 2x BST
- Vyscosity control
- no
- Inking system
- Closed chambers doctor blades system . Chambers changed in 2014
- Anilox
- 12
- Print Sleeves
- 16x320, 15x330, 13x340, 16x345, 14x350, 12x360, 12x370, 9x380, 8x390, 12x400, 13x410, 15x420, 11x430, 13x440, 10x450, 15x460, 13x470, 16x480, 6x490, 8x500, 7x510, 24x520, 16x530, 11x540, 12x550, 10x560, 7x570, 8x580, 15x590, 11x600, 8x610, 8x620, 8x630, 8x640, 16x650
- Note
- In line in register varnishing system
| Código Máquina | FL805 |
| Constructor | SCHIAVI |
| Modello | ALPHA |
| Año | 2002 |
| Number of colors | 8 |
| Print possibilityes | 8 col plus varnish |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1270 |
| Print width (mm) | 1220 |
| Min print repeat (mm) | 320 |
| Max print repeat (mm) | 650 |
| Unwinder type | TURRET |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | TURRET |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 Zone drying: drying tunnel and inte-rcolour, intependent ventilation and temperature setting. 4 fans, 2 gas burners |
| Videocamera | ELTROMAT video camera for printed side. second inspection system for varnish |
| Corona treatment | Sherman. Not complete and need repair |
| Web guides | 2x BST |
| Vyscosity control | no |
| Inking system | Closed chambers doctor blades system . Chambers changed in 2014 |
| Anilox | 12 |
| Print Sleeves | 16x320, 15x330, 13x340, 16x345, 14x350, 12x360, 12x370, 9x380, 8x390, 12x400, 13x410, 15x420, 11x430, 13x440, 10x450, 15x460, 13x470, 16x480, 6x490, 8x500, 7x510, 24x520, 16x530, 11x540, 12x550, 10x560, 7x570, 8x580, 15x590, 11x600, 8x610, 8x620, 8x630, 8x640, 16x650 |
| Note | In line in register varnishing system |
