- Código Máquina
- FL771
- Constructor
- SCHIAVI

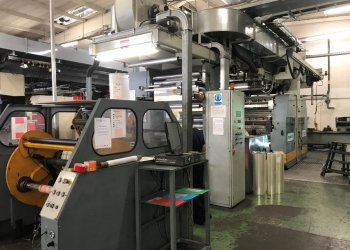

- Modello
- POLARIS 136
- Año
- 1997
- Number of colors
- 6
- Gearless
- No
- Fast sleeve change
- No
- Computer supervision
- Yes
- Web width (mm)
- 920
- Print width (mm)
- 870
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 800
- Unwinder type
- Double spindle turret drop splice
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Double spindle turret flying splice
- Max reel diameter rewinder (mm)
- 800
- Drying
- Gas burner.Drying system:Hot air
- Inking system
- solvent based.Enclosed doctor blade chambers with ceramic anilox rollers.6 ink pumps.
- Anilox
- anilox rollers ceramic coated and laser engraved, as following: 1 roller engraved with screen 280 lines/inch, volumes 5;3 rollers engraved with screen 280 lines/inch, volumes 12;2 rollers engraved with screen 300 lines/inch, volumes 14;2 rollers engraved with screen 350 lines/inch, volumes 9;2 rollers engraved with screen 450 lines/inch, volumes 7;2 rollers engraved with screen 550 lines/inch, volumes 5.
- Note
- Substrates able to process :Plastic films Speed: 250 m./min. Bull-gear, pitch 10 mm. Lenght registers : motorized remote controlled. Side registers: manual. Decks’ positioning system :motorized. Locking system of the printing units: manual. Video inspection system
| Código Máquina | FL771 |
| Constructor | SCHIAVI |
| Modello | POLARIS 136 |
| Año | 1997 |
| Number of colors | 6 |
| Gearless | No |
| Fast sleeve change | No |
| Computer supervision | Yes |
| Web width (mm) | 920 |
| Print width (mm) | 870 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 800 |
| Unwinder type | Double spindle turret drop splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Double spindle turret flying splice |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Gas burner.Drying system:Hot air |
| Inking system | solvent based.Enclosed doctor blade chambers with ceramic anilox rollers.6 ink pumps. |
| Anilox | anilox rollers ceramic coated and laser engraved, as following: 1 roller engraved with screen 280 lines/inch, volumes 5;3 rollers engraved with screen 280 lines/inch, volumes 12;2 rollers engraved with screen 300 lines/inch, volumes 14;2 rollers engraved with screen 350 lines/inch, volumes 9;2 rollers engraved with screen 450 lines/inch, volumes 7;2 rollers engraved with screen 550 lines/inch, volumes 5. |
| Note | Substrates able to process :Plastic films Speed: 250 m./min. Bull-gear, pitch 10 mm. Lenght registers : motorized remote controlled. Side registers: manual. Decks’ positioning system :motorized. Locking system of the printing units: manual. Video inspection system |
