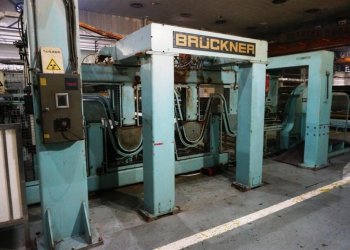

3 layers BRUCKNER BOPP / BOPET tenderframe plant // BOPP BOPET // Film extrusion lines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Biaxially oriented polypropylene (BOPP) and Biaxially oriented polyester (BOPET) are commonly produced in tender-frame lines. In these lines material is melted through a flat extrusion die (T-die) and solidified onto a cooled roller. Material is then stretched in machine direction in an MDO. Thereafter material is stretched in transversal direction in a TDO. These processes deliver a molecule orientation in both axes, this enhances many of their properties, particularly the mechanical, impact, barrier and optical properties.

Photo Gallery

Ask more informations

about a similar one

Machine Code: BO47
Manufacturer: BRUCKNER
Year: 1996
Number of layers: 3
Overhaul/renovation: 2005/2012
Material: BOPP
Width (mm): 6600

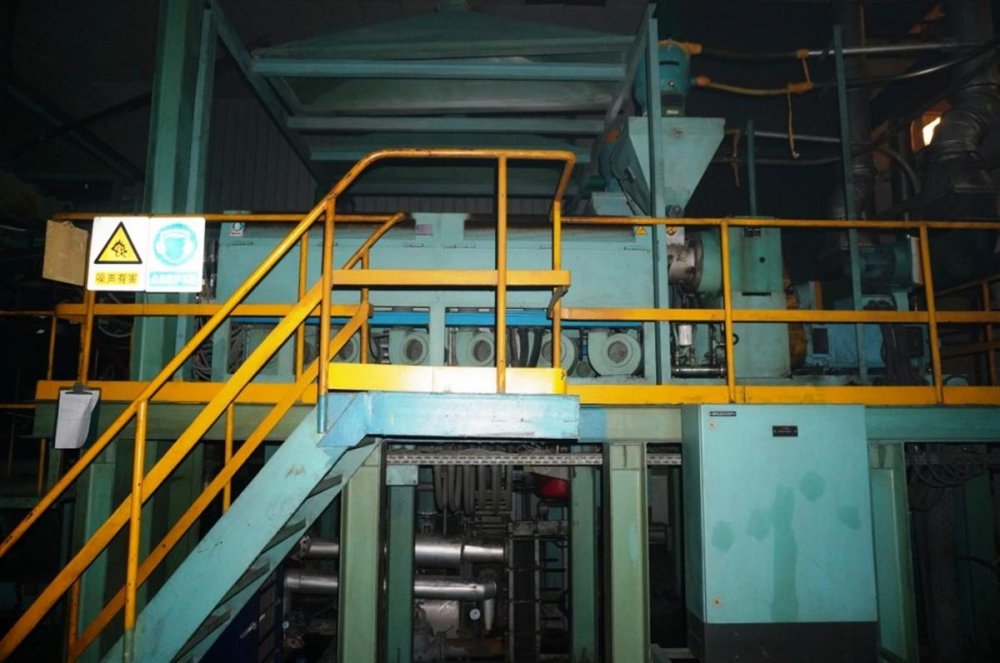

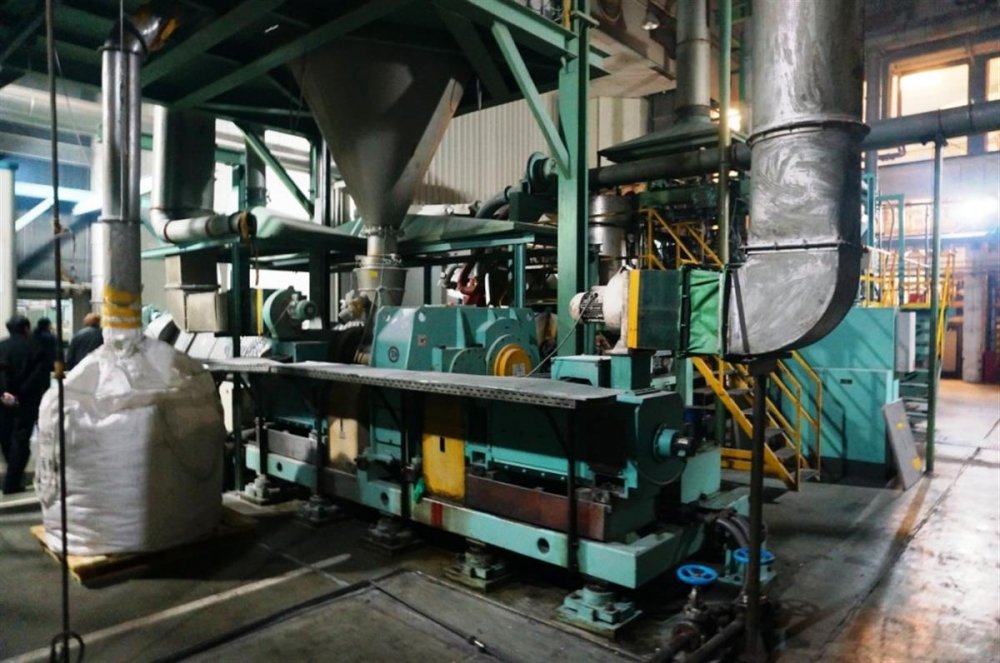

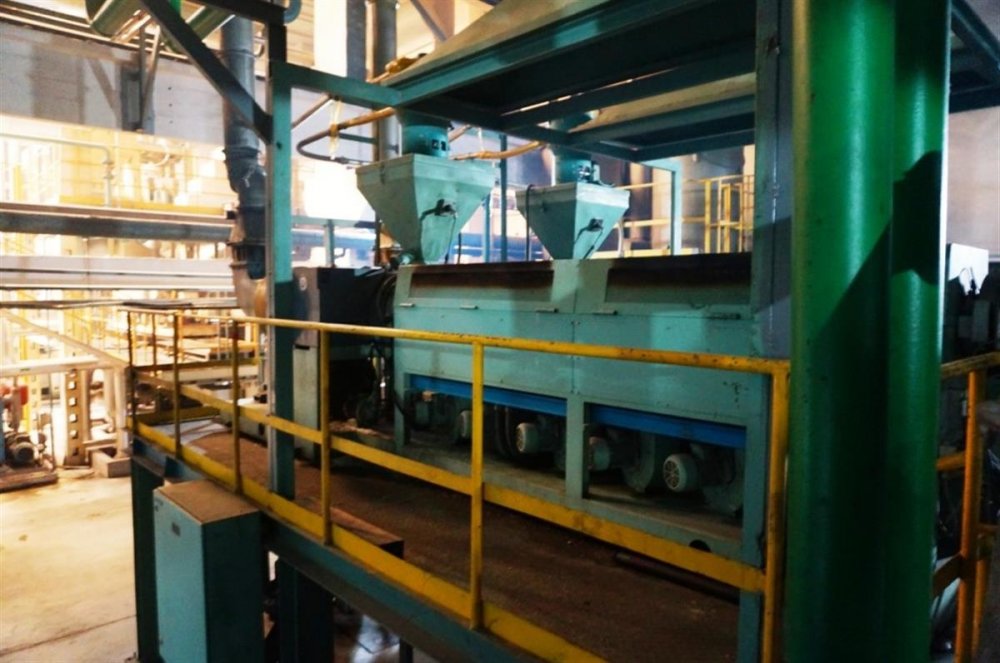

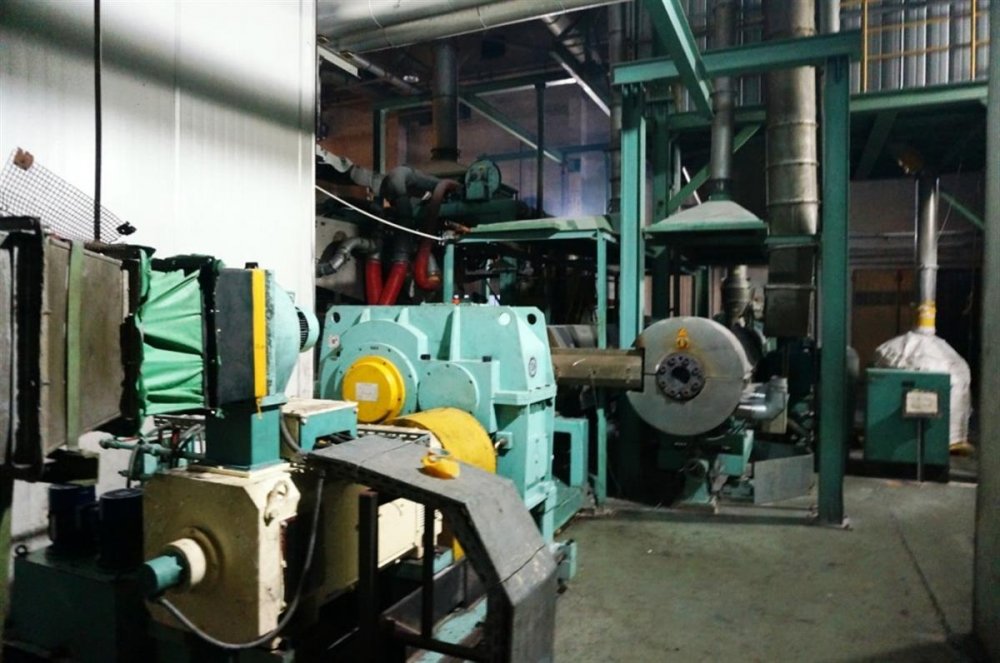

Extruder 1 Description: MAIN EXTRUDER: CASCADE TYPE; MANUF: BANDERA; MELT 200mm diam; L/D 24; Extrusion rate: 2400kg/h; Screw speed: 195RPM; drive: 2 x 430kw DC motor; Electric heating:160kw; New screws in 2005
Extruder 2 Description: COEX1: MANUF: BANDERA; METRING; SCREW DIAM 250; L/D 250mm diam;Extrusion rate: 2400kg/h; Screw speed: 90RPM; drive: 1 X 430kwDC motor; Eletric heating: 145kw;New screws in 2005
Extruder 3 Description: COEX 2: MANUF: BANDERA; Screw diam 100mm; L/D 32; Extrusion rate: 250kg/h; Screw speed: 120RPM; drive: 117kw; Eletric heating: 50kw;New screws in 2005
Head description: Gap 1.7-3.5
Die width: 912

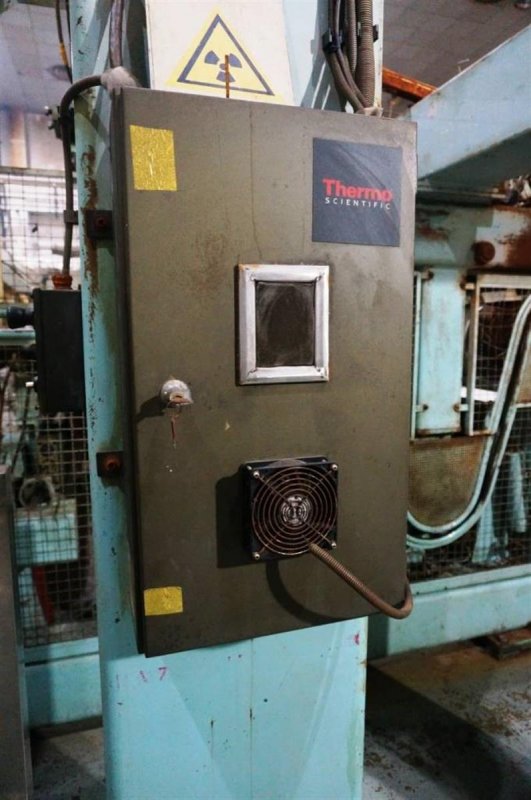

Thickness controll system: Yes; In 2008 gage control system was upgraded (Original, Thermo Fisher)

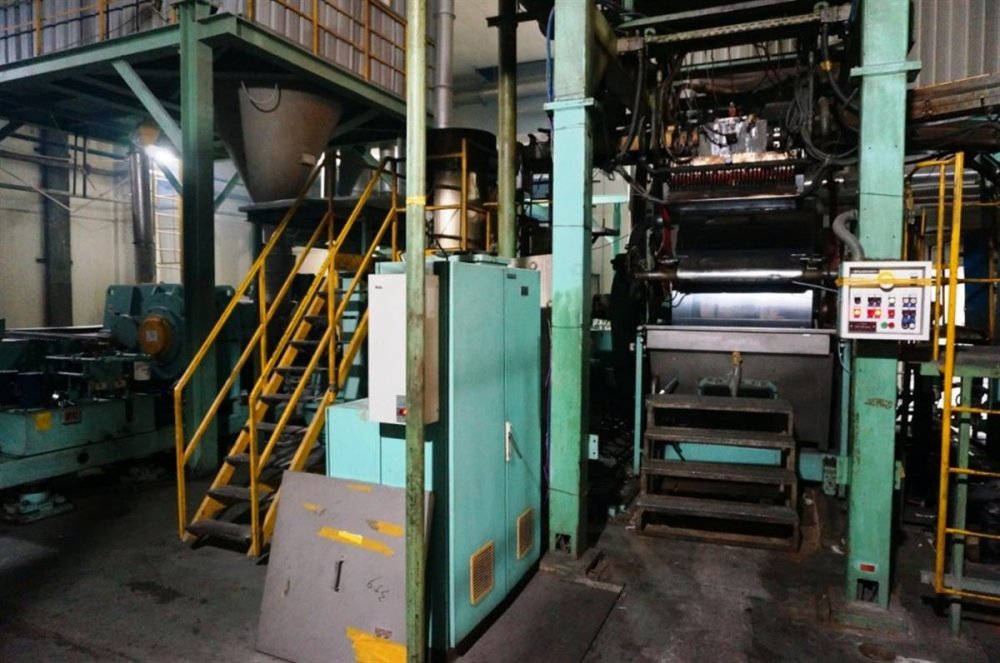

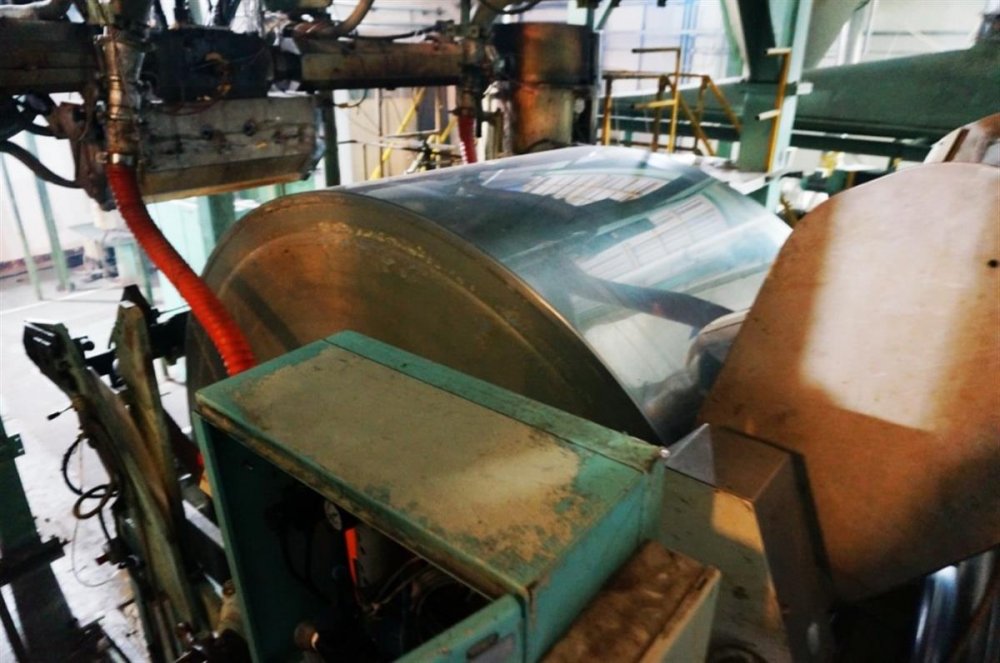

Chill roll unit: Waterbath system; Diam 2200; Width 1200; Renaovated in 2012
MDO description: CO14/6-2/2-90;Roll width: 1.1m, working width: 900mm; 14 pcs preheat roll (614mm); 6 pcs stretching rolls (150mm); 2 hot-setting roll (614mm); In 2012 preheat roller, heat-setting roller coated with chrome, and the drive inverter upgraded too

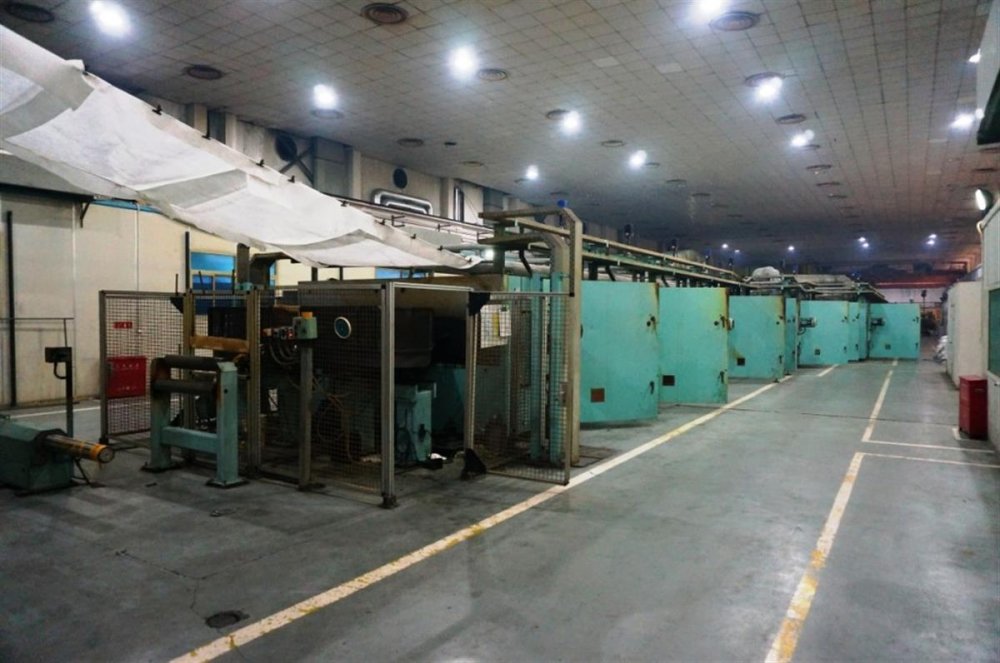

TDO description: 61CO15EP/12/12/3/61/660/444; INFEED: Imported width: 650 ~ 800mm, outlet width: 6 ~ 6.9m; maximum tensile width: 7.5m, total length: 51m, fan total number of units: 42; inlet section: 1.5m, preheating section: 15m, stretch segment: 12m heatset sections: 12m, neutral segments: 3m, cooling section: 6m, exit segment: 1.5m; n 2008 clip opening and closing changed into a magnetic clip (Bruckner), added 1 set heat recovery for TDO bake (Yancheng Avion), & TDO bake increase fan frequency control devices. In 2012 TDO chain drive inverter and fan inverters upgraded
Corona treatment: Yes, In 2008 & 2012, 2 # Corona, 3 # Corona were upgraded (Original MERO)

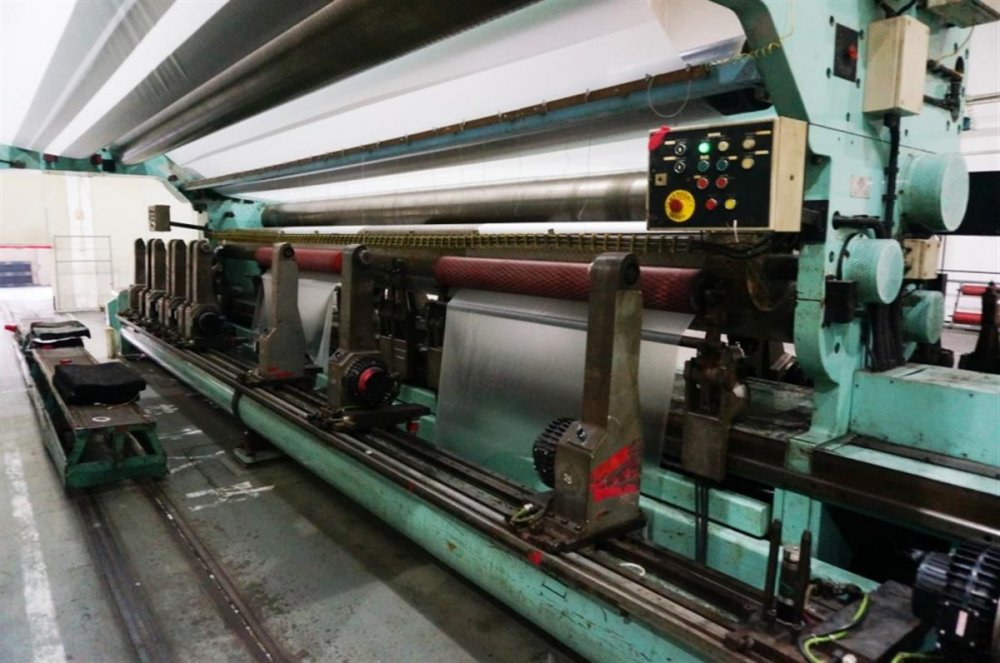

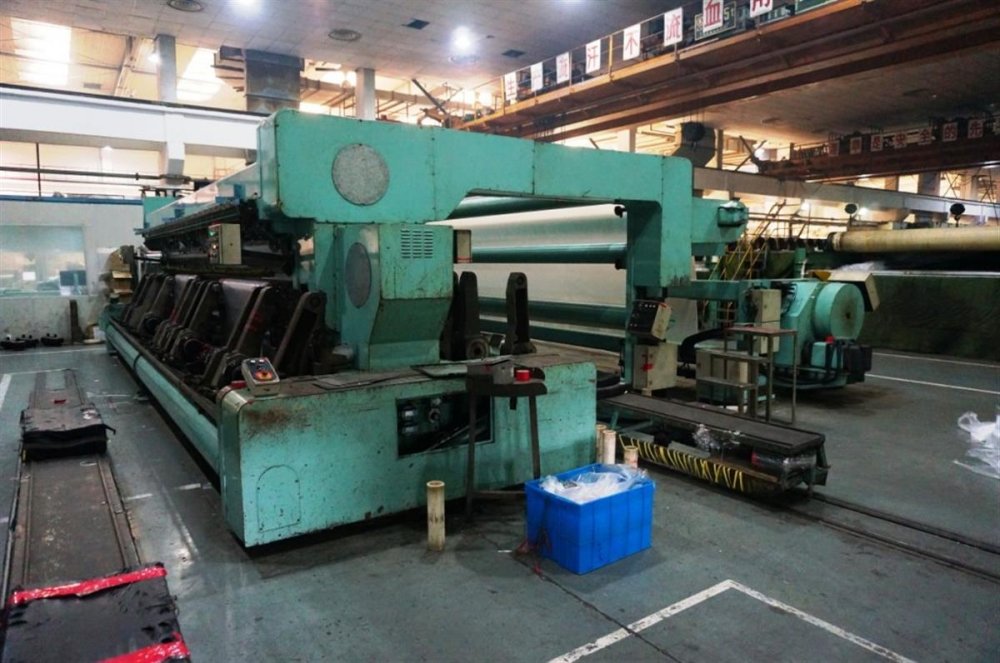

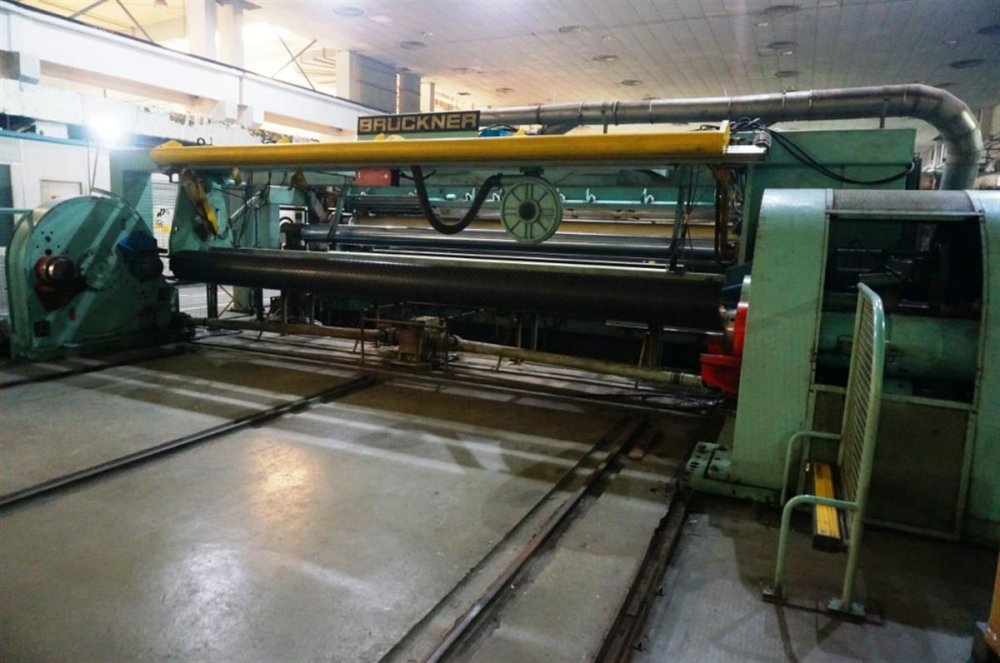

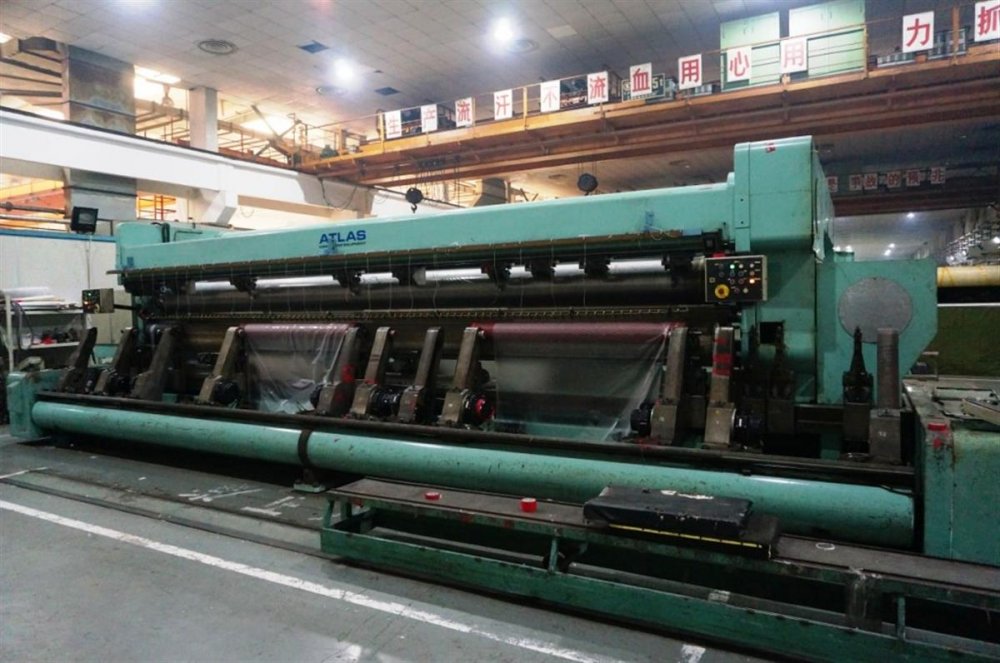

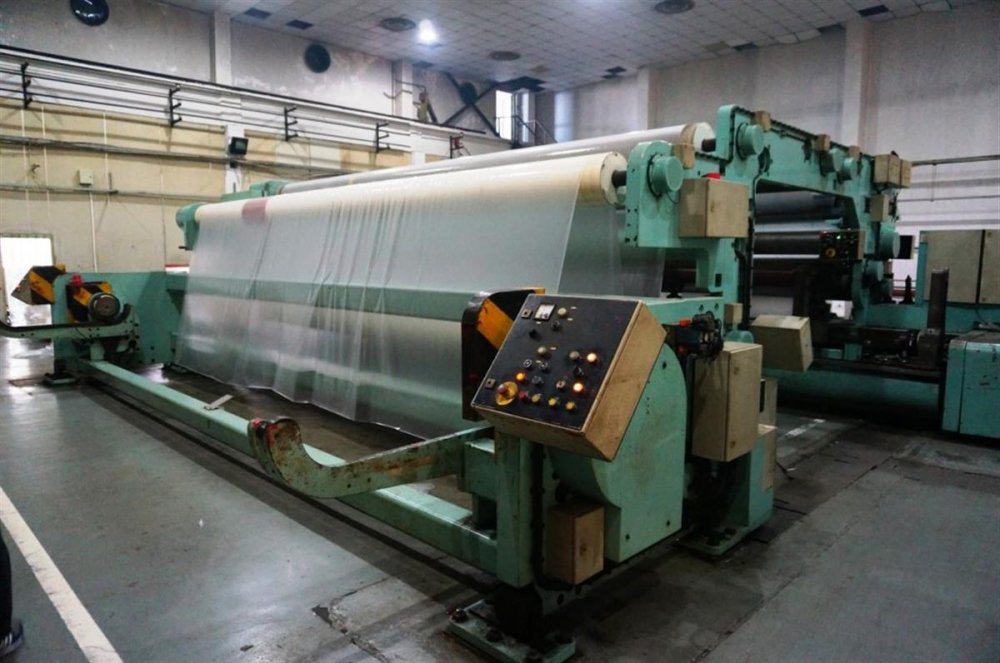

Slitter: ATLAS; Unwinding maximum film width: 6.6m, maximum Rewinding diameter: 1.0m; slitting width: 0.4 ~ 2.2m; maximum operating speed: 1000 m / min; 2012 update winding arm motor control system upgradee (Siemens)

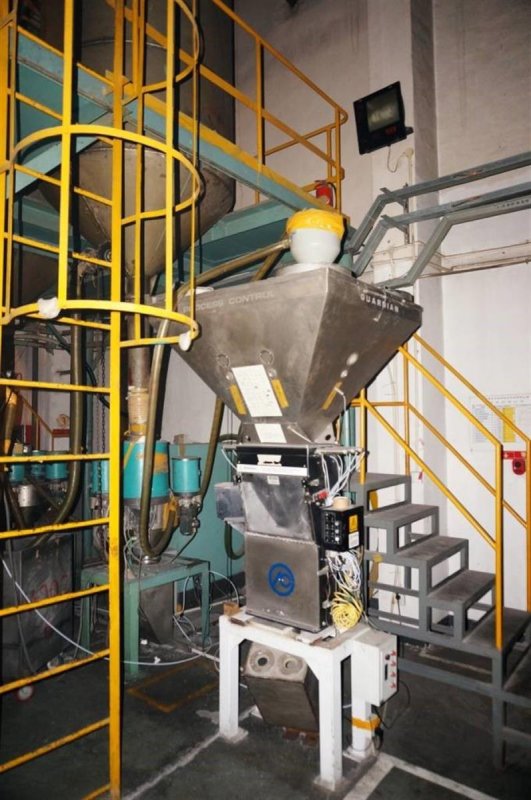

Note: Raw material storsge transport system; Three layer die li; Manuf Bruckner; Model: 3A912; Width: 912mm; Dip width: 1.7~3.5mm, Electric heating 145kw, 32pcs Thermal expansion bolts; In 2008 die bolt control system was changed; Inline edge cut grinding and refeeding system; TDO : hot oil boiler included; In 2013 the burner was changed to natural gas burner; Air Compressor included from ATLAS COPCO; Chiller included from SRMW Material BOPP range 12-60my;
