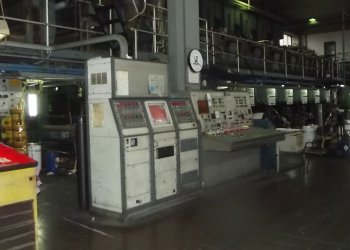

CERUTTI 48 R Rotogravure press 9 colors ** SOLD ** Ask more informations about a similar one

Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.

Machine Code RO117
Manufacturer CERUTTI
Model 48 R
Year 1988
Number of colors 9
Web width (mm) 1390
Print width (mm) 1320
Print repeat range (mm) 450-1000 mm
Drying specifications one drier c.m./h 10000 print station from 1 at 6 - drier length 2600mm ; double drier c.m./h 15800 for print station 7 -8 - drier length 4500mm.
Drying heat surce from 1 to 6 print station with steam – from printing station 7-8 with gas heaters
Unwinder type Turret automatic
Max reel diameter unwinder (mm) 1000
Rewinder type Turret automatic
Max reel diameter rewinder (mm) 800
Videocamera Grafikontrol
Register control Crosfield
Vyscosity control Crosfield
Corona treatment No
Print cylinders 80
Additional information Print speed: 350/400 mt/min. On station 9th solvent laminating unit solventless Nordmeccanica.Preconditioning unit on unwinder.Gravure cylinders: Nr. 80 (available on option up to 200 cylinders). Cylinders shaft: Nr. 37 in two sizes 1070 and 1390 mm.Pressure rollers: 60 in different sizes.4 air shafts 70 mm + 6 air shafts ; 76 mm + 6 air shafts ;152 mm. No. 12 ink pumps, 15 ink trays + splashguards for 3 sizes

** SOLD **
