** SOLD **
Rotogravure printing machines (roto or gravure for short) perform a type of intaglio printing process, which involves engraving the image onto a cylinder which become the image carrier. Every printing job will require its dedicated set of engraved cylinders.
Ask more informations
about a similar one
- Machine Code
- RO224
- Manufacturer

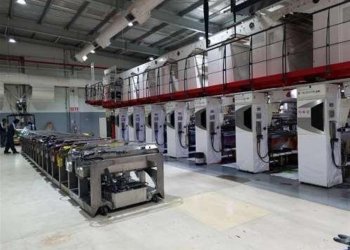

- WINDMÖLLER & HÖLSCHER
- Modello
- Heliostar G
- Year
- 2007
- Number of colors
- 8
- Print possibilities
- 8+0 , 7+1 , 6+2
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1220
- Print width (mm)
- 1200
- Print repeat range (mm)
- 450 -900
- Drying specifications
- Unit 1 and 8 Double hood, units 2 to 7 single hood Automatic air recirculation system with LEL control
- Drying heat surce
- Thermo oil heat exchangers
- Unwinder type
- Turret automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret automatic with slitter attachment
- Max reel diameter rewinder (mm)
- 800
- Videocamera
- Grafycontrol 100 % inspection system
- Register controll
- Yes Grafykontrol Automatic Longitudinal and side
- Vyscosity control
- Yes
- Corona treatment
- yes
- Note
- Turning bar 8 antistatic bars ESA ( Electrostatic printing assist ) Web guides Procontrol Operator terminal totally 16 trolleys ( 8 in the machien + 8 spare )
| Machine Code | RO224 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | Heliostar G |
| Year | 2007 |
| Number of colors | 8 |
| Print possibilities | 8+0 , 7+1 , 6+2 |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1220 |
| Print width (mm) | 1200 |
| Print repeat range (mm) | 450 -900 |
| Drying specifications | Unit 1 and 8 Double hood, units 2 to 7 single hood Automatic air recirculation system with LEL control |
| Drying heat surce | Thermo oil heat exchangers |
| Unwinder type | Turret automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret automatic with slitter attachment |
| Max reel diameter rewinder (mm) | 800 |
| Videocamera | Grafycontrol 100 % inspection system |
| Register controll | Yes Grafykontrol Automatic Longitudinal and side |
| Vyscosity control | Yes |
| Corona treatment | yes |
| Note | Turning bar 8 antistatic bars ESA ( Electrostatic printing assist ) Web guides Procontrol Operator terminal totally 16 trolleys ( 8 in the machien + 8 spare ) |
