** SOLD **
Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".
Ask more informations
about a similar one
- Machine Code
- FL591
- Manufacturer

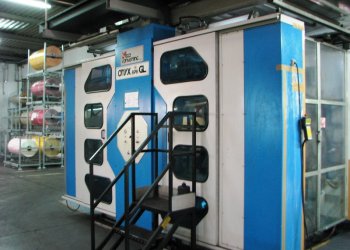

- UTECO
- Modello
- ONYX 876
- Year
- 2006
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1450
- Print width (mm)
- 1400
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 760
- Unwinder type
- SINGLE
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- SINGLE
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones , 4 fans , final tunnel 4 mt., Thermo oil heat exchangers, automatic air recirculation system
- Videocamera
- BST Super Handy 3000
- Corona treatment
- Yes
- Web guides
- Yes
- Vyscosity control
- 8 GAMA
- Anilox
- 8 as follows: 3x80L/cm, vol.17 cm3/m2; 1x80L/cm, vol.15cm3/m2; 2x100L/cm,vol. 13 cm3/m2;1x140L/cm, vol. 9 cm3/m2;1x180L/cm, vol. 10 cm3/m2
- Print Sleeves
- 8 sleeves repeat 300 mm (plate thickness 2,84 + stickyback 0,55 mm) outer diameter 88,713 mm ; 8 sleeves repeat 319 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 98,262 mm; 8 sleeves repeat 369 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 114,177 mm;
- Note
- Speed 360m/min .Analyzer solvent concentration in the printing unit and drying tunnel
Machine Code | FL591 |
Manufacturer | UTECO |
Modello | ONYX 876 |
Year | 2006 |
Number of colors | 8 |
Gearless | Yes |
Fast sleeve change | Yes |
4 motor per deck CNC position system | Yes |
Computer supervision | Yes |
Web width (mm) | 1450 |
Print width (mm) | 1400 |
Min print repeat (mm) | 300 |
Max print repeat (mm) | 760 |
Unwinder type | SINGLE |
Max reel diameter unwinder (mm) | 1000 |
Rewinder type | SINGLE |
Max reel diameter rewinder (mm) | 1000 |
Drying | 2 zones , 4 fans , final tunnel 4 mt., Thermo oil heat exchangers, automatic air recirculation system |
Videocamera | BST Super Handy 3000 |
Corona treatment | Yes |
Web guides | Yes |
Vyscosity control | 8 GAMA |
Anilox | 8 as follows: 3x80L/cm, vol.17 cm3/m2; 1x80L/cm, vol.15cm3/m2; 2x100L/cm,vol. 13 cm3/m2;1x140L/cm, vol. 9 cm3/m2;1x180L/cm, vol. 10 cm3/m2 |
Print Sleeves | 8 sleeves repeat 300 mm (plate thickness 2,84 + stickyback 0,55 mm) outer diameter 88,713 mm ; 8 sleeves repeat 319 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 98,262 mm; 8 sleeves repeat 369 mm (plate thickness 1,14 +stickyback 0,55 mm) outer diameter 114,177 mm; |
Note | Speed 360m/min .Analyzer solvent concentration in the printing unit and drying tunnel |
