** SOLD **
Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.
Ask more informations
about a similar one
- Machine Code
- FL893
- Manufacturer

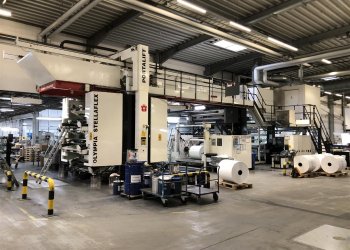

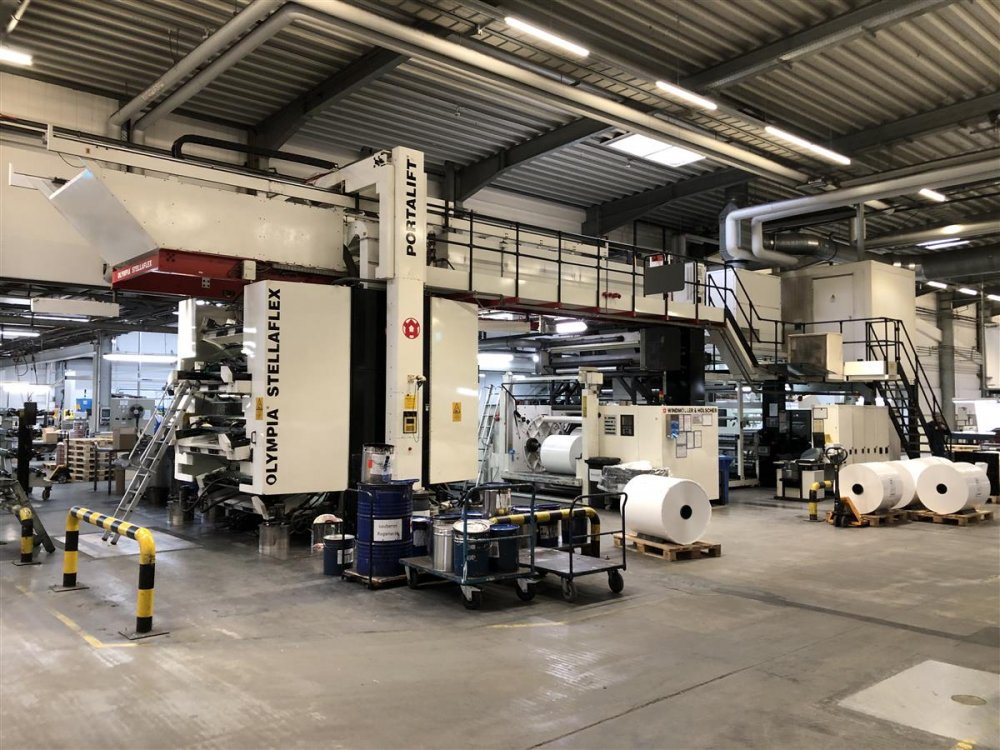

- WINDMÖLLER & HÖLSCHER
- Modello
- STELLAFLEX
- Year
- 1998
- Number of colors
- 8
- Print possibilityes
- 8+0
- Gearless
- No
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1620
- Print width (mm)
- 1570
- Min print repeat (mm)
- 400
- Max print repeat (mm)
- 1020
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 1000
- Drying
- 2 zones 4 fans 2 heat exchanger
- Videocamera
- Yes AVT Jupiter
- Vyscosity control
- yes autmatic BLOSS
- Inking system
- Closed chamber doctor blades
- Anilox
- 16 ceramic anilox between 130 and 340 l/cm
- Print Sleeves
- 620 sleeves
- Print cylinders
- Air mandrels of following repeats 350,400,470,540,610,680,750 mm
| Machine Code | FL893 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | STELLAFLEX |
| Year | 1998 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Gearless | No |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1620 |
| Print width (mm) | 1570 |
| Min print repeat (mm) | 400 |
| Max print repeat (mm) | 1020 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | 2 zones 4 fans 2 heat exchanger |
| Videocamera | Yes AVT Jupiter |
| Vyscosity control | yes autmatic BLOSS |
| Inking system | Closed chamber doctor blades |
| Anilox | 16 ceramic anilox between 130 and 340 l/cm |
| Print Sleeves | 620 sleeves |
| Print cylinders | Air mandrels of following repeats 350,400,470,540,610,680,750 mm |
