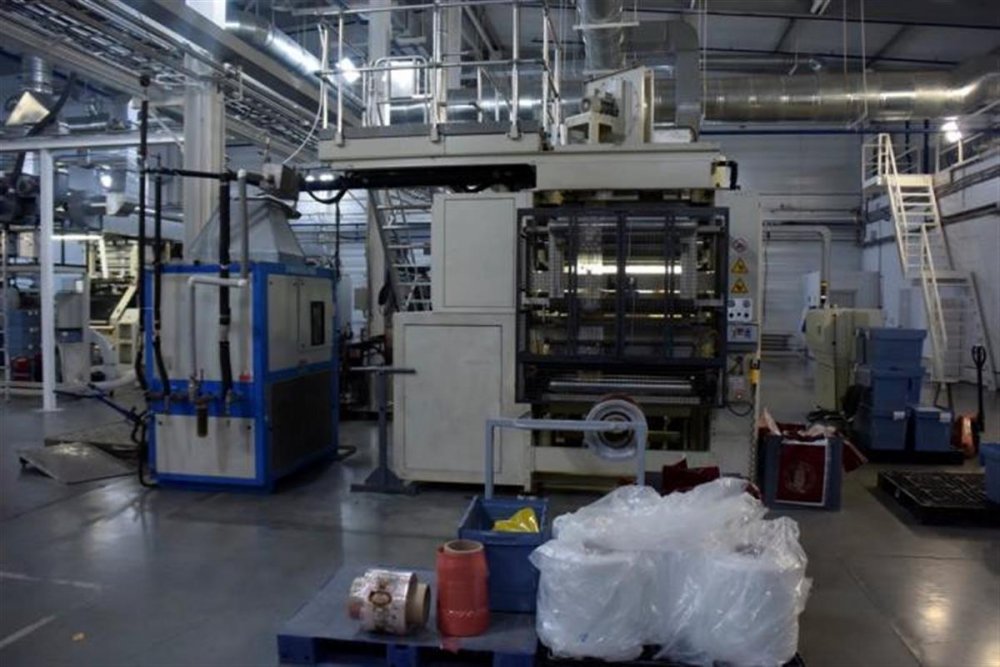

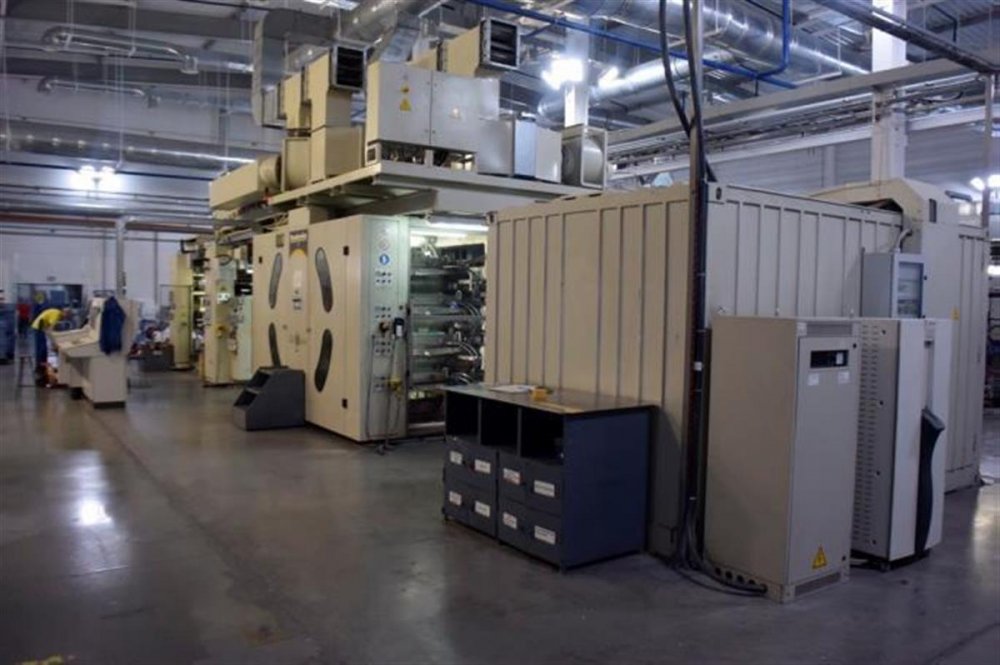

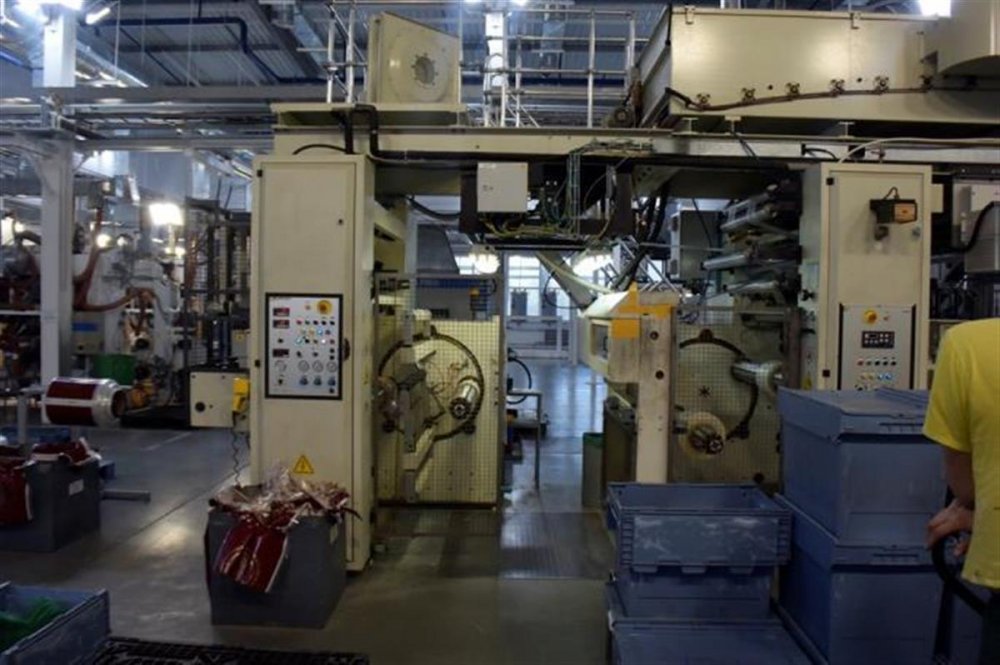

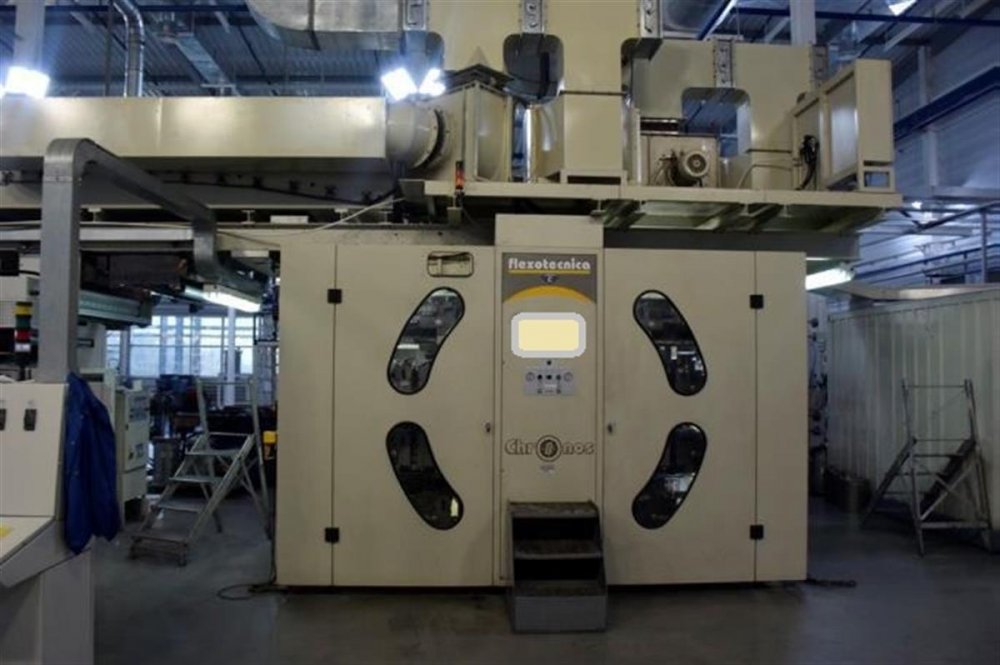

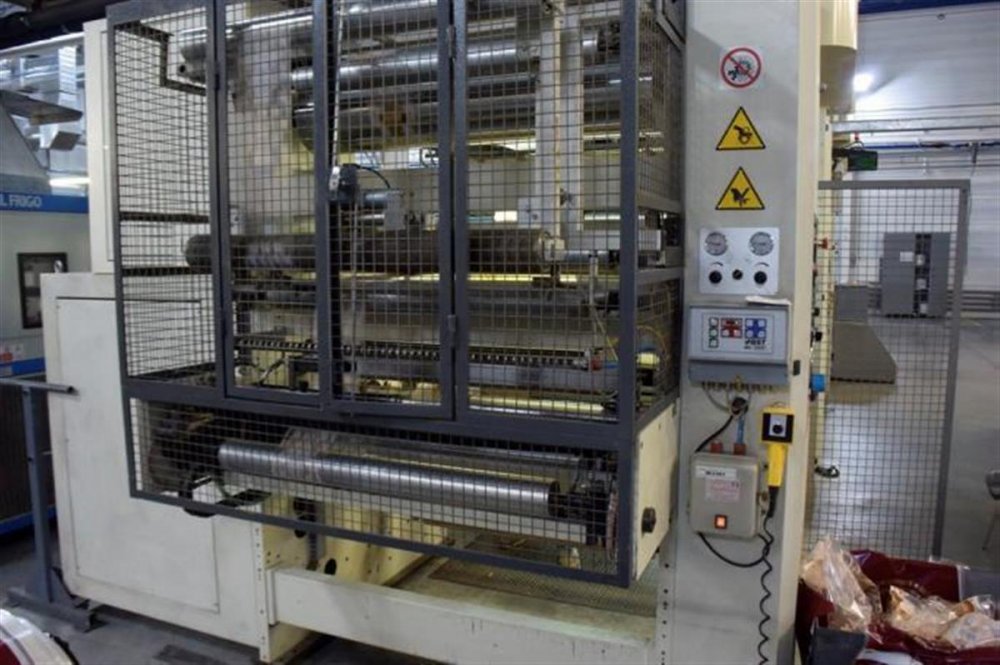

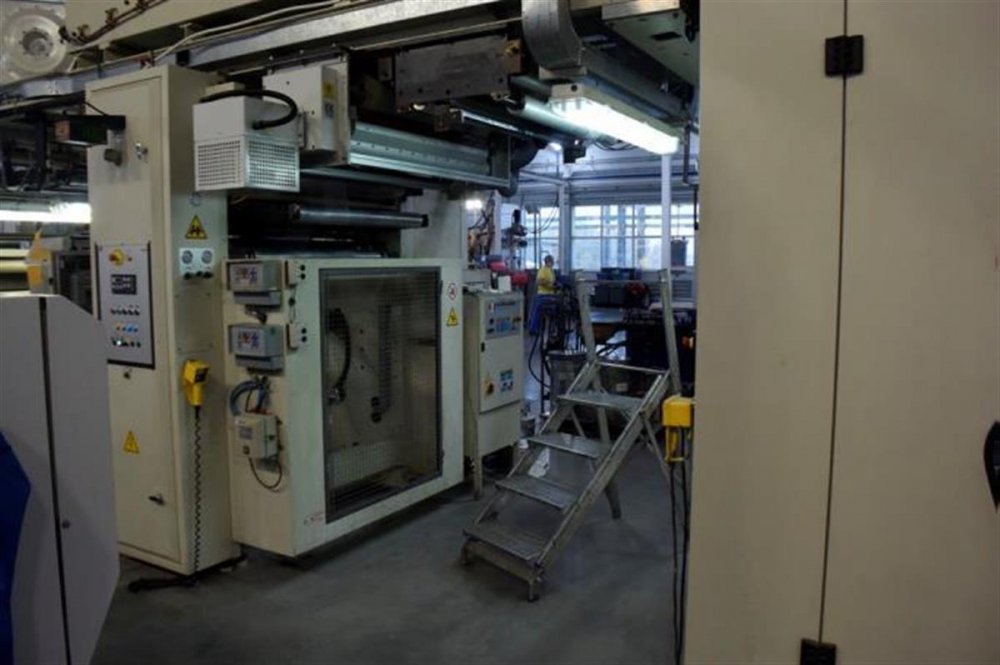

FLEXOTECNICA CHRONOS Flexo printer 8 colors

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

Ask more informations
about a similar one
Machine Code
FL812
Manufacturer
FLEXOTECNICA
Model
CHRONOS
Year
2007
Number of colors
8
Print possibilityes
8+0, 8+8
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1050
Print width (mm)
1000
Min print repeat (mm)
400
Max print repeat (mm)
750
Unwinder type
Turret cantilevered
Max reel diameter unwinder (mm)
600
Rewinder type
Turret cantilevered
Max reel diameter rewinder (mm)
600
Drying
Electric
Videocamera
Yes
Web guides
Yes
Vyscosity control
Yes
Washing system
Yes automatic
Inking system
ceramic anilox + doctor blade
Anilox
17 pieces
Print Sleeves
Yes 157 pieces from 400 to 700mm
Machine Code FL812
Manufacturer FLEXOTECNICA
Model CHRONOS
Year 2007
Number of colors 8
Print possibilityes 8+0, 8+8
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 400
Max print repeat (mm) 750
Unwinder type Turret cantilevered
Max reel diameter unwinder (mm) 600
Rewinder type Turret cantilevered
Max reel diameter rewinder (mm) 600
Drying Electric
Videocamera Yes
Web guides Yes
Vyscosity control Yes
Washing system Yes automatic
Inking system ceramic anilox + doctor blade
Anilox 17 pieces
Print Sleeves Yes 157 pieces from 400 to 700mm
