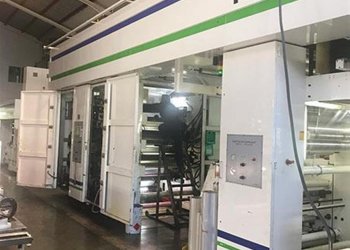

NOVAGRAF FL 40 7C Flexo printer 8 colors

** SOLD **

Flexographic printing machines (often abbreviated as flexo press) perform a printing process which utilizes a flexible relief plate to transfer ink to printed substrate. Every printing job will require its dedicated set of plates.

Ask more informations
about a similar one
Machine Code
FL816
Manufacturer
NOVAGRAF
Model
FL 40 7C
Year
2008
Number of colors
8
Gearless
No
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes
Computer supervision
Yes
Web width (mm)
1350
Print width (mm)
1300
Min print repeat (mm)
380
Max print repeat (mm)
750
Unwinder type
Turret
Max reel diameter unwinder (mm)
800
Rewinder type
Non- stop rewinder
Max reel diameter rewinder (mm)
800
Drying
electric
Videocamera
AVT Video system
Corona treatment
yes
Web guides
yes
Vyscosity control
yes
Inking system
Water base inks
Anilox
14 Anilox
Print Sleeves
Some sets of sleeves available
Additional information
Speed 350 mpm Material: paper from 80 to 140 gr/m2 Plate thickness: 1,14 mm+ 0,5 adhesive Gear-Pitch Module: 5 mm
Machine Code FL816
Manufacturer NOVAGRAF
Model FL 40 7C
Year 2008
Number of colors 8
Gearless No
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1350
Print width (mm) 1300
Min print repeat (mm) 380
Max print repeat (mm) 750
Unwinder type Turret
Max reel diameter unwinder (mm) 800
Rewinder type Non- stop rewinder
Max reel diameter rewinder (mm) 800
Drying electric
Videocamera AVT Video system
Corona treatment yes
Web guides yes
Vyscosity control yes
Inking system Water base inks
Anilox 14 Anilox
Print Sleeves Some sets of sleeves available
Additional information Speed 350 mpm Material: paper from 80 to 140 gr/m2 Plate thickness: 1,14 mm+ 0,5 adhesive Gear-Pitch Module: 5 mm
