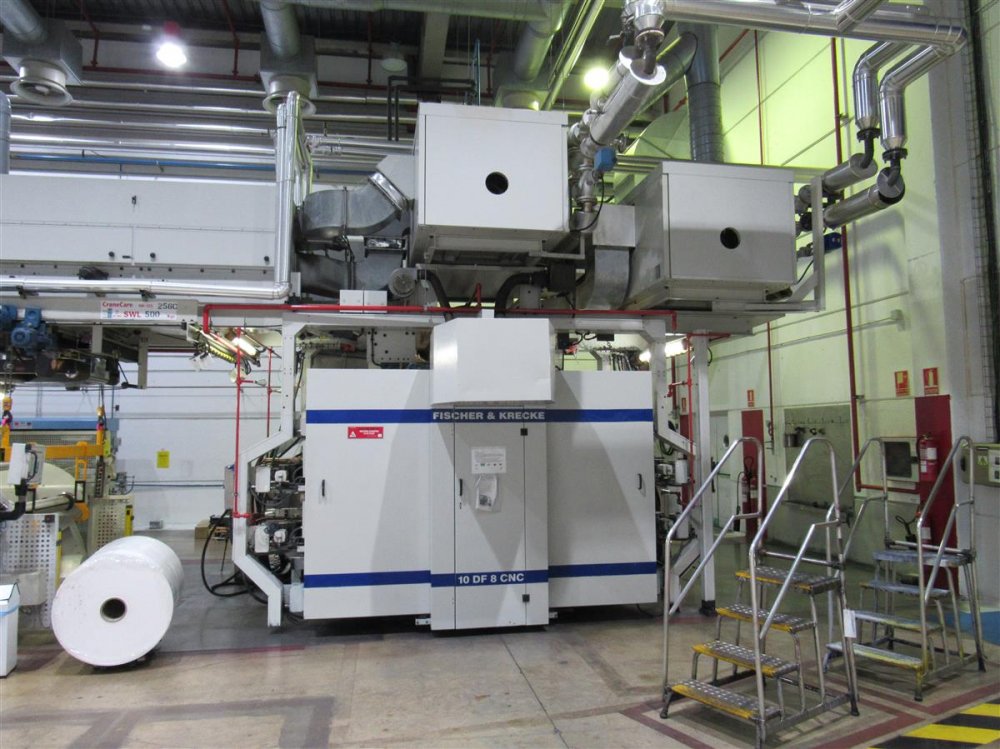

FISCHER & KRECKE 10DF/ 8 CNC Flexo central drum printing press 8 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo presses are used to print on different supports: plastic films, paper and aluminium foil.

Photo Gallery

Machine Code: FL799
Manufacturer: FISCHER & KRECKE
Modello: 10DF/ 8 CNC
Year: 1998
Number of colors: 8
Print possibilityes: 8+0
Gearless: No
Fast sleeve change: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 940
Print width (mm): 900
Min print repeat (mm): 300
Max print repeat (mm): 650

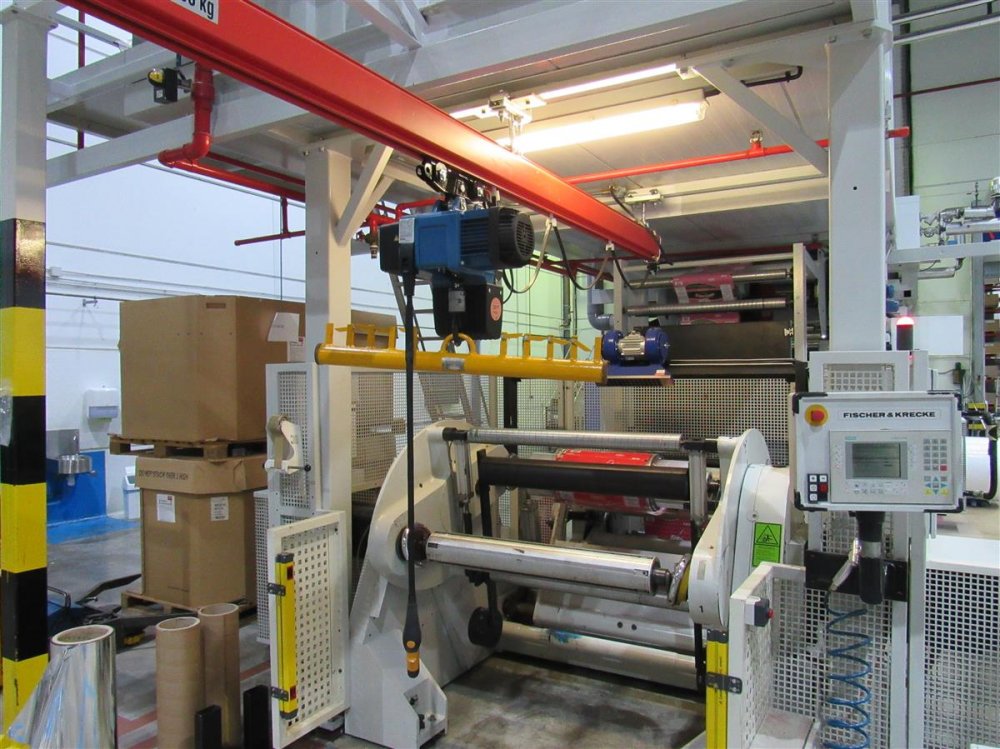

Unwinder type: Non stop flying splice
Max reel diameter unwinder (mm): 1000
Rewinder type: Non stop flying splice
Max reel diameter rewinder (mm): 1000
Drying: 1 gas burner. Automatic recirculation system with LEL control Heck. 2 zone dries with 2 blowing fan 2 exhaust fans, final tunnel 4 mt lenght
Web guides: Fife
Inking system: Solvent based ink. Chamber doctor blade device. 8 ink circulation pumps
Anilox: 22

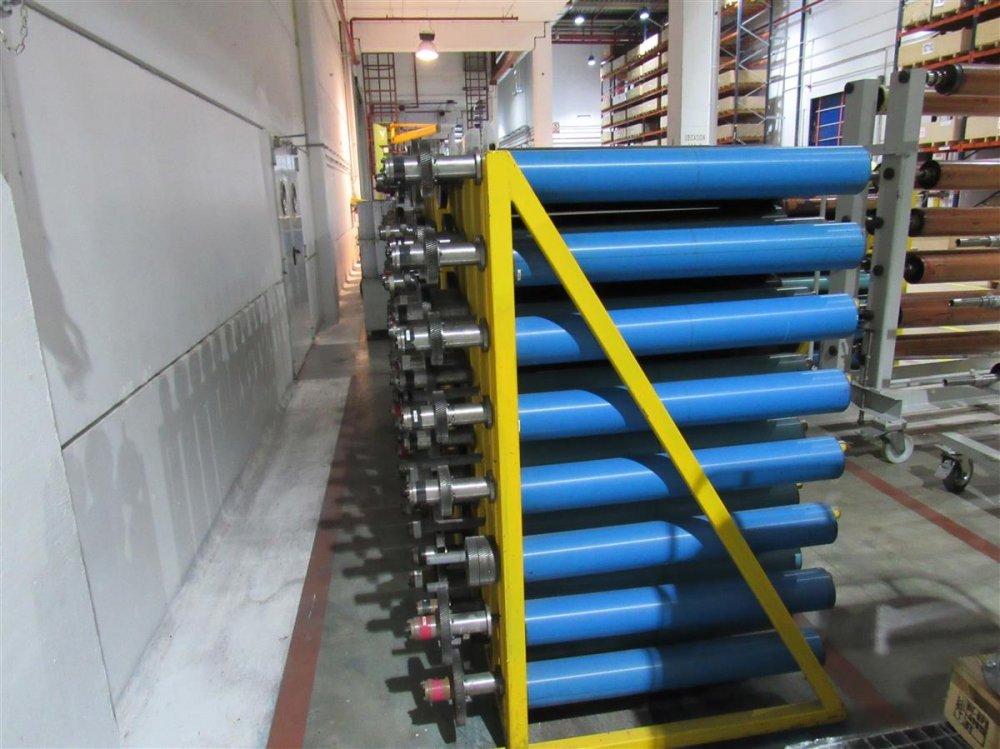

Print Sleeves: 460
Note: gear pitch 5mm Materials to be printed : LDPE,PP,PET and paper Speed:350m/min
