BOBST FISCHER & KRECKE 20 / 6 CS flexo printing machine 10 colors // Flexo CI // Printing machines // Used Flexo Press // Tecno Converting 2000 S.r.l.

** SOLD **

Flexo printers CI (Central Impression) are especially suitable in markets which require process jobs and flexibility (involve productions of small lots). In particular, technological improvements of last 15 years have re-shaped CI flexo presses both in their mechanical construction and in its controls. This improved their printing quality, drastically reduced change over times and consequently downsized their "minimum economical lot".

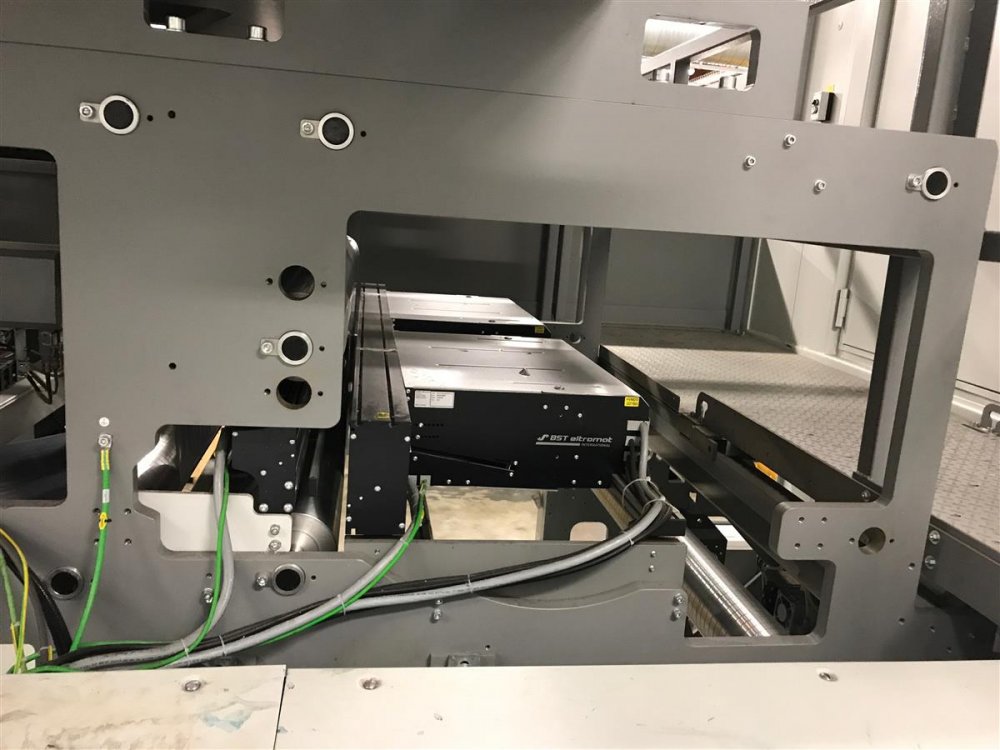

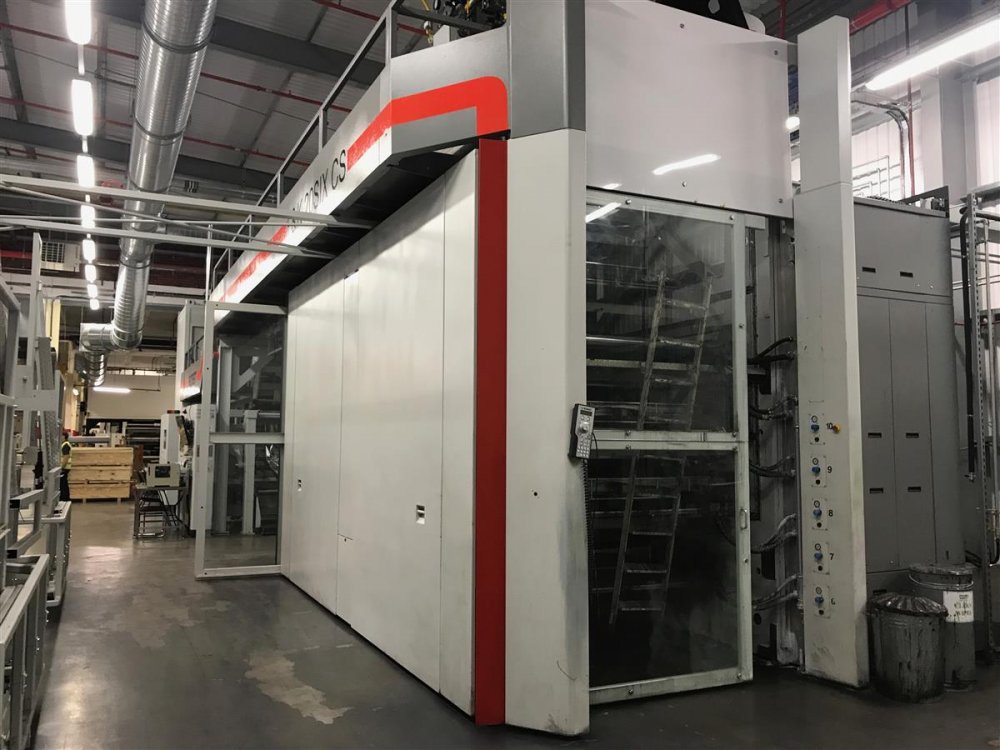

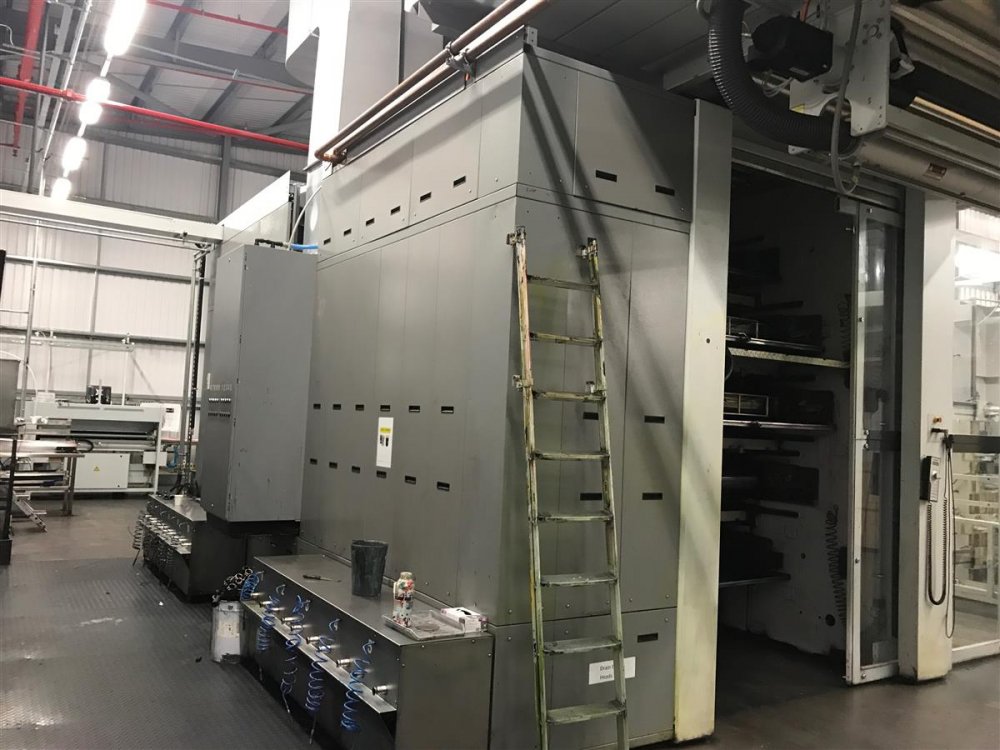

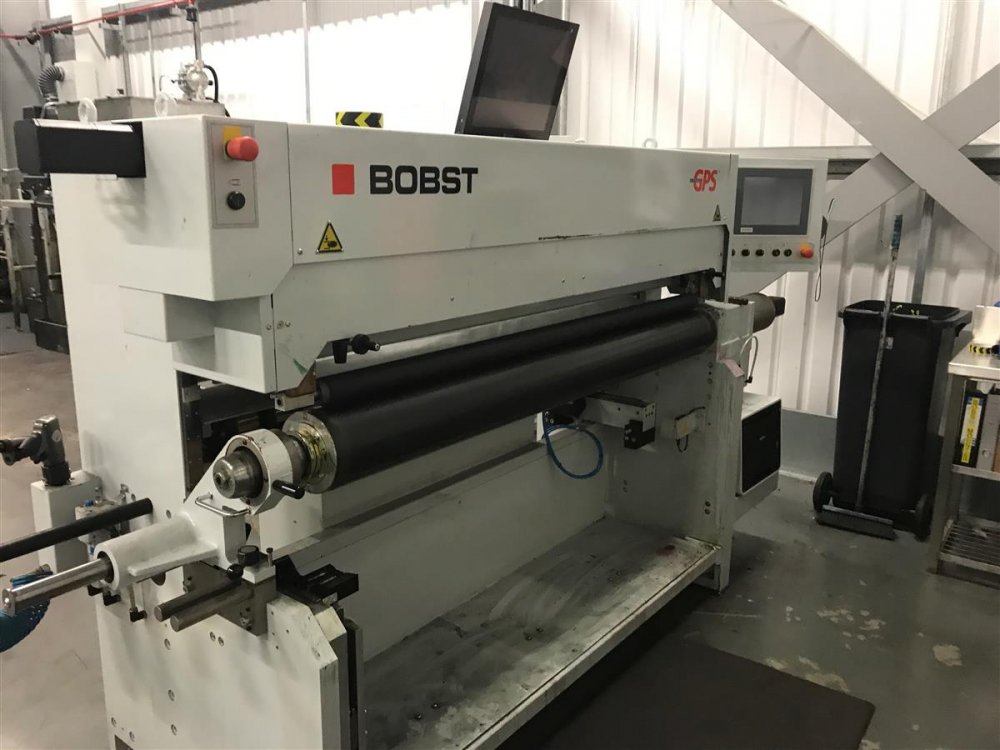

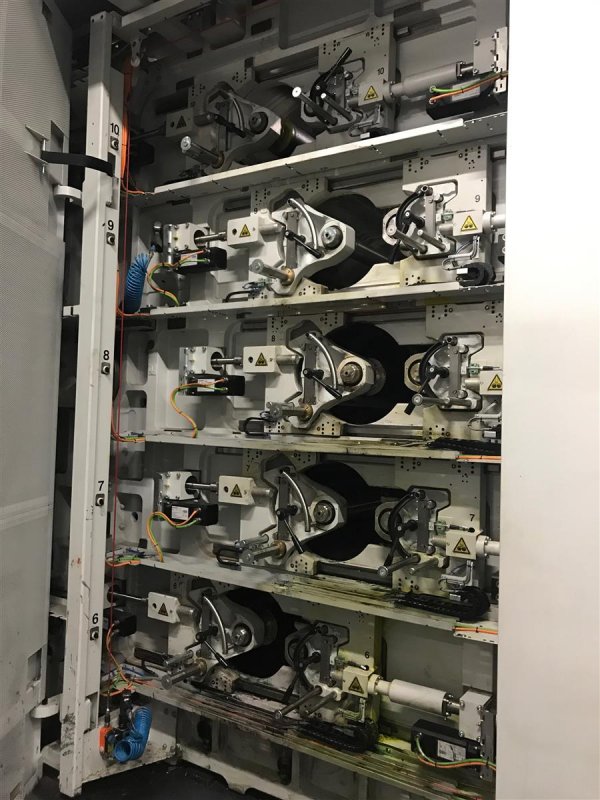

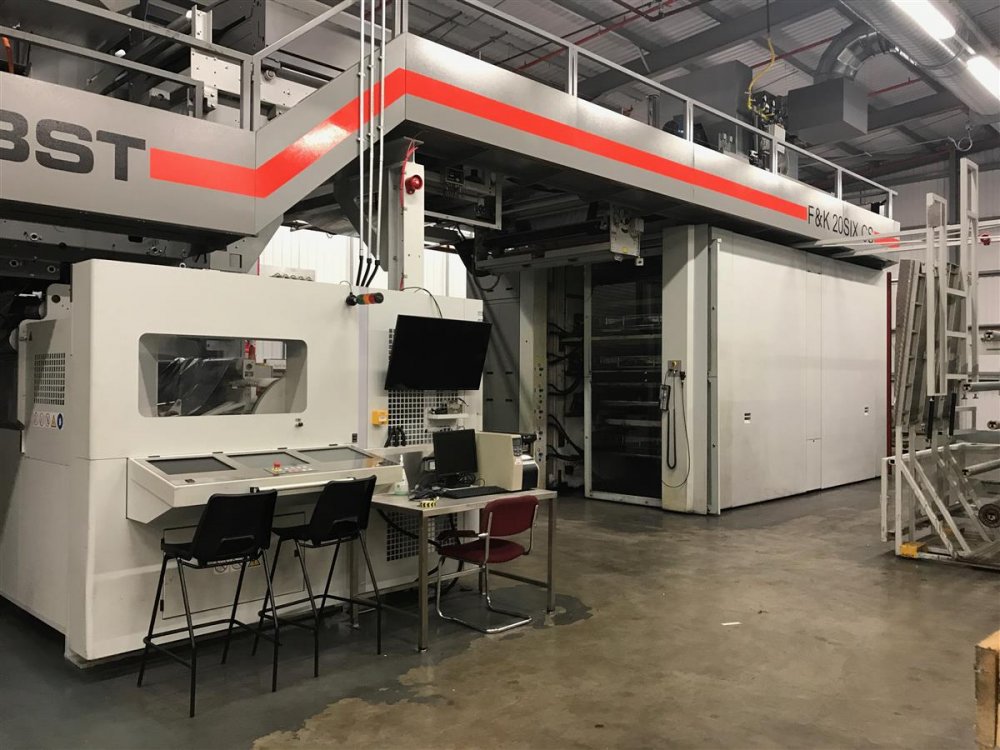

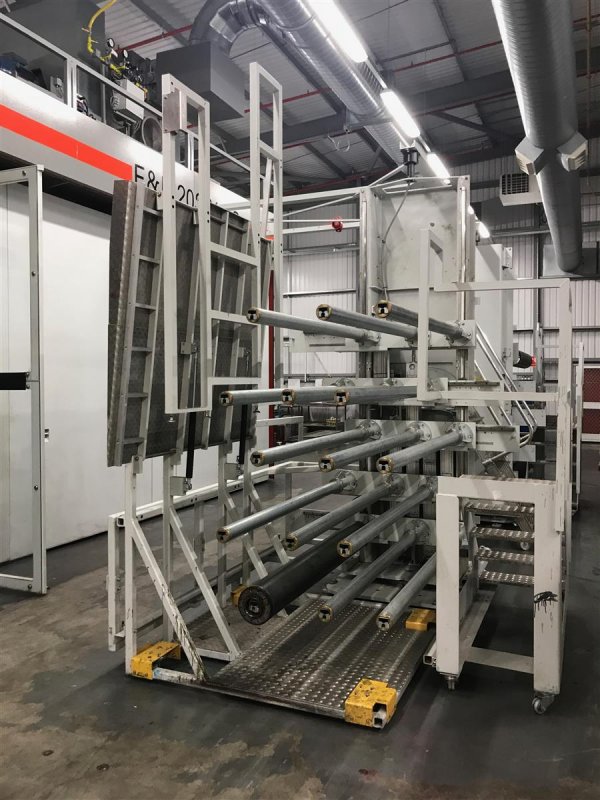

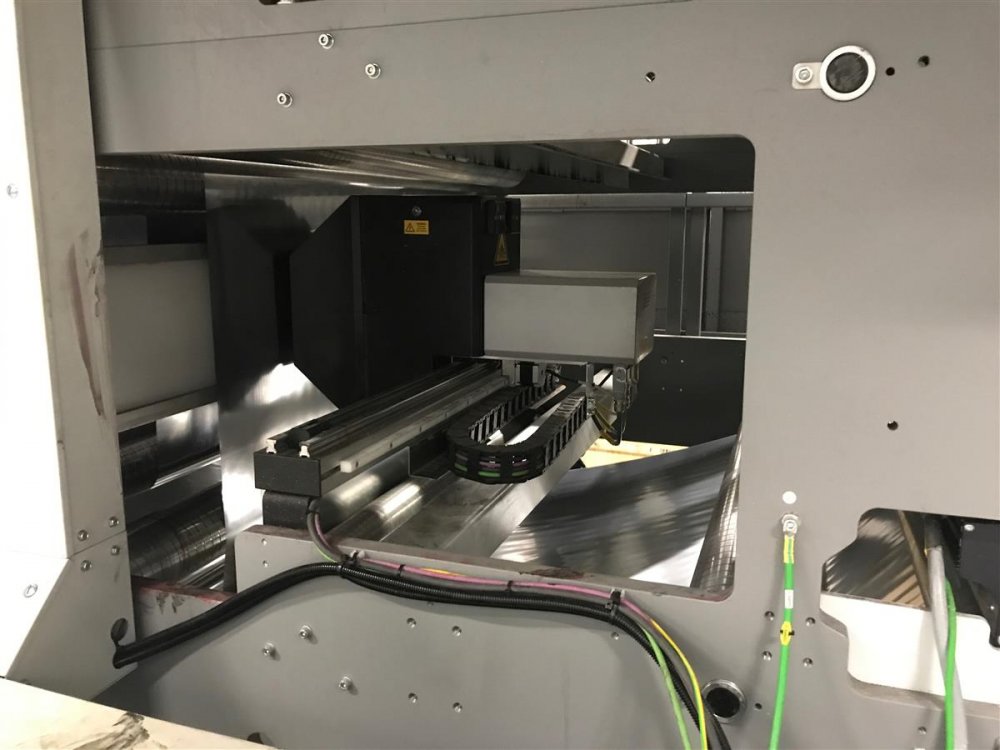

Photo Gallery

Ask more informations

about a similar one

Machine Code: FL739
Manufacturer: BOBST FISCHER & KRECKE
Modello: 20 / 6 CS
Year: 2015
Number of colors: 10
Gearless: Yes
Fast sleeve change: Yes
4 motor per deck CNC position system: Yes
Computer supervision: Yes
Web width (mm): 1750
Print width (mm): 1700
Min print repeat (mm): 360
Max print repeat (mm): 1200
Unwinder type: TURRET
Max reel diameter unwinder (mm): 1000
Rewinder type: TURRET
Max reel diameter rewinder (mm): 1000
Drying: 2 ZONES 2 GAS BURNERS 4 FANS
Videocamera: Eltromat high resolution camera; Eltromat 100% inspection system
Corona treatment: MERO Web MR/B10K0P3IGBT
Web guides: yes
Vyscosity control: Automatic
Washing system: Automatic
Inking system: closed chamber doctor blades
Anilox: Sets available
Print Sleeves: approx 300, with GPS chip
Note: SMART GPS SYSTEM COMMISSIONED IN 2016 MODEL 26 CS IONTIS Web Treatment Unit SMC IDFA37E Refrigeration Air Dryer TECHNOTRANS Bete.t Chiller PROTEC Series 21000 Fire Suppression OPTIMA Environmental Protection

Machine Code	FL739
Manufacturer	BOBST FISCHER & KRECKE
Modello	20 / 6 CS
Year	2015
Number of colors	10
Gearless	Yes
Fast sleeve change	Yes
4 motor per deck CNC position system	Yes
Computer supervision	Yes
Web width (mm)	1750
Print width (mm)	1700
Min print repeat (mm)	360
Max print repeat (mm)	1200
Unwinder type	TURRET
Max reel diameter unwinder (mm)	1000
Rewinder type	TURRET
Max reel diameter rewinder (mm)	1000
Drying	2 ZONES 2 GAS BURNERS 4 FANS
Videocamera	Eltromat high resolution camera; Eltromat 100% inspection system
Corona treatment	MERO Web MR/B10K0P3IGBT
Web guides	yes
Vyscosity control	Automatic
Washing system	Automatic
Inking system	closed chamber doctor blades
Anilox	Sets available
Print Sleeves	approx 300, with GPS chip
Note	SMART GPS SYSTEM COMMISSIONED IN 2016 MODEL 26 CS IONTIS Web Treatment Unit SMC IDFA37E Refrigeration Air Dryer TECHNOTRANS Bete.t Chiller PROTEC Series 21000 Fire Suppression OPTIMA Environmental Protection
