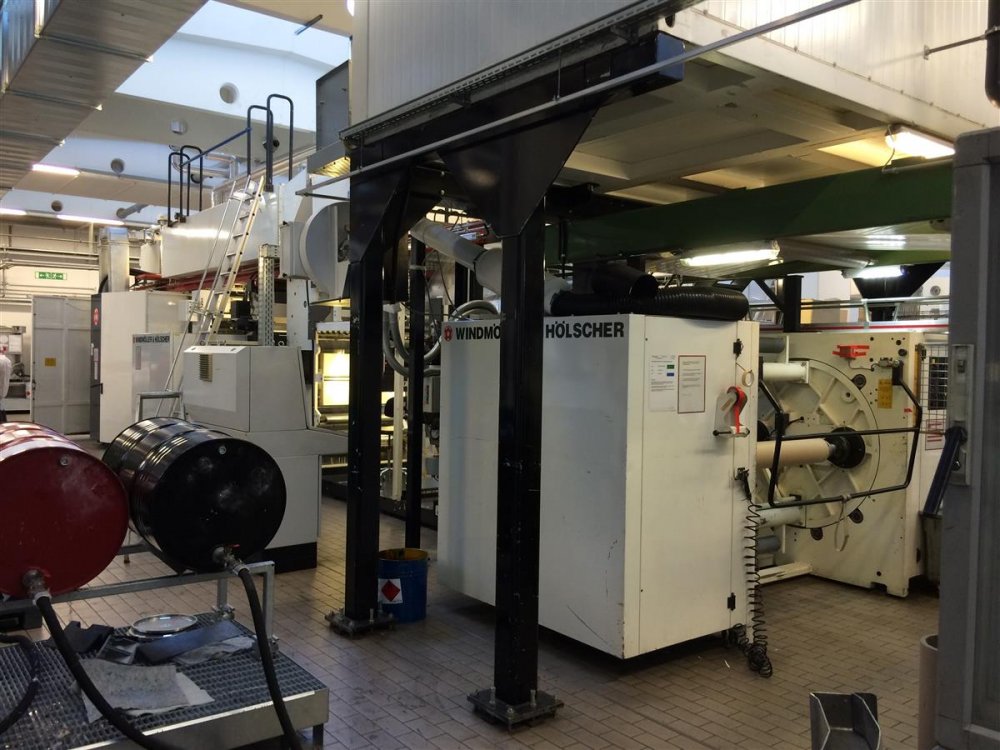

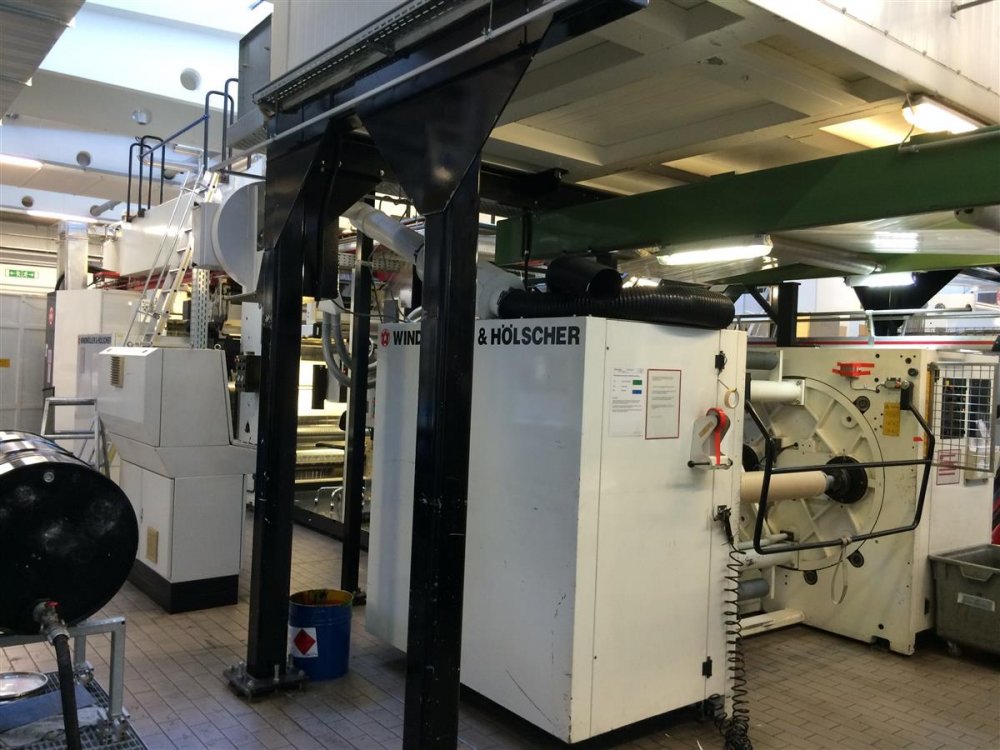

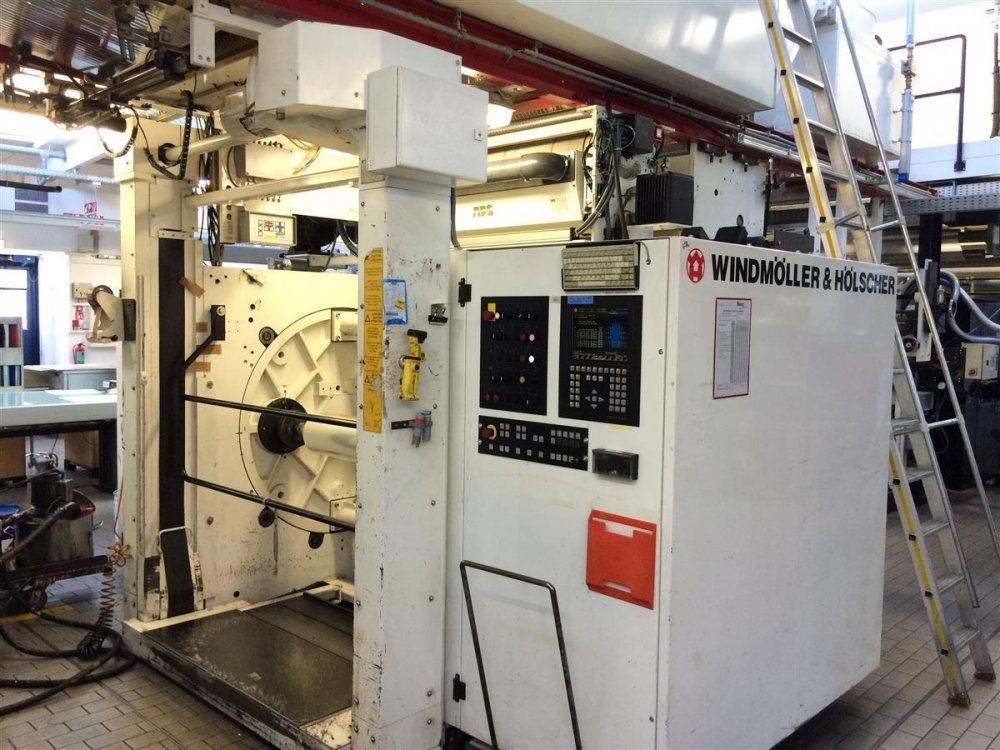

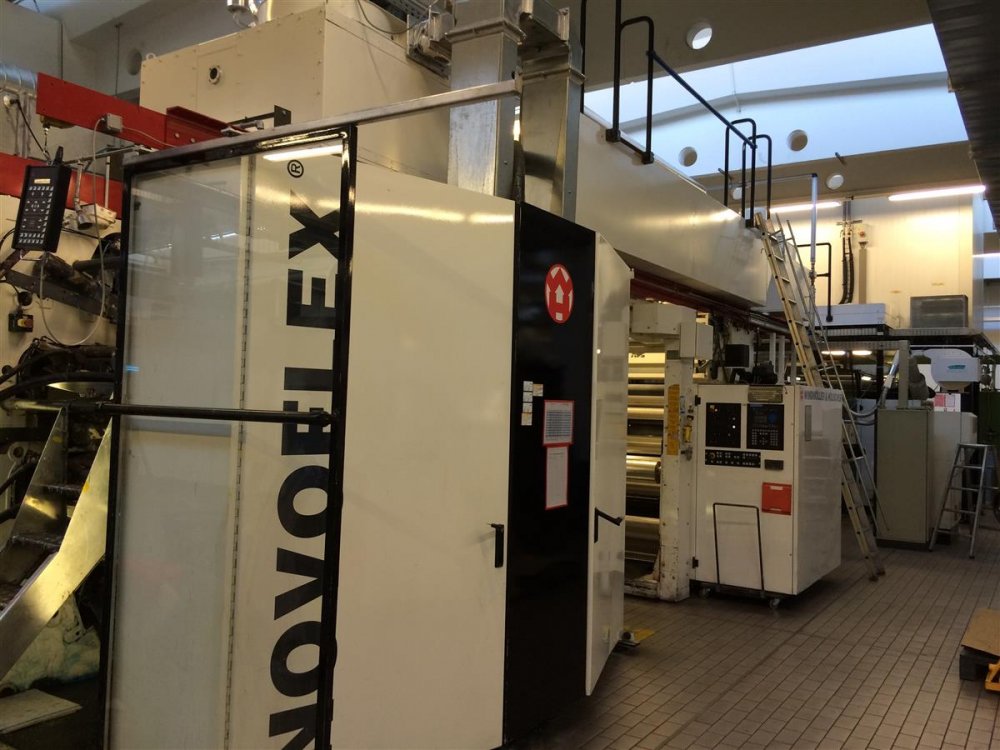

WINDMOLLER & HOLCHER NOVOFLEX flexo press 8 colors

** SOLD **

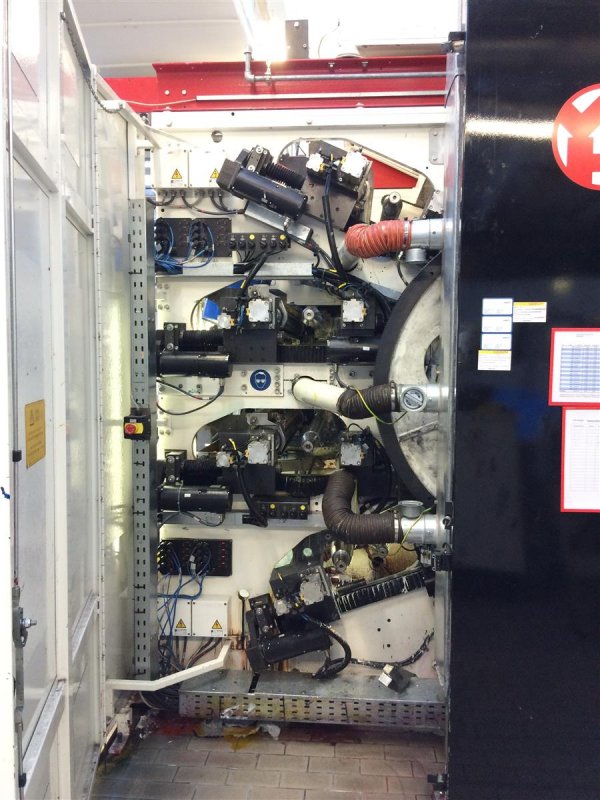

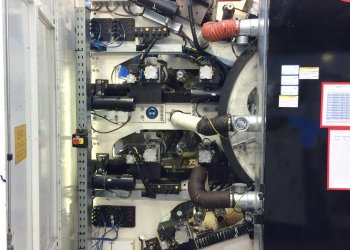

Flexo CI presses use a central drum which is common to all colours as counter impression roll.

Ask more informations
about a similar one
Machine Code
FL690
Manufacturer
WINDMOLLER & HOLCHER
Model
NOVOFLEX
Year
2001
Number of colors
8
Print possibilityes
8 olors printing + solventless lamination in line
Overhaul/renovation
Upgraded few times
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes

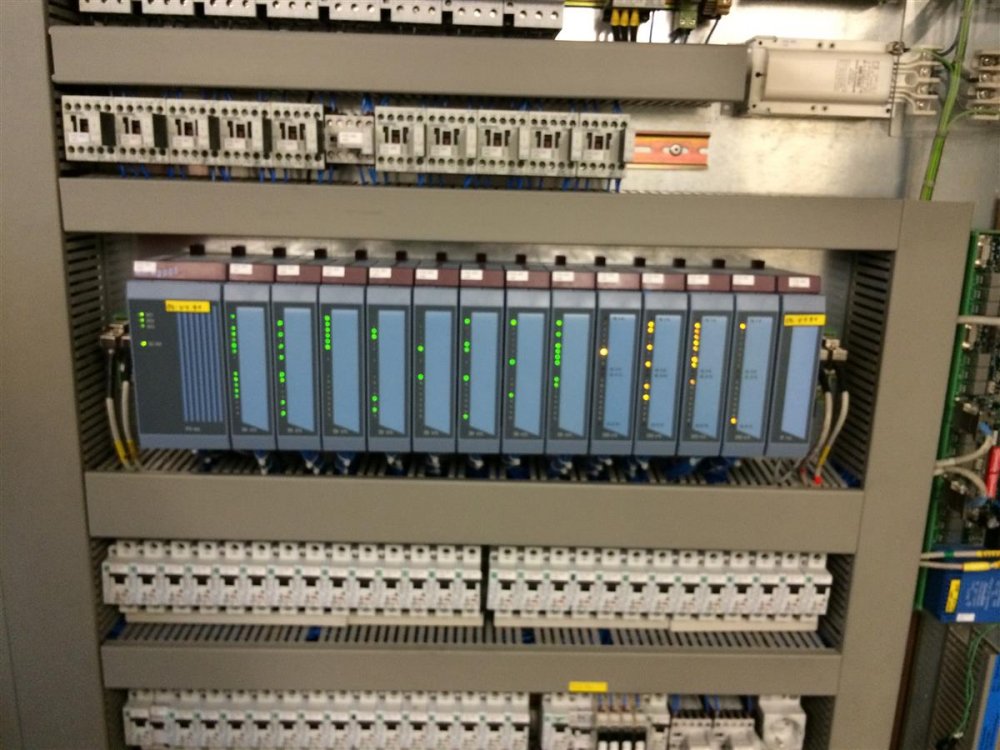

Computer supervision
Yes
Web width (mm)
1050
Print width (mm)
1000
Min print repeat (mm)
300
Max print repeat (mm)
760
Unwinder type
Turret
Max reel diameter unwinder (mm)
800
Rewinder type
Turret
Max reel diameter rewinder (mm)
800

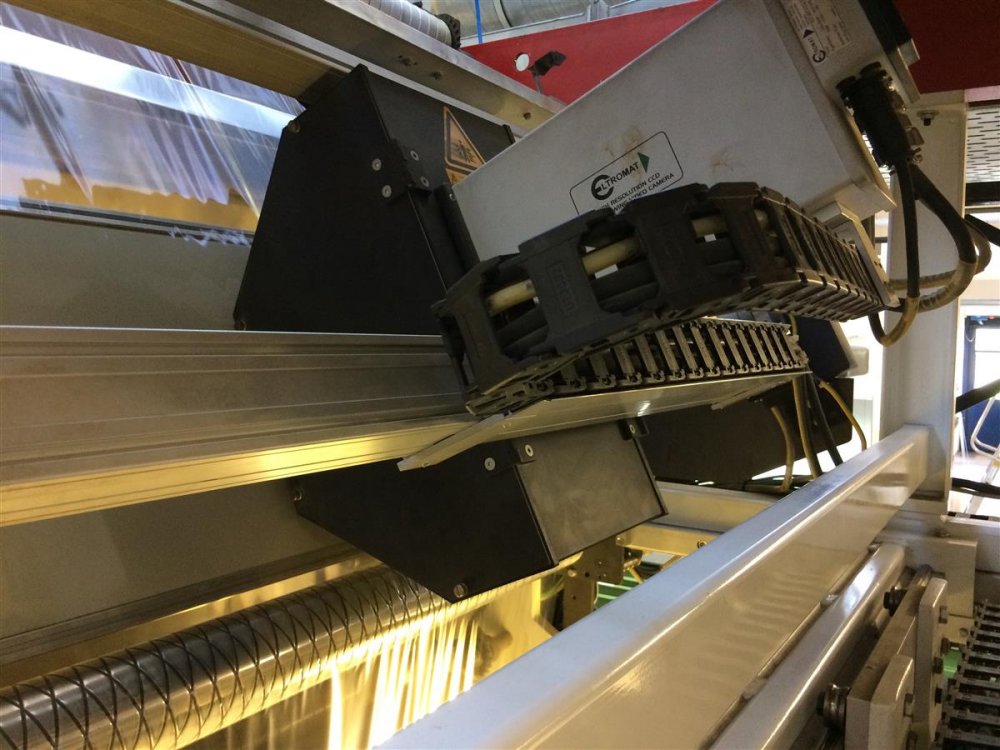

Videocamera
Eltromat 3 ccd high resolution camera

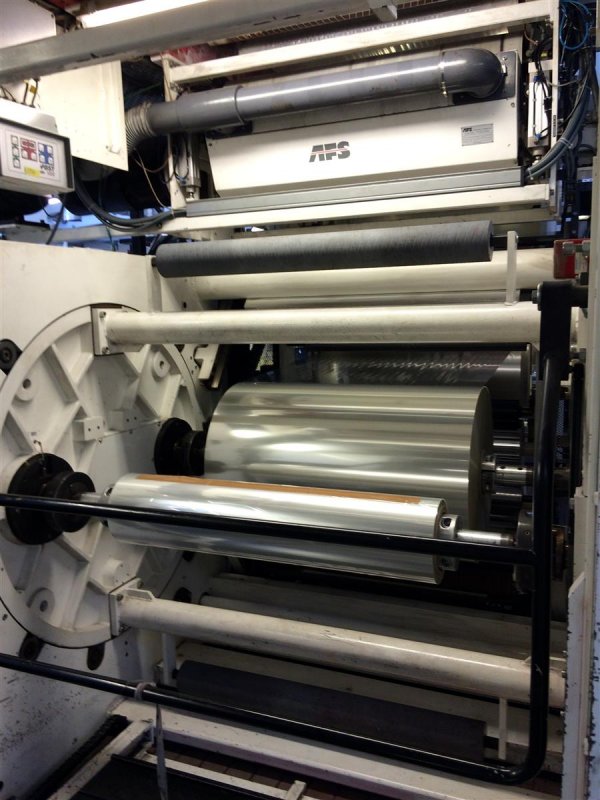

Corona treatment
AFS
Web guides
BST
Vyscosity control
automatic
Inking system
10 Closed chamber doctro blades
Anilox
20 anilox sleeves. Lineature: 80-340 L/cm2 qtyxl/cm. 2x 80; 2x100; 3x120; 3x160; 3x260; 7x340
Print Sleeves
296
Additional information

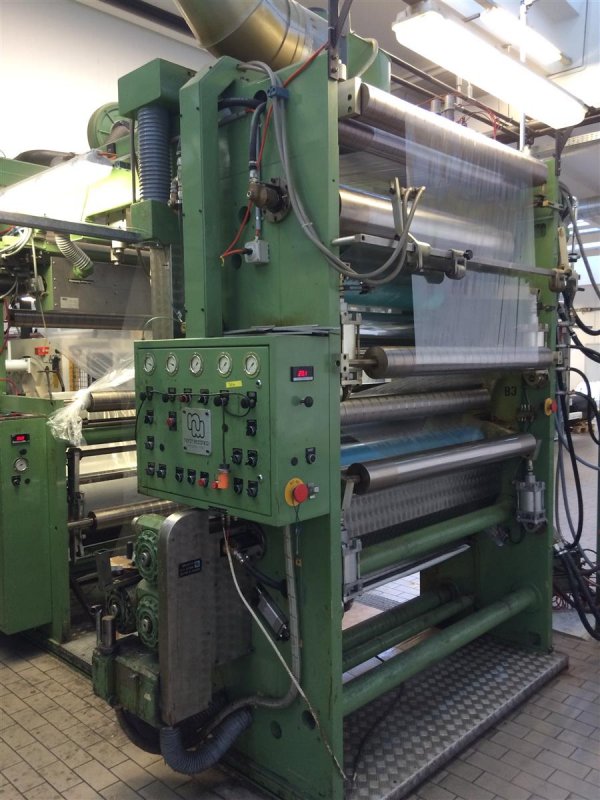

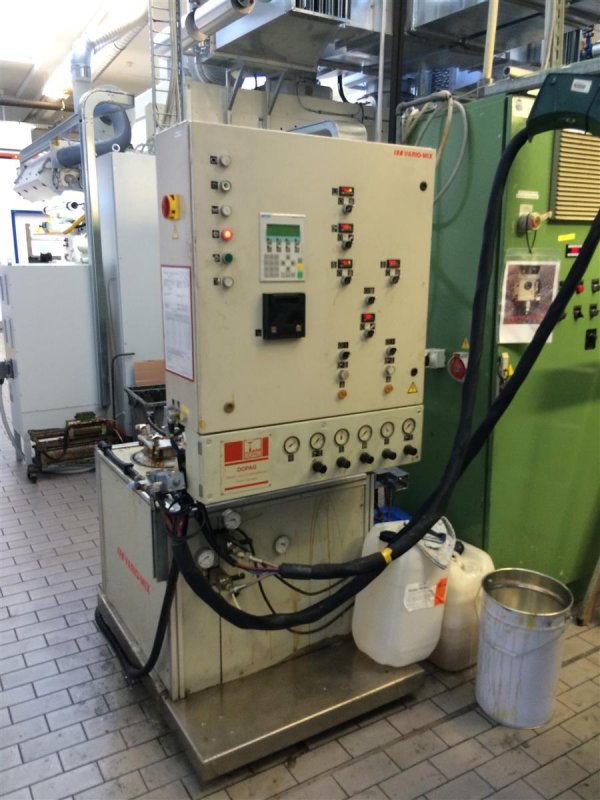

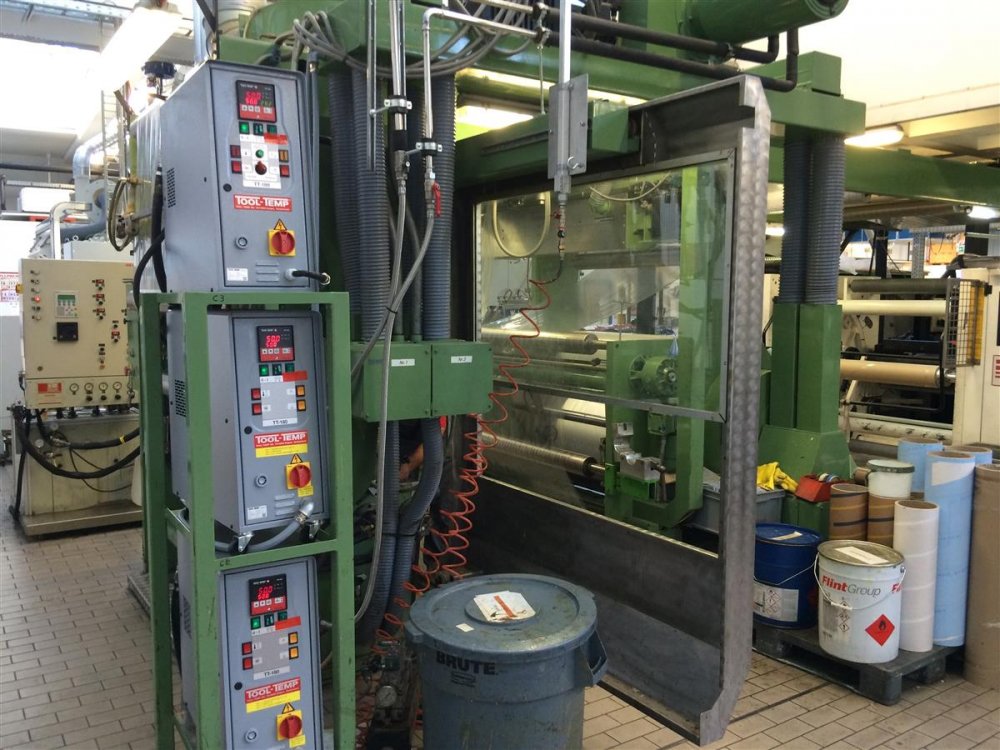

In line solventless lamination unit: Make Nordmeccanica Secondary unwinder turret type 800mm diam Pumping mixing unit Dopag Stroboscoupe available
Machine Code FL690
Manufacturer WINDMOLLER & HOLCHER
Model NOVOFLEX
Year 2001
Number of colors 8
Print possibilityes 8 olors printing + solventless lamination in line
Overhaul/renovation Upgraded few times
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1050
Print width (mm) 1000
Min print repeat (mm) 300
Max print repeat (mm) 760
Unwinder type Turret
Max reel diameter unwinder (mm) 800
Rewinder type Turret
Max reel diameter rewinder (mm) 800
Videocamera Eltromat 3 ccd high resolution camera
Corona treatment AFS
Web guides BST
Vyscosity control automatic
Inking system 10 Closed chamber doctro blades
Anilox 20 anilox sleeves. Lineature: 80-340 L/cm2 qtyxl/cm. 2x 80; 2x100; 3x120; 3x160; 3x260; 7x340
Print Sleeves 296
Additional information In line solventless lamination unit: Make Nordmeccanica Secondary unwinder turret type 800mm diam Pumping mixing unit Dopag Stroboscoupe available
** SOLD **
