WATERLINE Ritebag 600 Vakuumbeutel / Deupack Beutelmaschinen // Pouch and vacuum bag making // Bag making // Gebrauchte Maschinen // Tecno Converting 2000 S.r.l.

Fotogalerie

Maschinencode: PO54
Hersteller: WATERLINE
Modello: Ritebag 600
Baujahr: 2013
Type of sealing/bags: Stand up pouches
Bag length: MAX: 650mm (610mm stand up) on 1 lane. 320mm (305mm stand-up) on 2 lanes MINIMUM:80mm
Bag width: MAX: 800mm MIN: 80mm

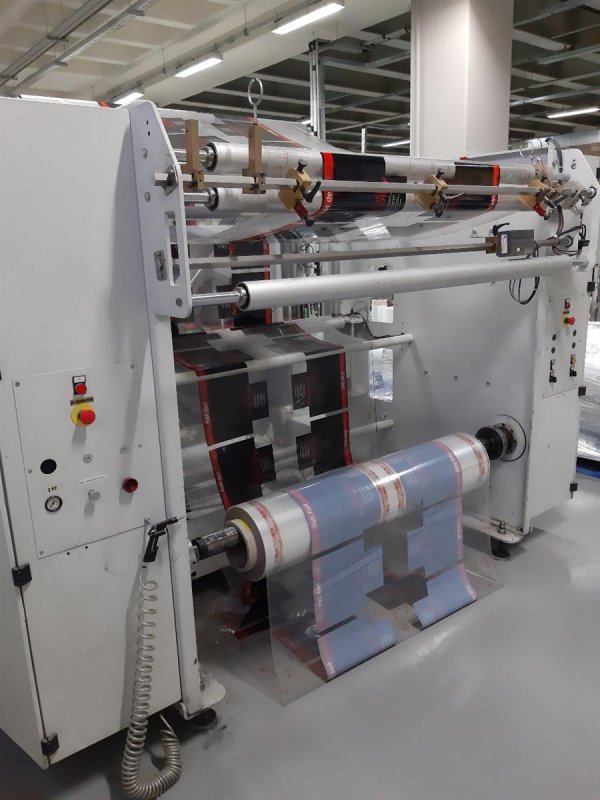

Unwinder: Single, max reel width 1530mm, reel diam 1016mm 3 and 6 inch shafts, 2 trimming blades, edge guide, tension control, Punching station in register for guesset hole, main folding triagle for prodiction of 3 side seal from 1 web; Gusset foling bord for production of stand up from 1 web
Cycle / min: 125
Additional information type of bags: 2 and 3 side sela pouches and stand-up pouches (gusset depth 20-100mm)
Note: Machine is servo driven, with several independent servo drives for max flexibility and to optimize change over time - Longitudinal zipper sealing, 2 lanes - 2 xLongitudinal sealing (800+100mm) and cooling (400+100mm)¨ - 2x cross sealing sections 680mm - handle hole punching - V and U corners punching - Register photocell - MD trimming - Cross cutting section, flying knife (1 or 2 lanes)

Maschinencode	PO54
Hersteller	WATERLINE
Modello	Ritebag 600
Baujahr	2013
Type of sealing/bags	Stand up pouches
Bag length	MAX: 650mm (610mm stand up) on 1 lane. 320mm (305mm stand-up) on 2 lanes MINIMUM:80mm
Bag width	MAX: 800mm MIN: 80mm
Unwinder	Single, max reel width 1530mm, reel diam 1016mm 3 and 6 inch shafts, 2 trimming blades, edge guide, tension control, Punching station in register for guesset hole, main folding triagle for prodiction of 3 side seal from 1 web; Gusset foling bord for production of stand up from 1 web
Cycle / min	125
Additional information type of bags	2 and 3 side sela pouches and stand-up pouches (gusset depth 20-100mm)
Note	Machine is servo driven, with several independent servo drives for max flexibility and to optimize change over time - Longitudinal zipper sealing, 2 lanes - 2 xLongitudinal sealing (800+100mm) and cooling (400+100mm)¨ - 2x cross sealing sections 680mm - handle hole punching - V and U corners punching - Register photocell - MD trimming - Cross cutting section, flying knife (1 or 2 lanes)
