- Maschinencode
- SA48
- Hersteller
- Kochsiek
- Modello
- BL 66
- Baujahr
- 2003
- Typ
- Complete line
- Sack dimensions (mm)
- Tuber: Bag Length: 400 mm – 1050 mm Bag Width: 220 mm – 550 mm Max width of the paper web: 1120 mm Max of paper layer: 3 Max reel diameter: 1400 mm Production: 400 bags/min Bottomer: Bag Length (open bags): 290 mm – 950 mm Bag Width: 220 mm – 550 mm Bottom width: 70 mm – 160 mm Distance between the center lines of the two bottoms: 220 mm – 800 mm Maximum thickness of the glue layer: 5 mm Cliche: 4 mm Adhesive tape: 0,5 mm Carrier of cliche: 0,3 mm Max speed production: 280 pieces/min
- Description

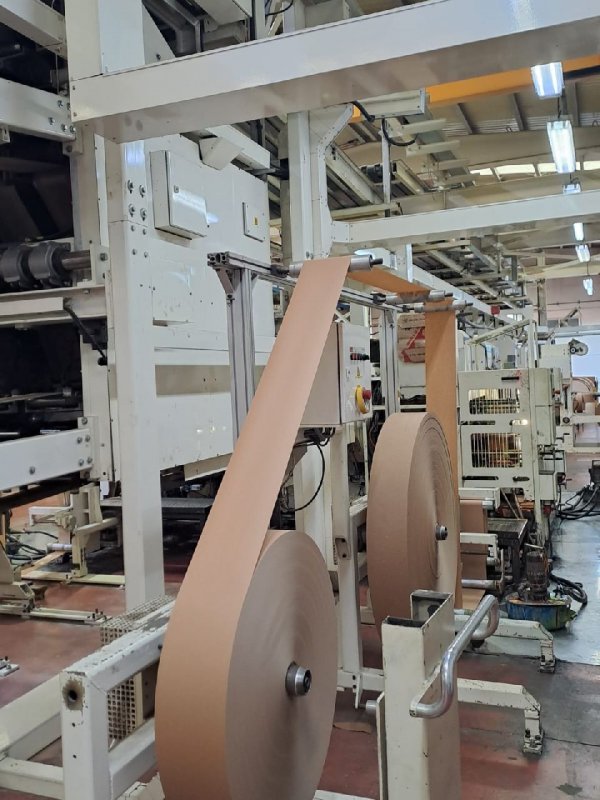

- Group for valves of paper Type of valve of paper: 1-4, 16 Undwinders: 2 Folding: 10 mm – 50 mm Length of the piece of paper for the valve: 180 mm Max diameter of paper reel from the inferior undwinder: 1300 mm Max diameter of paper reel from the superior undwinder: 800 mm Core: 76 mm Group for the bottom cover: sheet width 60 mm – 200 mm Max diameter of paper reel from the undwinder: 1300 mm
- Note

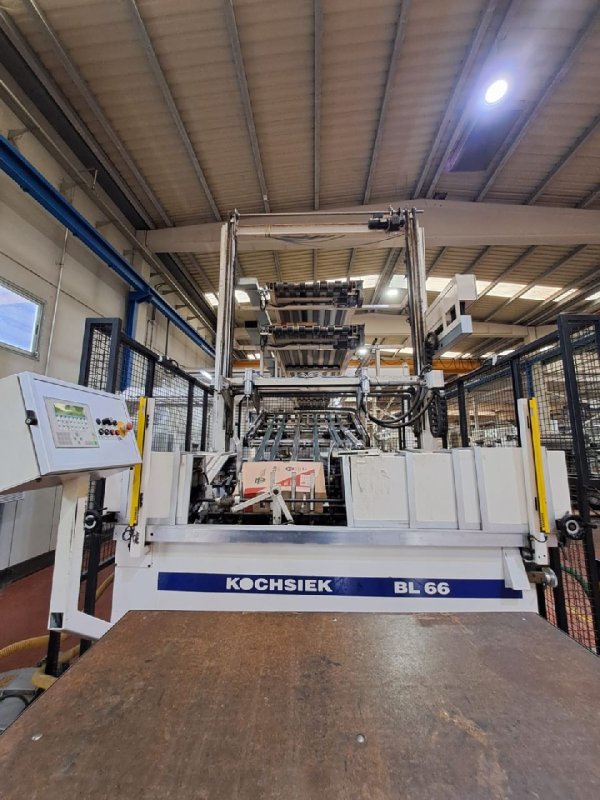

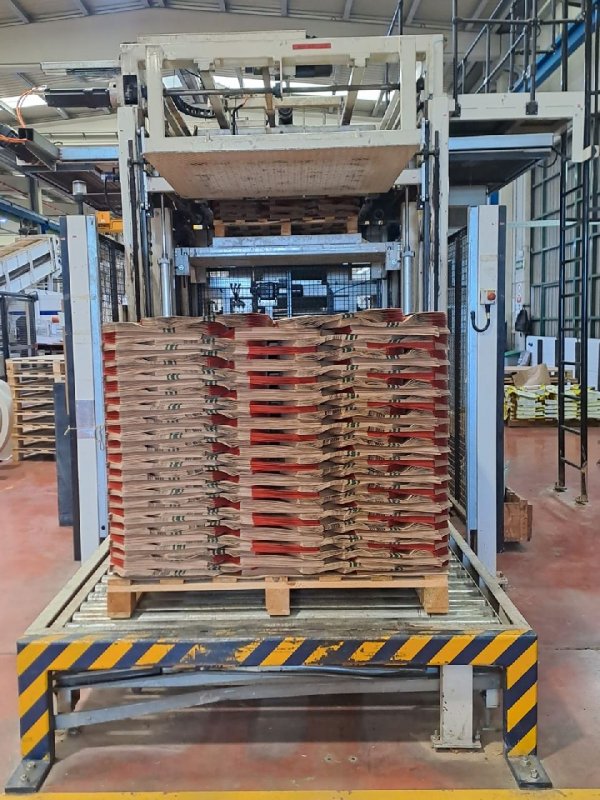

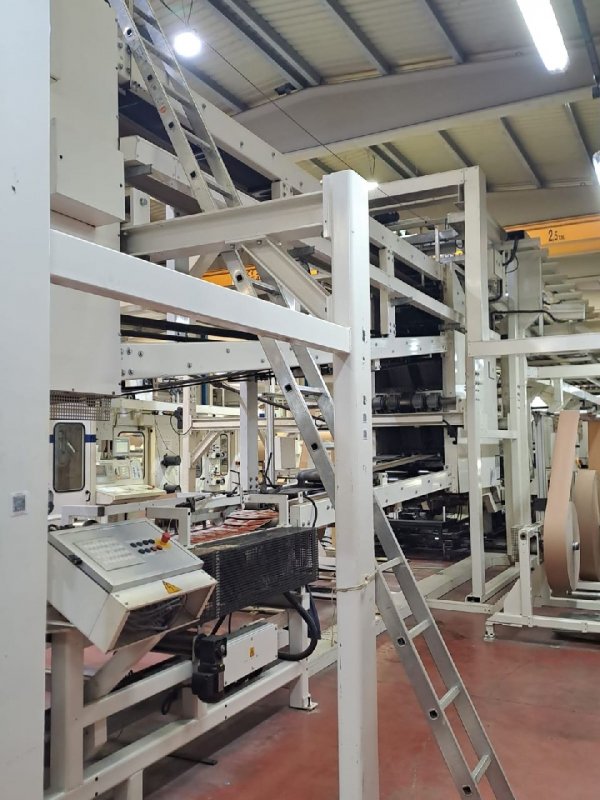

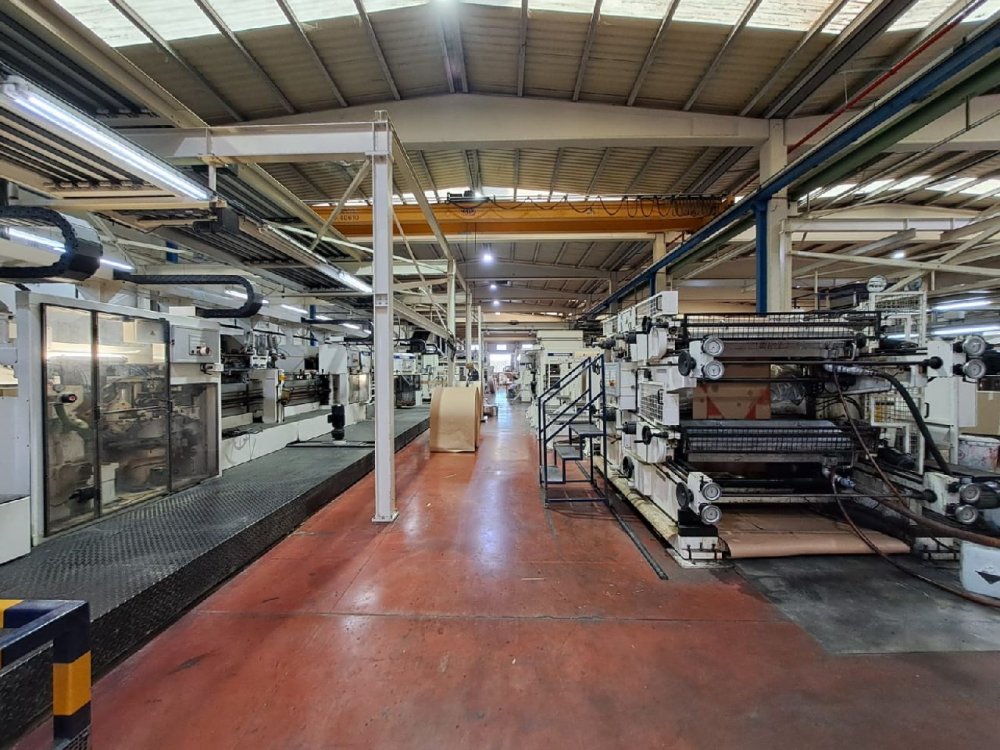

- Tuber: -3 unviwnders- each with a max diameter of 1400 mm -Perforating unit -Printing unit with 4 colors, Web width: 1450 mm, Print Width: 1350 mm, Print repeat: from 550 mm -Cross pasting unit for up to 3 plies -Digital lengthwise injectors for 3 plies Transystem Bottomer: -Automatic rotary feeder -Bottomer patch unit each side -Double valve unit Palletizer
| Maschinencode | SA48 |
| Hersteller | Kochsiek |
| Modello | BL 66 |
| Baujahr | 2003 |
| Typ | Complete line |
| Sack dimensions (mm) | Tuber: Bag Length: 400 mm – 1050 mm Bag Width: 220 mm – 550 mm Max width of the paper web: 1120 mm Max of paper layer: 3 Max reel diameter: 1400 mm Production: 400 bags/min Bottomer: Bag Length (open bags): 290 mm – 950 mm Bag Width: 220 mm – 550 mm Bottom width: 70 mm – 160 mm Distance between the center lines of the two bottoms: 220 mm – 800 mm Maximum thickness of the glue layer: 5 mm Cliche: 4 mm Adhesive tape: 0,5 mm Carrier of cliche: 0,3 mm Max speed production: 280 pieces/min |
| Description | Group for valves of paper Type of valve of paper: 1-4, 16 Undwinders: 2 Folding: 10 mm – 50 mm Length of the piece of paper for the valve: 180 mm Max diameter of paper reel from the inferior undwinder: 1300 mm Max diameter of paper reel from the superior undwinder: 800 mm Core: 76 mm Group for the bottom cover: sheet width 60 mm – 200 mm Max diameter of paper reel from the undwinder: 1300 mm |
| Note | Tuber: -3 unviwnders- each with a max diameter of 1400 mm -Perforating unit -Printing unit with 4 colors, Web width: 1450 mm, Print Width: 1350 mm, Print repeat: from 550 mm -Cross pasting unit for up to 3 plies -Digital lengthwise injectors for 3 plies Transystem Bottomer: -Automatic rotary feeder -Bottomer patch unit each side -Double valve unit Palletizer |
