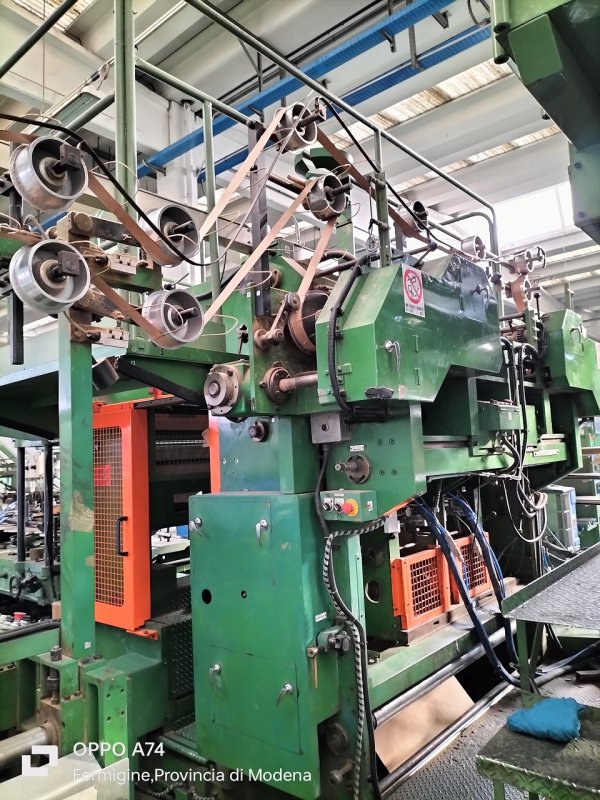

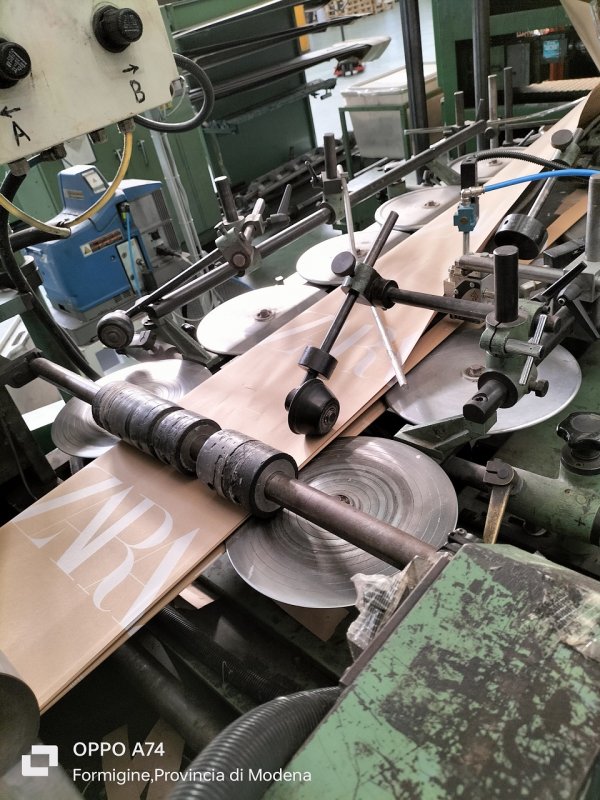

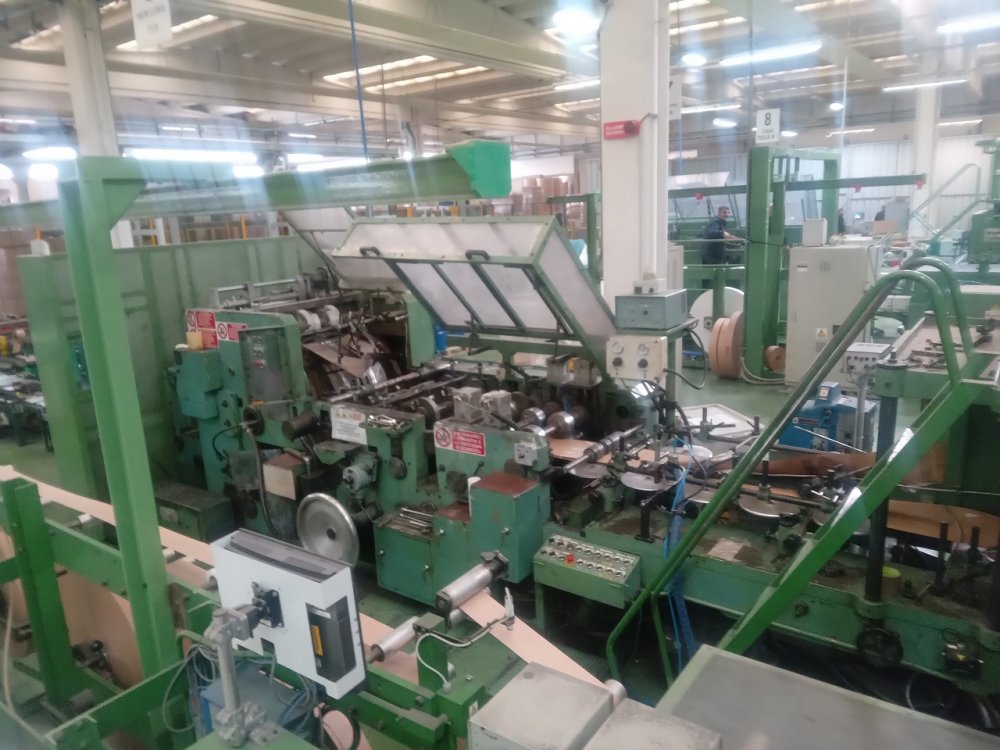

- Maschinencode
- SO334
- Hersteller
- NEW LONG
- Modello
- 946T+603
- Baujahr
- 1987
- Width (mm)
- 1390
- Materials
- Paper
- Feed:
- Reel fed
- Handel unit
- Twisted
- Bag length max (mm)
- 700
- Bag length min (mm)
- 380
- Bag width max (mm)
- 460
- Bag width min (mm)
- 280
- Bottom width max (mm)
- 220
- Bottom width (mm)
- 80
- Cycle / min
- 180bags/min
- Unwinder
- Single position 1200 mm diam
- Note

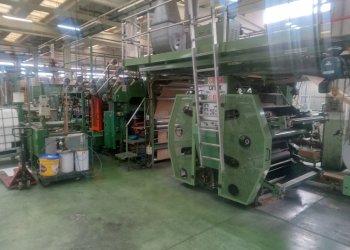

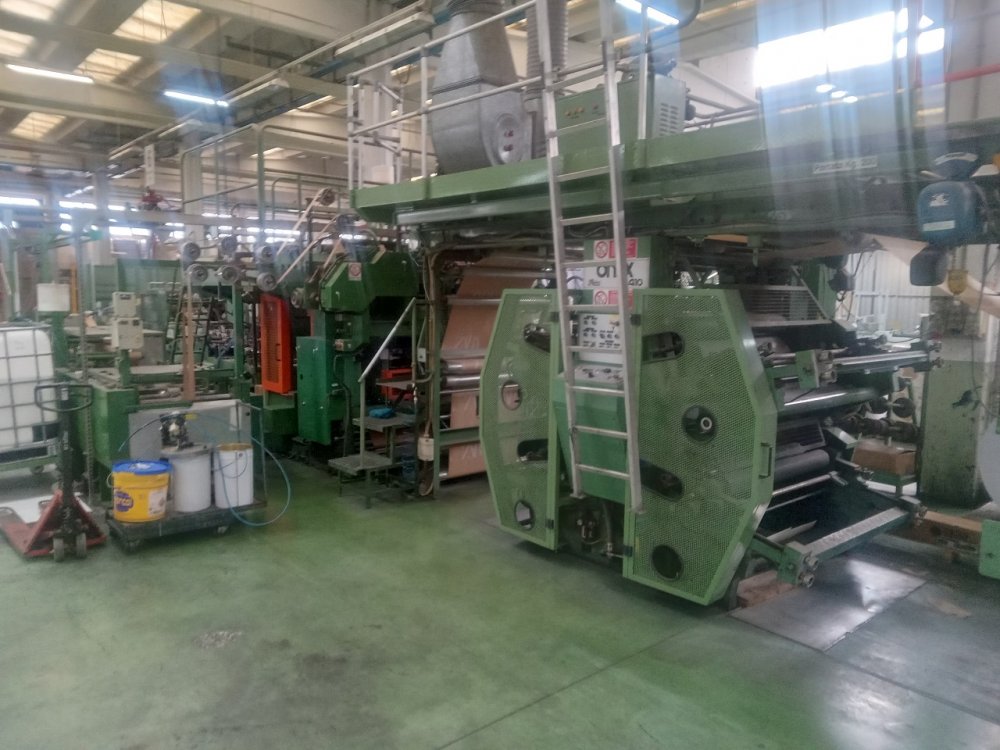

- Cutting Lenght: 380 to 700 (600 when handle is attached) Roll paper Diameter : 1200mm roll paper weight: 60 to 130 gsm Production capacity without handles :180 bags/min Production capacity with handles :150 bags/min In Line Printing section 4 colors CI mod. Uteco Onyx Complete with Driers two fans and heater Machine dimensions: 5.500x14.000x3500 + printing group Weight of the machine 19.5 Tons
| Maschinencode | SO334 |
| Hersteller | NEW LONG |
| Modello | 946T+603 |
| Baujahr | 1987 |
| Width (mm) | 1390 |
| Materials | Paper |
| Feed: | Reel fed |
| Handel unit | Twisted |
| Bag length max (mm) | 700 |
| Bag length min (mm) | 380 |
| Bag width max (mm) | 460 |
| Bag width min (mm) | 280 |
| Bottom width max (mm) | 220 |
| Bottom width (mm) | 80 |
| Cycle / min | 180bags/min |
| Unwinder | Single position 1200 mm diam |
| Note | Cutting Lenght: 380 to 700 (600 when handle is attached) Roll paper Diameter : 1200mm roll paper weight: 60 to 130 gsm Production capacity without handles :180 bags/min Production capacity with handles :150 bags/min In Line Printing section 4 colors CI mod. Uteco Onyx Complete with Driers two fans and heater Machine dimensions: 5.500x14.000x3500 + printing group Weight of the machine 19.5 Tons |
