- Maschinencode
- FI249
- Hersteller
- LEMO
- Modello
- INTERMAT IL 600 ST-N
- Baujahr
- 2010
- Type of bags
- Wicketers
- Working width (mm)
- 600
- Bag length
- 150-420mm draw lenght
- Cycle / min
- 450 - mechanical layout, without film .Line speed min 15m/min; max 100m/min
- Note

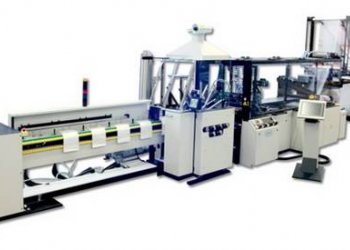

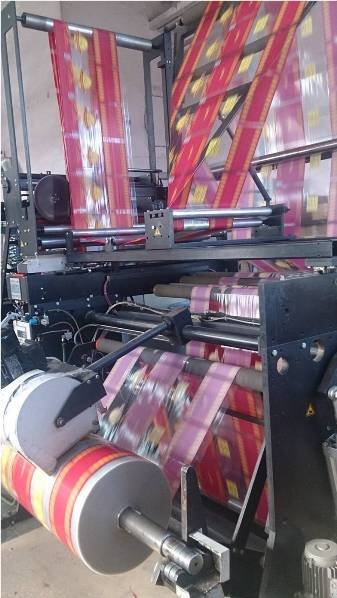

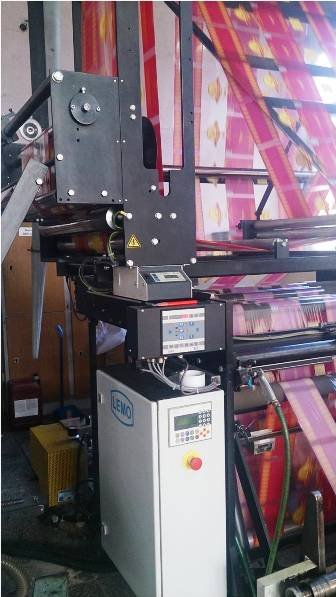

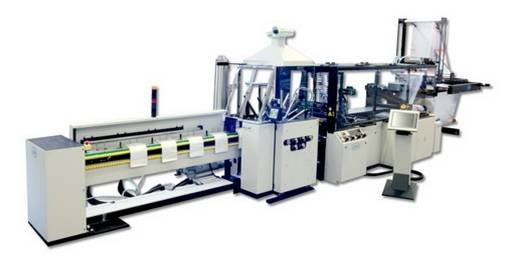

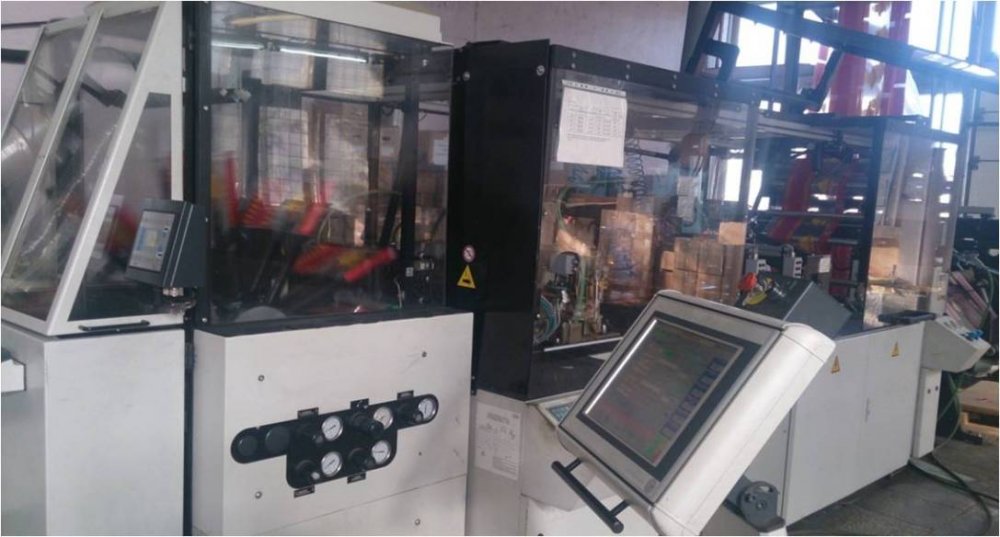

- Wicket bread bag making machine (equipped with servo drive technology and computer function control). Useable sealing and cutting width 600mm Bag height 200-600mm . Output : from 200 to 360 bags/min (depends on the type of bag and material) . Materials : HDPE, LDPE, LLDPE,PP,CPP .Film thickness from 18 to 50 my. Machine dimensions : 11,2x 2,6 x3,2m (including attachments). Energy consumption up to 20 kw (80A ). Film unwind unit (with automatic tension control) Material alignement device (unwinding). Punching bridge for ventilation holes. Micro -perforation option. Pneumatic dual hole punch for wicket hole punching. Strong bottom option. Wicket stacker for collecting and stacking of bags ( bags per stack : max 500 bags) Control panel touch screen. Cooling water system self-contained. 2 sets sealing knife. 2 sets Teflon shaft.Spare parts available.
| Maschinencode | FI249 |
| Hersteller | LEMO |
| Modello | INTERMAT IL 600 ST-N |
| Baujahr | 2010 |
| Type of bags | Wicketers |
| Working width (mm) | 600 |
| Bag length | 150-420mm draw lenght |
| Cycle / min | 450 - mechanical layout, without film .Line speed min 15m/min; max 100m/min |
| Note | Wicket bread bag making machine (equipped with servo drive technology and computer function control). Useable sealing and cutting width 600mm Bag height 200-600mm . Output : from 200 to 360 bags/min (depends on the type of bag and material) . Materials : HDPE, LDPE, LLDPE,PP,CPP .Film thickness from 18 to 50 my. Machine dimensions : 11,2x 2,6 x3,2m (including attachments). Energy consumption up to 20 kw (80A ). Film unwind unit (with automatic tension control) Material alignement device (unwinding). Punching bridge for ventilation holes. Micro -perforation option. Pneumatic dual hole punch for wicket hole punching. Strong bottom option. Wicket stacker for collecting and stacking of bags ( bags per stack : max 500 bags) Control panel touch screen. Cooling water system self-contained. 2 sets sealing knife. 2 sets Teflon shaft.Spare parts available. |
