- Maschinencode
- LA501
- Hersteller
- NORDMECCANICA
- Modello

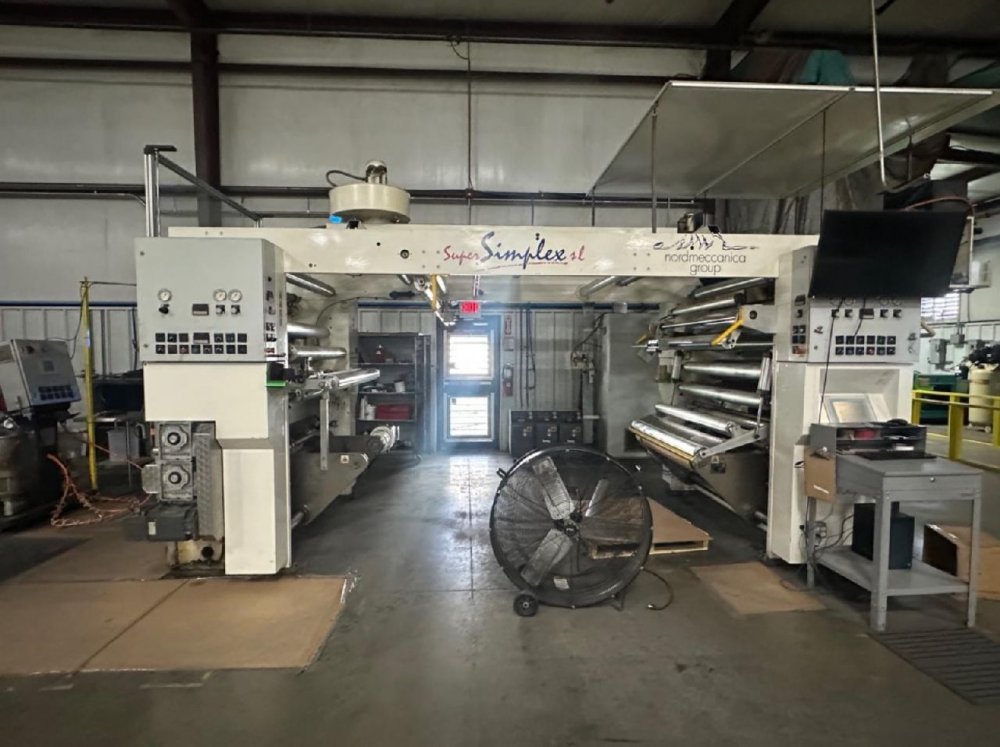

- Super Simplex 1500
- Baujahr
- 2004
- Application
- Duplex lamination
- Type of lamination/coating
- SOLVENTLESS
- Working width (mm)
- 1500
- Materials
- BOPP, PET, CPP, Al foil, LDPE , paper up to 120 gsm
- Speed
- 450 mpm
- First unwinder type
- SINGLE POSITION SHAFTLESS Ac motor driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- SINGLE POSITION SHAFTLESS Ac motor driven
- Max diameter reel unwinder
- 1000
- Rewinder type
- SINGLE POSITION SHAFTLESS AC motor driven
- Max diameter reel rewinder
- 1000
- Coating unit
- 4 rolls type solventless
- pumping mixing unit
- Yes
- Corona treatment
- Yes, Enercon
- Note
- • Auto Adhesive tank filling • 40” Roll OD • Dancer assemblies on unwinds and rewinds • Edge guides on unwinds and rewinds • Temperature control units • Fume extraction blowers • Ozone extraction blowers • Servo driven unwinds and rewin
| Maschinencode | LA501 |
| Hersteller | NORDMECCANICA |
| Modello | Super Simplex 1500 |
| Baujahr | 2004 |
| Application | Duplex lamination |
| Type of lamination/coating | SOLVENTLESS |
| Working width (mm) | 1500 |
| Materials | BOPP, PET, CPP, Al foil, LDPE , paper up to 120 gsm |
| Speed | 450 mpm |
| First unwinder type | SINGLE POSITION SHAFTLESS Ac motor driven |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | SINGLE POSITION SHAFTLESS Ac motor driven |
| Max diameter reel unwinder | 1000 |
| Rewinder type | SINGLE POSITION SHAFTLESS AC motor driven |
| Max diameter reel rewinder | 1000 |
| Coating unit | 4 rolls type solventless |
| pumping mixing unit | Yes |
| Corona treatment | Yes, Enercon |
| Note | • Auto Adhesive tank filling • 40” Roll OD • Dancer assemblies on unwinds and rewinds • Edge guides on unwinds and rewinds • Temperature control units • Fume extraction blowers • Ozone extraction blowers • Servo driven unwinds and rewin |
