- Maschinencode
- LA357
- Hersteller
- NORDMECCANICA
- Modello
- SUPER COMBI 2000
- Baujahr
- 2001
- Application
- Duplex lamination
- Type of lamination/coating
- COMBI / INTECHANGEABLE TROLLEY
- Working width (mm)
- 1100
- Materials
- BOPP, PETP,LDPE, OPA,NYLON CAST,ALU,PP CAST, CALANDERED PAPER
- Speed
- 350
- First unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 1000
- Secondary unwinder type
- Shaftless AC motor driven
- Max diameter reel unwinder
- 1000
- Rewinder type
- Shaftless AC motor driven
- Max diameter reel rewinder
- 1000
- Coating unit

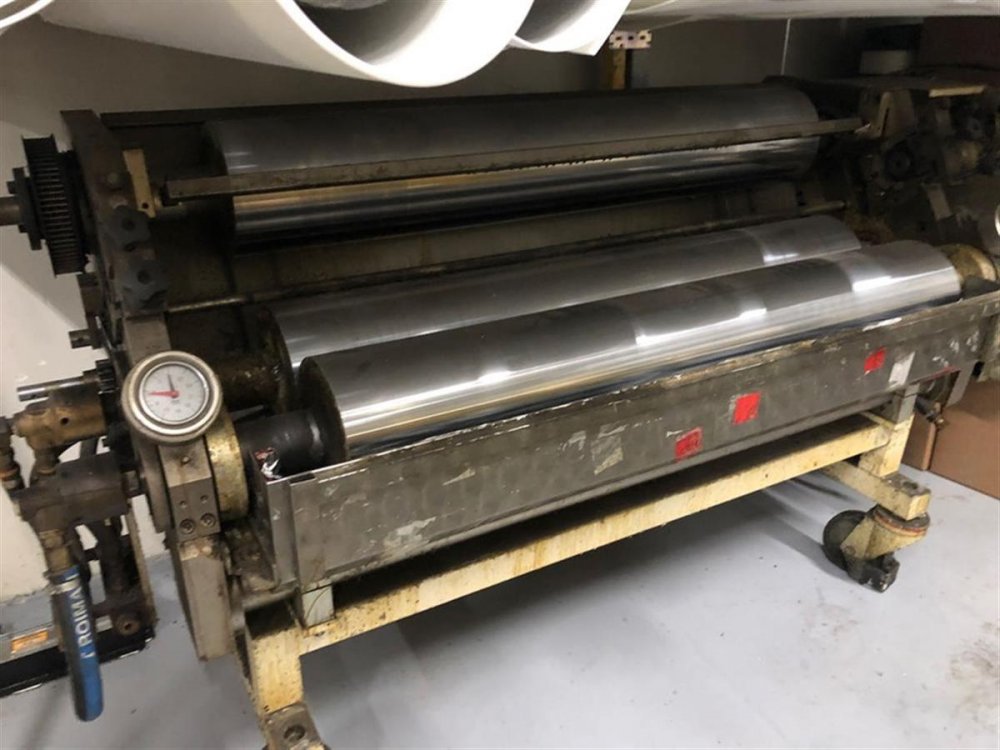

- Trolley based one rotogravure coating trolley, one solventless coating trolley and one trolley dedicated for "cold seal" application.
- Drying
- 2 zones , 6 mt tunnel
- Register controll
- Yes included
- pumping mixing unit
- Yes type World Mix
- Corona treatment
- Yes Ferrarini Benelli
- Note

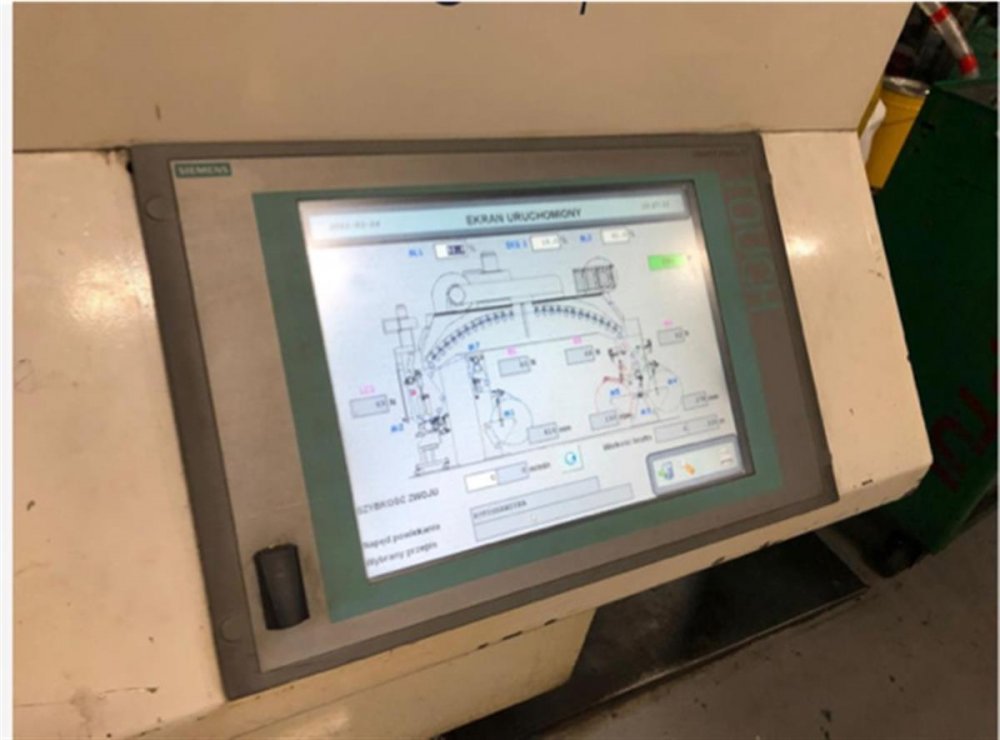

- Machine is equipped with one rotogravure coating trolley, one solventless coating trolley and one trolley dedicated for "cold seal" application. Register control for "cold seal" application, Pumping and mixing unit for mono and bi-component adhesives, 2 edge guide control, Drying tunnel 6 meters log Corona treater Machine is equipped with AC drives with suitable inverter controllers, Operator panel with touch screen
| Maschinencode | LA357 |
| Hersteller | NORDMECCANICA |
| Modello | SUPER COMBI 2000 |
| Baujahr | 2001 |
| Application | Duplex lamination |
| Type of lamination/coating | COMBI / INTECHANGEABLE TROLLEY |
| Working width (mm) | 1100 |
| Materials | BOPP, PETP,LDPE, OPA,NYLON CAST,ALU,PP CAST, CALANDERED PAPER |
| Speed | 350 |
| First unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 1000 |
| Secondary unwinder type | Shaftless AC motor driven |
| Max diameter reel unwinder | 1000 |
| Rewinder type | Shaftless AC motor driven |
| Max diameter reel rewinder | 1000 |
| Coating unit | Trolley based one rotogravure coating trolley, one solventless coating trolley and one trolley dedicated for "cold seal" application. |
| Drying | 2 zones , 6 mt tunnel |
| Register controll | Yes included |
| pumping mixing unit | Yes type World Mix |
| Corona treatment | Yes Ferrarini Benelli |
| Note | Machine is equipped with one rotogravure coating trolley, one solventless coating trolley and one trolley dedicated for "cold seal" application. Register control for "cold seal" application, Pumping and mixing unit for mono and bi-component adhesives, 2 edge guide control, Drying tunnel 6 meters log Corona treater Machine is equipped with AC drives with suitable inverter controllers, Operator panel with touch screen |
