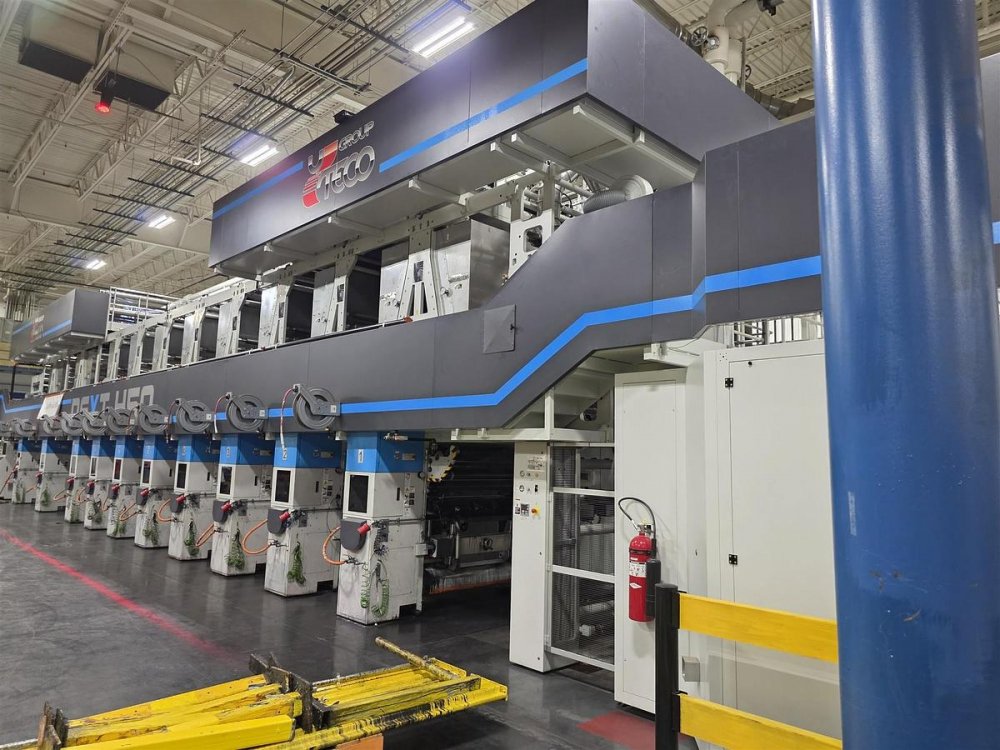

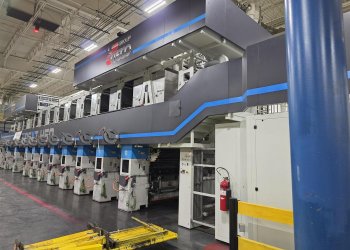

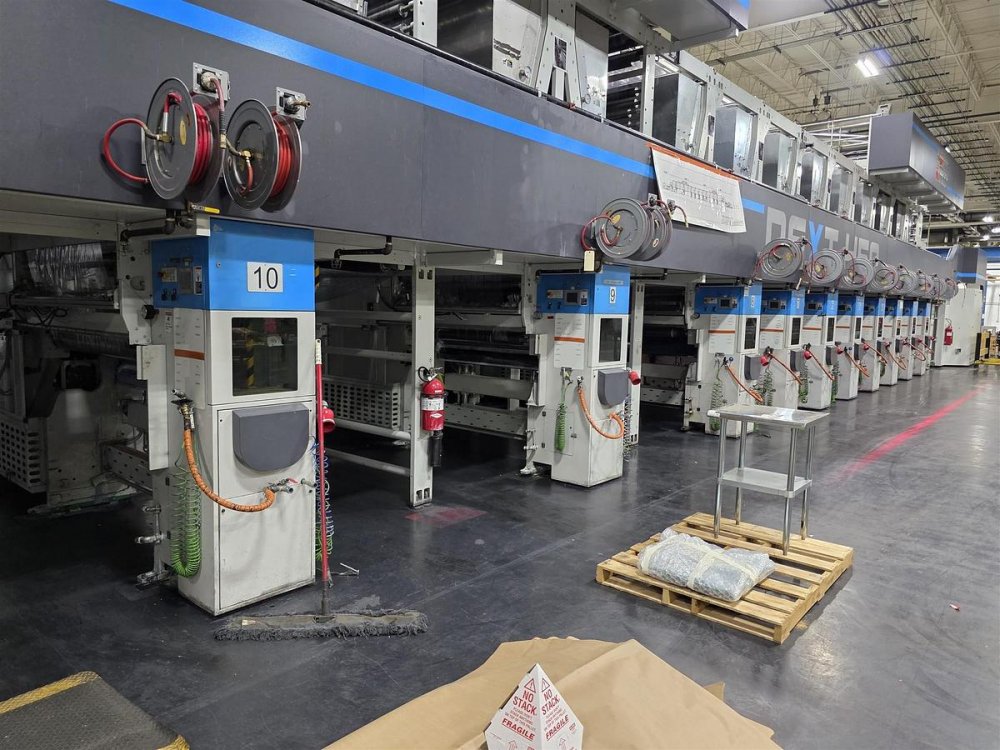

- Maschinencode
- RO286
- Hersteller
- UTECO
- Modello
- NEXT 450
- Baujahr
- 2021
- Number of colors
- 10
- Print possibilities

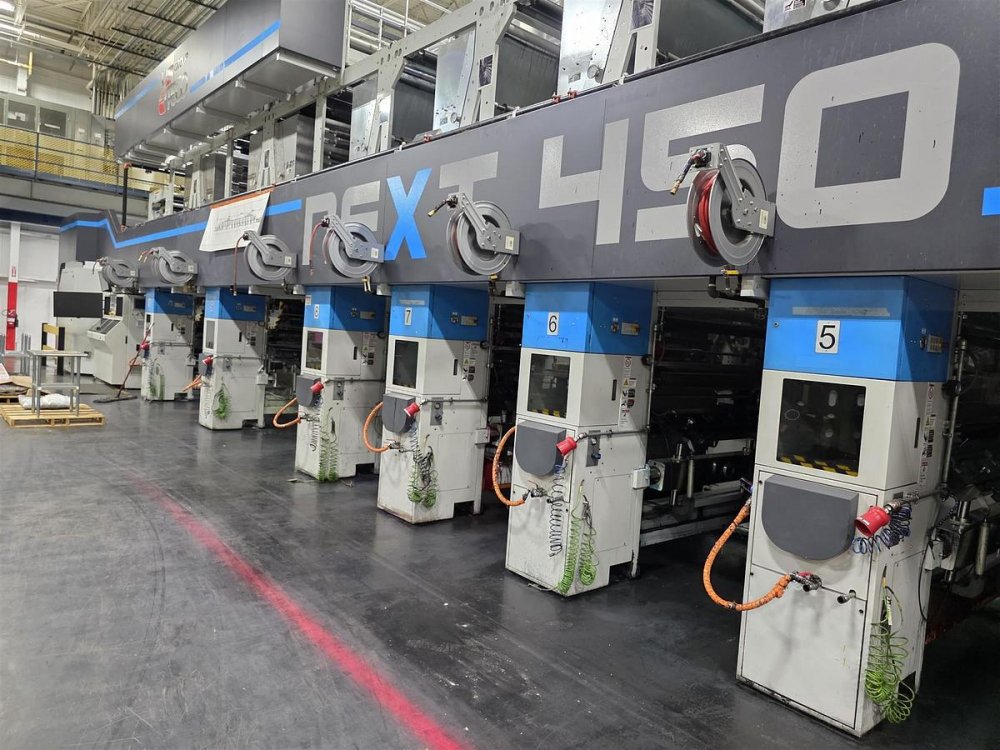

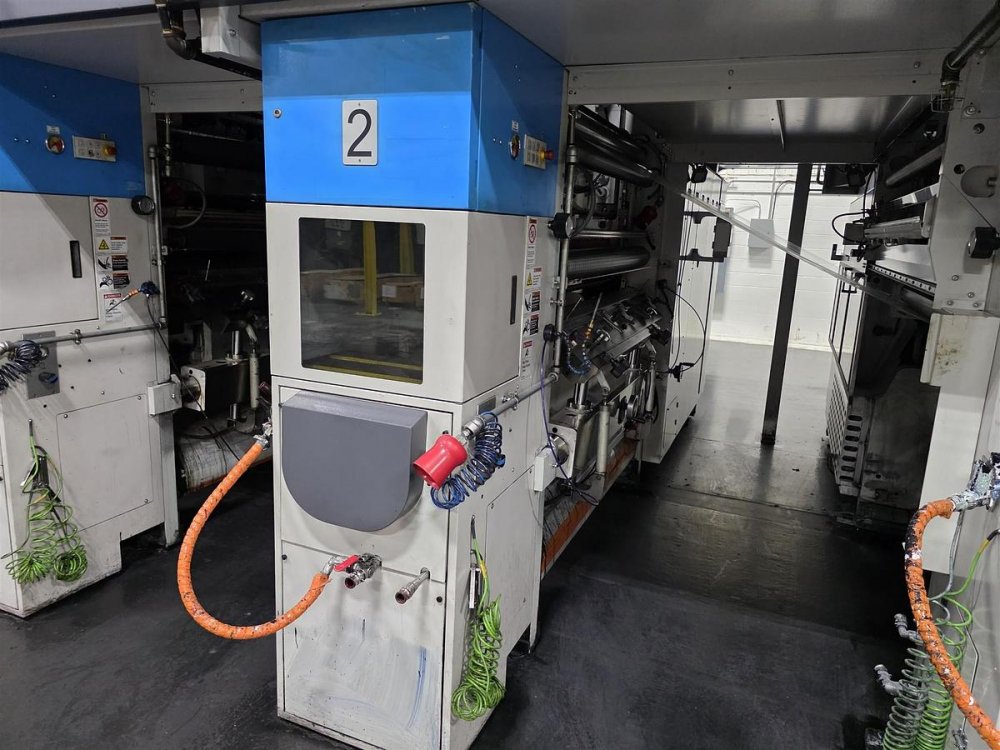

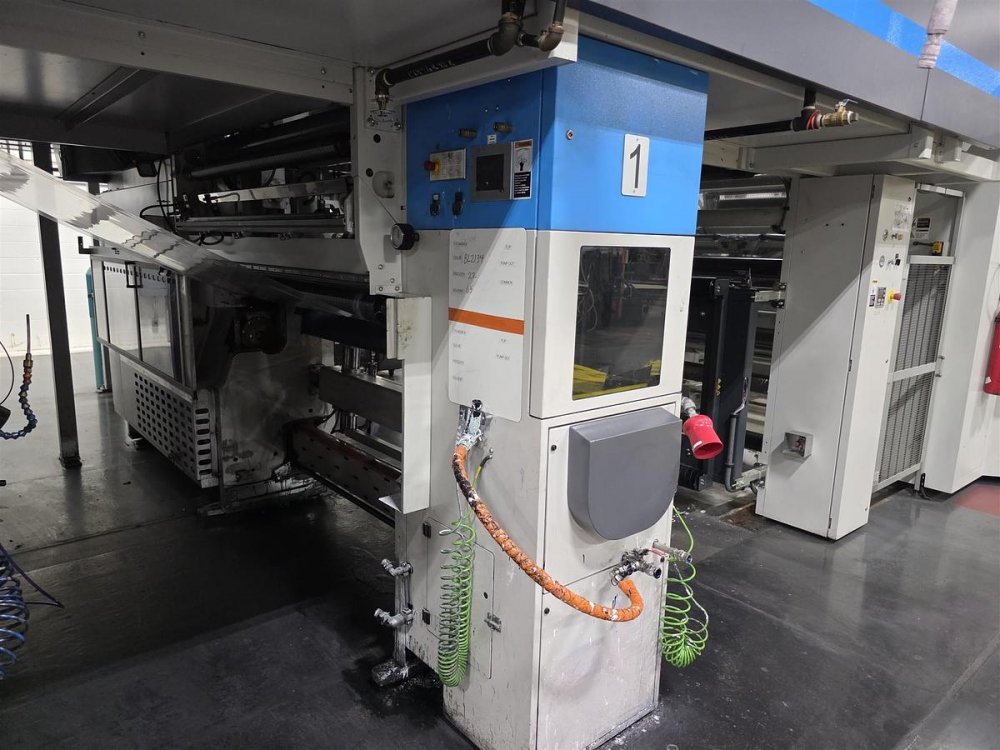

- Number of single hood stations (C1): From printing unit 2 to 8 (7 units) Number of double hood stations (C2): On printing units 1, 9 and 10 (3 units)
- Drive
- Electronic shaft
- Trolley system
- Yes
- Web width (mm)
- 1450
- Print width (mm)
- 1420
- Print repeat range (mm)
- min. 450mm, max. 920mm
- Unwinder type
- Turret Automatic, Shaftless
- Max reel diameter unwinder (mm)
- 1270
- Rewinder type
- Turret Automatic, Shaftless
- Max reel diameter rewinder (mm)
- 1020

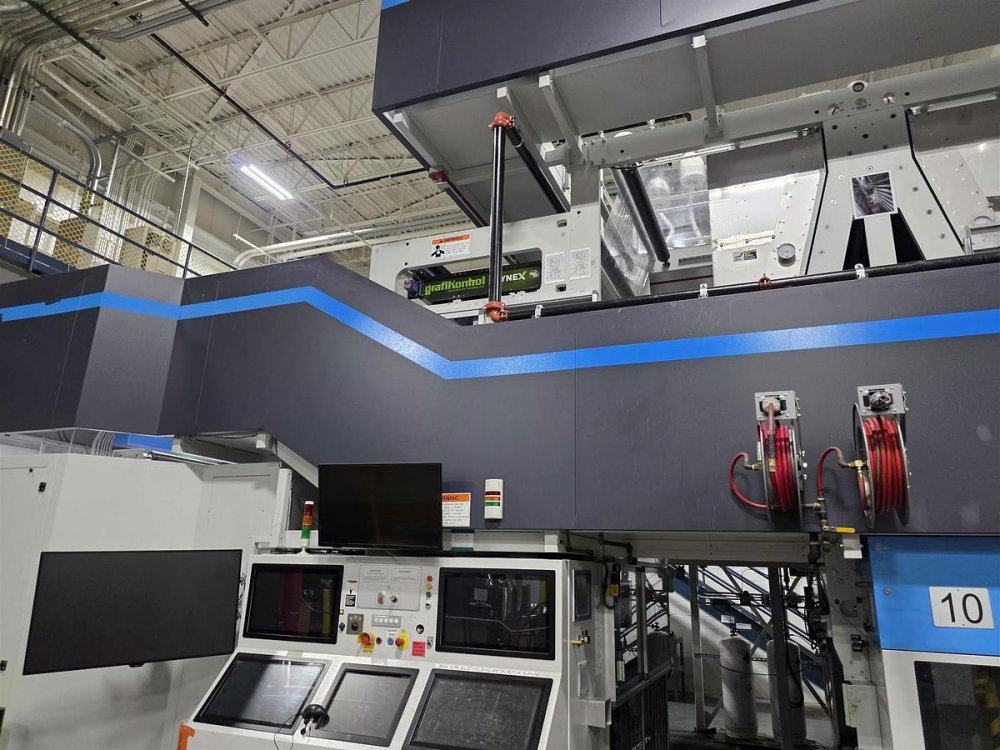

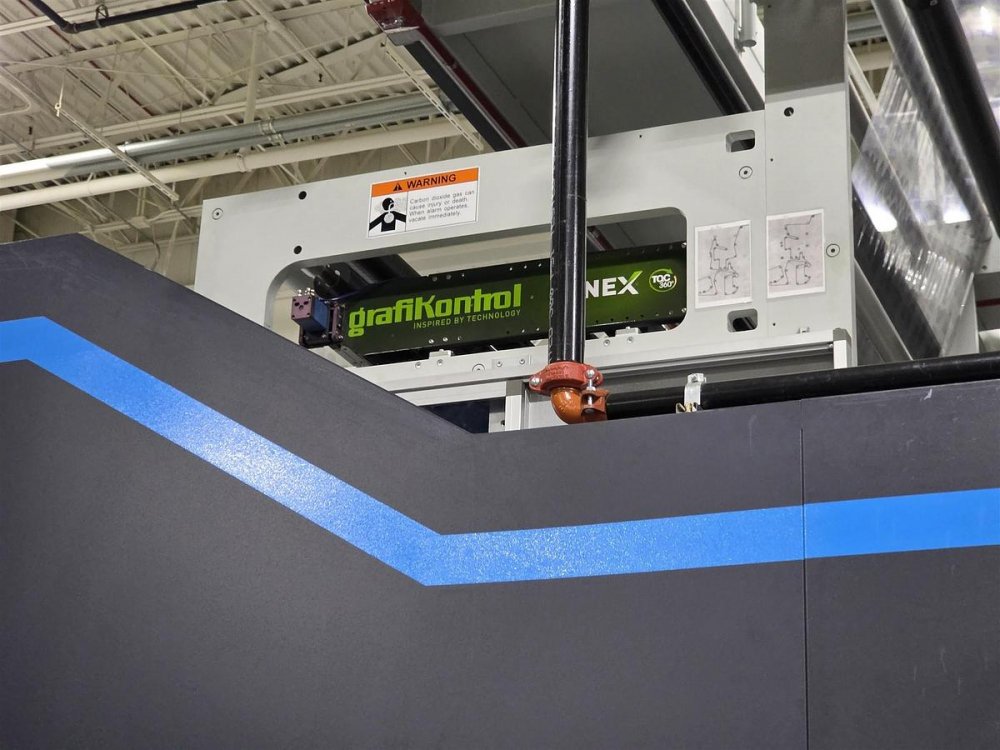

- Videocamera
- MATRIX 500 SYSTEM brand GRAFIKONTROL
- Register controll
- BST Eltromat model "REGISTAR-20

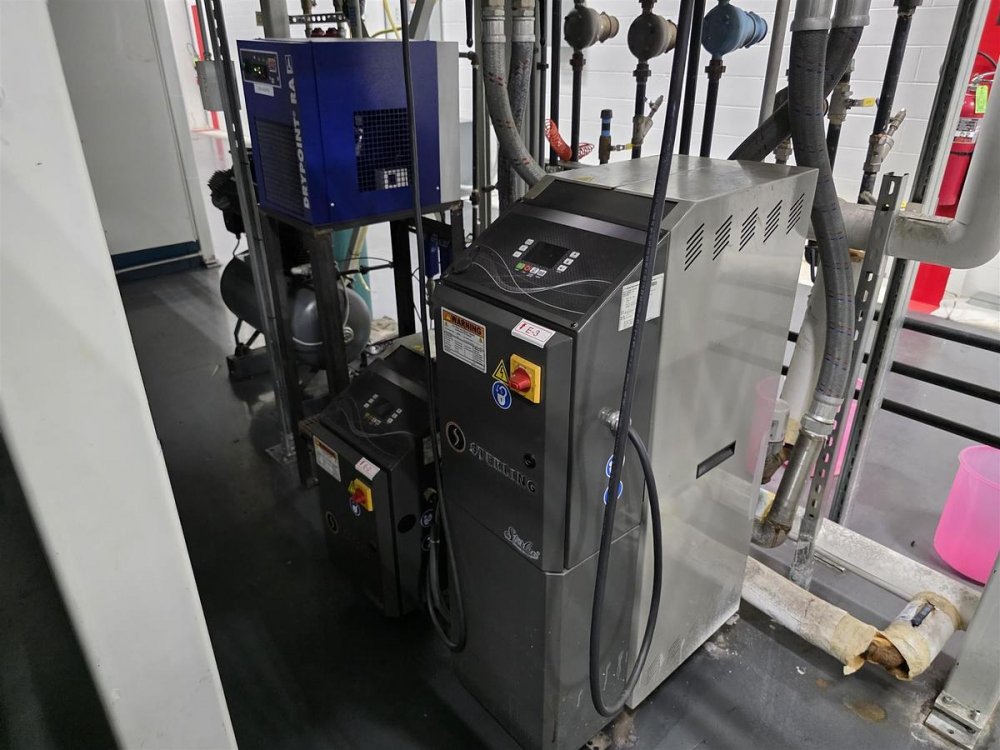

- Vyscosity control
- Viscosity Control Uteco / GAMA - N10
- Corona treatment
- ENERCON
- Print cylinders
- Shaftless
- Note
- Mechanical speed: 450 m/min max Turning Bar - N1 (between printing units 8 and 9) Turning Bar - N1 (between printing units 1 and 2) ESA System brand ENULEC Direct Charge - N10 Material / Thickness / Weight OPP, BOPP, COPP: 12÷50 µm (48-20 ga) PET-met. 9÷40 µm PET 9÷40 µm OPA 15÷60 µm LAMINATES Max 100 g/m² LDPE* 40÷50 µm (160-200 ga) LLDPE* 40÷50 µm (160-200 ga) PAPER** 22÷50 lbs/ream PETG 50 µm (200 ga) Polyethylene 40÷50 µm (160-200 ga) Polyester 12÷40 µm (36-150 ga) PLA 40÷60 (160-240 ga) Fire Fighting System Automatic Pre-Washing Module "NEXT" Type
| Maschinencode | RO286 |
| Hersteller | UTECO |
| Modello | NEXT 450 |
| Baujahr | 2021 |
| Number of colors | 10 |
| Print possibilities | Number of single hood stations (C1): From printing unit 2 to 8 (7 units) Number of double hood stations (C2): On printing units 1, 9 and 10 (3 units) |
| Drive | Electronic shaft |
| Trolley system | Yes |
| Web width (mm) | 1450 |
| Print width (mm) | 1420 |
| Print repeat range (mm) | min. 450mm, max. 920mm |
| Unwinder type | Turret Automatic, Shaftless |
| Max reel diameter unwinder (mm) | 1270 |
| Rewinder type | Turret Automatic, Shaftless |
| Max reel diameter rewinder (mm) | 1020 |
| Videocamera | MATRIX 500 SYSTEM brand GRAFIKONTROL |
| Register controll | BST Eltromat model "REGISTAR-20 |
| Vyscosity control | Viscosity Control Uteco / GAMA - N10 |
| Corona treatment | ENERCON |
| Print cylinders | Shaftless |
| Note | Mechanical speed: 450 m/min max Turning Bar - N1 (between printing units 8 and 9) Turning Bar - N1 (between printing units 1 and 2) ESA System brand ENULEC Direct Charge - N10 Material / Thickness / Weight OPP, BOPP, COPP: 12÷50 µm (48-20 ga) PET-met. 9÷40 µm PET 9÷40 µm OPA 15÷60 µm LAMINATES Max 100 g/m² LDPE* 40÷50 µm (160-200 ga) LLDPE* 40÷50 µm (160-200 ga) PAPER** 22÷50 lbs/ream PETG 50 µm (200 ga) Polyethylene 40÷50 µm (160-200 ga) Polyester 12÷40 µm (36-150 ga) PLA 40÷60 (160-240 ga) Fire Fighting System Automatic Pre-Washing Module "NEXT" Type |
