- Maschinencode
- FL1088
- Hersteller
- SOMA
- Modello
- MINI
- Baujahr
- 2004
- Number of colors
- 8
- Print possibilityes
- 8+0
- Overhaul/renovation
- renovated in 2022: retrofited in year 2022 (new upgraded inking systems - as per SOMA latest solution viscosometry control (also the latest one), new doctor chamber system for all the printing decks including modern ink supply system with automatic Cleaning for all the colour decks.
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 870
- Print width (mm)
- 820
- Min print repeat (mm)
- 250
- Max print repeat (mm)
- 650
- Unwinder type
- Turret Automatic
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Turret Automatic
- Max reel diameter rewinder (mm)
- 800
- Drying
- 2 drying zones, 3 mt final tunnel, 2 electric heaters, automatic air recirculation with LEL.
- Videocamera
- BST with defect control,3 chip camera
- Web guides
- Yes
- Vyscosity control
- Yes
- Washing system
- Auto clean

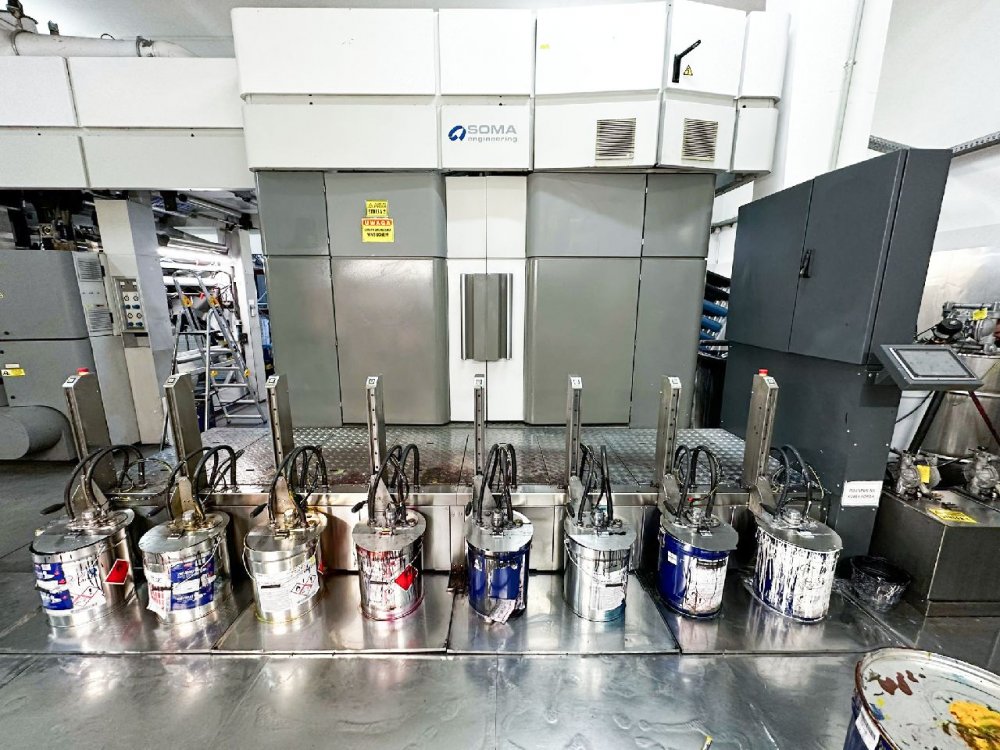

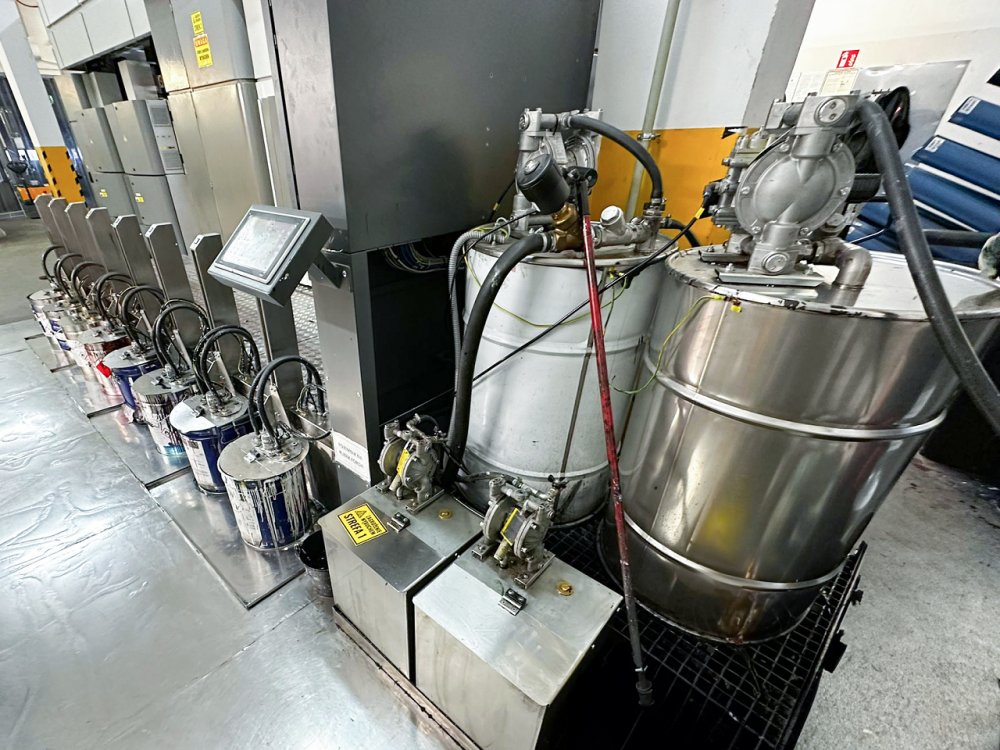

- Inking system
- Solvent based
- Anilox
- 27 pcs
- Print Sleeves
- 272 pcs
| Maschinencode | FL1088 |
| Hersteller | SOMA |
| Modello | MINI |
| Baujahr | 2004 |
| Number of colors | 8 |
| Print possibilityes | 8+0 |
| Overhaul/renovation | renovated in 2022: retrofited in year 2022 (new upgraded inking systems - as per SOMA latest solution viscosometry control (also the latest one), new doctor chamber system for all the printing decks including modern ink supply system with automatic Cleaning for all the colour decks. |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 870 |
| Print width (mm) | 820 |
| Min print repeat (mm) | 250 |
| Max print repeat (mm) | 650 |
| Unwinder type | Turret Automatic |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Turret Automatic |
| Max reel diameter rewinder (mm) | 800 |
| Drying | 2 drying zones, 3 mt final tunnel, 2 electric heaters, automatic air recirculation with LEL. |
| Videocamera | BST with defect control,3 chip camera |
| Web guides | Yes |
| Vyscosity control | Yes |
| Washing system | Auto clean |
| Inking system | Solvent based |
| Anilox | 27 pcs |
| Print Sleeves | 272 pcs |
