- Maschinencode
- FL1061
- Hersteller
- UTECO
- Modello

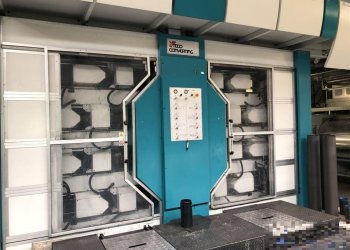

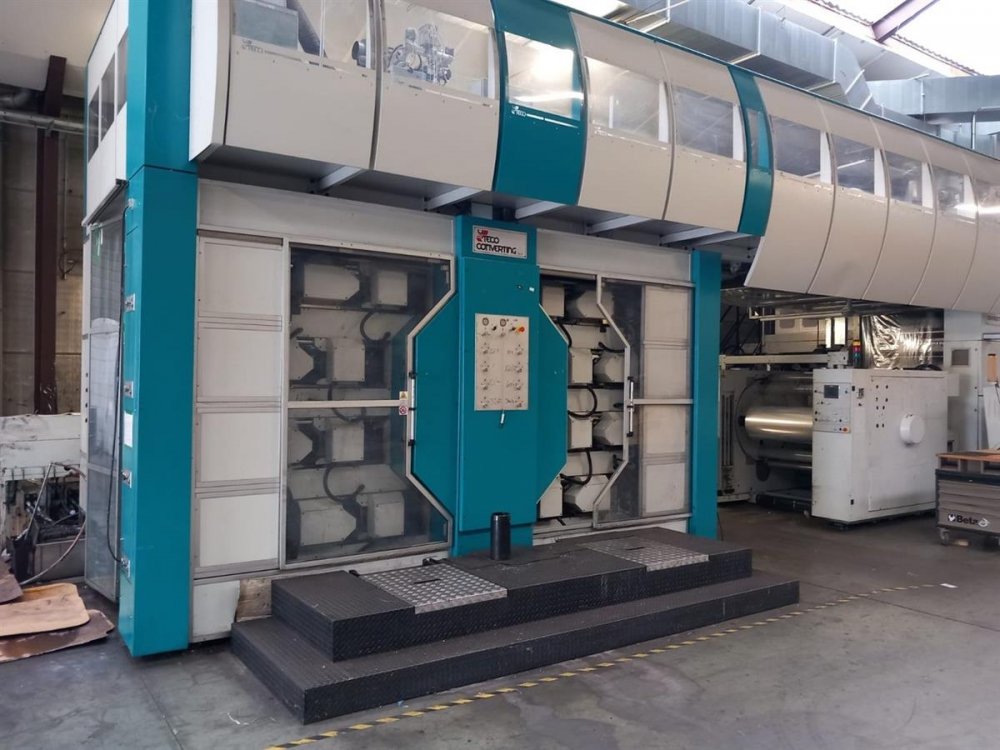

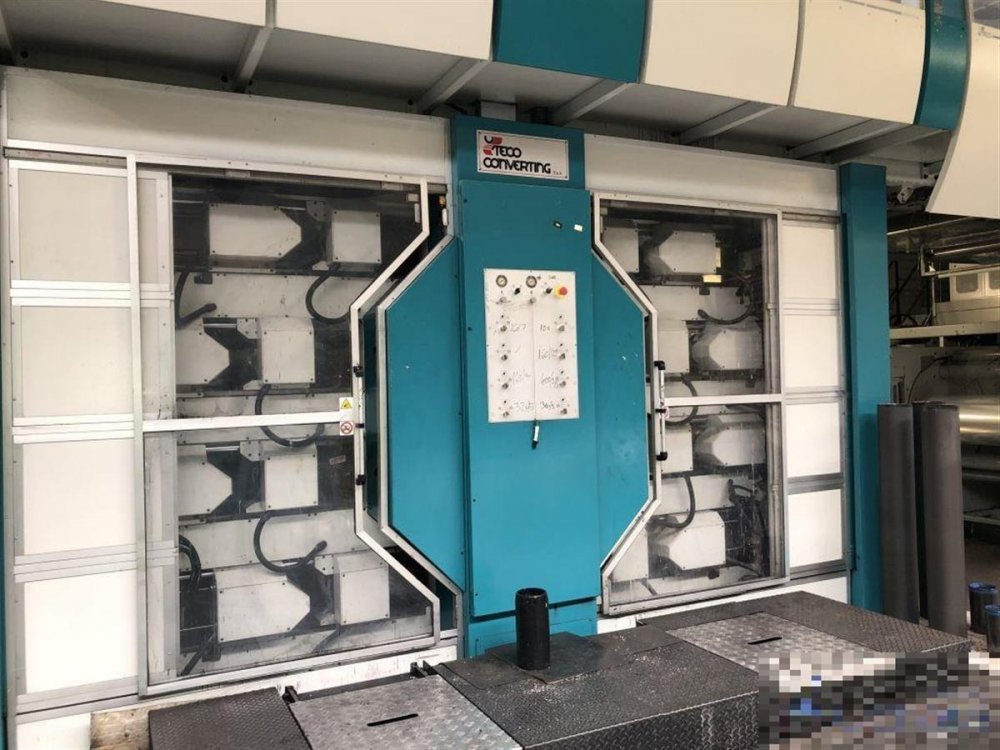

- Diamond HP 808 Mod 120
- Baujahr
- 2008
- Number of colors
- 8
- Gearless
- Yes
- Fast sleeve change
- Yes
- 4 motor per deck CNC position system
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1250
- Print width (mm)
- 1200
- Min print repeat (mm)
- 360
- Max print repeat (mm)
- 800
- Unwinder type
- Non stop auto splice
- Max reel diameter unwinder (mm)
- 1000
- Rewinder type
- Non stop auto splice
- Max reel diameter rewinder (mm)
- 1000
- Drying
- Gas
- Videocamera
- AVT year 2016
- Anilox
- 13 anilox plus 6 spare
- Print Sleeves
- 168 print sleeves as follows : 8x350mm, 370mm,380,390,400,420,440,450,480,520,530,560,570,590,600,610,620,640,650,660,680mm
- Note
- 500 Metres/min Dimensions :approx. 17 x 7 x 5,5m
| Maschinencode | FL1061 |
| Hersteller | UTECO |
| Modello | Diamond HP 808 Mod 120 |
| Baujahr | 2008 |
| Number of colors | 8 |
| Gearless | Yes |
| Fast sleeve change | Yes |
| 4 motor per deck CNC position system | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1250 |
| Print width (mm) | 1200 |
| Min print repeat (mm) | 360 |
| Max print repeat (mm) | 800 |
| Unwinder type | Non stop auto splice |
| Max reel diameter unwinder (mm) | 1000 |
| Rewinder type | Non stop auto splice |
| Max reel diameter rewinder (mm) | 1000 |
| Drying | Gas |
| Videocamera | AVT year 2016 |
| Anilox | 13 anilox plus 6 spare |
| Print Sleeves | 168 print sleeves as follows : 8x350mm, 370mm,380,390,400,420,440,450,480,520,530,560,570,590,600,610,620,640,650,660,680mm |
| Note | 500 Metres/min Dimensions :approx. 17 x 7 x 5,5m |
