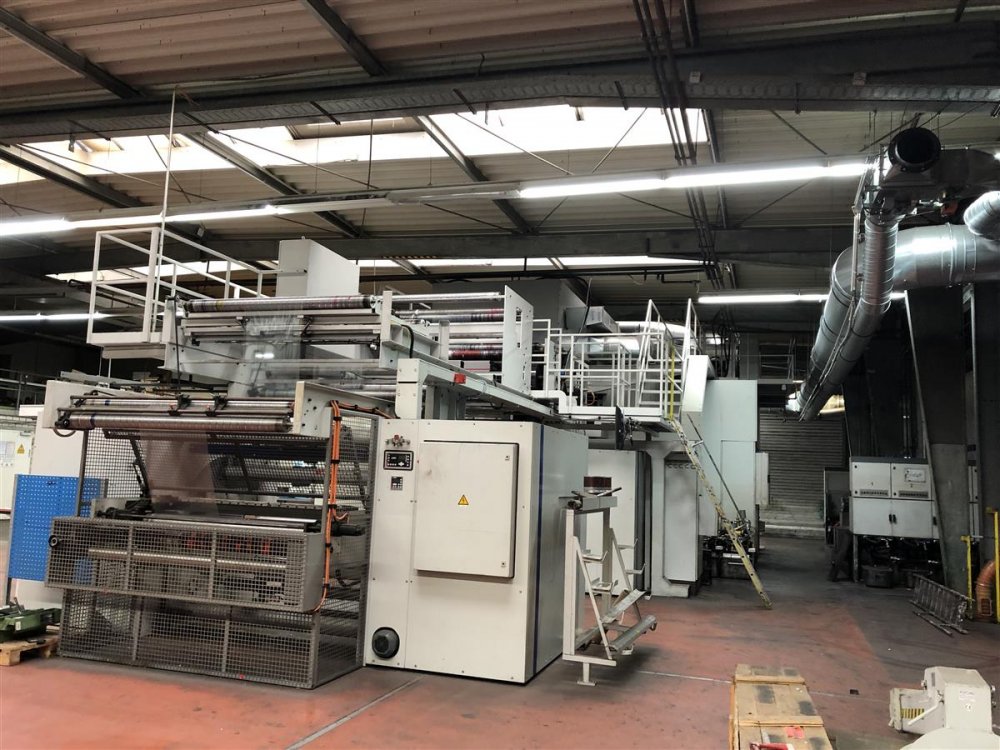

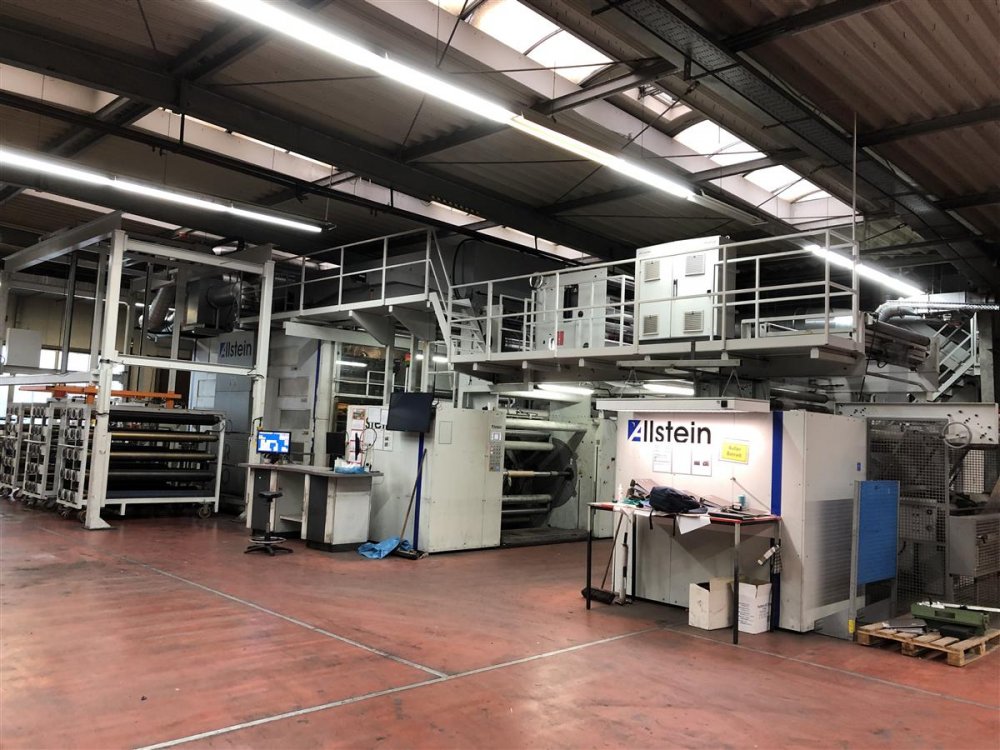

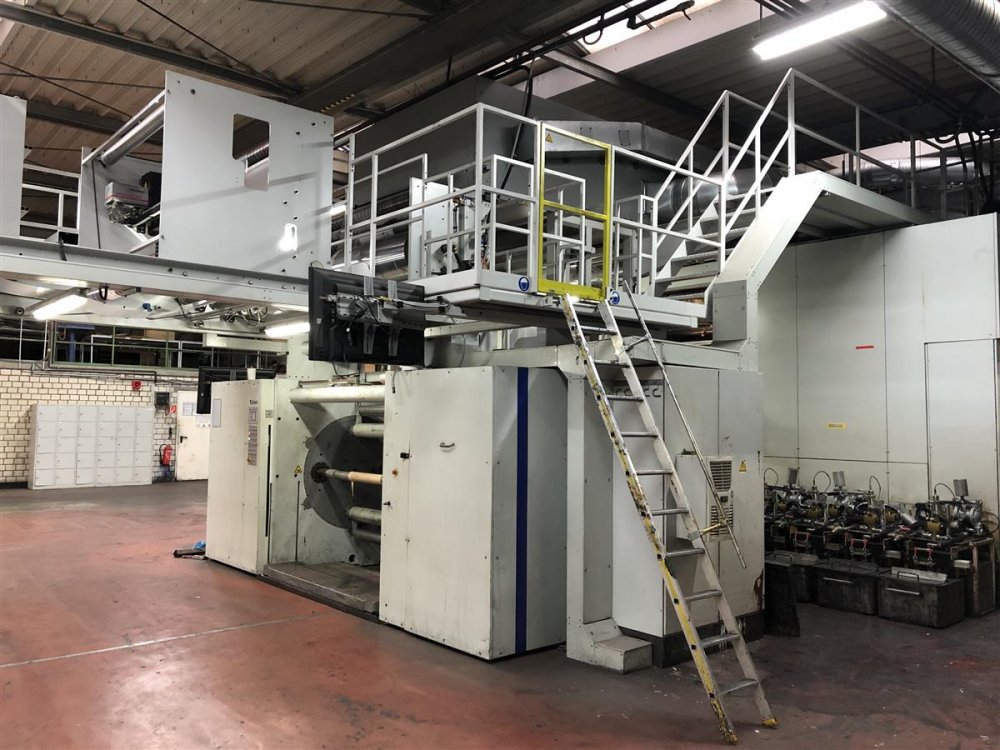

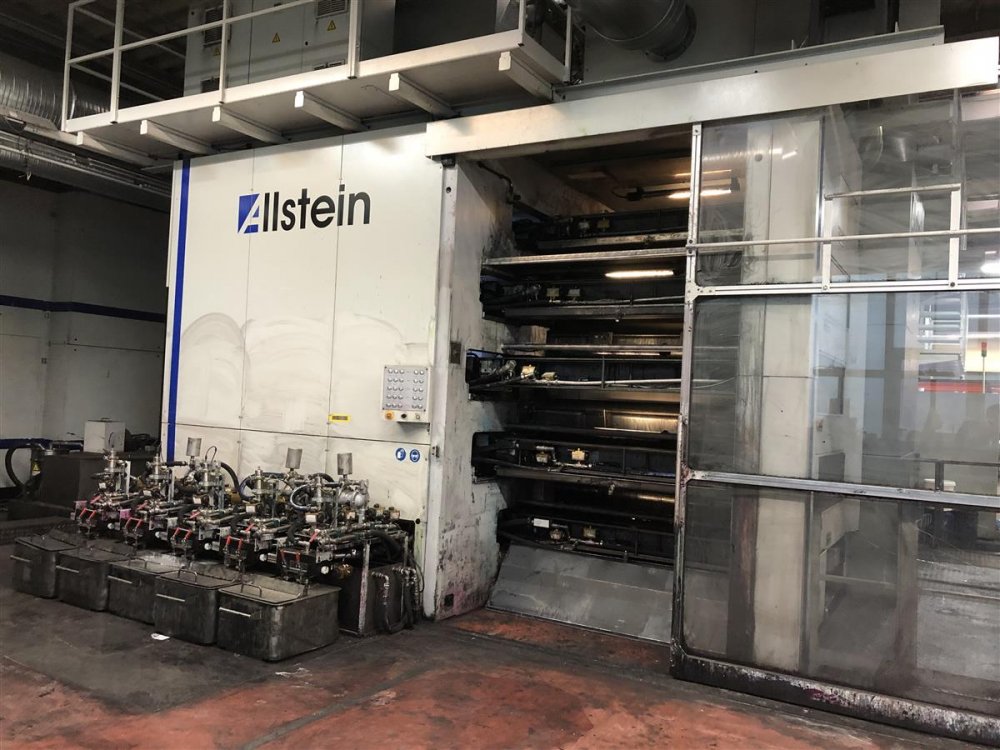

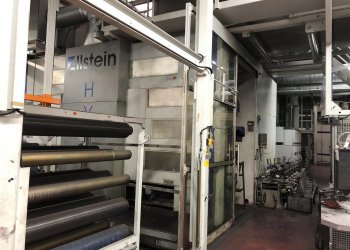

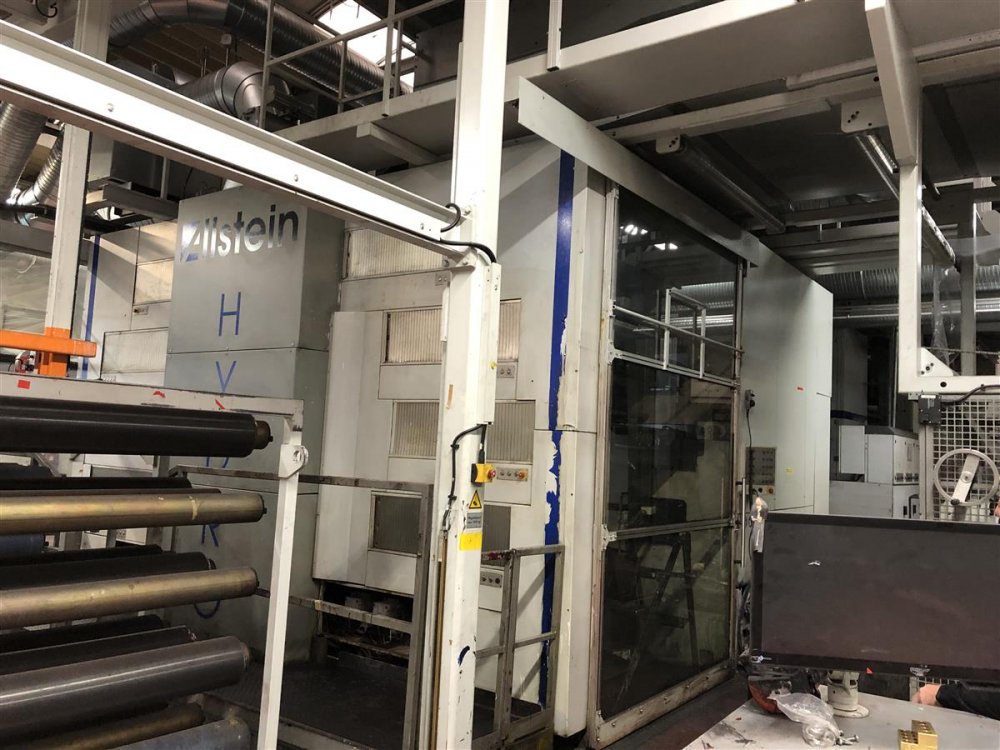

ALLSTEIN Hydro 10 Flexodruck Maschine 8 farben

Maschinencode
FL945
Hersteller
ALLSTEIN
Modello
Hydro 10
Baujahr
2014
Number of colors
8
Print possibilityes
8+0
Gearless
Yes
Fast sleeve change
Yes
4 motor per deck CNC position system
Yes

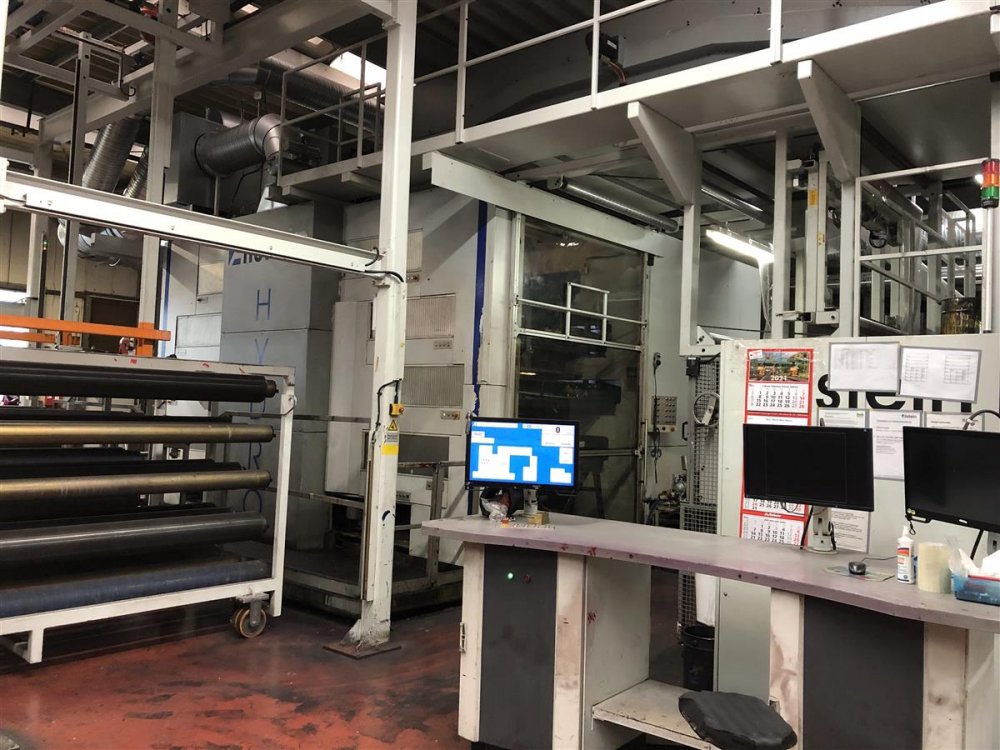

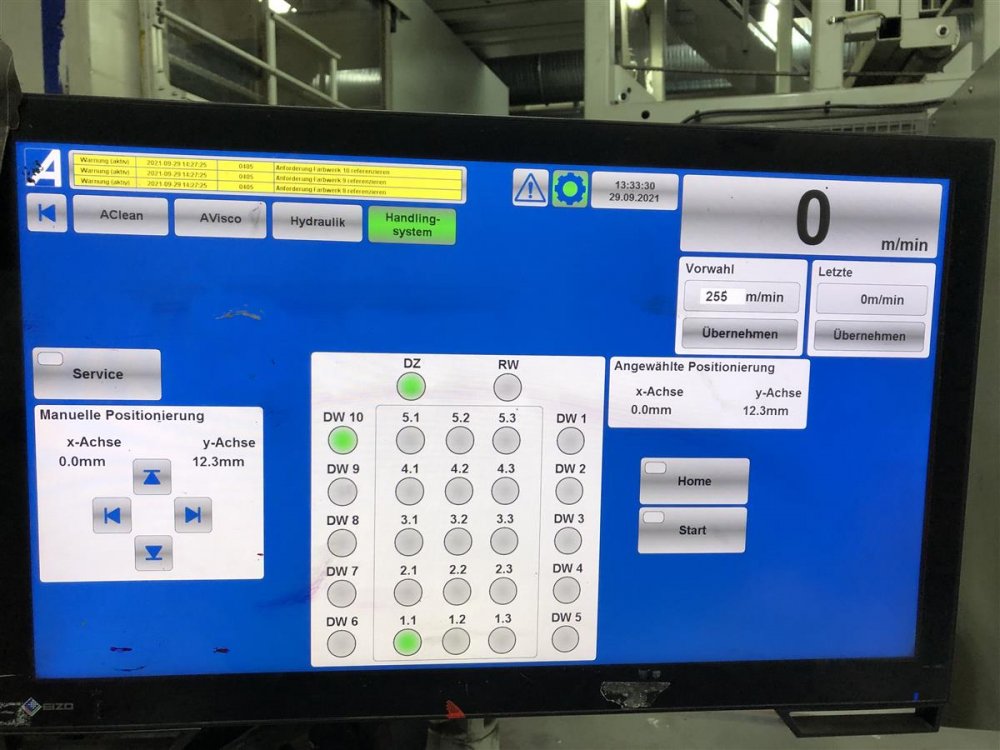

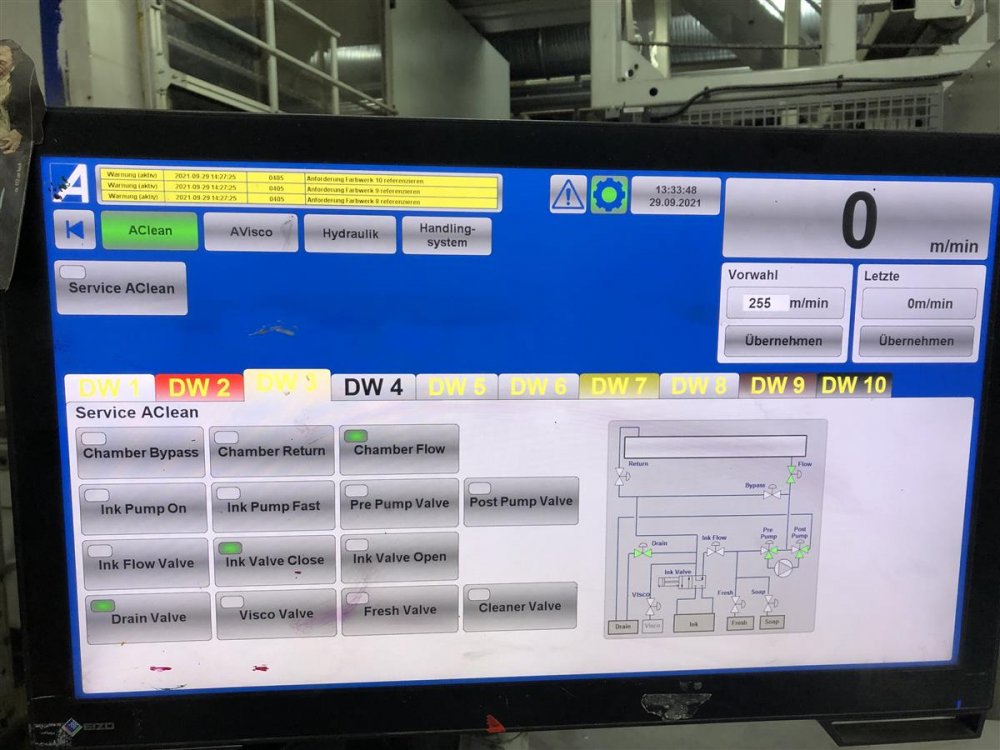

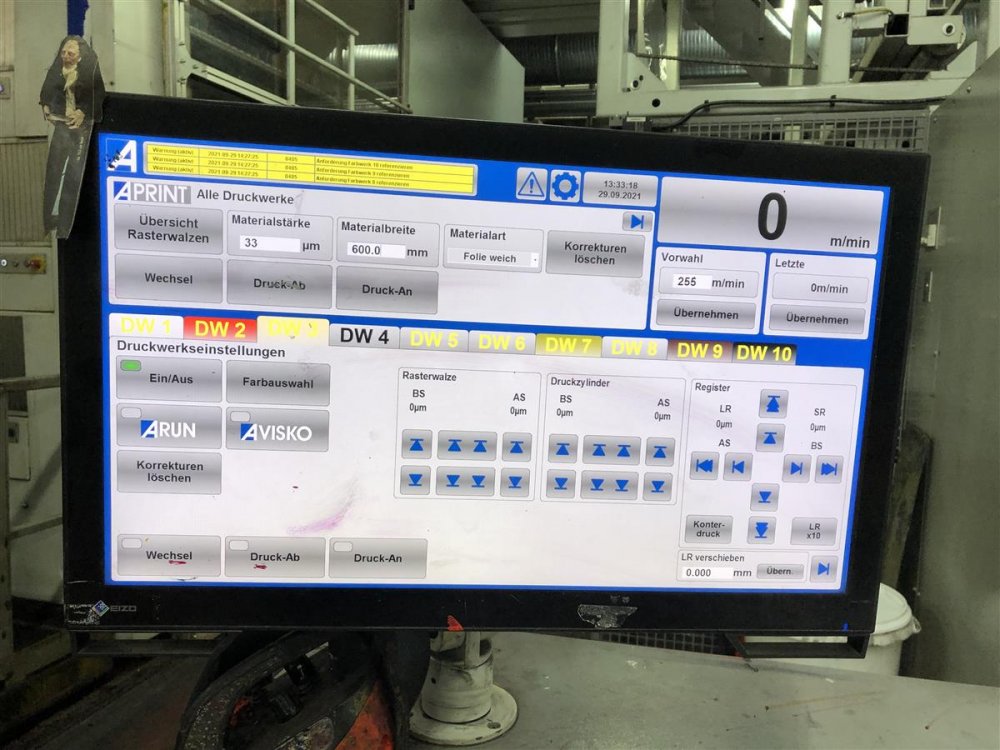

Computer supervision
Yes
Web width (mm)
1850
Print width (mm)
1800
Min print repeat (mm)
440
Max print repeat (mm)
880

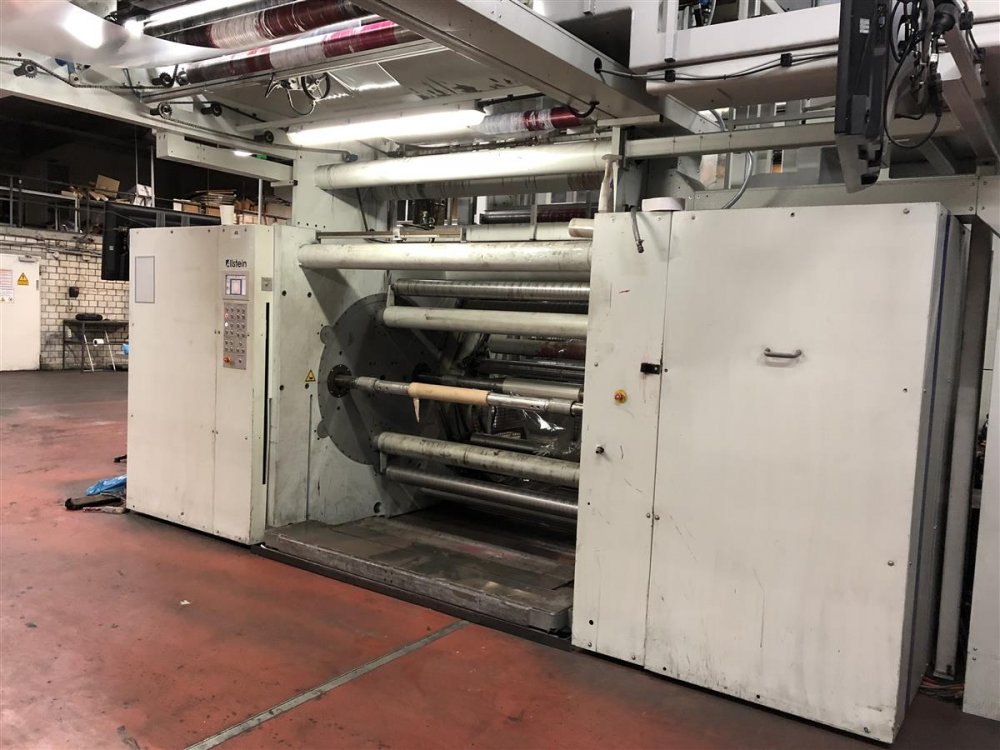

Unwinder type
TURRET bi-directional
Max reel diameter unwinder (mm)
1000

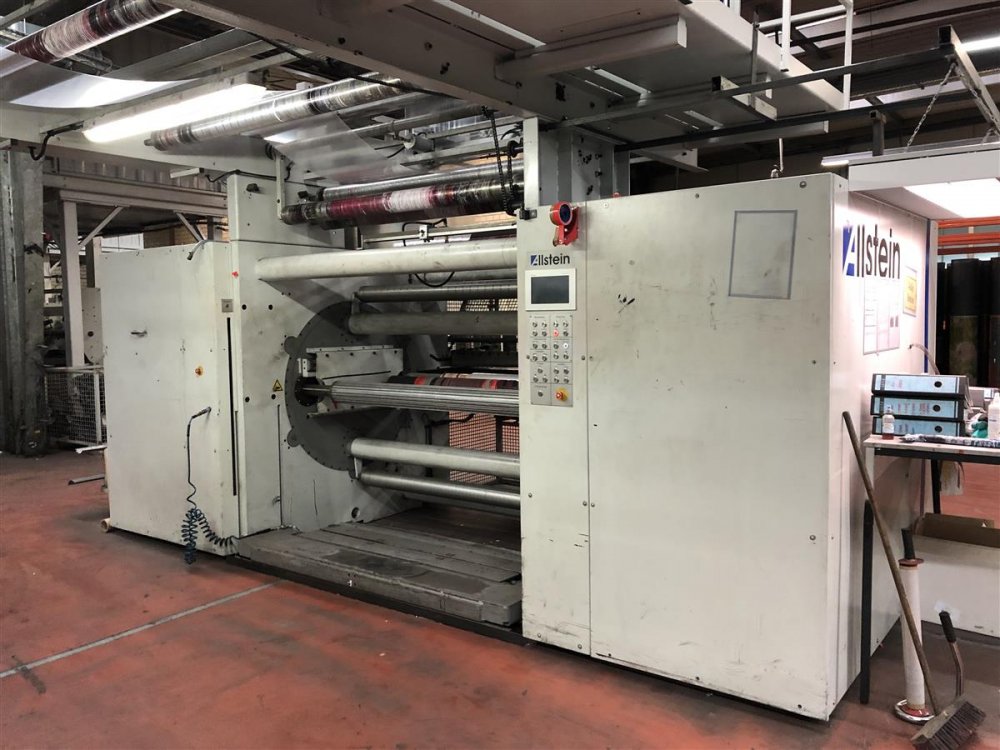

Rewinder type
TURRET bi-directional
Max reel diameter rewinder (mm)
1000
Drying
2 zones , 4 fans , 5 m drying tunnel Gas burners Maxon with LEL control

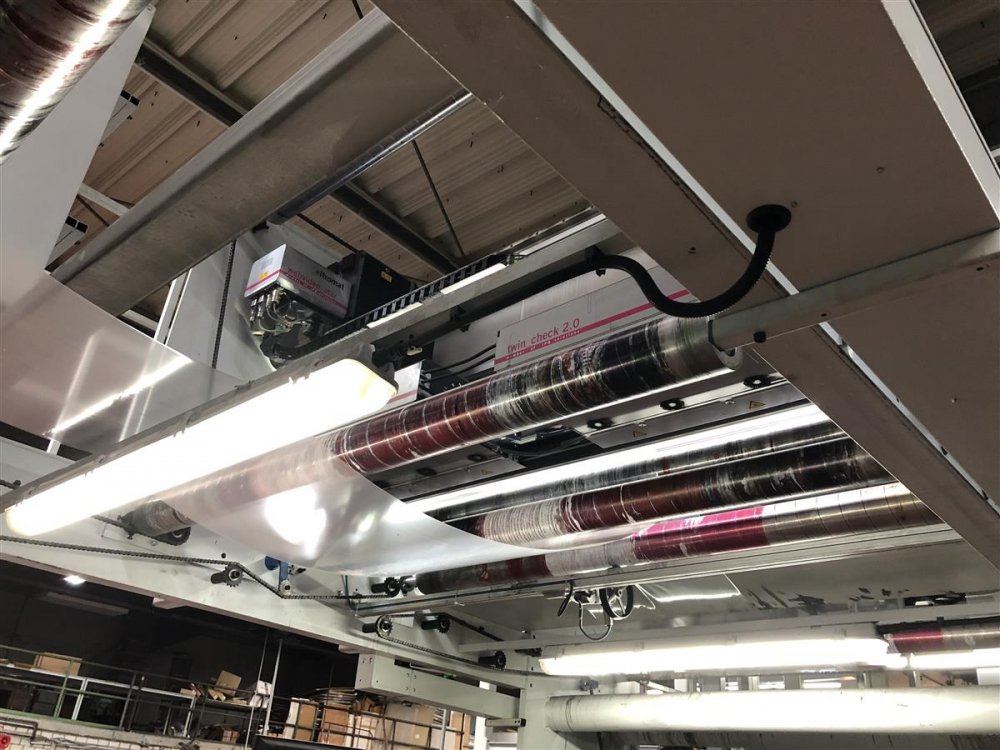

Videocamera
Eltromat with quality inspection. 3ccd camera + 100% inspection
Web guides
2 in and out

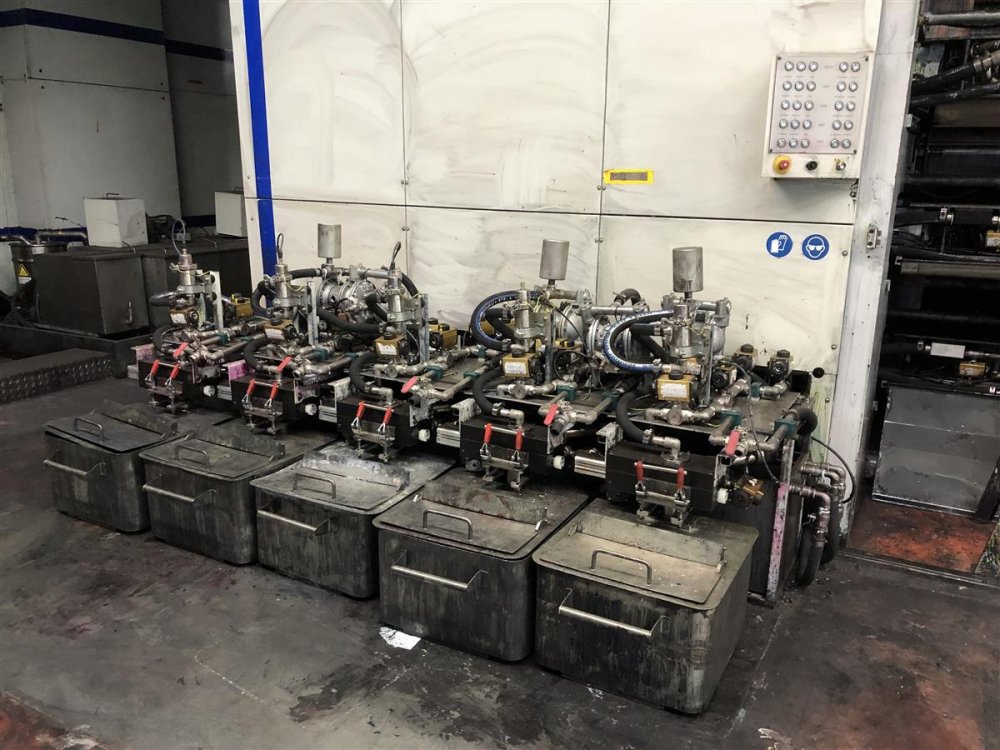

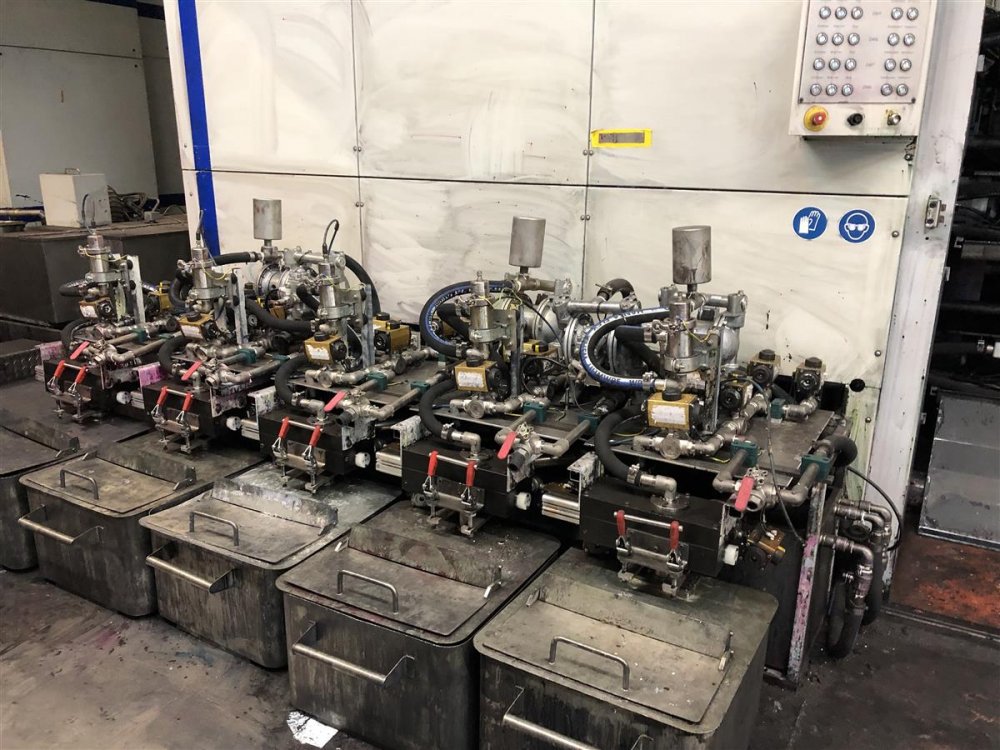

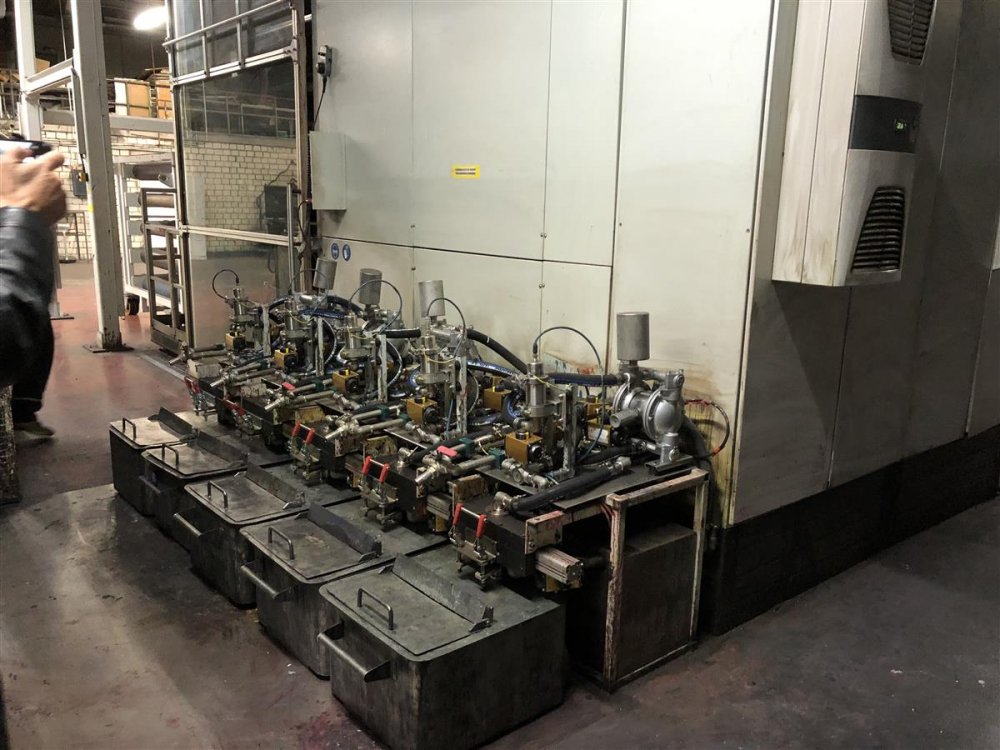

Vyscosity control
yes automatic ACLIAN
Washing system
Yes automatic

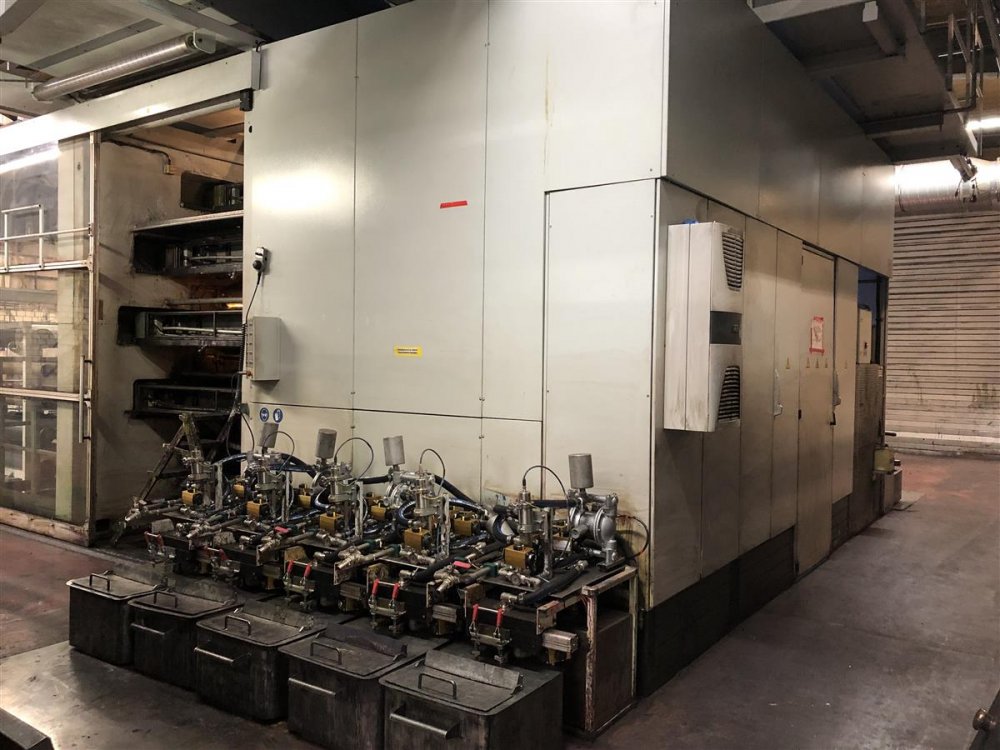

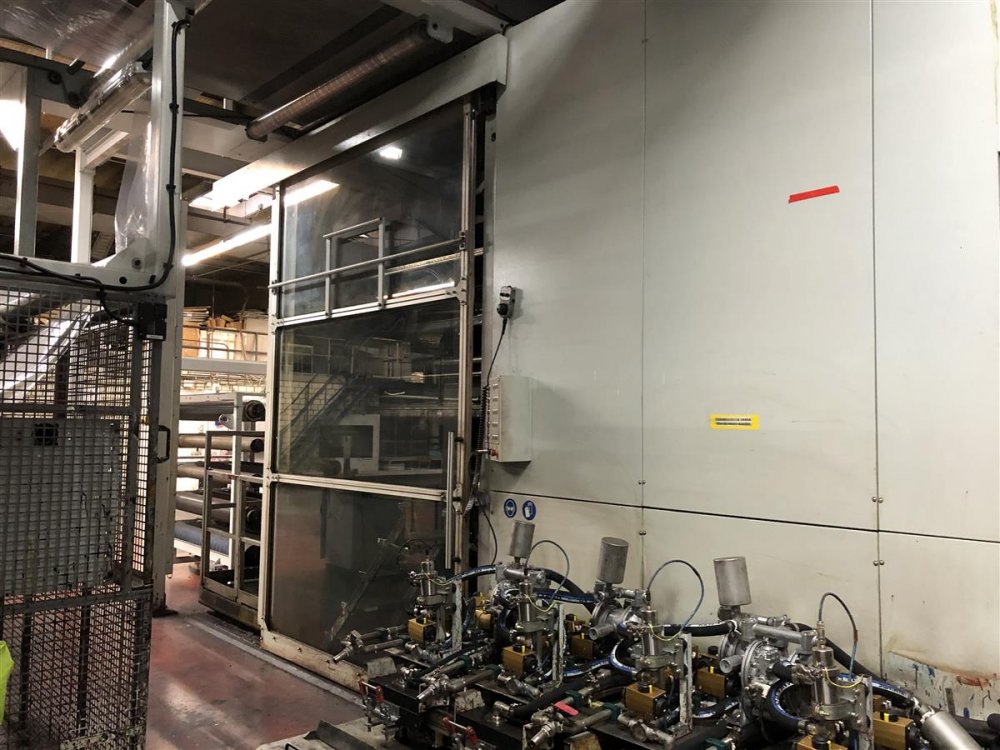

Inking system
CFK chambers
Anilox
1x120 L/cm, , 1x180, 1x160, 2x140, 2x220, 1x280, 3x400 , 1x340, 2x285.

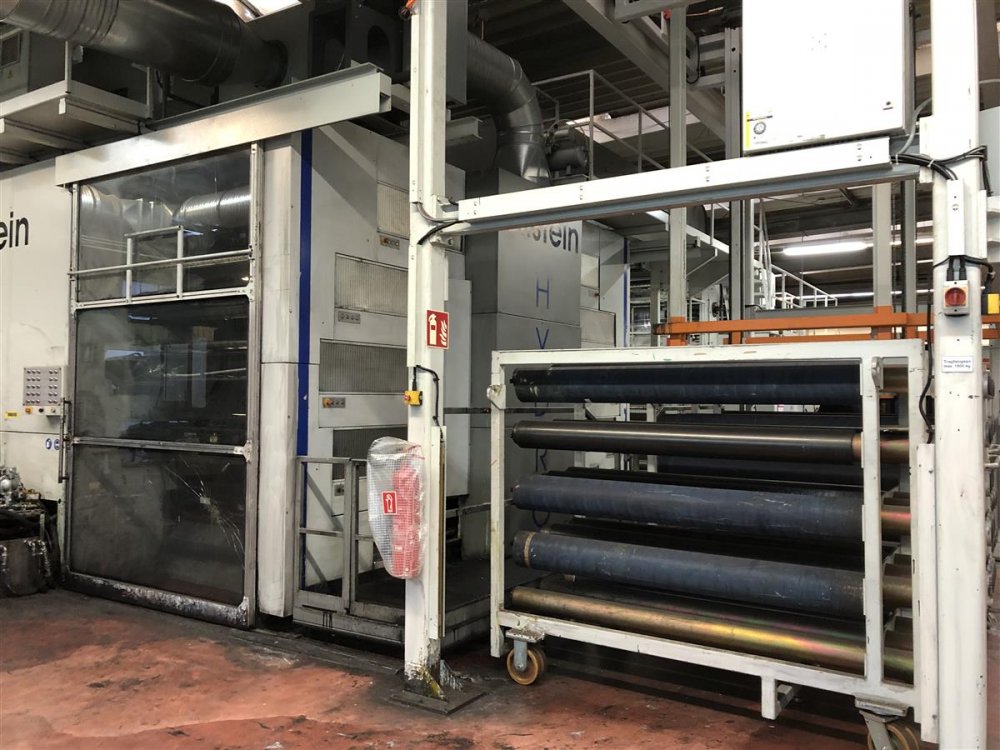

Print Sleeves
approx 300, plate thickness 1,14mm: qty x repeat (mm) 11x440, 20x460, 20x480, 10x490,10x500, 10x520, 10x540, 10x560, 10x570, 10x580, 29x600, 10x620, 10x660, 20x680, 20x690, 20x700, 10x720, 20x780, 10x800, 10x840, 10x870
Note
8 color on a 10 color frame complete CI drum diam 2750mm speed 600 m/min LEL sensors
Maschinencode FL945
Hersteller ALLSTEIN
Modello Hydro 10
Baujahr 2014
Number of colors 8
Print possibilityes 8+0
Gearless Yes
Fast sleeve change Yes
4 motor per deck CNC position system Yes
Computer supervision Yes
Web width (mm) 1850
Print width (mm) 1800
Min print repeat (mm) 440
Max print repeat (mm) 880
Unwinder type TURRET bi-directional
Max reel diameter unwinder (mm) 1000
Rewinder type TURRET bi-directional
Max reel diameter rewinder (mm) 1000
Drying 2 zones , 4 fans , 5 m drying tunnel Gas burners Maxon with LEL control
Videocamera Eltromat with quality inspection. 3ccd camera + 100% inspection
Web guides 2 in and out
Vyscosity control yes automatic ACLIAN
Washing system Yes automatic
Inking system CFK chambers
Anilox 1x120 L/cm, , 1x180, 1x160, 2x140, 2x220, 1x280, 3x400 , 1x340, 2x285.
Print Sleeves approx 300, plate thickness 1,14mm: qty x repeat (mm) 11x440, 20x460, 20x480, 10x490,10x500, 10x520, 10x540, 10x560, 10x570, 10x580, 29x600, 10x620, 10x660, 20x680, 20x690, 20x700, 10x720, 20x780, 10x800, 10x840, 10x870
Note 8 color on a 10 color frame complete CI drum diam 2750mm speed 600 m/min LEL sensors
** SOLD **
