- Maschinencode
- FL773
- Hersteller
- OFEM
- Modello

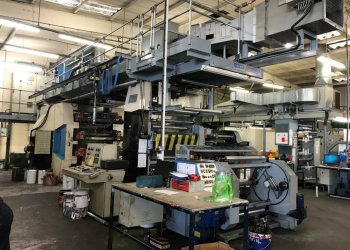

- JULIETTE 758
- Baujahr
- 2000
- Number of colors
- 8
- Print possibilityes
- 8+0.
- Gearless
- No
- Fast sleeve change
- Yes
- Computer supervision
- Yes
- Web width (mm)
- 1070
- Print width (mm)
- 1000
- Min print repeat (mm)
- 300
- Max print repeat (mm)
- 750
- Unwinder type
- Double spindle turret flying splice
- Max reel diameter unwinder (mm)
- 800
- Rewinder type
- Double spindle turret flying splice
- Max reel diameter rewinder (mm)
- 800
- Drying
- Gas burner.
- Inking system
- solvent based. .8 ink pumps.Enclosed doctor blade chambers with ceramic anilox rollers
- Anilox
- 8 anilox ceramic coated and laser engraved.
- Note
- Substrates able to process:Plastic films Maximum speed :200 m./min. Bull-gear, pitch 5 mm. Edge guide systems:1 before printing and 1 before rewinding Length registers :Motorized remote controlled. Side registers:Manual. Decks’ positioning system:Automatic. Locking system of the printing units:Automatic.
| Maschinencode | FL773 |
| Hersteller | OFEM |
| Modello | JULIETTE 758 |
| Baujahr | 2000 |
| Number of colors | 8 |
| Print possibilityes | 8+0. |
| Gearless | No |
| Fast sleeve change | Yes |
| Computer supervision | Yes |
| Web width (mm) | 1070 |
| Print width (mm) | 1000 |
| Min print repeat (mm) | 300 |
| Max print repeat (mm) | 750 |
| Unwinder type | Double spindle turret flying splice |
| Max reel diameter unwinder (mm) | 800 |
| Rewinder type | Double spindle turret flying splice |
| Max reel diameter rewinder (mm) | 800 |
| Drying | Gas burner. |
| Inking system | solvent based. .8 ink pumps.Enclosed doctor blade chambers with ceramic anilox rollers |
| Anilox | 8 anilox ceramic coated and laser engraved. |
| Note | Substrates able to process:Plastic films Maximum speed :200 m./min. Bull-gear, pitch 5 mm. Edge guide systems:1 before printing and 1 before rewinding Length registers :Motorized remote controlled. Side registers:Manual. Decks’ positioning system:Automatic. Locking system of the printing units:Automatic. |
