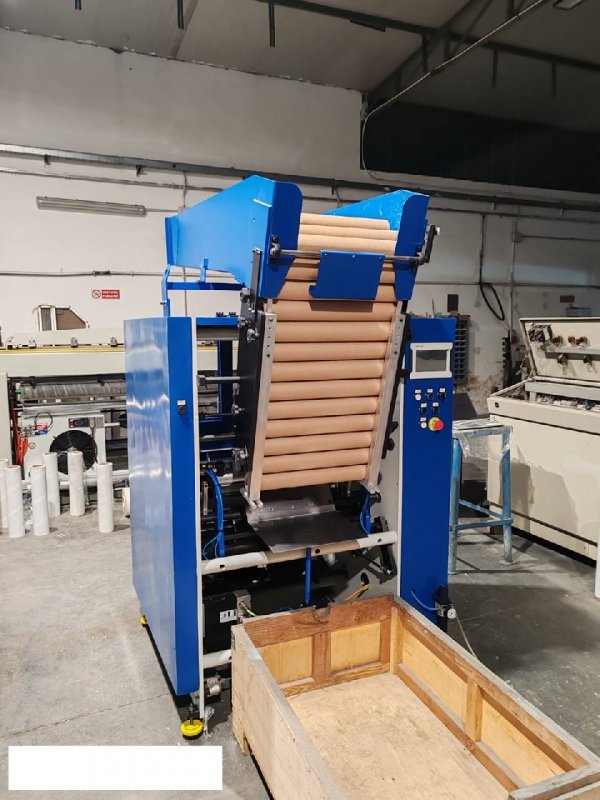

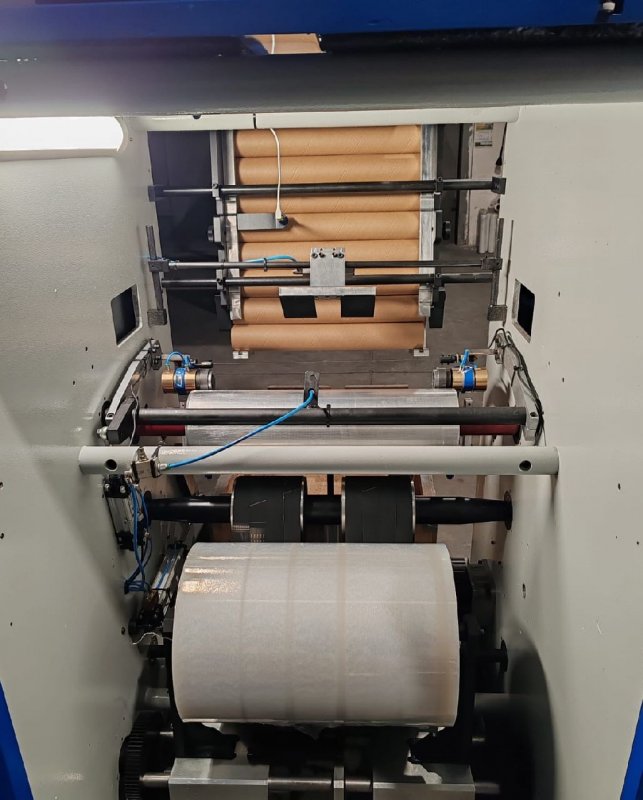

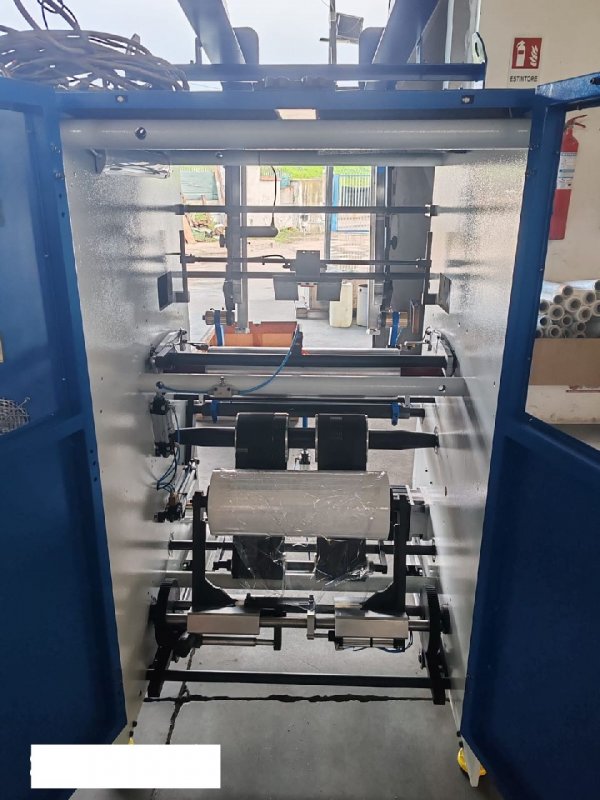

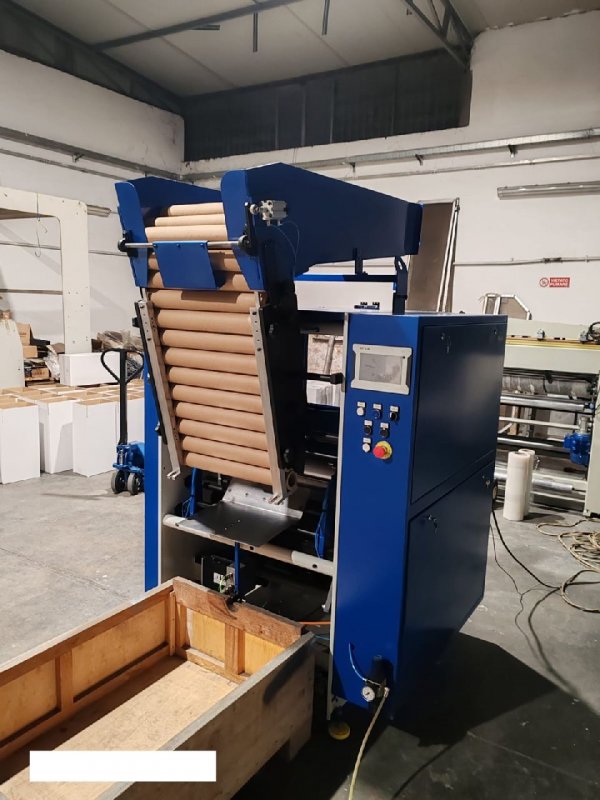

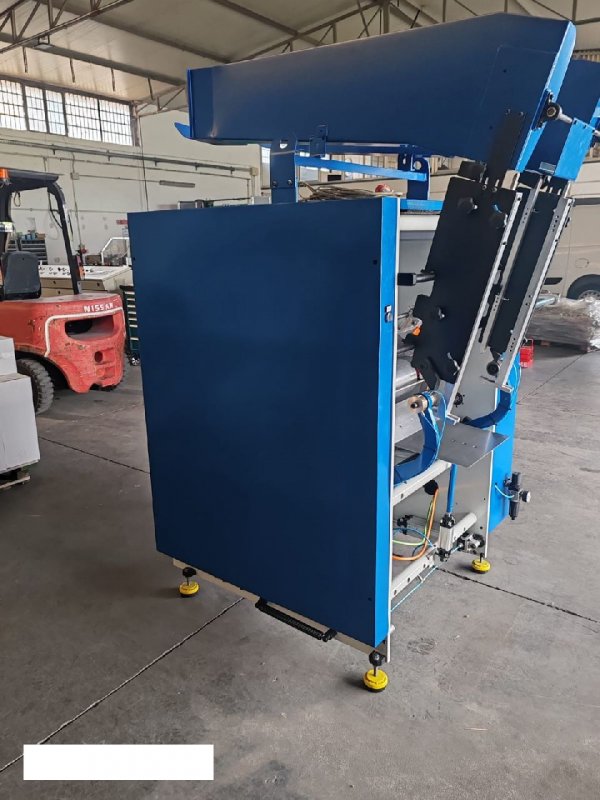

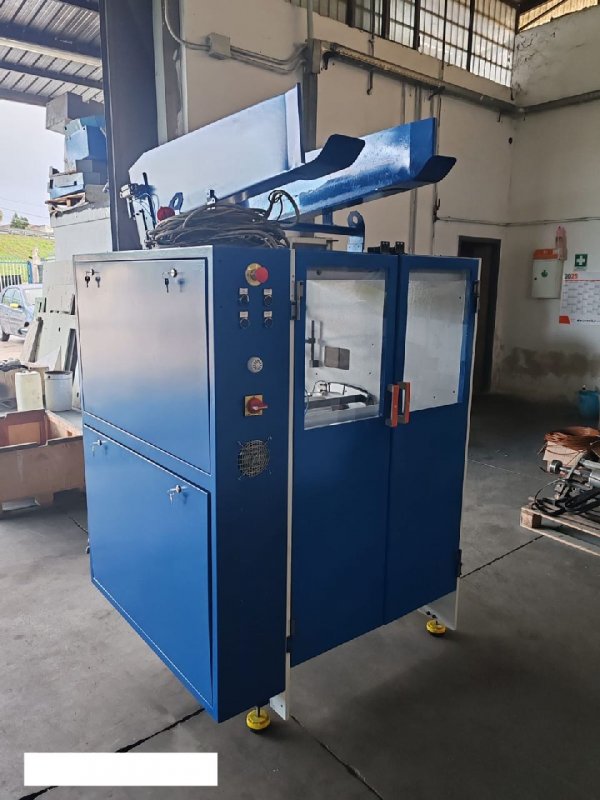

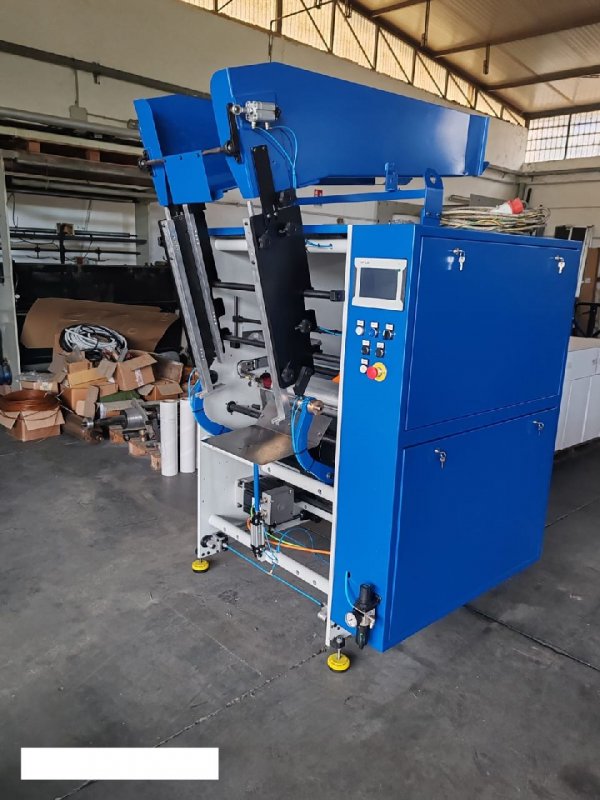

MAKLAUS RES04 Svolgitore / Avvolgitore // Unwinder-Rewinder // Other machine // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

Codice Macchina: UN-RE42
Manufacturer: MAKLAUS
Modello: RES04
Year: 2007
Larghezza lavoro (mm): 500
Ulteriori informazioni: Machines are sold with capital overhaul. Duration of overhaul 60 days from order. Working speed 800m/min Rated Power: 5Kw Minimum Chuck Allowed: Internal Diameter 38Mm Maximum Spindle Allowed: Internal Diameter 72Mm Nominal Maximum Speed: 1000Mt/M Useful Main Coil Or Jumbo: 500Mm Band Main Or Jumbo Coil Diameter: 500Mm Maximum Weight Of Main Or Jumbo Reel: 50Kg Minimum Thickness: 7 Microns Maximum Thickness: 30 Microns Final Products: Manual Reels In Sizes From 1.8Kg To 2.4Kg Reel For Automatic Machines From 15Kg To 25Kg With 72Mm Internal Core And A Maximum Allowed Cardboard Core Thickness Of 10Mm

Codice Macchina	UN-RE42
Manufacturer	MAKLAUS
Modello	RES04
Year	2007
Larghezza lavoro (mm)	500
Ulteriori informazioni	Machines are sold with capital overhaul. Duration of overhaul 60 days from order. Working speed 800m/min Rated Power: 5Kw Minimum Chuck Allowed: Internal Diameter 38Mm Maximum Spindle Allowed: Internal Diameter 72Mm Nominal Maximum Speed: 1000Mt/M Useful Main Coil Or Jumbo: 500Mm Band Main Or Jumbo Coil Diameter: 500Mm Maximum Weight Of Main Or Jumbo Reel: 50Kg Minimum Thickness: 7 Microns Maximum Thickness: 30 Microns Final Products: Manual Reels In Sizes From 1.8Kg To 2.4Kg Reel For Automatic Machines From 15Kg To 25Kg With 72Mm Internal Core And A Maximum Allowed Cardboard Core Thickness Of 10Mm
