- Codice Macchina
- SA16
- Manufacturer

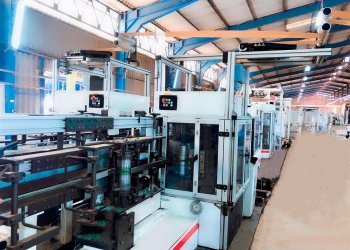

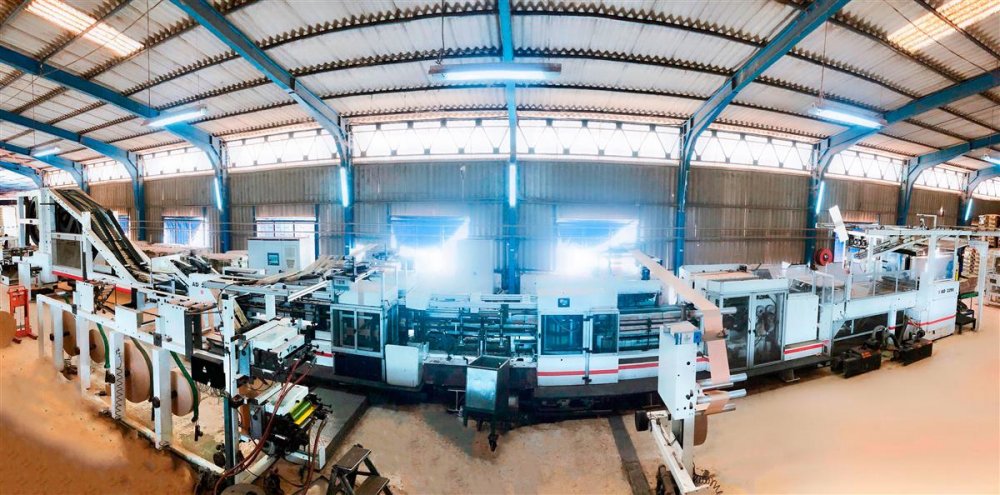

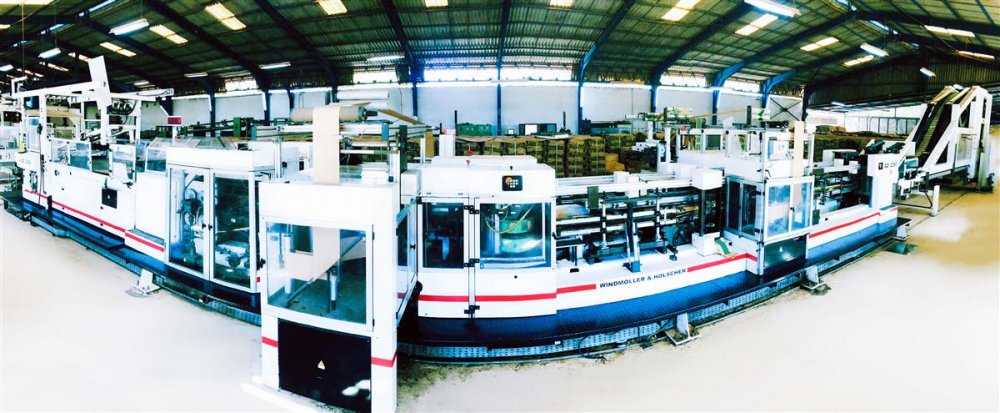

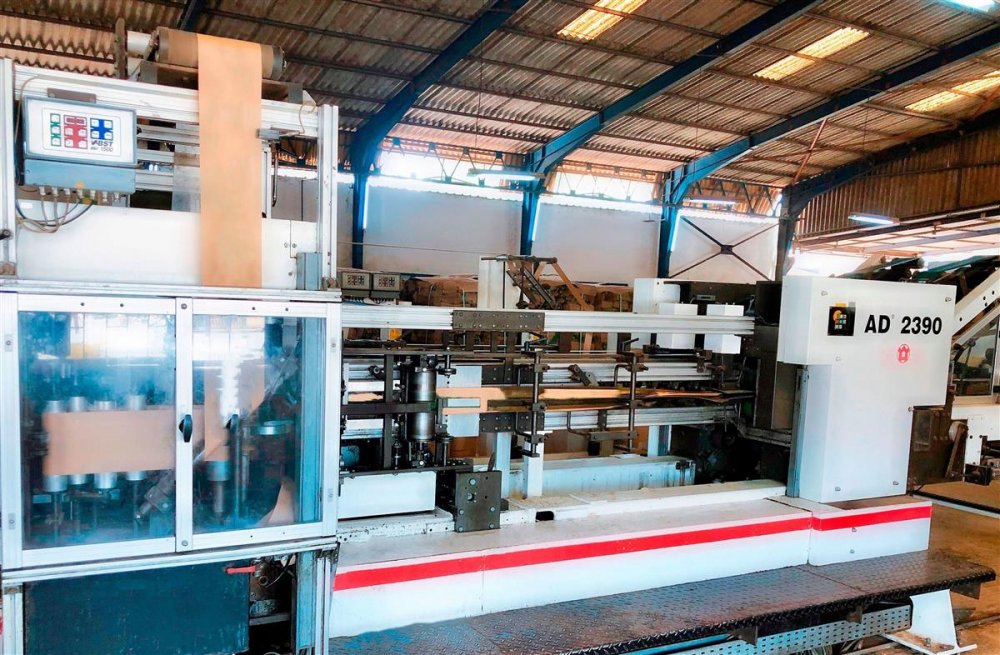

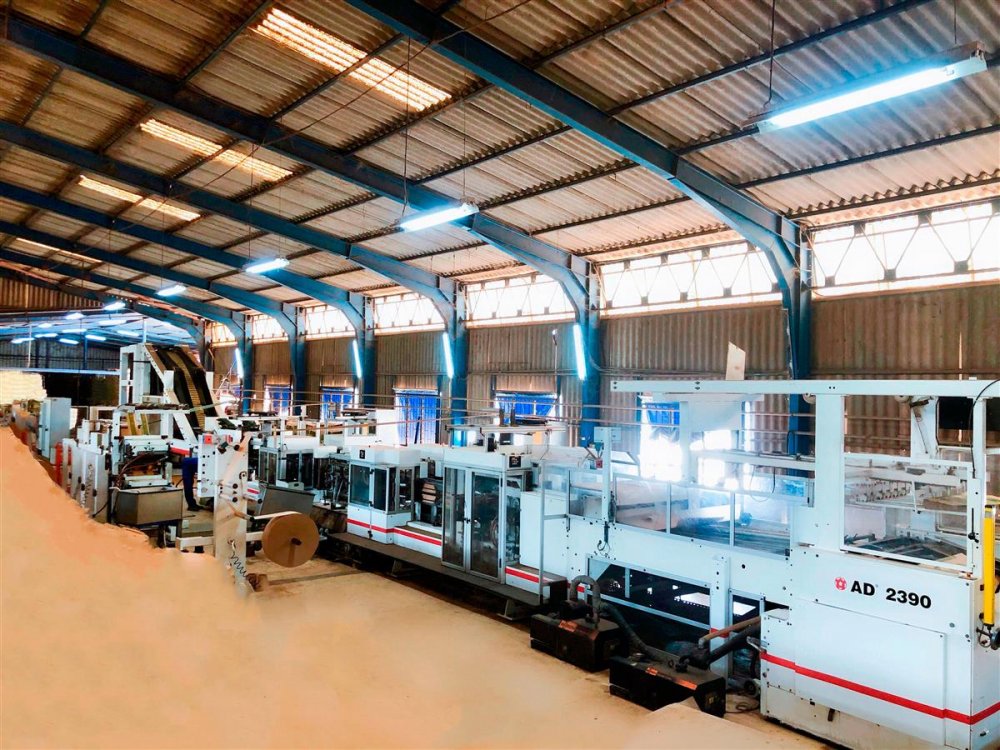

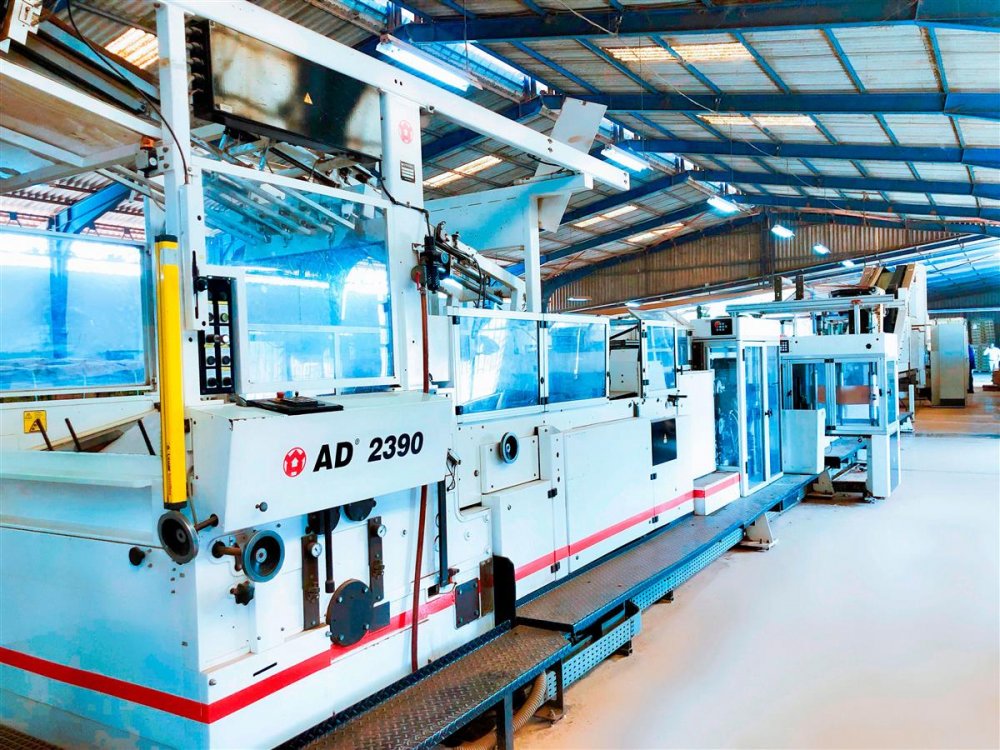

- WINDMÖLLER & HÖLSCHER
- Modello
- AD2390
- Year
- 2007
- Tipologia
- Bottomer
- Sack dimensions (mm)
- Sack length : 41 - 74 cm; Bottom width : 9 - 14 cm; Sack width: 32 - 55 cm; Open bottom width: 18 - 34 cm; Tube length: 54 - 94 cm
- Descrizione
- Suitable for cement bags, dry building mixes, gypsum, food solids, chemicals, charcoal, animal feed, seeds.
- Ulteriori informazioni
- Installed mid 2008 2-drum delivery Two colors patch printer Venthole perforator Tube end slitting unit Intermediate pressing station Bottom patch unit Valve - Cutting length: 8 - 25 cm - Length: 8 - 24 cm - Valve width: 10 - 30 cm Bottom patch - Length: 18 - 45 cm - Width: 8 - 18 cm Output : Sacks - 300 sacks/min - 18 000 sacks/hour 2-drums delivery packets - 25 packages/min MACHINE EQUIPMENT: - Rotary feeder - Tube aligner - Conveyor - Creasing station - Venthole perforation - Slitting unit - Sucker station - Spreader assembly - Open bottom check - Valve unit - Valve patch unwinders - Bottom creasing station - Bottom pasting station - Control PC - Bottom closing station - Folded edges pressing station - Bottom patch unwinders - 2 colors bottom patch printing unit - Foldover unit - Turning station - Reject gate - Transfer belt - 2-Drum delivery - Counting station - Packet forming station Ubcuding two W&H TRANSYSTEMS 9350
| Codice Macchina | SA16 |
| Manufacturer | WINDMÖLLER & HÖLSCHER |
| Modello | AD2390 |
| Year | 2007 |
| Tipologia | Bottomer |
| Sack dimensions (mm) | Sack length : 41 - 74 cm; Bottom width : 9 - 14 cm; Sack width: 32 - 55 cm; Open bottom width: 18 - 34 cm; Tube length: 54 - 94 cm |
| Descrizione | Suitable for cement bags, dry building mixes, gypsum, food solids, chemicals, charcoal, animal feed, seeds. |
| Ulteriori informazioni | Installed mid 2008 2-drum delivery Two colors patch printer Venthole perforator Tube end slitting unit Intermediate pressing station Bottom patch unit Valve - Cutting length: 8 - 25 cm - Length: 8 - 24 cm - Valve width: 10 - 30 cm Bottom patch - Length: 18 - 45 cm - Width: 8 - 18 cm Output : Sacks - 300 sacks/min - 18 000 sacks/hour 2-drums delivery packets - 25 packages/min MACHINE EQUIPMENT: - Rotary feeder - Tube aligner - Conveyor - Creasing station - Venthole perforation - Slitting unit - Sucker station - Spreader assembly - Open bottom check - Valve unit - Valve patch unwinders - Bottom creasing station - Bottom pasting station - Control PC - Bottom closing station - Folded edges pressing station - Bottom patch unwinders - 2 colors bottom patch printing unit - Foldover unit - Turning station - Reject gate - Transfer belt - 2-Drum delivery - Counting station - Packet forming station Ubcuding two W&H TRANSYSTEMS 9350 |
