- Codice Macchina
- LA220
- Manufacturer
- CML
- Year
- 2008
- Applicazione
- Duplex lamination
- Tipo di accoppiamento/spalmatura
- COMBI / INTECHANGEABLE TROLLEY
- Larghezza lavoro (mm)
- 1250
- Velocità
- 150 mt/min
- Tipo svolgitore primario

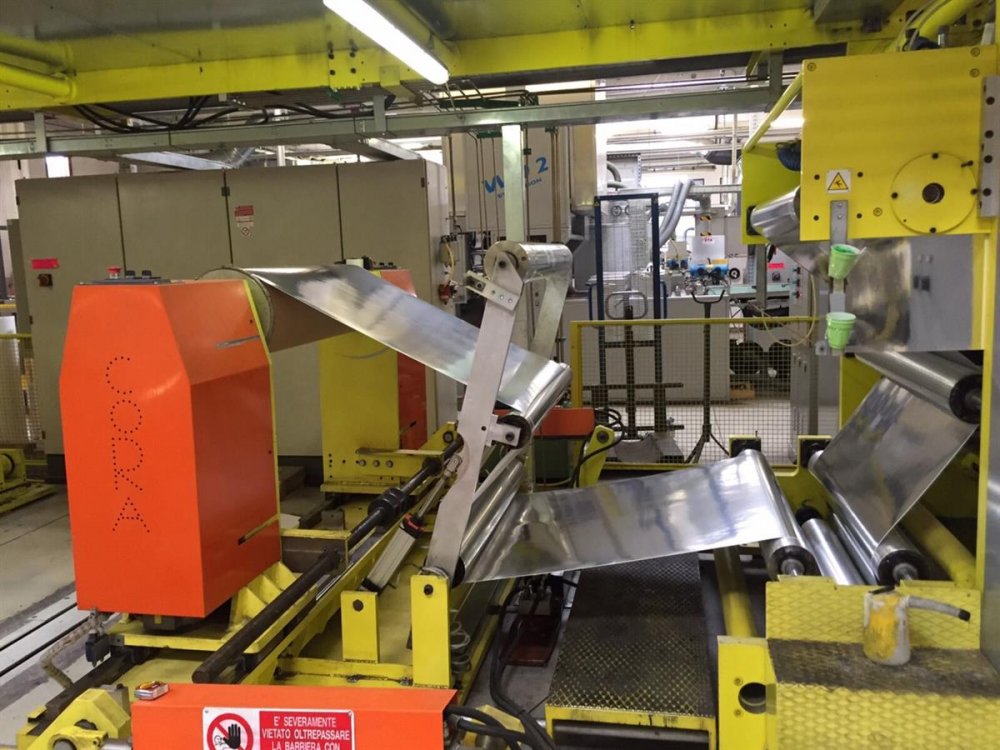

- Shaftless with reel pick up from floor; Driven / with motor brake; splicing table ; cores available 3”; 6” ; 12” ;
- Diametro massimo bobina svolgitore
- 1500
- Tipo svolgitore secondario
- Shaftless with reel pick up from floor; Driven / with motor brake; splicing table ; cores available 3”; 6” ; 12”
- Diametro massimo bobina svolgitore
- 1500
- Rewinder type
- Shaftless with reel unloading tofloor; ;In line slitting (edges) ; cores available 6” ; 12”
- Diametro massimo bobina avvolgitore
- 1800
- Essiccazione

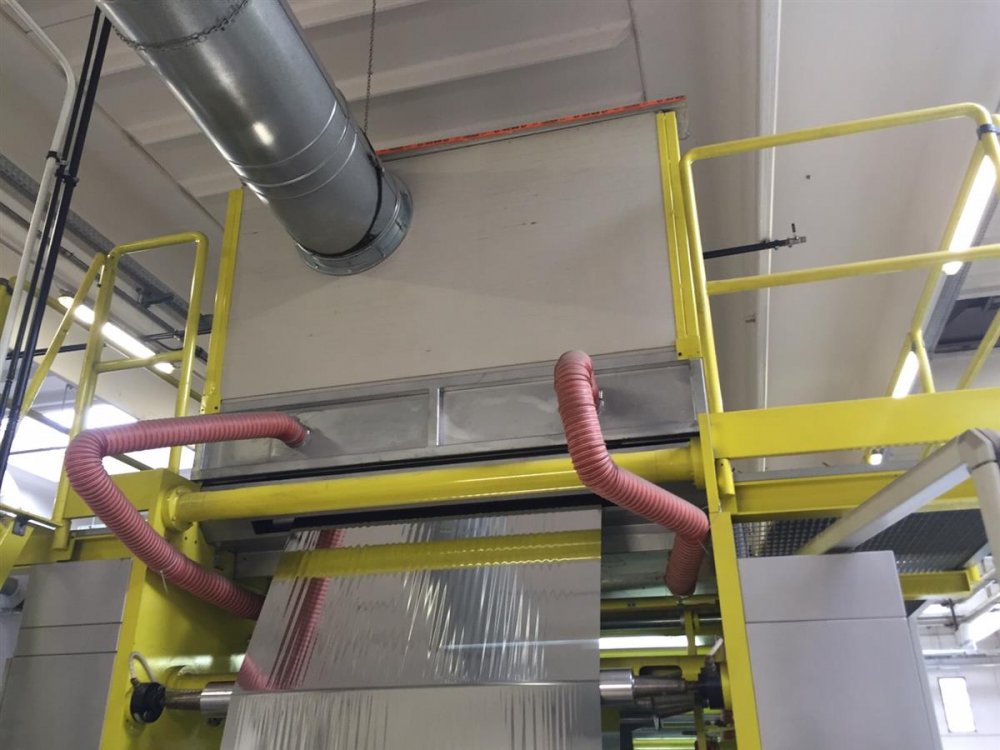

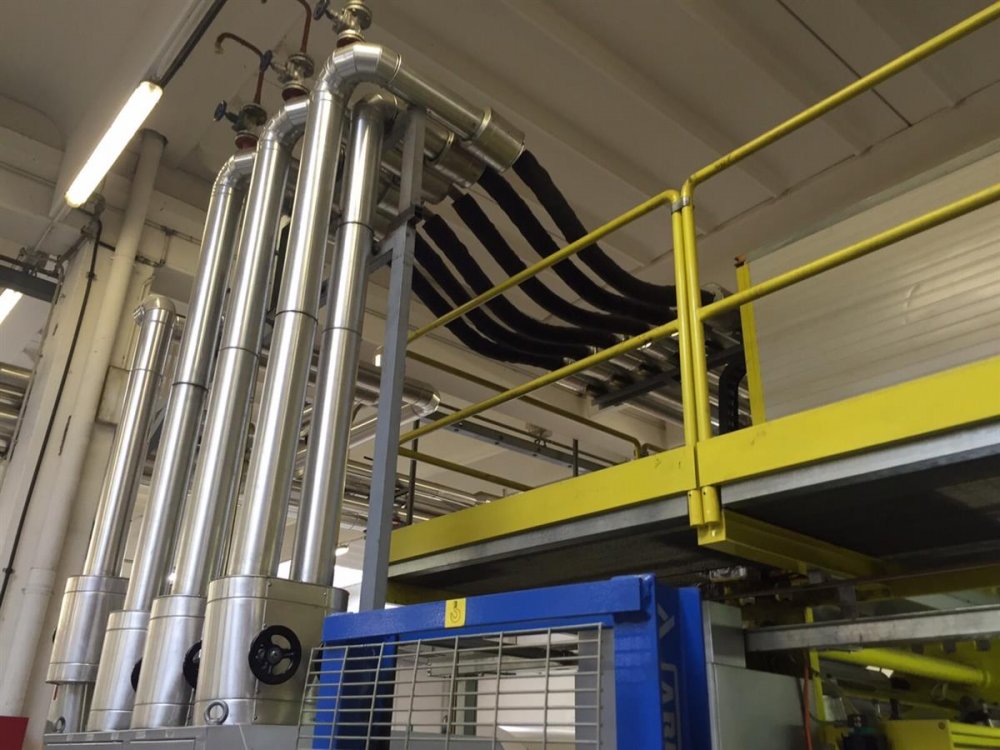

- Drying 8m drying length. 2 drying hoods with 4 blowers (2x inlet, and 2 outlet).All blower’s motors are under inverter, Heat source 2x thermal oil heaters;
- Ulteriori informazioni
- Machine is with interchangable coating trolley (Combi) Machine is supplied with trolley for water based coatings. In case oF 2 components solventless glues is are required an additional trolley shall be purchased Unwi/Rew reel max weight 1600kg
| Codice Macchina | LA220 |
| Manufacturer | CML |
| Year | 2008 |
| Applicazione | Duplex lamination |
| Tipo di accoppiamento/spalmatura | COMBI / INTECHANGEABLE TROLLEY |
| Larghezza lavoro (mm) | 1250 |
| Velocità | 150 mt/min |
| Tipo svolgitore primario | Shaftless with reel pick up from floor; Driven / with motor brake; splicing table ; cores available 3”; 6” ; 12” ; |
| Diametro massimo bobina svolgitore | 1500 |
| Tipo svolgitore secondario | Shaftless with reel pick up from floor; Driven / with motor brake; splicing table ; cores available 3”; 6” ; 12” |
| Diametro massimo bobina svolgitore | 1500 |
| Rewinder type | Shaftless with reel unloading tofloor; ;In line slitting (edges) ; cores available 6” ; 12” |
| Diametro massimo bobina avvolgitore | 1800 |
| Essiccazione | Drying 8m drying length. 2 drying hoods with 4 blowers (2x inlet, and 2 outlet).All blower’s motors are under inverter, Heat source 2x thermal oil heaters; |
| Ulteriori informazioni | Machine is with interchangable coating trolley (Combi) Machine is supplied with trolley for water based coatings. In case oF 2 components solventless glues is are required an additional trolley shall be purchased Unwi/Rew reel max weight 1600kg |
