strati DMT TDO unit for PVC shrink labels Line di estrusione per BOPP / BOPET // BOPP BOPET // Film extrusion lines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

Photo Gallery

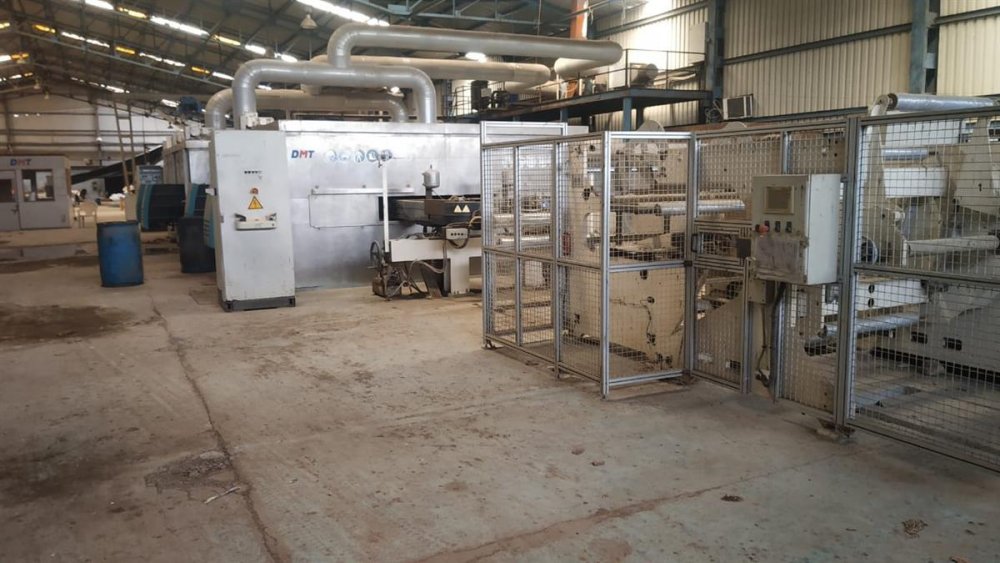

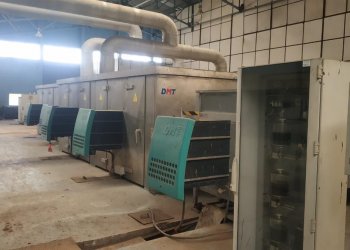

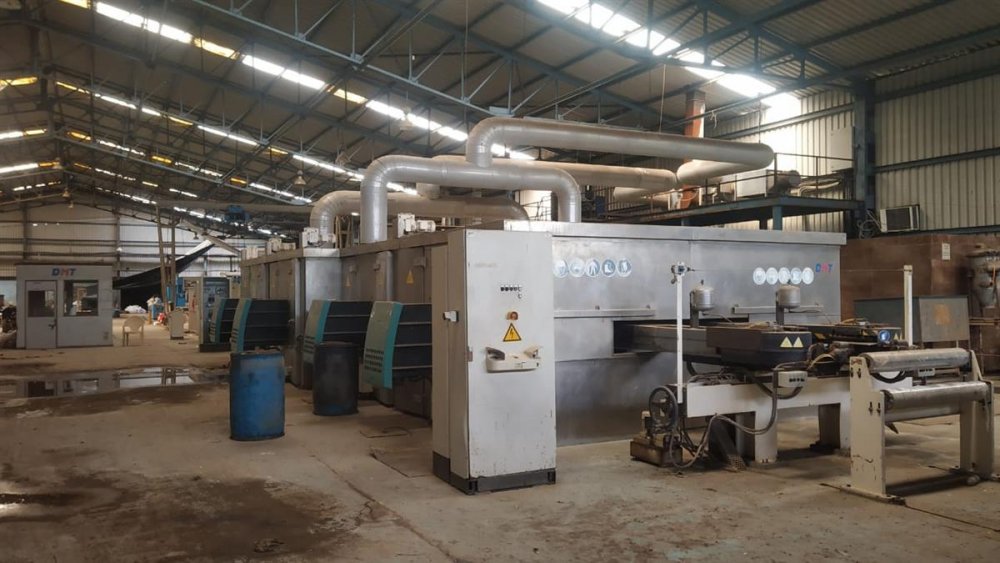

Codice Macchina: BO68
Manufacturer: DMT
Modello: TDO unit for PVC shrink labels
Year: 2004
Materiali: PVC for shrink labels
Larghezza (mm): 2500

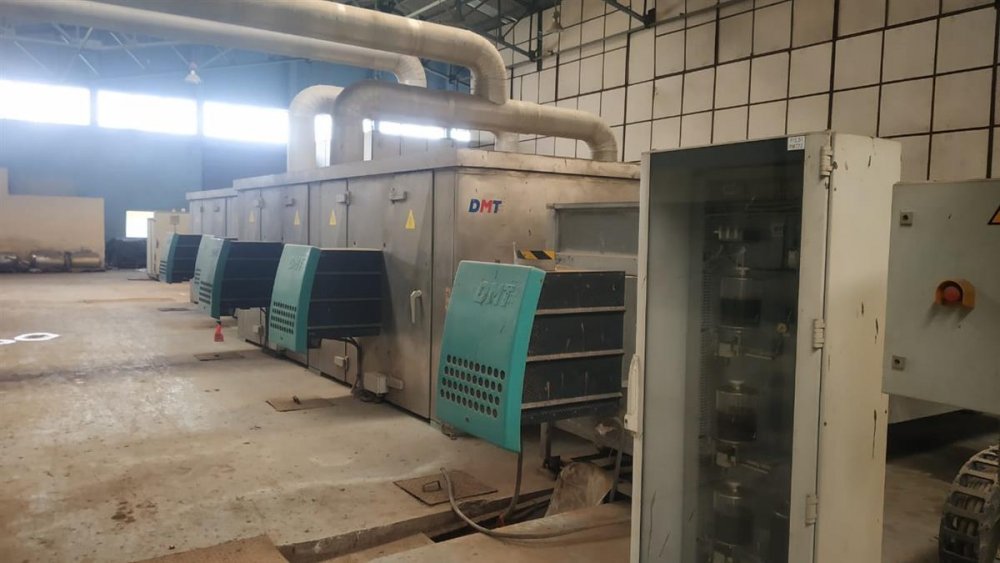

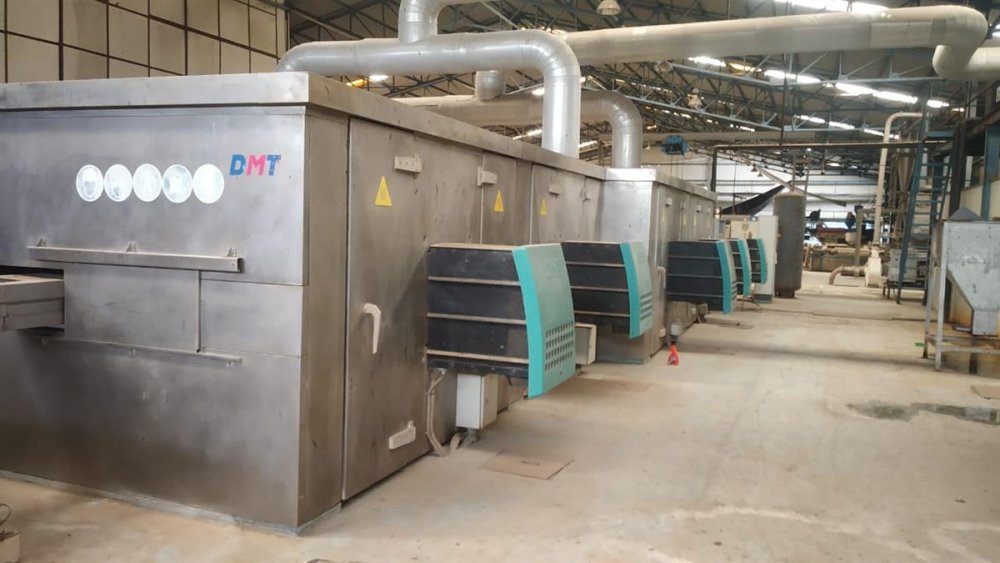

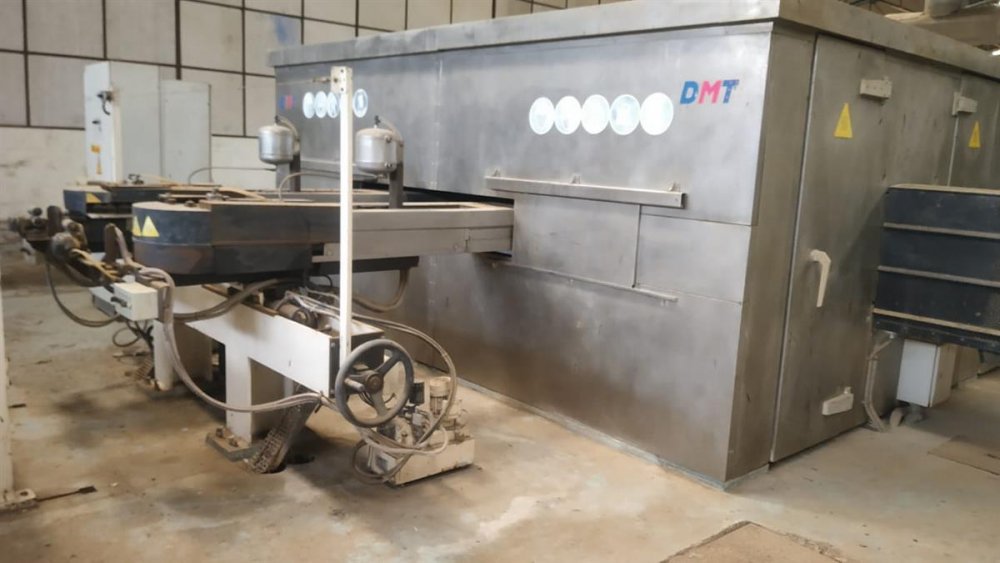

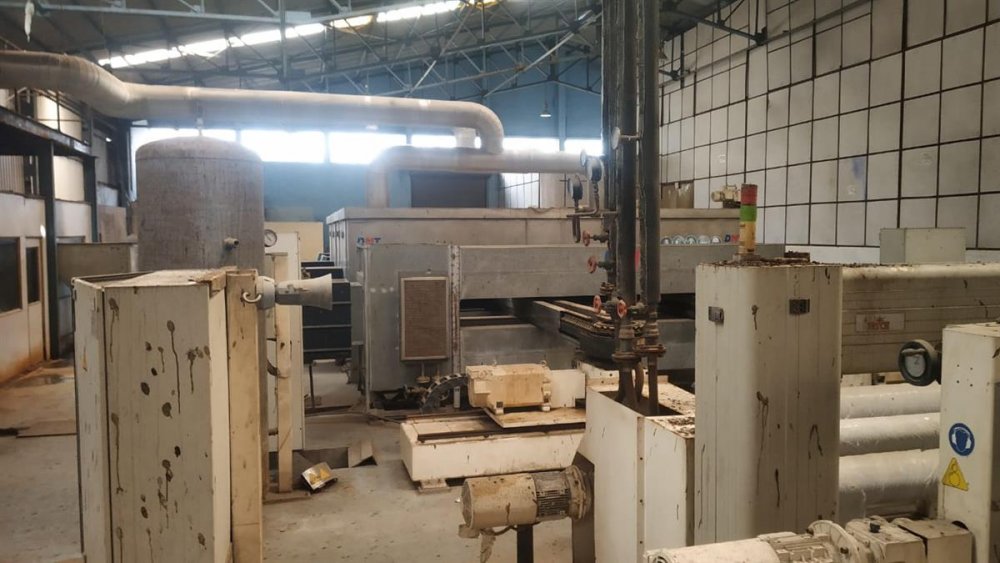

Descrizione TDO: Inlet with 450-1000 mm, outlet after stretching 1600 - 2800 mm width; final width after trimming 2500 mm; stretching ratio 1:2 - 1:5; chain type heavy duty lubrificated 60 mm pitch; clips 120 mm pitch; feed zone 1,5 m, pre-heating 2 x3 m, stretching 2 x 3 m, neutral 1 x1 m, cooling/annhealing 6 x 2 m outlet 1 x 1.5 m. 5 independent fans, number of centract joins 5, temperature 60/200 C

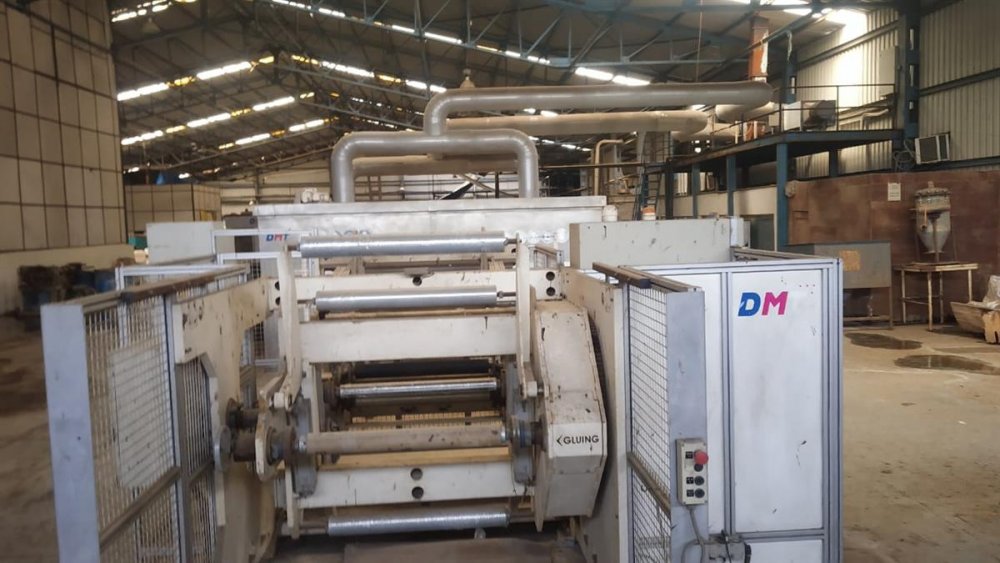

Unità pull roll: Yes with trimming
Larghezza avvolgitore: 2500 mm
Descrizione avvolgitore: Turret automatic rewinder
Ulteriori informazioni: Composed of: unwinder TDO unit Turret automatic unwinder

Codice Macchina	BO68
Manufacturer	DMT
Modello	TDO unit for PVC shrink labels
Year	2004
Materiali	PVC for shrink labels
Larghezza (mm)	2500
Descrizione TDO	Inlet with 450-1000 mm, outlet after stretching 1600 - 2800 mm width; final width after trimming 2500 mm; stretching ratio 1:2 - 1:5; chain type heavy duty lubrificated 60 mm pitch; clips 120 mm pitch; feed zone 1,5 m, pre-heating 2 x3 m, stretching 2 x 3 m, neutral 1 x1 m, cooling/annhealing 6 x 2 m outlet 1 x 1.5 m. 5 independent fans, number of centract joins 5, temperature 60/200 C
Unità pull roll	Yes with trimming
Larghezza avvolgitore	2500 mm
Descrizione avvolgitore	Turret automatic rewinder
Ulteriori informazioni	Composed of: unwinder TDO unit Turret automatic unwinder
