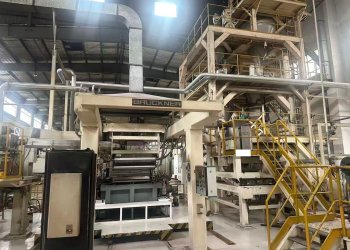

3 strati BRUCKNER Line di estrusione per BOPP / BOPET // BOPP BOPET // Film extrusion lines // Macchine Flexo Usate // Tecno Converting 2000 S.r.l.

** SOLD **

Photo Gallery

Codice Macchina: BO59
Manufacturer: BRUCKNER
Year: 1996
Numero di strati: 3
Struttura film: Film width 6300 mm on winder
Materiali: BOPP
Output: 2060 Kg/h
Larghezza (mm): 6300
Extruder 1 Description: output 105 kg/hr each; L/D 32:1, 100 rpm.
Extruder 2 Description: Cascade main extruder, 290 rpm; L/D: 21, 510kw DC.
Extruder 3 Description: output 105 kg/hr each; L/D 32:1, 100 rpm.
Die width: 833
Unità chill roll: Chill roll, Air knife, film and chill roll drying system, water bath.
Descrizione MDO: 10 pre-heating rolls-oil heating; 6 stretching rolls-circulating oil; 2 annealing rolls-electrical heaters; 5 nip rolls; stretching ratio 1:1 - 1:7; Aux, winder.
Descrizione TDO: Chain and chain track system F.O.K 4.4.2; Heating system: circulating air via individual heating system/zone (oil heating, motors, fans, sensor, etc); edge guide system at inlet.
Trattamento Corona: 2 corona treatment stations (up and down - Double tretaed)
Unità pull roll: Cromed Rolls chilled by water; Edge trim on-line recycling unit; Thickness Gauge Pm 147.
Larghezza avvolgitore: 7000
Ulteriori informazioni: Max mechanical speed: 250 m/min / upgraded to 300 m/min; AC and PLC:-fully integrated system PLC with 3 operator workstations with trends and reports; Utilities:- Compressor, Boiler, Silos, Mill Rolls, Mill roll Stands (corona and nip), Nip Rolls stands, Over Head Crane (10TM).

Codice Macchina	BO59
Manufacturer	BRUCKNER
Year	1996
Numero di strati	3
Struttura film	Film width 6300 mm on winder
Materiali	BOPP
Output	2060 Kg/h
Larghezza (mm)	6300
Extruder 1 Description	output 105 kg/hr each; L/D 32:1, 100 rpm.
Extruder 2 Description	Cascade main extruder, 290 rpm; L/D: 21, 510kw DC.
Extruder 3 Description	output 105 kg/hr each; L/D 32:1, 100 rpm.
Die width	833
Unità chill roll	Chill roll, Air knife, film and chill roll drying system, water bath.
Descrizione MDO	10 pre-heating rolls-oil heating; 6 stretching rolls-circulating oil; 2 annealing rolls-electrical heaters; 5 nip rolls; stretching ratio 1:1 - 1:7; Aux, winder.
Descrizione TDO	Chain and chain track system F.O.K 4.4.2; Heating system: circulating air via individual heating system/zone (oil heating, motors, fans, sensor, etc); edge guide system at inlet.
Trattamento Corona	2 corona treatment stations (up and down - Double tretaed)
Unità pull roll	Cromed Rolls chilled by water; Edge trim on-line recycling unit; Thickness Gauge Pm 147.
Larghezza avvolgitore	7000
Ulteriori informazioni	Max mechanical speed: 250 m/min / upgraded to 300 m/min; AC and PLC:-fully integrated system PLC with 3 operator workstations with trends and reports; Utilities:- Compressor, Boiler, Silos, Mill Rolls, Mill roll Stands (corona and nip), Nip Rolls stands, Over Head Crane (10TM).
