- Codice Macchina
- PC31
- Manufacturer
- BANDERA
- Year
- 2009
- Numero di strati
- 3
- Sheet/foil structure
- ABA; AB; BBB
- Materiali
- PET, PLA, PP. PET is possible both as virgin or as recycled material.
- Sheet width (mm)
- 1310
- Rif strati estrusore 1:
- A
- Diam vite
- 50mm
- Descrizione
- Model TR50 30 D ; L/D 30; Resin drying, Macguire dosing and blending unit 2 component
- Rif strati estrusore 2:
- B
- Diam vite
- 2x85mm Twin
- Descrizione
- Twin co-rotating screw.model 2C 85 HTS 42D. Thanks to twin screw system, no need of polymer drying, 4 components gravimetric system, melt pump, 4 plate screen changer
- Descrizione testa
- Internal deckling system, flex lip with manual adjustment
- Die width (mm)
- 1600
- Thisckness controll system
- Elecgronic system (air cushion type)

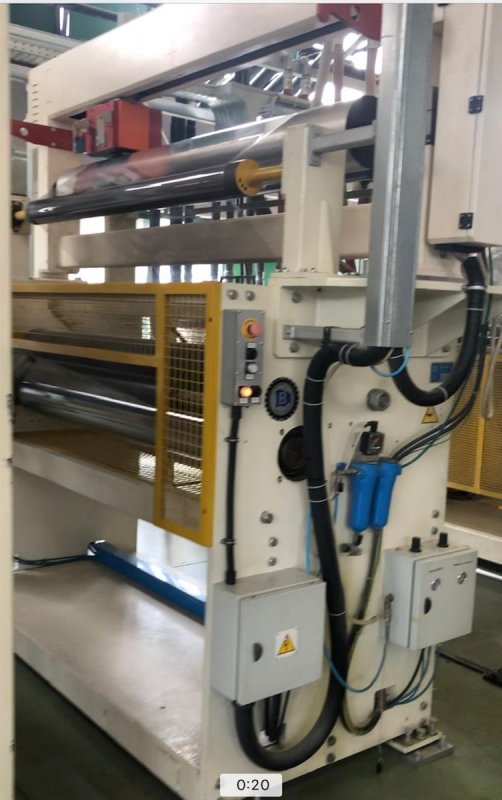

- Polishing stack/ calender lines unit
- 3 driven calanders, staggerd lay out, diam of calanders: 450,600,450mm

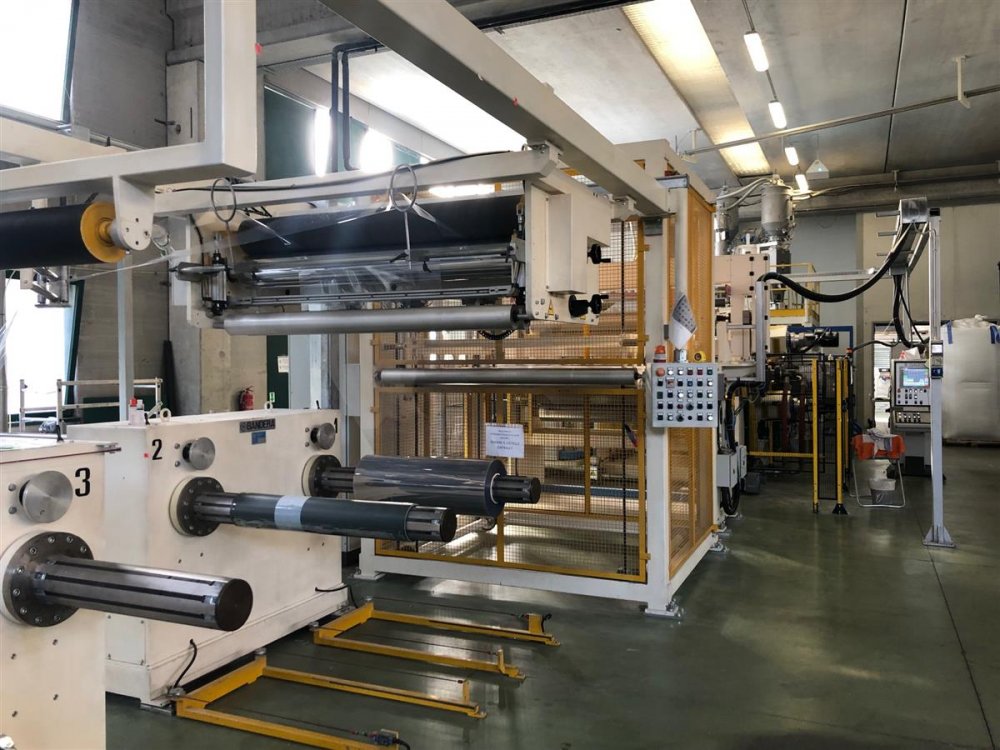

- Descrizione avvolgitore
- In line slitting, pulling calander, 4 winding shafts, max reel diam 1000mmm
- Ulteriori informazioni
- - Chiller included - Grinder 800 kg. /hour
| Codice Macchina | PC31 |
| Manufacturer | BANDERA |
| Year | 2009 |
| Numero di strati | 3 |
| Sheet/foil structure | ABA; AB; BBB |
| Materiali | PET, PLA, PP. PET is possible both as virgin or as recycled material. |
| Sheet width (mm) | 1310 |
| Rif strati estrusore 1: | A |
| Diam vite | 50mm |
| Descrizione | Model TR50 30 D ; L/D 30; Resin drying, Macguire dosing and blending unit 2 component |
| Rif strati estrusore 2: | B |
| Diam vite | 2x85mm Twin |
| Descrizione | Twin co-rotating screw.model 2C 85 HTS 42D. Thanks to twin screw system, no need of polymer drying, 4 components gravimetric system, melt pump, 4 plate screen changer |
| Descrizione testa | Internal deckling system, flex lip with manual adjustment |
| Die width (mm) | 1600 |
| Thisckness controll system | Elecgronic system (air cushion type) |
| Polishing stack/ calender lines unit | 3 driven calanders, staggerd lay out, diam of calanders: 450,600,450mm |
| Descrizione avvolgitore | In line slitting, pulling calander, 4 winding shafts, max reel diam 1000mmm |
| Ulteriori informazioni | - Chiller included - Grinder 800 kg. /hour |
