- Codice Macchina
- EX753
- Manufacturer
- MACCHI
- Modello
- COEX 7
- Year
- 2004
- Numero di strati
- 7
- Materiali
- BARRIER FILM with PA, PE,EVOH polymer , 35 to 350 microns , further specialties additives for antifog, Peelable, anti UV screen etc
- Larghezza film
- 1800
- Output (Kg/h)
- 350
- Rif strati estrusore 1:
- A
- Screw diam 1
- 65
- Description 1
- LD30 ; gravimetric dosing unit make Doteco 4 components ,AC motor,hydraulic screen change
- Rif strati estrusore 2:
- B
- Screw diam 2
- 55mm
- Description 2
- LD30 ; gravimetric dosing unit make Doteco 2 components,AC motor,hydraulic screen change
- Rif strati estrusore 3:
- C
- Screw diam 3
- 55mm
- Description 3
- LD30 ; gravimetric dosing unit make Doteco 2 components,AC motor,hydraulic screen change
- Rif strati estrusore 4:
- D
- Screw diam 4
- 65mm
- Description 4
- LD30 ; gravimetric dosing unit make Doteco 2 components ,AC motor,hydraulic screen change
- Rif strati estrusore 5:
- E
- Screw diam 5
- 55mm
- Description 5
- LD30 ; gravimetric dosing unit make Doteco 2 components ,AC motor,hydraulic screen change
- Rif strati estrusore 6:
- F
- Screw diam 6
- 55mm
- Description 6
- LD30 ; gravimetric dosing unit make Doteco 2 components ,AC motor,hydraulic screen change
- Rif strati estrusore 7:
- G
- Screw diam 7
- 65mm
- Description 7
- LD30 ; gravimetric dosing unit make Doteco 4 components ,AC motor,hydraulic screen change

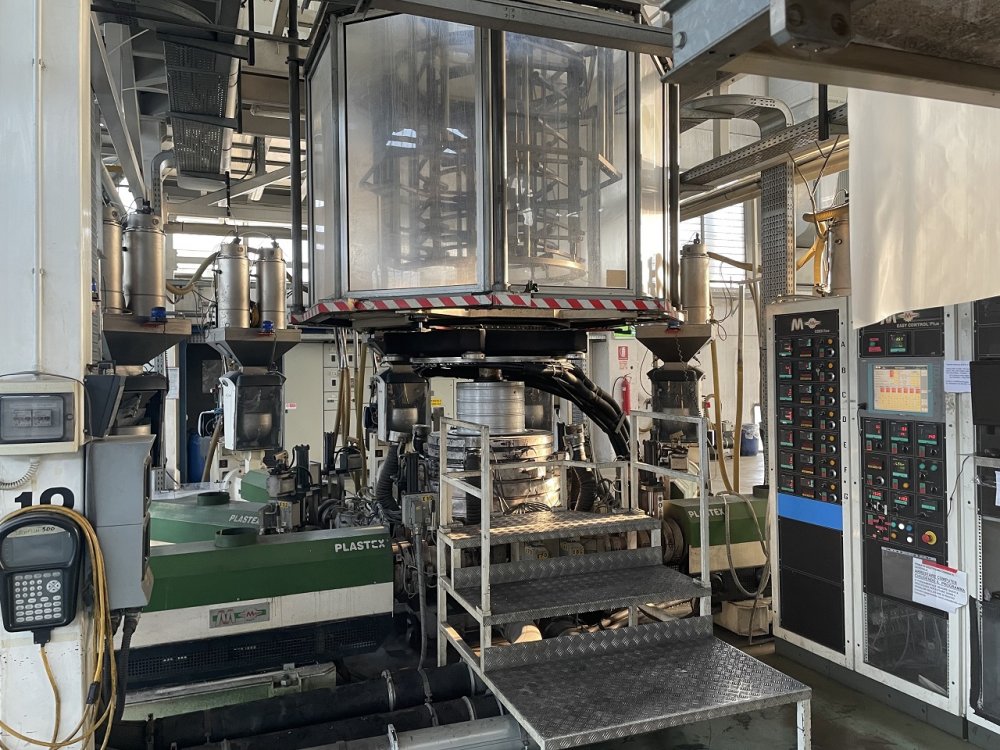

- Descrizione testa
- 7 layer head, ceramic resistors IBC with auto thickness control , Dual flow air ring. Air ring with auto thickness profile adjustment
- Diamtero filiera (mm)
- 500
- Controllo di spessore
- yes ,automatic profile control. Gauge make Kundig installed after take off
- Bubble cage
- Motorized control
- Panel for gussets
- no
- Stiro
- Oscillating
- Trattamento Corona
- Martignoni
- Guida film
- yes

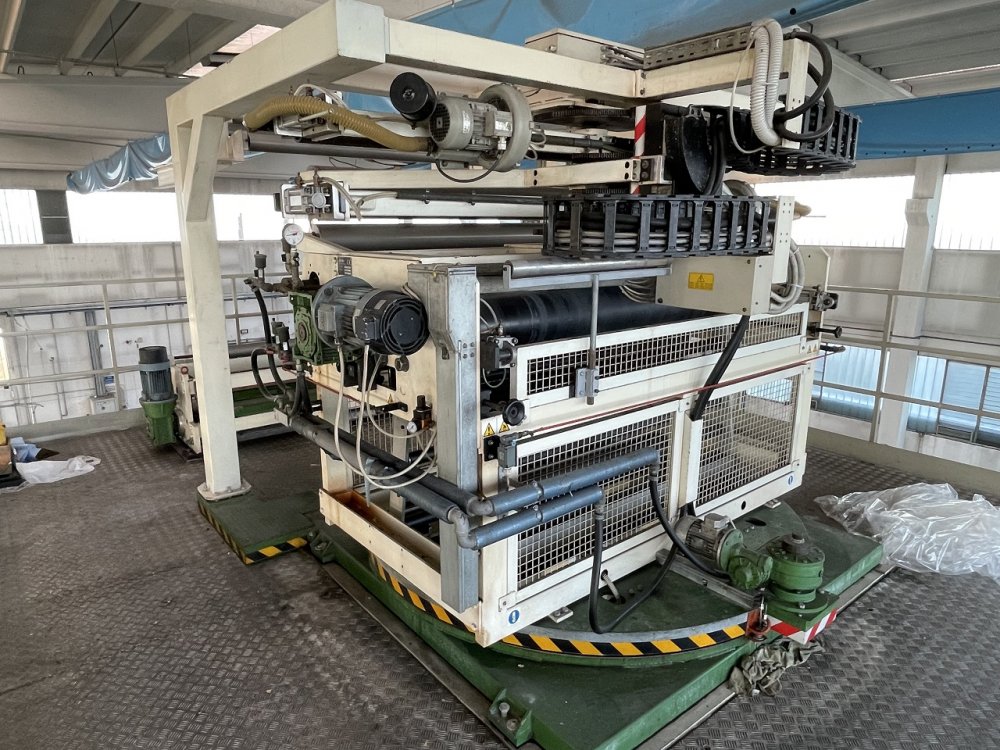

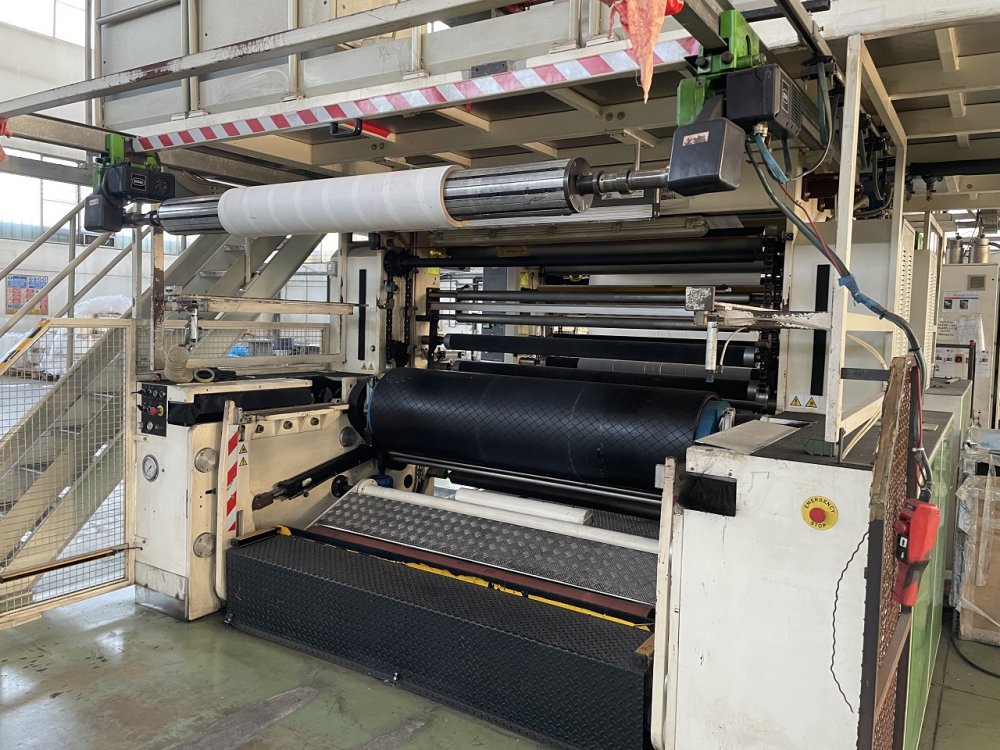

- Tipo avvolgitore
- Double back to back
- Diametro massimo avvolgitore
- 1200
- Descrizione avvolgitore
- MACCHI BO PLUS . Drive axial or contact. Possibility of gap or contact winding
- Ulteriori informazioni
- Auto gel detection control make E+L
| Codice Macchina | EX753 |
| Manufacturer | MACCHI |
| Modello | COEX 7 |
| Year | 2004 |
| Numero di strati | 7 |
| Materiali | BARRIER FILM with PA, PE,EVOH polymer , 35 to 350 microns , further specialties additives for antifog, Peelable, anti UV screen etc |
| Larghezza film | 1800 |
| Output (Kg/h) | 350 |
| Rif strati estrusore 1: | A |
| Screw diam 1 | 65 |
| Description 1 | LD30 ; gravimetric dosing unit make Doteco 4 components ,AC motor,hydraulic screen change |
| Rif strati estrusore 2: | B |
| Screw diam 2 | 55mm |
| Description 2 | LD30 ; gravimetric dosing unit make Doteco 2 components,AC motor,hydraulic screen change |
| Rif strati estrusore 3: | C |
| Screw diam 3 | 55mm |
| Description 3 | LD30 ; gravimetric dosing unit make Doteco 2 components,AC motor,hydraulic screen change |
| Rif strati estrusore 4: | D |
| Screw diam 4 | 65mm |
| Description 4 | LD30 ; gravimetric dosing unit make Doteco 2 components ,AC motor,hydraulic screen change |
| Rif strati estrusore 5: | E |
| Screw diam 5 | 55mm |
| Description 5 | LD30 ; gravimetric dosing unit make Doteco 2 components ,AC motor,hydraulic screen change |
| Rif strati estrusore 6: | F |
| Screw diam 6 | 55mm |
| Description 6 | LD30 ; gravimetric dosing unit make Doteco 2 components ,AC motor,hydraulic screen change |
| Rif strati estrusore 7: | G |
| Screw diam 7 | 65mm |
| Description 7 | LD30 ; gravimetric dosing unit make Doteco 4 components ,AC motor,hydraulic screen change |
| Descrizione testa | 7 layer head, ceramic resistors IBC with auto thickness control , Dual flow air ring. Air ring with auto thickness profile adjustment |
| Diamtero filiera (mm) | 500 |
| Controllo di spessore | yes ,automatic profile control. Gauge make Kundig installed after take off |
| Bubble cage | Motorized control |
| Panel for gussets | no |
| Stiro | Oscillating |
| Trattamento Corona | Martignoni |
| Guida film | yes |
| Tipo avvolgitore | Double back to back |
| Diametro massimo avvolgitore | 1200 |
| Descrizione avvolgitore | MACCHI BO PLUS . Drive axial or contact. Possibility of gap or contact winding |
| Ulteriori informazioni | Auto gel detection control make E+L |
