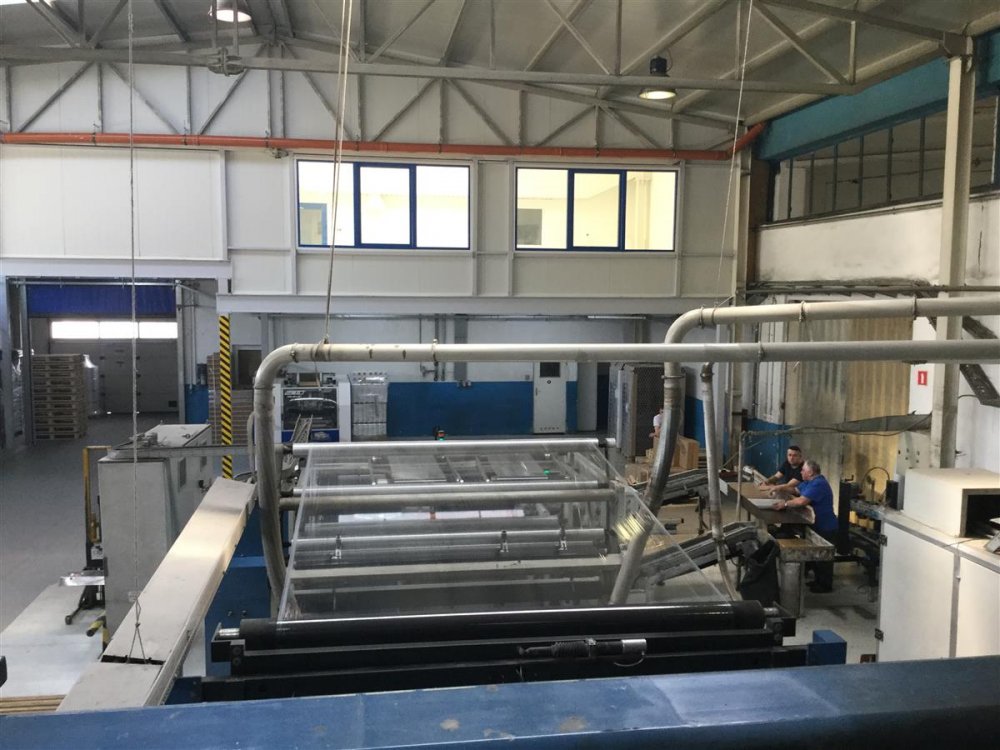

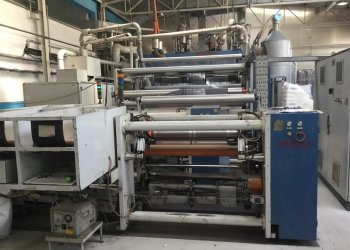

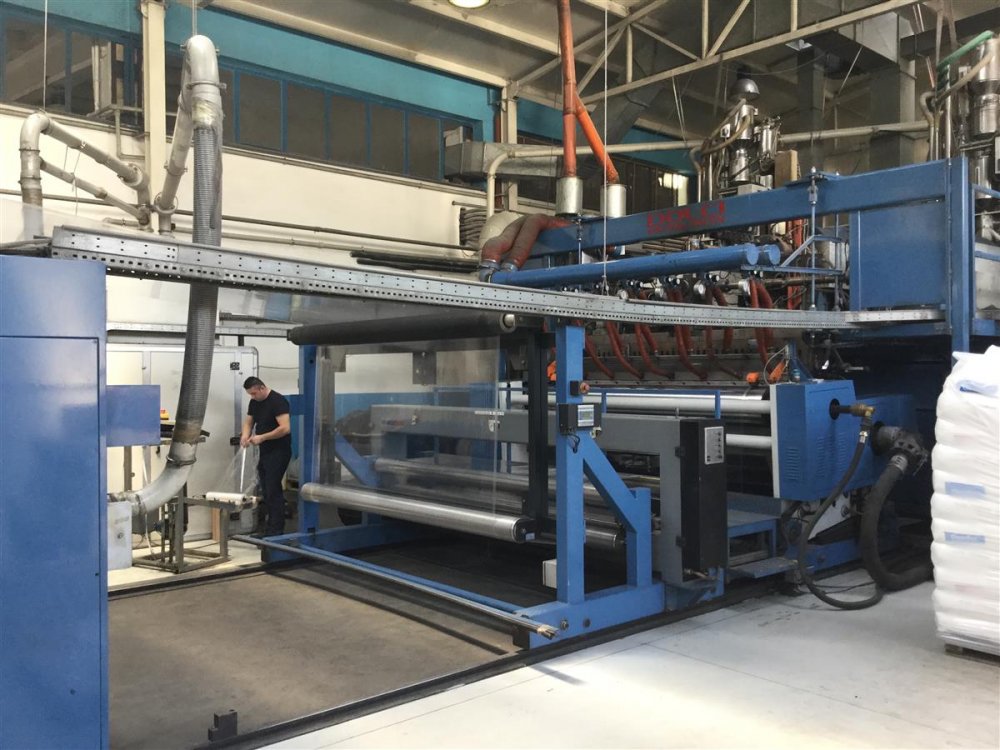

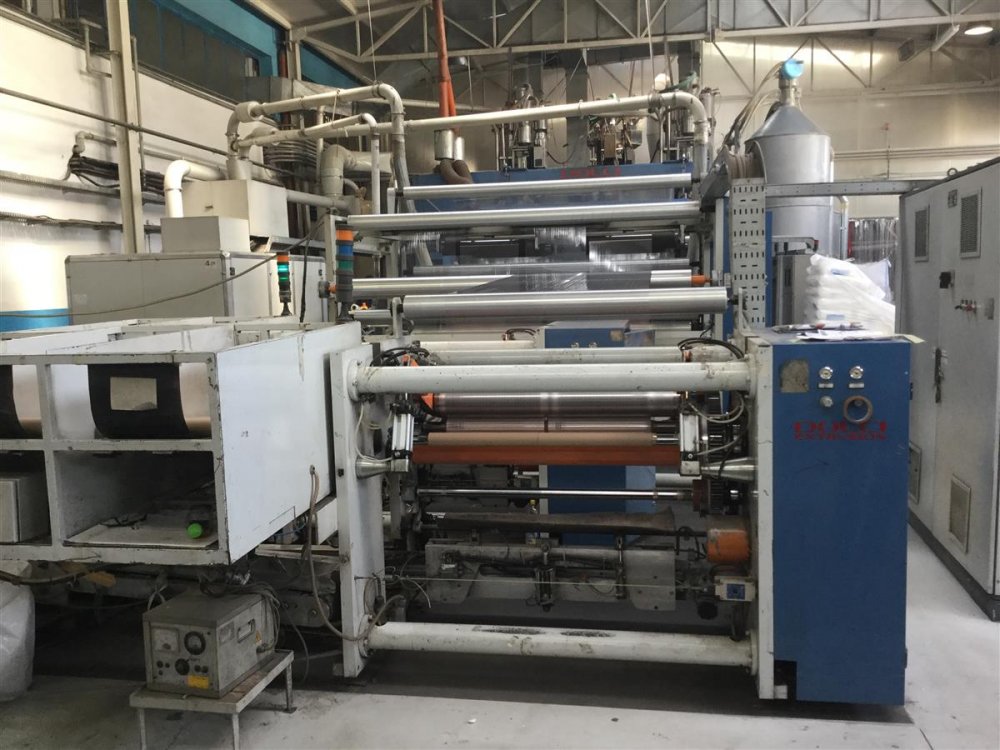

3 strati DOLCI EXTRUSION Estrusore cast / a testa piana

Codice Macchina
CA176
Manufacturer
DOLCI EXTRUSION
Year
2007
Numero di strati
3
Struttura film
ABC
Materiali
Stretch film LLDPE
Larghezza film (mm)
2000
Velocità (m/m)
600 m/min
Output (Kg/h)
990 kg/h

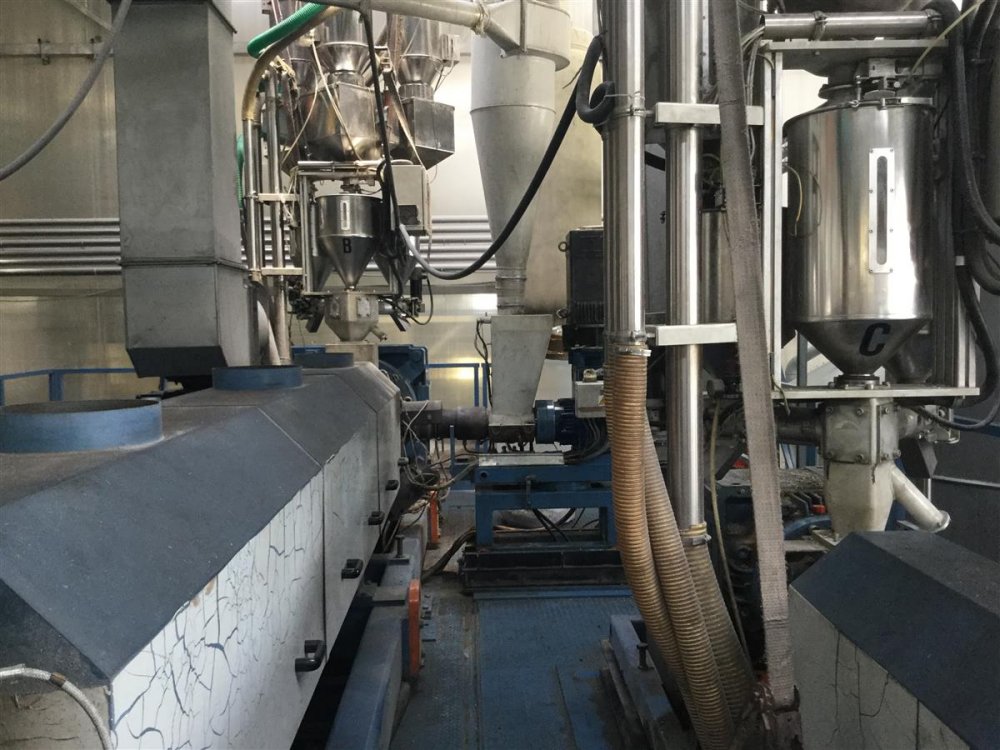

Rif strati estrusore 1:
A
Description 1

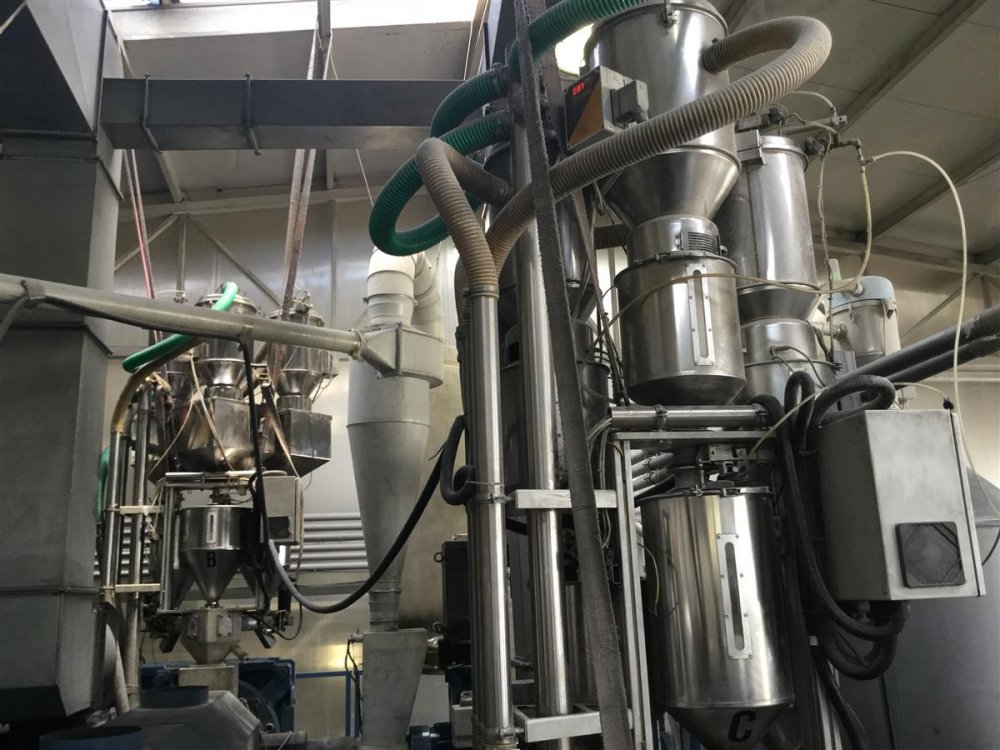

Innoplast dosing unit
Rif strati estrusore 2:
B
Description 2
Innoplast dosing unit
Rif strati estrusore 3:
C
Description 3
Innoplast dosing unit
Descrizione testa

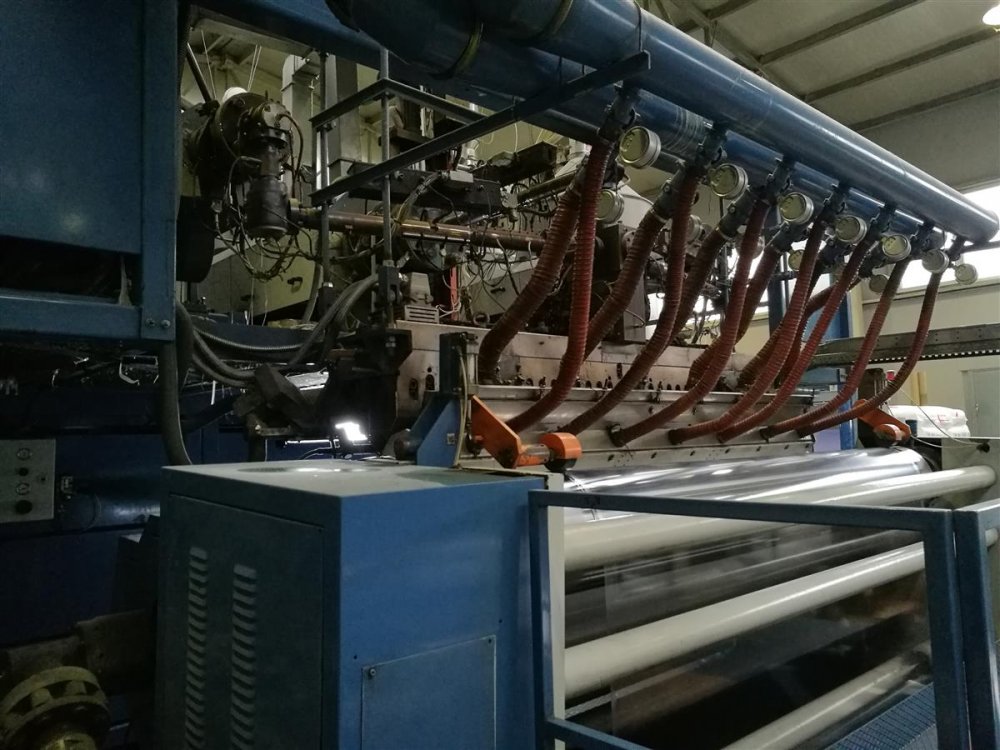

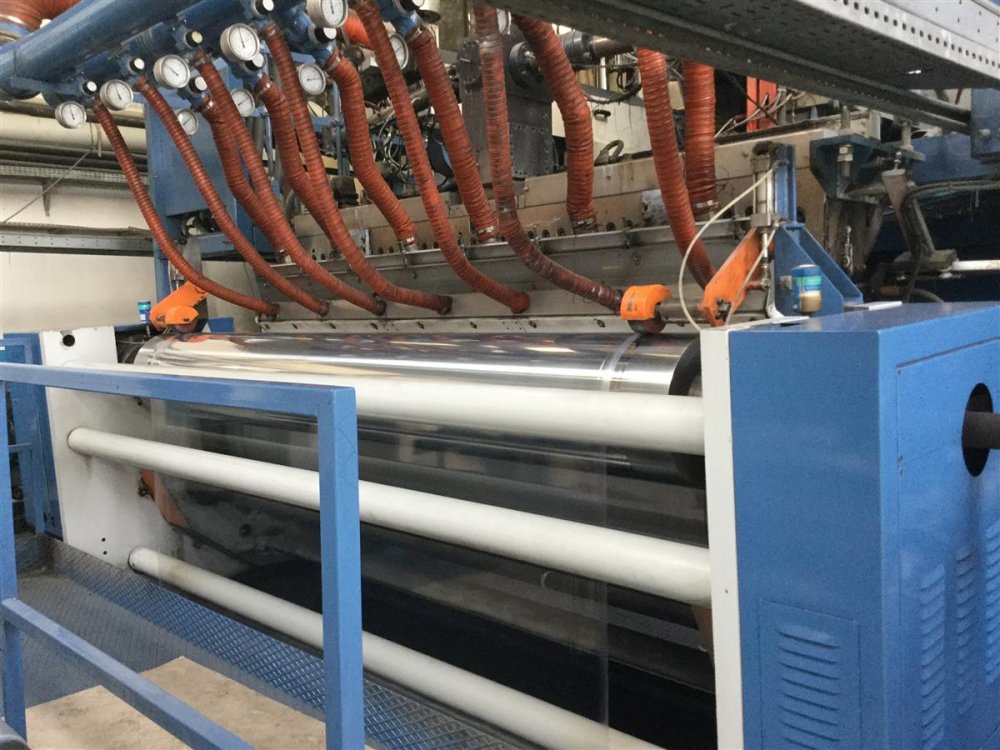

CLOEREN with internal deckling
Die width (mm)
2950
Controllo di spessore
NDC
Guida film
Yes
Rewinder max reel diameter (mm)
200 on 50 and 76mm cores. 3 shafts each winder. 21 sec/cycle

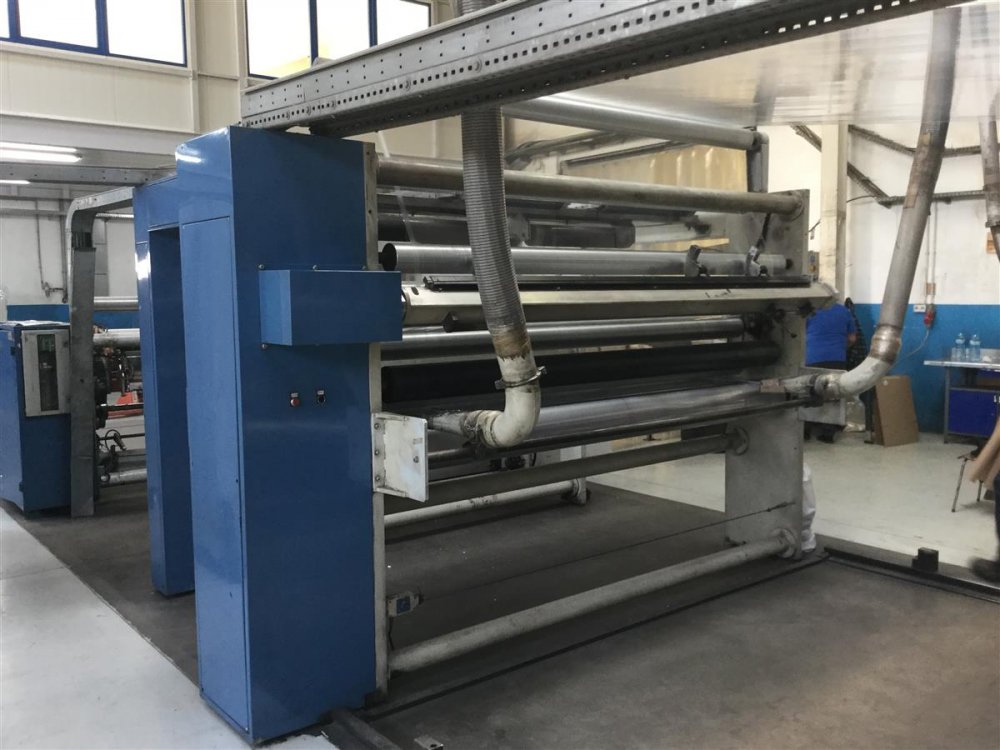

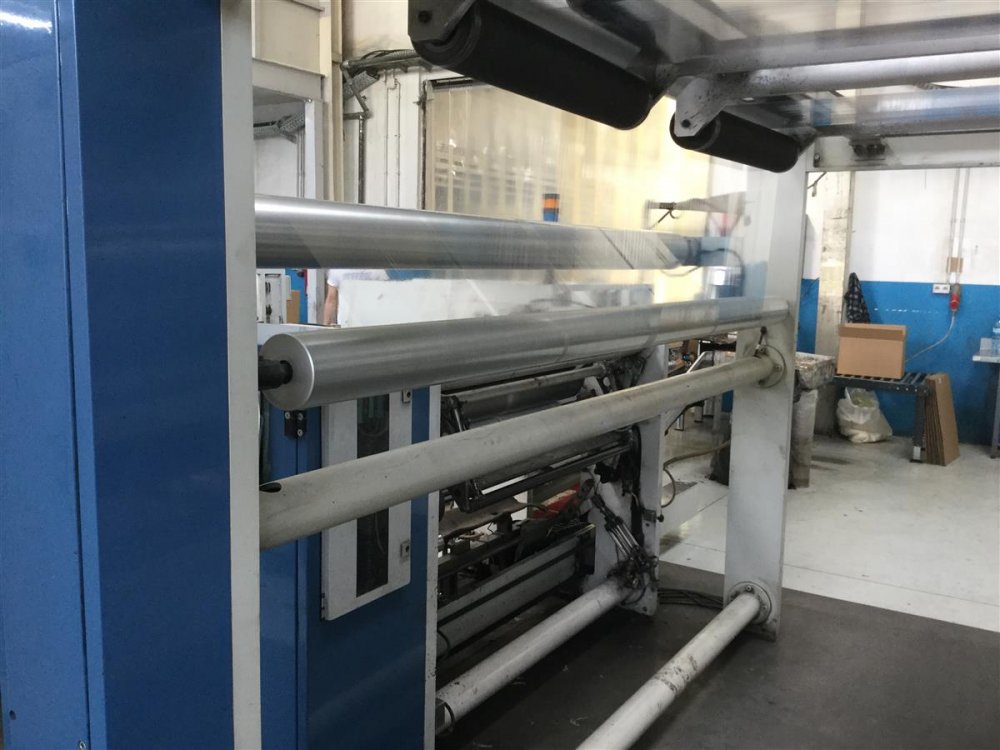

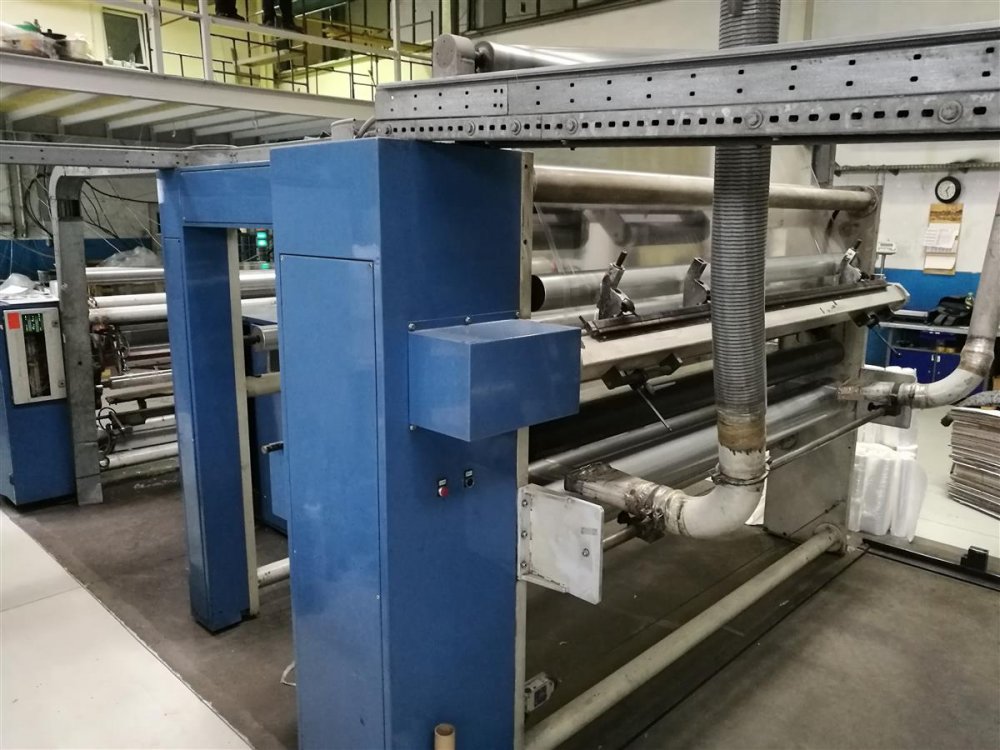

Descrizione avvolgitore
Double 1000mm wide for hand and machine rolls. Max roll weight 17 Kg.
Ulteriori informazioni
Layer Distribution 25/50/25, 20/60/20, 15/70/15 with continuous adjustment Water Pumping unit with 2000 l tank
Codice Macchina CA176
Manufacturer DOLCI EXTRUSION
Year 2007
Numero di strati 3
Struttura film ABC
Materiali Stretch film LLDPE
Larghezza film (mm) 2000
Velocità (m/m) 600 m/min
Output (Kg/h) 990 kg/h
Rif strati estrusore 1: A
Description 1 Innoplast dosing unit
Rif strati estrusore 2: B
Description 2 Innoplast dosing unit
Rif strati estrusore 3: C
Description 3 Innoplast dosing unit
Descrizione testa CLOEREN with internal deckling
Die width (mm) 2950
Controllo di spessore NDC
Guida film Yes
Rewinder max reel diameter (mm) 200 on 50 and 76mm cores. 3 shafts each winder. 21 sec/cycle
Descrizione avvolgitore Double 1000mm wide for hand and machine rolls. Max roll weight 17 Kg.
Ulteriori informazioni Layer Distribution 25/50/25, 20/60/20, 15/70/15 with continuous adjustment Water Pumping unit with 2000 l tank
** SOLD **
