- Codice Macchina
- CA196
- Manufacturer
- GLOUCESTER
- Year
- 1986
- Numero di strati
- 5
- Rinnovo
- renovation in 2010
- Struttura film
- BACAB
- Materiali
- CPP and CPE
- Larghezza film (mm)
- 1800
- Rif strati estrusore 1:
- B

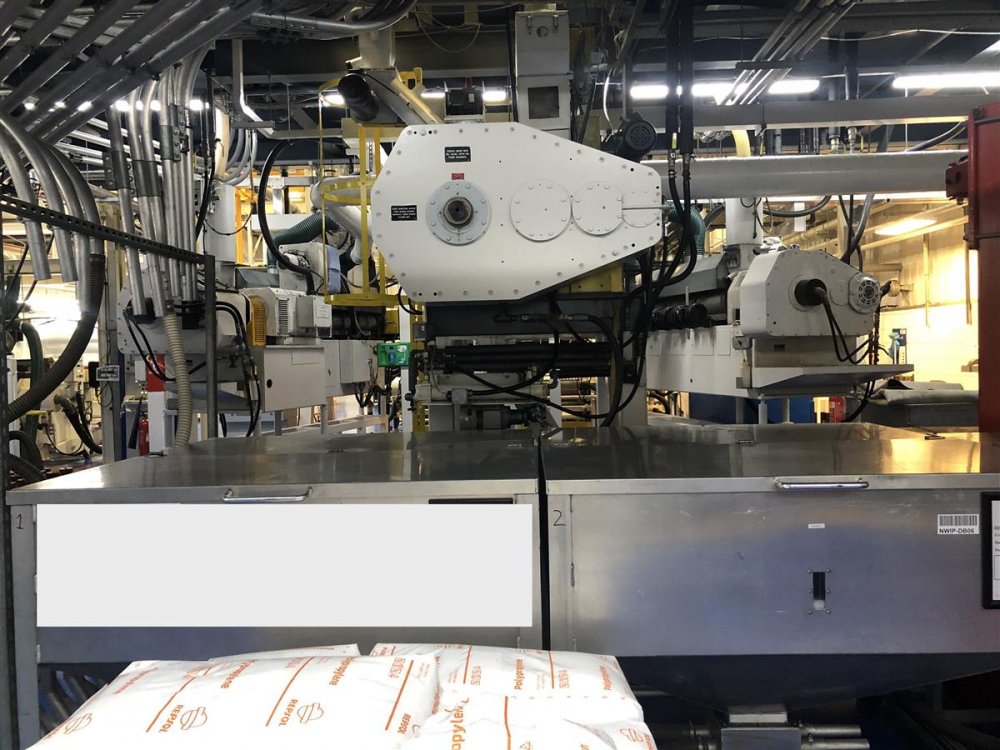

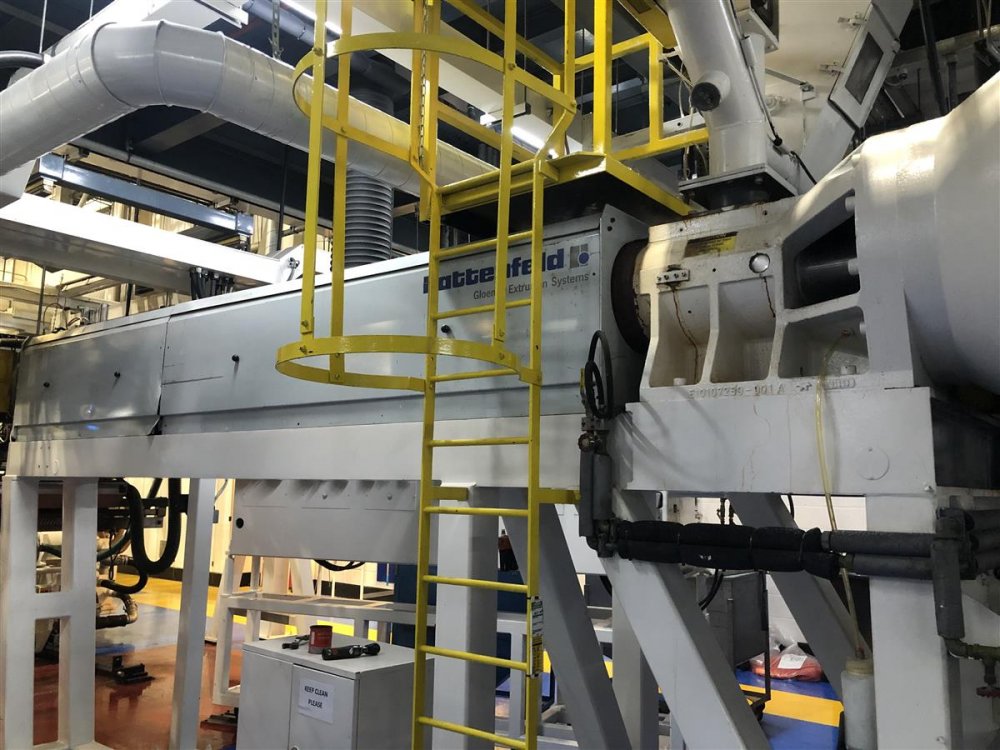

- Screw diam 1
- 90mm

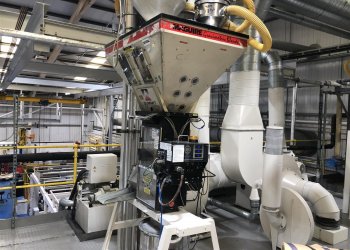

- Description 1

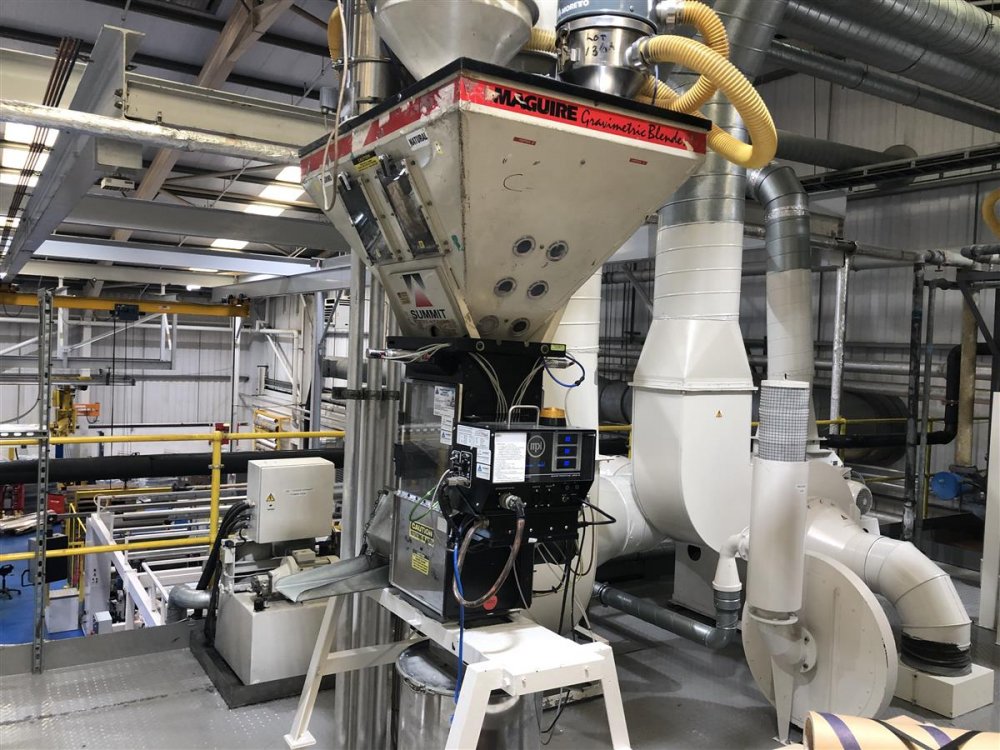

- L/D 30 , Mcguire 4 comp gravimetric doser
- Rif strati estrusore 2:
- A
- Screw diam 2
- 150mm

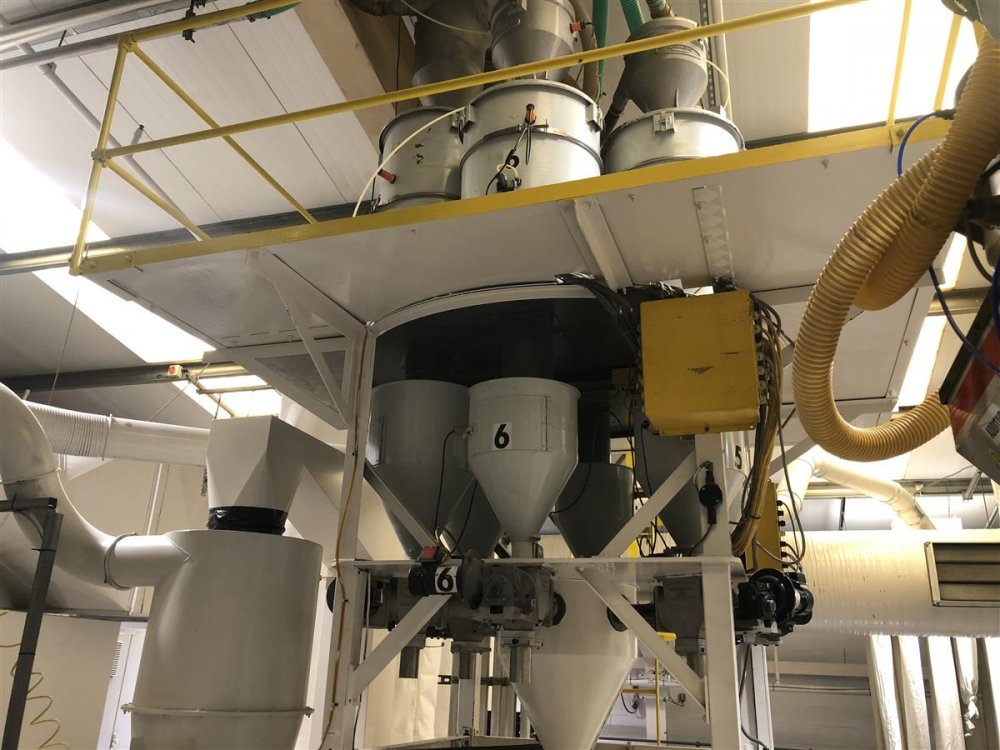

- Description 2
- L/D 30, Gravimetric Hydreclaim six component continuous blender and doser. Edge re-feeding
- Rif strati estrusore 3:
- C
- Screw diam 3
- 90mm
- Description 3
- L/D 30 , Mcguire 4 comp gravimetric doser

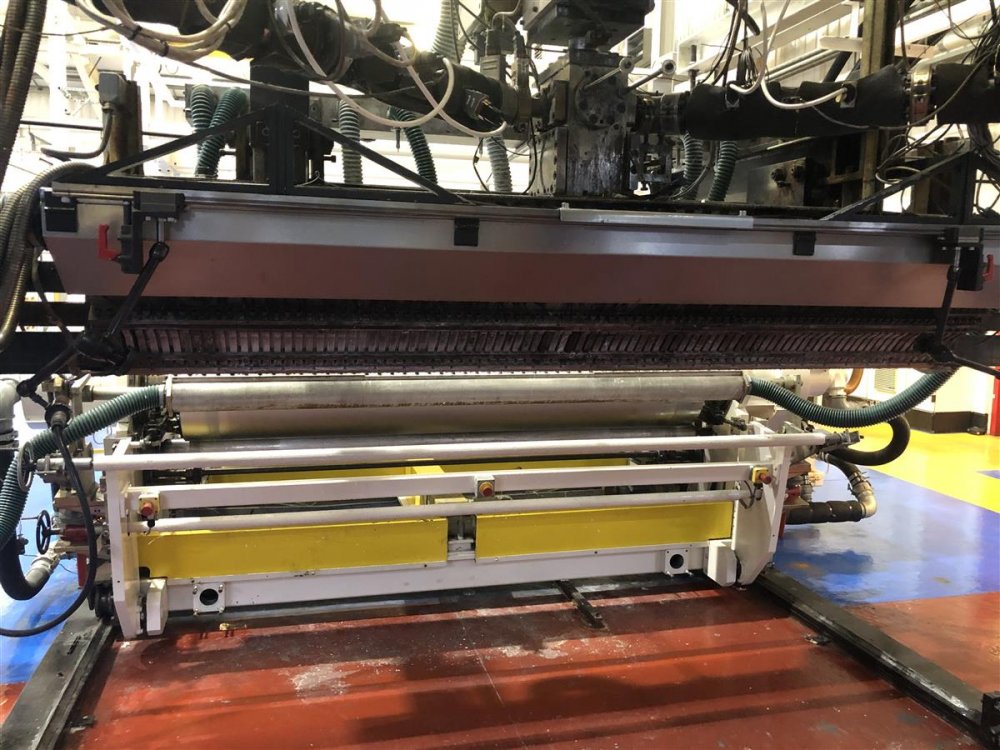

- Descrizione testa
- Cloeren Epoch, internal deckling, flex lip with90 thermal bolts for auto thickness control, Pinning for the extruded material is by an Eltex electrostatic pinner system and a Cloeren vacuum box with a Cloeren airknife
- Die width (mm)
- 2300

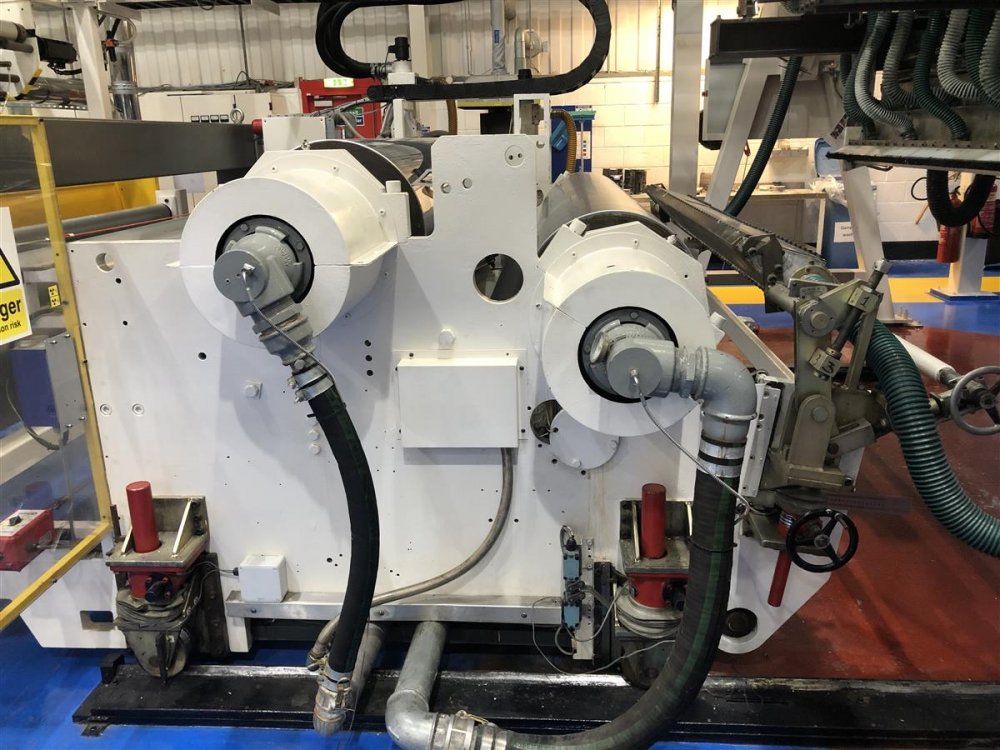

- Unità chill roll
- Two roll system with cast roll and cooling roll both roller are 500mm diameter. Cast roll is a Satex 12 textured design and cooling roll is bright chrome finished.
- Controllo di spessore
- Automatic. Gauge Thermofisher Beta gauge fitted 2018 with a Krypton 85 source
- Trattamento Corona
- Sherman 2 side with ceramic process roller

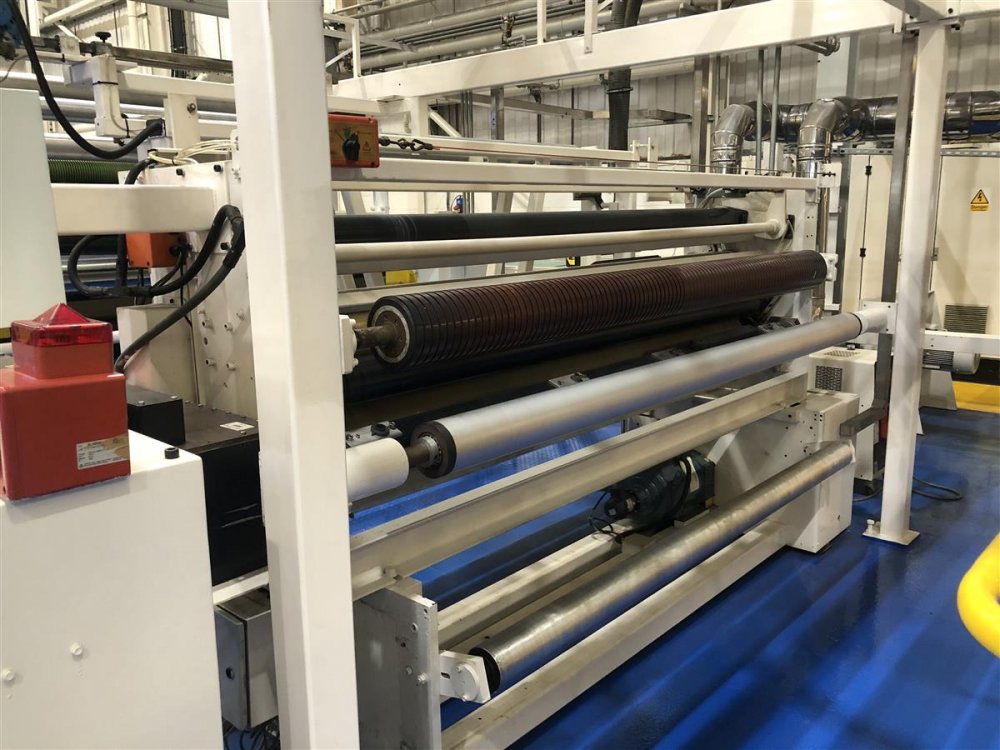

- Guida film
- oscillating frame
- Rewinder max reel diameter (mm)
- 1000

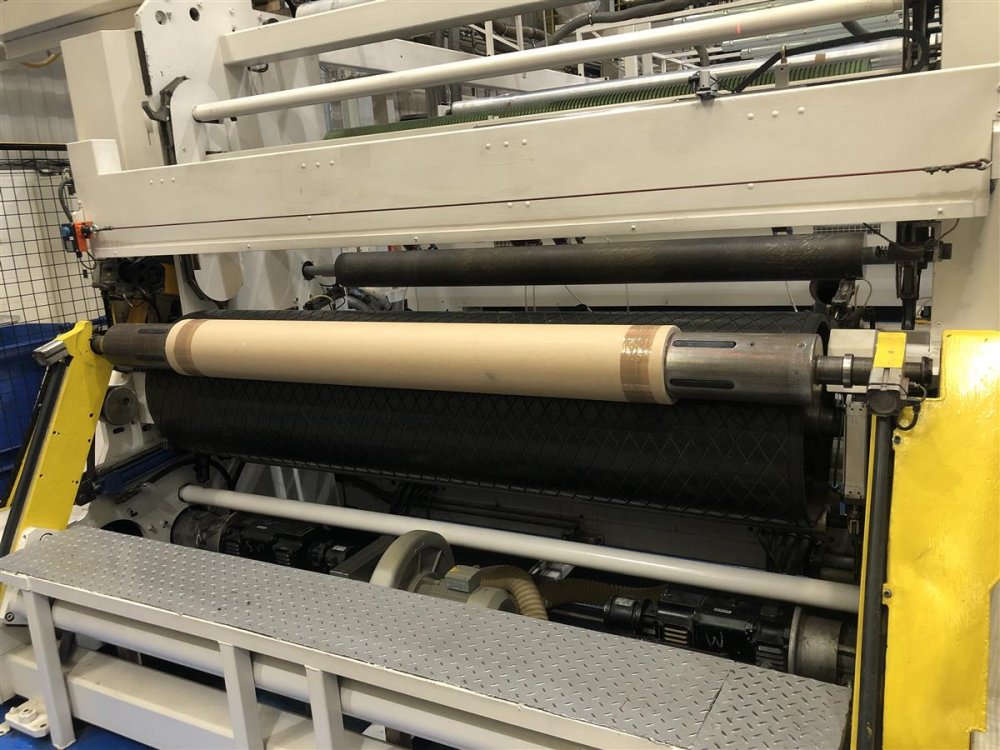

- Descrizione avvolgitore

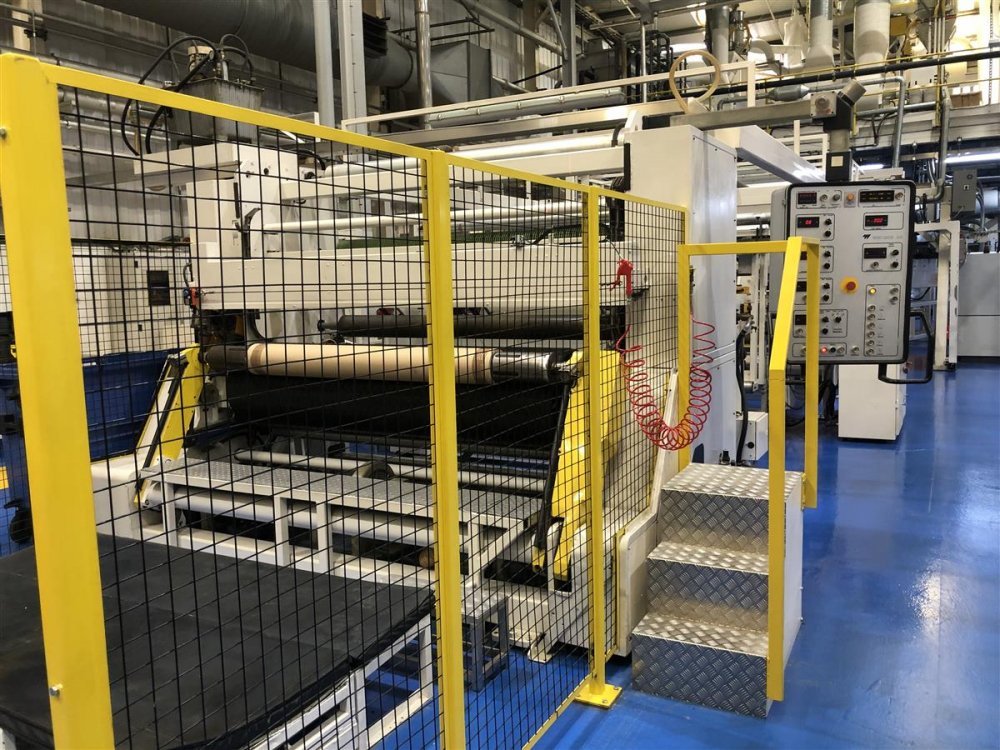

- Turret, Wintech, contact and gap winding
| Codice Macchina | CA196 |
| Manufacturer | GLOUCESTER |
| Year | 1986 |
| Numero di strati | 5 |
| Rinnovo | renovation in 2010 |
| Struttura film | BACAB |
| Materiali | CPP and CPE |
| Larghezza film (mm) | 1800 |
| Rif strati estrusore 1: | B |
| Screw diam 1 | 90mm |
| Description 1 | L/D 30 , Mcguire 4 comp gravimetric doser |
| Rif strati estrusore 2: | A |
| Screw diam 2 | 150mm |
| Description 2 | L/D 30, Gravimetric Hydreclaim six component continuous blender and doser. Edge re-feeding |
| Rif strati estrusore 3: | C |
| Screw diam 3 | 90mm |
| Description 3 | L/D 30 , Mcguire 4 comp gravimetric doser |
| Descrizione testa | Cloeren Epoch, internal deckling, flex lip with90 thermal bolts for auto thickness control, Pinning for the extruded material is by an Eltex electrostatic pinner system and a Cloeren vacuum box with a Cloeren airknife |
| Die width (mm) | 2300 |
| Unità chill roll | Two roll system with cast roll and cooling roll both roller are 500mm diameter. Cast roll is a Satex 12 textured design and cooling roll is bright chrome finished. |
| Controllo di spessore | Automatic. Gauge Thermofisher Beta gauge fitted 2018 with a Krypton 85 source |
| Trattamento Corona | Sherman 2 side with ceramic process roller |
| Guida film | oscillating frame |
| Rewinder max reel diameter (mm) | 1000 |
| Descrizione avvolgitore | Turret, Wintech, contact and gap winding |
